Summary of Contents for Akeeyo ALY-710S

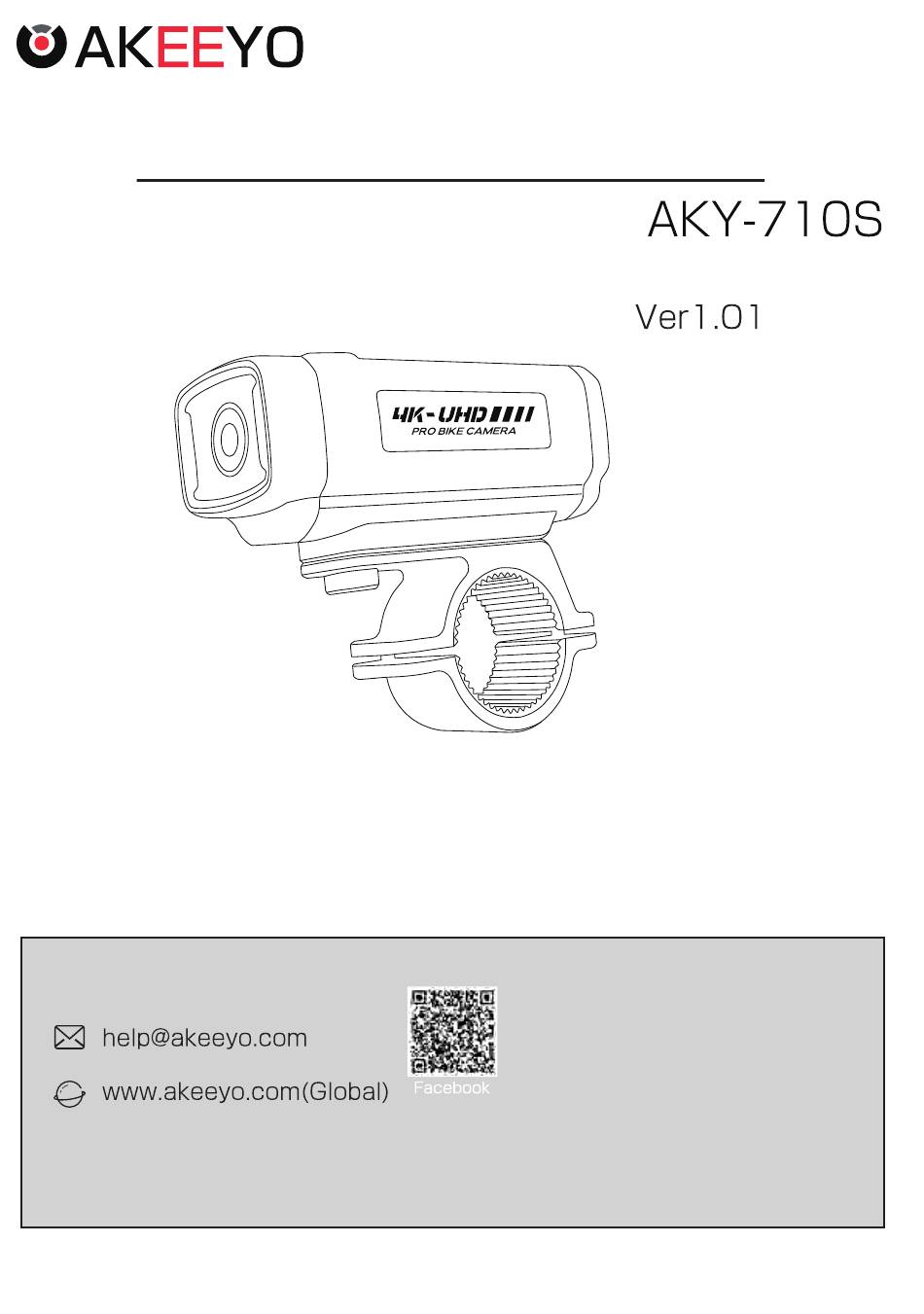

- Page 1 PRO BIKE CAMERA User Manual We appreciate your purchase of our product. Thank you very much. Before use, please review this user manual. If you have any questions, please contact our support center Contact Us...
- Page 2 Safe and correct use of lithium-ion secondary batteries 1) Do not leave batteries near infants. Please keep the equipment and batteries out of reach of children. Careless handling can be dangerous. 2) Do not leave batteries near pets. Do not leave batteries near animals or pets. Chewing may damage the battery, causing it to overheat, explode, or catch fire. 3) If the battery leaks, keep it away from fire. If the lithium-ion secondary battery leaks or emits a strange odor, immediately move it away from fire. Leaking electrolyte may ignite, causing an explosion or fire. 4) Do not short-circuit the battery. Do not carry or store batteries together with metal items such as necklaces, pins, coins, keys, etc. Metals conduct electricity, so if a metal object such as a key comes into contact with the positive and negative terminals of a battery, a short circuit will occur, causing a large current to flow, causing heat generation, rupture, or fire, or causing these metals to generate heat. 5) Do not puncture the battery with nails or step on it. Do not puncture the lithium-ion secondary battery with nails, hit it with a hammer, or step on it. Doing so may deform the lithium-ion secondary battery and damage its protective mechanism, causing overheating, rupture, or fire. 6) Do not throw batteries into fire. If batteries are thrown into a fire, they may explode or catch fire, which is extremely dangerous. Also, heating batteries is dangerous as they may leak, explode, or catch fire. 7) Do not put batteries in microwave ovens etc. Do not put batteries in the microwave or on top of an induction cooktop. It may heat up incorrectly, causing overheating, explosion, or fire. 8) Do not subject the battery or battery pack to strong impact. Do not subject the battery to strong impact, such as dropping it from a height, or throwing it. This may deform the lithium-ion secondary battery or destroy the protection mechanism built into the lithium-ion secondary battery, causing heat generation, explosion, or fire. 9) Do not leave batteries in high temperature places. Do not leave the product in high-temperature locations such as near a stop or inside a car under the scorching sun. This may cause fluid leakage, heat generation, explosion, or fire. 10) If you notice any abnormality with the battery, stop using it. If you notice a strange odor, heat generation, discoloration, deformation, or any other abnormality in the battery, please stop using it immediately.
-
Page 3: The Names Of Each Part
The names of each part power microphone Lens rear cover body Heat dissipation reset Type-C charging SD card slot accessory screws and screwdriver anti-theft adapter waterproof charging cable Conversion adapter① mounting buckle curved mount faced mount long screw adapter adapter tape tape... - Page 4 Option GPS charging cable Odometer installation bracket Helmet installation bracket Strap installation bracket Strap-mounted helmet bracket...
-
Page 5: Installation
installation Anti-theft bracket installation instructions: 1. Prepare all accessories such as anti-theft brackets, screws, screwdrivers, rubber sheets, etc. 2. Use a screwdriver to firmly screw the bracket and body together. 3. Use a small screwdriver to loosen the screws on one side of the bracket. 4. Once the bracket is in place and the bracket is in the correct position, use a screwdriver to tighten the screws on the bracket. 5. If the bracket shakes or is unstable after installation, you can use the included rubber sheet and put it inside the bracket to increase the stability of the bracket. 7. Please make sure all screws are locked and the anti-theft bracket is firmly installed and does not wobble while driving. Handle bracket installation instructions: Please prepare the F type bracket and the main body. 1.Attach the bracket to your bike and make sure the bracket is firmly fixed. 2. After fixing the bracket to the bike, align the screw hole on the bottom of the main unit with the screw on the bracket and tighten clockwise to ensure a stable installation. 3. Adjust the ball-shaped rotating head in the middle part of the bracket and loosen it counterclockwise. You can adjust the angle of the stand forward, backward, left and right as needed. 4. After adjusting to the best angle, tighten the ball swivel head clockwise to make sure the bracket is stable and the angle does not change. note: ・Before installation, please make sure that the installation location does not affect driving safety or visibility. - When adjusting the direction of the bracket, be careful not to collide with other parts. - To prevent accidental loosening while riding, check the bracket and connection parts regularly to ensure that the connections are secu... - Page 6 installation Adhesive helmet bracket installation instructions: 1. Please prepare accessories such as mounting buckle, curved mount, facing mount, double-sided tape, AEE adapter, 1/4 adapter, long screws, etc. 2. Select the appropriate mount (curved or facing mount) according to the curved or facing surface of the helmet. 3. Choose a suitable mounting location for the helmet and make sure the location is clean, dry, and free of oil and dust. 4. Peel off the protective film of the double-sided tape on the pedestal to expose the adhesive side. 5. Make sure the base is firmly attached to the helmet and install it, press lightly with your hand to make it stick completely. 6. Depending on the installation location, select AEE or 1/4 adapter to connect to the base. 7. Turn the long screw clockwise to secure the adapter and base. Connect the device you want to install to the adapter and make sure the device is firmly attached. Adjust the stand position according to your personal needs to ensure the device is at the right angle and orientation. please note: Please make sure there are no scratches or damage on the surface of the helmet before installation to avoid affecting the adhesion of the base. - After pasting the tape, it is recommended not to change its position frequently to maintain adhesive strength.
-
Page 7: About Sd Cards
About SD cards How to install SD card: The SD card has already been inserted into the main unit. 1. Open the back cover and check if the SD card is inserted correctly into the slot. 2.Gently press and hold until the SD card is locked in the slot. 3. Close the rear cover and make sure it is locked tightly and cannot be opened accidentally while driving. 4. Turn on the power and check if the device can read the SD card normally. How to remove SD card: 1. Turn off the power of the main unit. 2.Open the rear cover. Gently push the SD card until it pops out of the slot. Be careful not to damage the SD card or slot. 3. Carefully remove the SD card and store it safely or return it to its original packaging. please note: Please keep the area around the SD card slot clean to prevent dust and foreign objects from entering the slot to ensure normal use. -
Page 8: Post-Installation Procedures
Introduction to WiFi and APP The "AKEEYO" app is a free application that allows you to control the AKY-710S, 2.4G wireless LAN-equipped dash camera, from your smartphone. To install the app ②App Store or ① Read the QR code Search from Google Play. Please install it. AKEEYO 検索 Post-installation procedures The app appears on the home screen Make sure it is and click... - Page 9 Introduction to WiFi and APP Registration steps...
- Page 10 Introduction to WiFi and APP ①The WiFi of the machine is turned on by default after it is turned on. When it is turned off, short press 2 times to turn on the WiFi function. ②Open "AKEEYO" APP, click "Add Camera",Search the machineʼ s WiFi on your phone. ③After the machine's WiFi is displayed, click the WiFi name and enter the password to connect.The default Wi-Fi name is "AKY-710S-****" and the default password is "12345678". *The WIFI name will not be displayed unless the main unit is turned on. *The last 4 digits of the WiFi name are random. The WiFi name of each device is different. *Camera Wi-Fi name and password can be changed. ④After WiFi connection, move to the main page...
- Page 11 Introduction to WiFi and APP Battery condition Recording/Stop recording Screen rotation filming time Start recording/stop recording button photo button...
- Page 12 Introduction to WiFi and APP After clicking carmera file, you can view the recorded videos and photos, The following operation screens will be slightly different depending on the operating system of the mobile phone or mobile device used. Please understand in advance. Click carmera file, the recorded Video files are classified according to categories file can be played back and you can view the files as needed...
- Page 13 Introduction to WiFi and APP Play back and download videos ①Click on the video and confirm the video content on your phone ②Click the selection button in the upper right corner to select multiple videos and download multiple videos at the same time ③The downloaded video will be marked as downloaded...
- Page 14 Introduction to WiFi and APP Edit the downloaded video on your mobile phone ① You can adjust the playback speed of downloaded videos. ②Downloaded videos can be shared, edited, scripted, and deleted. ③After editing the video, tap Done and check it in My Album...
- Page 15 Introduction to WiFi and APP where is my album? Downloaded videos and edited videos Open AKEEYO APP Click on album will be stored here...
- Page 16 Setting items in APP Sound Recording ON/OFF Video Resolution Loop Recording Duration 1/3/5Minute(s) Frequency 50HZ/60HZ -2.0~+2.0 Exposure Compensation Time Stamp ON/OFF Mirroring ON/OFF Collision Sensing off/Low/Medium/High Parking Monitor ON/OFF WIFI Name AKY-710S-**** WIFI Password Firmware Version Format SD Card Raeset...
-
Page 17: Specifications
Specifications Model Product number PRO BIKE CAMERA Resolution 4K/2K/1080P Frame rate 60FPS/55FPS/30FPS/28FPS Lens Wide angle 142° Waterproof and IP66 dustproof level WIFI 2.4G SD Card 16GB〜256GB ≥USHⅢ 1800mAh Battery charging port USB Type-C Frequency 50Hz/60Hz Recording method Loop/Gsensor/Parking monitor/Image voice recording support release AKEEYO APP playback on smartphone/ PC playback (Windows/iOS) operating -10℃~60℃ temperature... - Page 18 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
