Congratulations on your Guide Gear® purchase.
Enjoy your new Guide Gear® item with confidence, knowing it has been
designed and built to deliver dependable quality and performance
at an exceptional value.

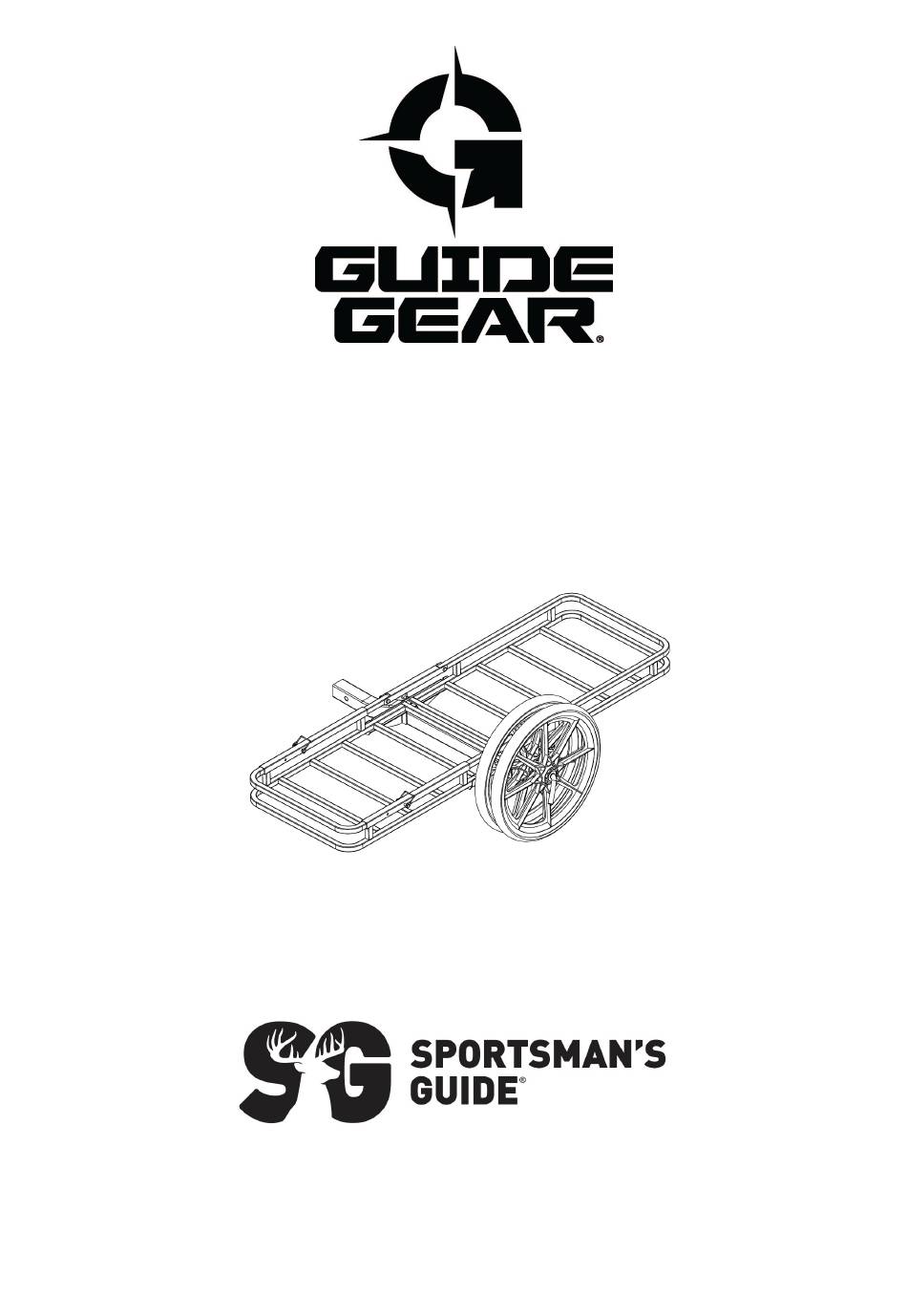

Item #707899 Guide Gear® Car-Go-Cart
For assistance with your product, please contact Sportsman's Guide customer
service at 1-800-888-3006 Mon.-Fri. 7:00am to 9:00pm, Sat.-Sun. 8:00am to 8:00pm
CST or go to sportsmansguide.com/customerservice/contactus
sportsmansguide.com
707899 - GG Car-Go Cart
1 of 8
Advertisement
Related Manuals for Sportsman's Guide Guide Gear 707899
Summary of Contents for Sportsman's Guide Guide Gear 707899
- Page 1 Congratulations on your Guide Gear® purchase. Enjoy your new Guide Gear® item with confidence, knowing it has been designed and built to deliver dependable quality and performance at an exceptional value. Item #707899 Guide Gear® Car-Go-Cart For assistance with your product, please contact Sportsman’s Guide customer service at 1-800-888-3006 Mon.-Fri.
-
Page 2: Safety Warnings
Read and understand all warnings, cautions, assembly, installation and use instructions prior to assembling, installing or using this product. Failure to follow all warnings, cautions and instructions may result in serious injury or damage to personal property. This owner’s manual and any labels on the product provide important use and safety information. DO NOT remove or obscure the safety warning labels on any of your products. -
Page 3: Diagram & Parts List
Diagram & Parts List Part# Description Q’ty Part# Description Q’ty Left carrier frame The bent pin Right carrier frame M6 washer U-tube handle Hand wheel Connecting swivel tube The long bent pin M8*35 outer hexagon bolt Protective sleeve M8 Lock nut Solid roller quare pin M3.8 split pin... - Page 4 ASSEMBLY INSTRUCTIONS AND REQUIRED TOOLS Monkey Wrench (1 Open Wrench (1 pc.) pc.) Size=300mm Size=13mm 1. Install the left carrier frame along the black arrow direction (1), fit the rotary shaft and axle sleeve together with the right carrier frame (2). See FIG 1. FIG: 1 2.
- Page 5 3. (4) Insert the rotating joint pipe into the u-tube handle, align the hole position, and fix the u-tube handle with the rotating joint pipe by (5) M8*35 outer hexagon bolts (4Pcs) and (6) M8 lock nut (4Pcs). And then fix the other end of the rotating connecting pipe in the same way with right carrier frame(2).
- Page 6 5. Install the assembled carrier frame of Step4 on the bottom welding assembly (8). Align the hole on the center. Insert the bent pin (9) down into the axle sleeve, through (10) M6 washer (2pcs) in sequence, compress the bottom of the carrier frame as shown, screw the hand wheel (11) (2pcs).
- Page 7 FIG: 6 7. The following steps are from carrier to the trolley. Loosen the bent pin, clamp the hand wheel, rotate bending pin to 90 degrees as loosen state, pull the square of the fixed the square pin (2 PCS), turn up the right carrier frame, the U- tube handle stretched out automatically from the left carrier frame, and adjust the U- tube handle after spinning in place, insert and fix the square pin (2pcs) , pull out the long bent pin, then move out the carrier frame until see the square tube in the middle of the frame.
- Page 8 8. Below are the working Sketch. See FIG 8. Trolley Carrier FIG: 8 SG 02.22 sportsmansguide.com 707899 - GG Car-Go Cart 8 of 8...
