Summary of Contents for Bentley KR-BIS

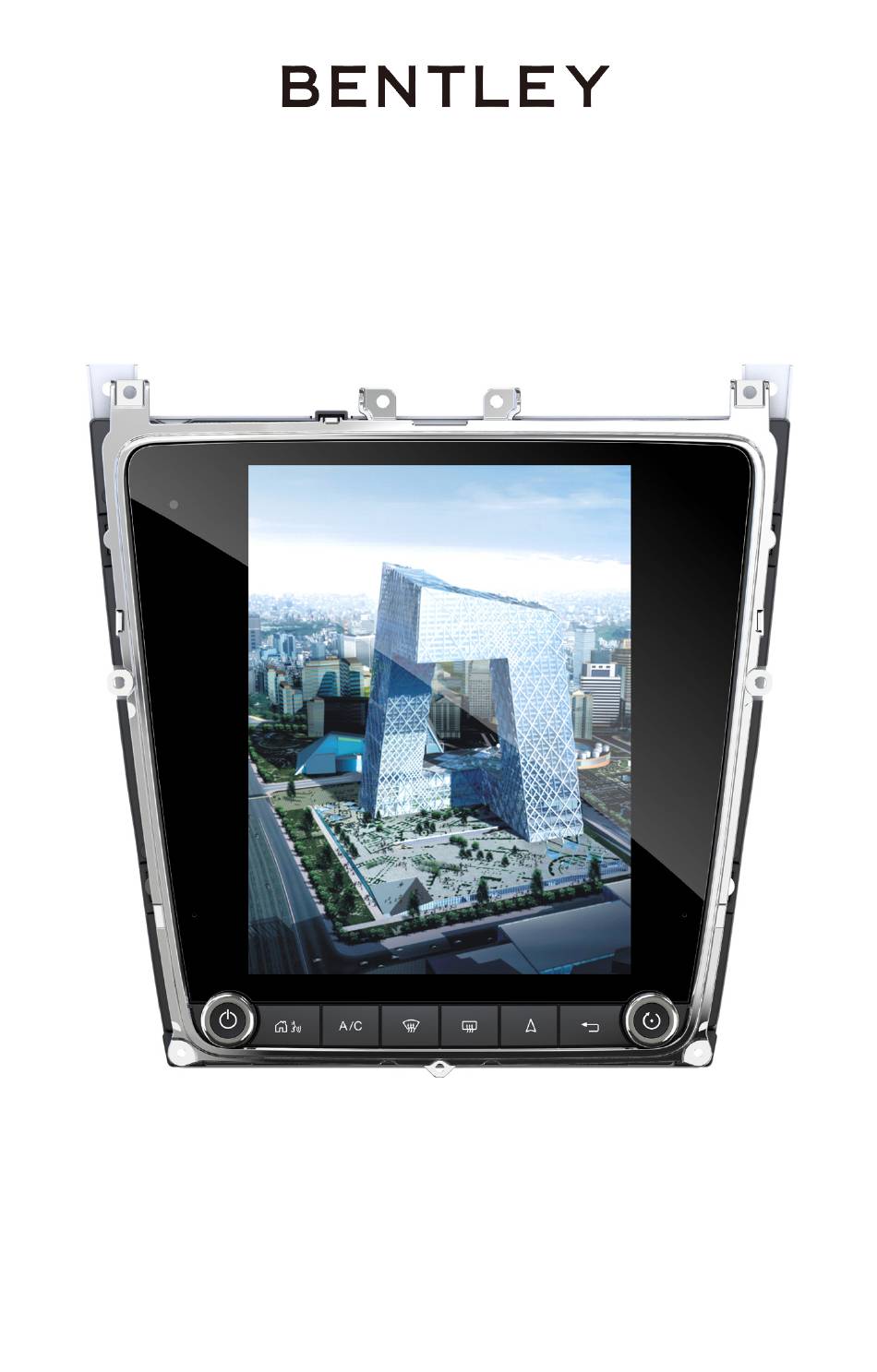

- Page 1 IVI Head Unit, 9.7" Screen, Media Box Bentley Infotainment System (BIS) KR-BIS INSTRUCTION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Do not change the fuse on the power Please read through these operating cord without professional guidance. instructions so you will know how to Using an improper fuse may cause operate your model properly. Please damage to this unit or even cause fire. - Page 3 Safety Precautions 1. Never disassemble or adjust the unit without professional guidance. For further details, please consult an authorised service provider or dealer. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to clean.
-
Page 4: Front Panel
Basic Operation Front Panel POWER button Switch on/off device HOME/Voice Control button Call up main menu Activate voice control Airconditioner buttons Navigation shortcut button BACK button Return to previous menu Rotary-knob Touch screen... -
Page 5: Power On/Off
Basic Operation Power On / Off Press the [ ] knob on the bottom left of the unit. The unit starts and the current mode status appears in the LCD. Press and hold the [ ] knob to power off the unit. Volume Adjustment To increase or decrease the volume level, rotate the [ ] knob on the front panel. -
Page 6: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action Unit fuse blown. Install new fuse with correct rating. Unit can not power Car battery fuse blown. Install new fuse with correct rating. -
Page 7: Specification
Specification Reference Supply Voltage ..............12V(DC) Operating Voltage Range .............. 9 - 16V(DC) Max Operating Current ................15A Screen Size ..................9.7 inch Operating Temperature..............-20°C ~ +60°C Storing Temperature ..............-30°C ~ +80°C Operating Humidity ..............45%~80%RH Storing Humidity................30%~90%RH Function Operation Frequency Range Bluetooth 2402 to 2480MHz Wi-Fi... -
Page 8: Wire Connections
Wire Connections DAB Antenna GPS Antenna Radio Antenna LVDS USB Functions Video in RGBS GND Functions Functions Audio RR+ MIC in - Audio RF+ Audio LF+ Video in RGBS GND Audio LR+ Video in shield GND Audio RR- Video in Sync Audio RF- Video in green Audio LF-... -
Page 9: Fcc Radiation Exposure Statement
EU Declaration of Conformity http://www.kraemer-automotive.com/. hereby declares that this product Bentley Infotainment System(BIS) KR-BIS is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. - Page 10 ISED Statement IC: 20577-KRBIS Model name: KR-BIS - English: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.The digital apparatus complies with Canadian CAN ICES-3...
