Arditi PRO DALI DT8 Manual

Multi-addresses PRO DALI DT8 LED Controller
2
Important: Read All Instructions Prior to Installation

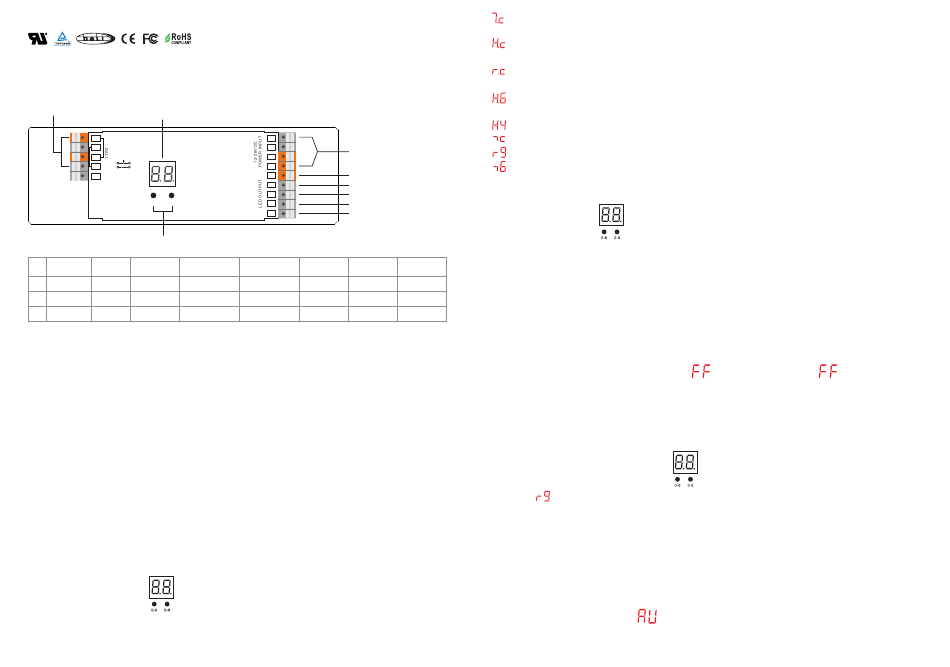

Function introduction
2 groups DALI
signal input & output
Digital display
DA
DALI DT8 Controller
DA
DA
PUSH DIM
L DA
DA
N DA
NC
0-6 0-9
Manual set button
Product Data
Input
Output Output
No. Remarks
Voltage Current Power
4x5A Constant voltage
1 12-36VDC 4x(60-180)W
4x350mA Constant current
2 12-36VDC 4x(4.2-12.6)W
3 4x700mA 4x(8.4-25.2)W
12-36VDC Constant current
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• Multi-addresses enabled DT8 control gear
• Multi-devices integrated in one control gear
• Multi-functional, 6 in 1: Tc, RGBWAF, XY, 2*Tc, XY+W (DT6), DT6
• DALI address manually assignable through manual set buttons and showed on the display
• Can be set as different device types: single-address types or multi-addresses types
• Single-address device types: Tc, RGBWAF, XY, DT6
• Multi-addresses device types: 2*Tc, XY+W (DT6)
• 4 Channels constant voltage output
• Control of four PWM outputs via DALI device type 8
• Color control as defined in the DALI specification device type 8
• Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Color temperature and RGB color control through push dim mode even if without DALI
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1. Select a DALI Device Type
1.1. Press and hold down both buttons until digital display flashes, then release the button.
1.2. Keep clicking the 2nd button, you will get the 8 device types one by one as follows, 6 of them are valid
modes, please ignore the other 2 modes which are invalid here:
70040048-ZW
V-
V-
12-36V DC power input
V+
V+
+ Common Anode output(+)
R/ CH 1:R/WW output(-)
WW-
G/
CH 2:G/CW output(-)
CW-
B/
CH 3:B/WW output(-)
WW-
W/
CH 4:W/CW output(-)
CW-
DALI Dimming Ambient
Size(LxWxH)
Consumption Range Temperature
170x53.4x28mm -20℃ ~ +50℃
2mA 0.1%-100%
170x53.4x28mm -20℃ ~ +50℃
2mA 0.1%-100%
2mA 0.1%-100% -20℃ ~ +50℃
170x53.4x28mm
, means 2 Tc color type devices integrated in one control gear, which can control 2 groups of tunable white LED
separately using 2 DALI addresses under this mode.
(invalid mode since this mode requires 5 PWM channels) ,
one control gear, which can control RGB & CCT LED separately using 2 DALI addresses under this mode.
(invalid mode since this mode requires 5 PWM channels) ,
integrated in one control gear, which can control RGB & CCT LED separately using 2 DALI addresses under this mode.
, means XY & DT6 type devices integrated in one control gear, which can control RGB & W LED separately using 2
DALI addresses under this mode.
, means XY coordinate color type, which can control RGB LED using 1 DALI address under this mode.
, means Tc color type, which can control tunable white LED using 1 DALI address under this mode.
, means RGBWAF color type, the device can control RGBW LED using 1 DALI address under this mode.
, means DT6 device type, which can control single color LED using 1 DALI address under this mode.
1.3. Select a device type you would like and then press and hold down both buttons until digital display stops
flashing to confirm the selection.
2. Setting DALI address
2.1. Press and hold down the first button on the left until digital display flashes, then release the button.
2.2. Click any of the two buttons once to select a digit, click again to change the digit until the desired DALI
address appears. Click first button to set "tens" position and second button to set "units" position. The address
can be set from 00~63.
2.3. Then press and hold down any of the 2 buttons until the numeric digital display stops flashing to confirm the
setting.
Note: DALI address can be manually assigned from 00-63-FF, by factory defaults, no DALI address is
assigned for the dimmer, and the display shows
dimmer to factory defaults.
Once an address is selected, depending on the device type selected, the control gear may occupies 2
consecutive addresses or 1 address. For example, if the control gear is addressed to 22 on the display,
when the device type is multi-addresses type, the control gear occupies address 22 & 23, when the
device type is single-address type, the control gear occupies address 22.
3. Setting the Number of Output Channel
3.1 Under mode, press and hold down the second button until digital display flashes, then release the
button.
3.2 Click the first button to switch between 3A and 4A. 3A means controlling three output channels RGB, 4A
means controlling four output channels RGBW.
3.3 Then press and hold down the second button to confirm the setting.
4. DALI Address Assigned by DALI Masters
DALI address can also be assigned by DALI Master controller automatically, please refer to user manuals of
compatible DALI Masters for specific operations.
Note: The digital display will show When the DALI master is assigning addresses. When the
device type is multi-addresses type, the control gear will be discovered as 2 separate devices.
means XY & Tc color type devices integrated in
means RGBWAF & Tc color type devices
. Setting DALI address as will reset the
