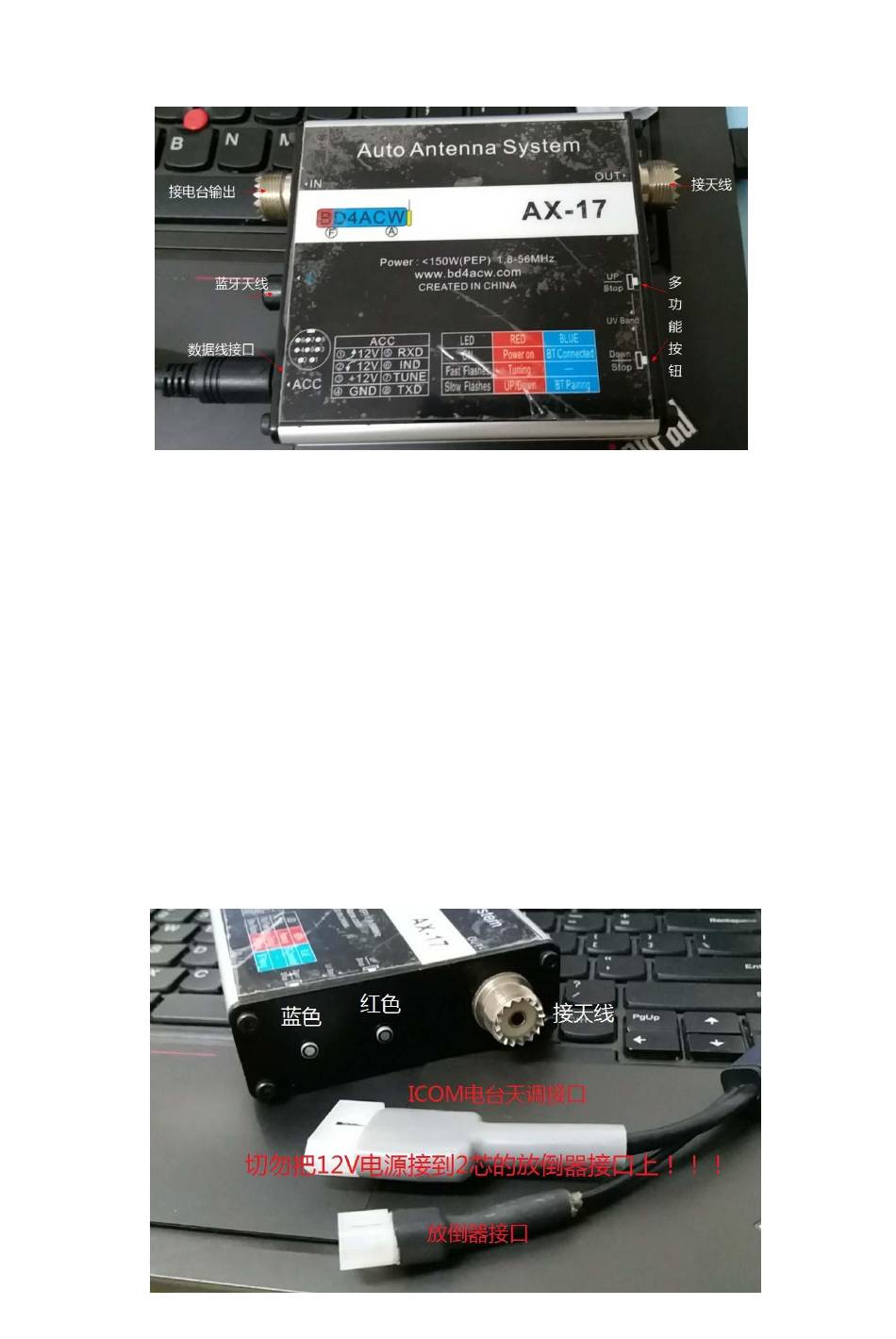

1. The left SL-16 interface of AX-17 is connected to the radio frequency output port, and the SL-16

RF port on the right is the connection port for antenna.

2. The black bump in the left middle is a Bluetooth antenna.

3. ACC is an 8-core data cable interface, as defined in the table on the left side of the controller panel.

4. The definition of the two multi-function buttons on the right is on the right of the controller panel.

A. After the power is connected, the DOWN button will flash the blue light, indicating that the

Bluetooth is not successfully connected to the mobile phone. If they are successfully connected,

the blue light will always be on; and if the UP button always be on with the red light, it is

indicating that the power is on;

B. Red light flashes when the AX-17 automatic controller is tuning, or the red light will flash once

every time you press the tuning button in the mobile APP; pressing the UP or DOWN button will

make the dump up or down;

C. Press the UP and DOWN buttons at the same time will lower the antenna to the bottom, which

is the UV segment status of ATAS-120A, M-120A and M-130A antennas.

AX-17 Automatic Controller Manual

Need help?

Do you have a question about the AX-17 and is the answer not in the manual?

Page 1 AX-17 Automatic Controller Manual 1. The left SL-16 interface of AX-17 is connected to the radio frequency output port, and the SL-16 RF port on the right is the connection port for antenna. 2. The black bump in the left middle is a Bluetooth antenna.
Page 2 5. The 4-core interface of data cable is the antenna tuner interface connected to ICOM station. If you use other radio stations except ICOM, you need a external power supply of 12V-15V, the red external power cable is positive, black is negative, do not connect it incorrectly. 6.
Page 3 After Bluetooth is connected, the reliable communication distance between the mobile phone and AX-17 is 5-6 meters. After the Bluetooth communication interruption, please restart the APP software.
Page 4 1. The frequency, power, and standing wave ratio at the top of Figure 4 are not completed; the stations outside the ICOM brand are called “general” here. 2. ICOM single option: If it is an ICOM station, please click "ICOM" and select. 3.
Page 5 8. TUNE button: it is dedicated for radio stations except ICOM, such as FT-817, DIY and other radio stations without TUNE automatic tuning button, or there is automatic tuning button, but without communication with AX-17 automatic controller; realize supplementary TUNE automatic tuning button;...
