Summary of Contents for Diamond WR300NSI

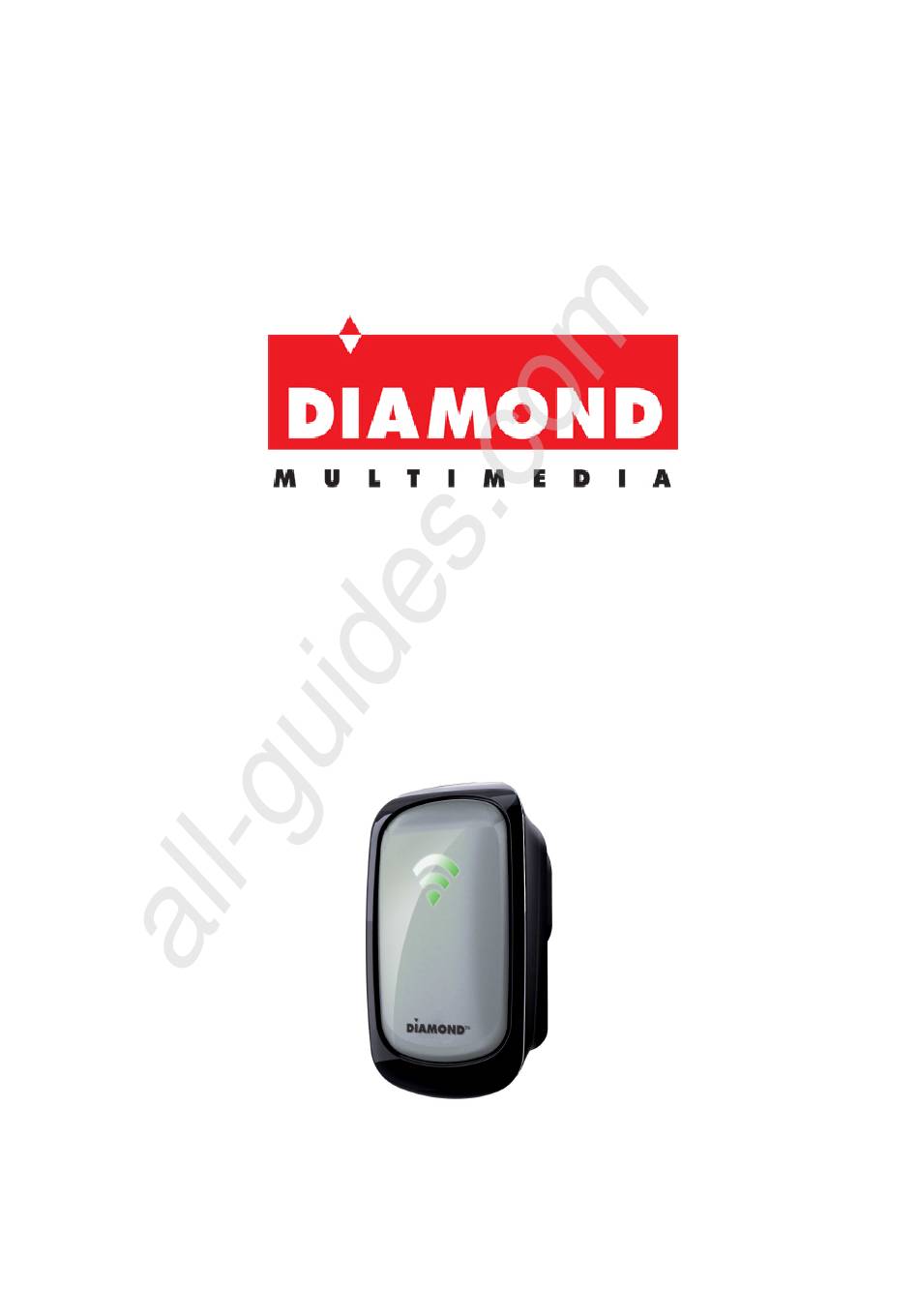

- Page 1 All manuals and user guides at all-guides.com WR300NSI Portable Wireless-N Repeater...
- Page 2 All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia Page 2 of 31...
-
Page 3: Table Of Contents
System Password ....................17 System Password System Password Configuring the Device ..................... 19 Wireless Repeater ..................20 Wireless Access Point ................21 Wireless Bridge..................22 Configure WR300NSI to Wireless Router via WPS ..........24 FCC Notice ......................... 29 Page 3 of 31... -
Page 4: About The Device
Ex x x x t t t t e e e e n n n n d d d d t t t t he he he he W W W W i i i i F F F F i i i i N N N N e e e e t t t t w w w w ork WR300NSI supports robust 802.11n technology with up to 300Mbps data transfer rate. -
Page 5: Minimum System Requirements
Ethernet network adapter Or Wireless network adapter Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models. WR300NSI Ethernet cable Easy Start Guide Resource CD Page 5 of 31... -
Page 6: Device Overview
All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia Device Overview Front Panel Page 6 of 31... -
Page 7: Top Panel
DESCRIPTION LED RRSI 3 BARS Connected 95% and above RSSI (Excellent) 2 BARS Connected 55-94% RSSI (Recommended) 1 BAR Connected 10-54% RSSI (Weak) Top Panel LABEL DESCRIPTION WPS BUTTON Connect WR300NSI to any WPS capable devices Page 7 of 31... -
Page 8: Bottom Panel
All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia Bottom Panel LABEL DESCRIPTION RESET Press the Reset button for 5 seconds to restore the device to default factory settings ETHERNET PORT Connect to computers/Ethernet devices Page 8 of 31... -
Page 9: Accessing The User Interface
All manuals and user guides at all-guides.com User Manual Accessing the User Interface To access the User Interface open a Web browser (Ex: Internet Explorer, Firefox or http://10.0.10.254 in the address bar and press enter. G.chrome) and type Quick Connect Quick Connect icon to scan for available wireless within the area. -
Page 10: Setup
All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia Setup Mode of Operation Mode of Operation Mode of Operation Mode of Operation Repeater Repeater Repeater Repeater Configure your device as a wireless repeater to extend the wireless coverage of your wireless router. -
Page 11: Wireless
All manuals and user guides at all-guides.com User Manual ASCII 64bit – uses 5 characters alpha numeric password (A-Z and 0-9) 128bit – uses 13 characters length of password from (A-Z and 0-9) Uses strong encryption, some legacy devices may not be able to associate with this type of encryption WPA2 WPA2... -
Page 12: Wireless Security Settings
Set this option to enable or disable WPS (Wifi Protected Setup) feature on this device Enrollee PIN Enrollee PIN Enrollee PIN Enrollee PIN Enter this PIN to wireless client that will be connecting to WR300NSI repeater to automatically configure the wireless device. Registrar PIN Registrar PIN Registrar PIN... -
Page 13: Mac Filter Settings
All manuals and user guides at all-guides.com User Manual Here you can enter the WPS-PIN of wireless clients and click apply for the WR300NSI to allow access and configure your wireless client device automatically Note: WPS will work only for WPA-PSK, WPA2-PSK and WPA/WPA2 encryption. Wireless client should support WPS feature to use this option. - Page 14 All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia MAC Address MAC Address MAC Address MAC Address Type the MAC address of the wireless client here and press to add on the list. Removing MAC address from the list...
-
Page 15: System
All manuals and user guides at all-guides.com User Manual System Device Information Firmware Version Firmware Version Firmware Version Firmware Version Shows the current firmware version of the device Build Date Build Date Build Date Build Date Shows the date when firmware is created Serial Number Serial Number Serial Number... -
Page 16: Lan Configuration
Shows the device’s current IP address Note: Note: Note: Note: Change this IP address if you are using two WR300NSI on the same network to avoid IP address conflict within your network. You may configure the 2 unit with IP address ex: 10.0.10.253... -
Page 17: Firmware Upgrade
All manuals and user guides at all-guides.com User Manual Update Update Update Update Here you can load the saved configuration of your WR300NSI. Click browse and load the saved settings by clicking on the apply button. Restore Restore Restore Restore Click on the apply button to reset the unit back to its factory settings. - Page 18 Type your password and click on apply to activate this feature. To disable, simply remove the password and click apply to save your settings. Note: Note: Note: Note: forgotten password will not be recovered. Reset the device pressing the reset button found beside the Ethernet port of WR300NSI. Page 18 of 31...
-
Page 19: Configuring The Device
All manuals and user guides at all-guides.com User Manual Configuring the Device Placement of the Wireless Repeater is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet loss. -
Page 20: Wireless Repeater
Diamond Multimedia Wireless Repeater a. Plug your WR300NSI to a power outlet, switch it ON and connect the Ethernet cable between your WR300NSI and Computer b. Launch web browser and you will be directed to the User Interface (In case it does not open type 10.0.10.254 and hit enter) -
Page 21: Wireless Access Point
SETUP DIAGRAM (REPEATER) Wireless Access Point Setup your WR300NSI as an access point to provide wireless network to router that doesn’t have wireless feature. Page 21 of 31... -
Page 22: Wireless Bridge
Go to Setup, set Mode of Operation to Access Point Type the name of your wireless network under SSID Type the password of the wireless network and click apply Connect the WR300NSI to router’s LAN port after the settings have been saved. SETUP DIAGRAM (AP) Wireless Bridge... - Page 23 (BRIDGE) Modem WR300NSI Wireless Router WPS or Wifi Protected Setup makes it easier for you to connect your WR300NSI to your wireless router and WR300NSI to your wireless devices with a push of a button. (WPS Page 23 of 31...
-
Page 24: Configure Wr300Nsi To Wireless Router Via Wps
WR300NSI) Configure WR300NSI to Wireless Router via WPS a. Press the WPS button of WR300NSI for 5 seconds b. Press the WPS button on your router for 2 seconds within 2 minutes time Page 24 of 31... -
Page 25: Safety Precautions
All manuals and user guides at all-guides.com User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists are allowed to service the equipment. Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment. - Page 26 | WR300NSI User Manual Diamond Multimedia Technical Support Diamond Technical Support staff is here to help resolve any issues that you may be experiencing. Prior to contacting technical support please make sure you have the following information available. 1. Model #: (Printed on the bar code, located on the box) 2.
- Page 27 (1) year from the date of purchase. All cables and accessories provided with a Diamond product are warranted to be free from defects in materials or workmanship under normal use and service for a period of for (90) ninety days from date of purchase.
- Page 28 | WR300NSI User Manual Diamond Multimedia TO THE FULLEST EXTENT ALLOWED BY LAW, DIAMOND ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND, OR FOR...
-
Page 29: Fcc Notice
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Diamond Multimedia could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. - Page 30 All manuals and user guides at all-guides.com | WR300NSI User Manual Diamond Multimedia © Copyright 2010 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
- Page 31 All manuals and user guides at all-guides.com User Manual Page 31 of 31...
