ev.energy waEV charge EV1s Installation And Setup Manual

Hide thumbs

Advertisement

Table of Contents

i
S S
Installation and Setup Guide
&
The next generation of EV chargers...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the waEV charge EV1s and is the answer not in the manual?

Questions and answers

Related Manuals for ev.energy waEV charge EV1s

Summary of Contents for ev.energy waEV charge EV1s

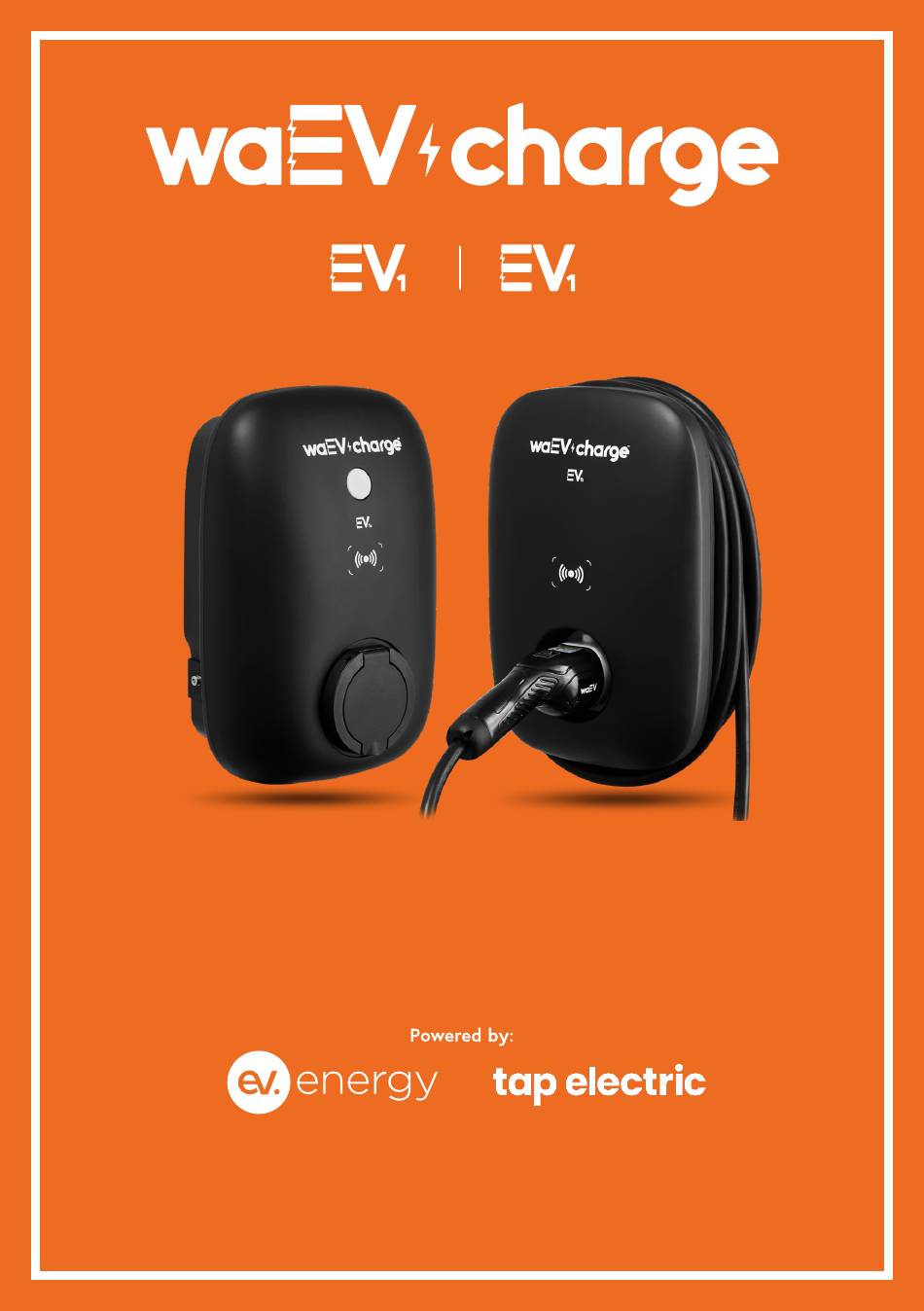

  • Page 1 Installation and Setup Guide & The next generation of EV chargers...

  • Page 2: Important Safety Notice

    1. Important Safety Notice This charger complies with Mode 3 (IEC61851 and CE-LVD). When using electric chargers, basic precautions should always be followed. This manual contains important instructions, including the following, that must be followed during installation, operation and maintenance. •...
  • Page 3 • Risk of electric shock. Do not remove cover or attempt to open the enclosure or the device when power is on. • To reduce the risk of serious injury or death and damage to the charger, this device should be installed, adjusted, and serviced by a qualified electrician, familiar with the construction and operation of this type of charger and the dangers involved.
  • Page 4 2. waEV-charge EV1i & EV1s Basic Interface LED Light Indication Charging Mains Cable Inlet Cable Inlet & CT Clamp (optional) LAN Cable Inlet...
  • Page 5 3. waEV-charge EV1i & EV1s Dimensions 250.0m 250.0mm m 3 3 61.5m 61.5mm m 111.5m 1.5mm m 122m 122mm m 72mm m...

  • Page 6: Specification

    4. Specification waEV-charge EV1i & EV1s waEV-Charge EV1 Model Name Rated Input Voltage AC220〜240V / Single Phase AC400±10% / Three Phase Rated Output Current 16/32A 50/60 Hz AC Power Frequency UVP, OVP, SPD, 6mA DC RCD & Ground Fault Protection Input Protection OCP, OTP, Control Pilot Fault Protection , DLB...
  • Page 7 Standby - Blue Light READY The READY light stays illuminated in standby mode. Waiting for Charging - Green Light After the charger plug CHARGE is connected to the vehicle inlet, the CHARGE light is constantly lit Charging - Green Light Flashing CHARGING The CHARGE light flashes while charging.

  • Page 8: Packing List

    Fault - Red Light The red light is lit the charger is in FAULT fault mode. Please refer to section “8 Error and Warning Messages” for detailed information. 6. Packing List waEV-charge EV1i Series Installation & Setup Guide...

  • Page 9: Installation Instructions

    7. Installation Instructions 7.1 Safety Requirements • Be sure to read the installation manual in full and ensure local building and electrical regs are reviewed before installing the AC charger. • The AC charger should be installed by a qualified electrician according to the install manual and local safety regulations.
  • Page 10 7.2 Wiring waEV-charge EV1i & EV1s - 7kW - Single Phase For safe installation, it is recommended to install a double pole isolator on the input part of the EV charger. Connect the L1 lead to the grid L1, connect the L2 lead to the grid L2, connect the L3 lead to the grid L3, connect the N lead to the grid N, connect the PE lead to the grid PE (for Three Phase) L L N N PE PE...
  • Page 11 waEV-charge EV1i & EV1s - 22kW - Three Phase For safe installation, it is recommended to install a double pole isolator on the input part of the EV charger. Connect the L1 lead to the grid L1, connect the L2 lead to the grid L2, connect the L3 lead to the grid L3, connect the N lead to the grid N, connect the PE lead to the grid PE (for Three Phase) L1 L1 L2 L2 L3 L3 N N PE PE Circuit Breaker Options table...

  • Page 12: Tools And Materials Required

    The waEV-charge EV1i & EV1s charger must be connected to a strong WiFi signal in order to function correctly with the ev.energy app. If the WiFi signal strength is 2 bars or lower, we strongly advise the use of a WiFi booster or alternatively the charger to...
  • Page 13 7.4 Wall Mounted Bracket Installation Step 1: • Set the positions of the 4 screw holes and drill them, with a diameter of 8mm and a depth of 52mm. • Use 4 sets expansion screw and M6 screw to fix the wall-mounted bracket on the wall.
  • Page 14 Step 3: Fix the two M5 security TORX screws to complete the installation. Overall outlook picture after installation: CT Clamp (Optional): Wall-mounted cable winding Consumer Uni Consumer Unit t waEV Charger Meter Cable P1 P1 Electricity Electricity Meter Meter...

  • Page 15: Error And Warning Messages

    8. Error and Warning Messages Status Remark Auto Recover Input OVP 1 flash followed by 3 sec pause Auto Recover Input UVP 2 flashes followed by 3 sec pause Auto Recover Output OCP 3 flashes followed by 3 sec pause Auto Recover 4 flashes followed by 3 sec pause Auto Recover...
  • Page 16 9. Charger WiFi Setup via waEV-charge App Scan QR Code to download installer app or head to: https://waevcharge.co.uk/waevcharge-installer-info Open the waEV App and Select the Charger to Enter the Access Code Select Installer Setup Configure and Press Confirm Select “Installer Setup”. Click on the relevant CPID.
  • Page 17 PLEASE NOTE: waEV-charge EV chargers must be connected to a 2.4GHz band WiFi network! Wait for the Charger to Check Log for Connection Enter the WiFi Password. Connect to WiFi Success The WiFi password will be located on the Once connected, the charger status light Connection successful will be customer’s router or access point.
  • Page 18 10. ev.energy App Commissioning Scan QR Code to download ev.energy or head to: https://app.ev.energy/commissioning/waev-charge/activate/ Please make sure the charger has been rebooted in the WiFi setup before completing this step. Open the ev.energy Create your account Continue to the with ev.energy...
  • Page 19 Enter your serial number in Your charger is Your setup is the box successfully online now complete Still need help? support@ev.energy If you’re stuck, you can contact us at for help. 0203 958 4254. Alternatively, for business-hours support call you can dial:...
  • Page 20 11. Tap Electric Commissioning Scan QR Code to download installer app or head to: https://waevcharge.co.uk/waevcharge-installer-info IMPORTANT: You must Open waEV-charge App and Select the Charger to reboot the charger Select Installer Setup Configure before commissioning. Select “Installer Setup”. Click on the relevant CPID. Enter the Access Code Select the Tap Electric Enter the OCPP URL for...
  • Page 21 6. Selecting “get device info” will display the WiFi details and OCPP URL, this should match the customer WiFi SSID & password and URL. 7. If the customer has already signed up for the ev.energy app, please ensure you use the same email address for the ev.energy commissioning portal. Once complete, ask the customer to fully close the ev.energy app (or reboot phone if...

  • Page 22: Maintenance And Repairs

    12. Maintenance and Repairs 12.1 Daily Maintenance Please keep the charger clean and keep in a clean area with low humidity. Do not install it in an environment near the sea, high humidity or high levels of dust. • Avoid moisture or water in the charger. If there is water or moisture ingress into the charger, it is necessary to immediately power off to avoid immediate danger, and notify your installer to carry out a full safety inspection before future use.
  • Page 23 During the warranty period for any malfunction caused by normal use according to the User Manual and Service Instructions (to be determined by certified maintenance technicians of waEV-charge), the product shall be repaired free of charge. Except for the following situations, the charger shall be subject to the above warranty terms: 1.
  • Page 24 Customer Services & Technical Support Problem connecting to the ev.energy app? Contact us: support@ev.energy Alternatively, for business-hours support call ev.energy: 0203 958 4254 E - support@waevcharge.co.uk W - waevcharge.co.uk/support SUPPORT Installer App Access Code @waevcharge...
