SomnoMed SomnoDent FUSION Quick Start Manual

LUG
ADJUSTMENT
SCREW
ARM

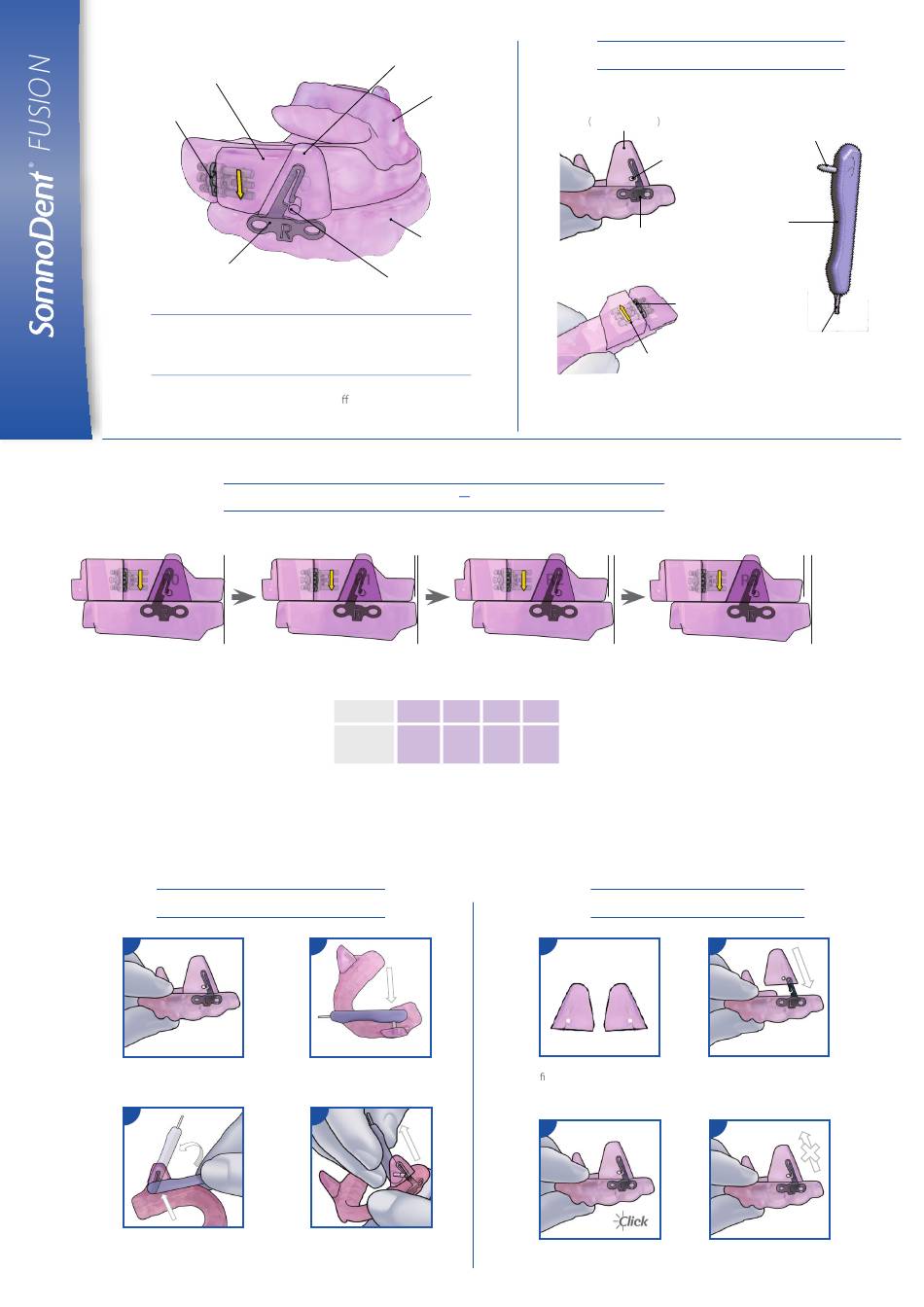

GET TO KNOW YOUR
FUSION DEVICE
This Guide will help you identify the di erent parts of your new
SomnoDent® FUSION.
ADJUST YOUR FUSION USING THE WINGS
Wing 0
Starting Position*
* THE STARTING POSITION IS DIFFERENT
FOR EACH PATIENT AND IS DETERMINED
BY THE DENTIST.
Your SomnoDent® FUSION can be advanced in easy 1.0 mm steps by
replacing the wings, giving up to a total of 3.0mm progression.
Adjustments should be made gradually for your utmost comfort.
WING REMOVAL
1
Grip lower arch for
controlled removal.
3
Rotate Tool 90° to begin releasing
Wing. Note: Firmly press the Tool
against the inside surface of the Wing.
WING
UPPER
LOWER
RELEASE
SLOT
1 mm
Wing 1
(1.0 mm)
0 1
WING
ADJUSTMENT Starting
1.0
(mm)
Position
2
Align the pin to release slot
and gently press pin in place.
4
Lift Wing in direction of
the metal arm.
WINGS & SCREWS
WING
REMOVABLE
RELEASE
SLOT
ARM
L = LEFT
FORWARD
DIRECTION
The FUSION can be adjusted by changing the wings and/or
by using the adjustment screw.
2 mm
Wing 2
(2.0 mm)
2 3
2.0 3.0
WING INSTALLATION
1
L1 R1
Choose the pair of wings. Always
t both wings! Pay attention to the
number and the left/right markings!
3
You will hear an audible 'Click'
when Wing is installed correctly.
RELEASE TOOL
CALIBRATION
TOOL
KEY HOLE
TITRATION
KEY
3 mm
Wing 3
(3.0 mm)
2
Grip arch and gently push
Wing onto arm.
4
Installation is complete if the Wing
cannot be removed by hand.
