Telguard DataBurst TG-100 Quick Install Manual

Telguard DataBurst

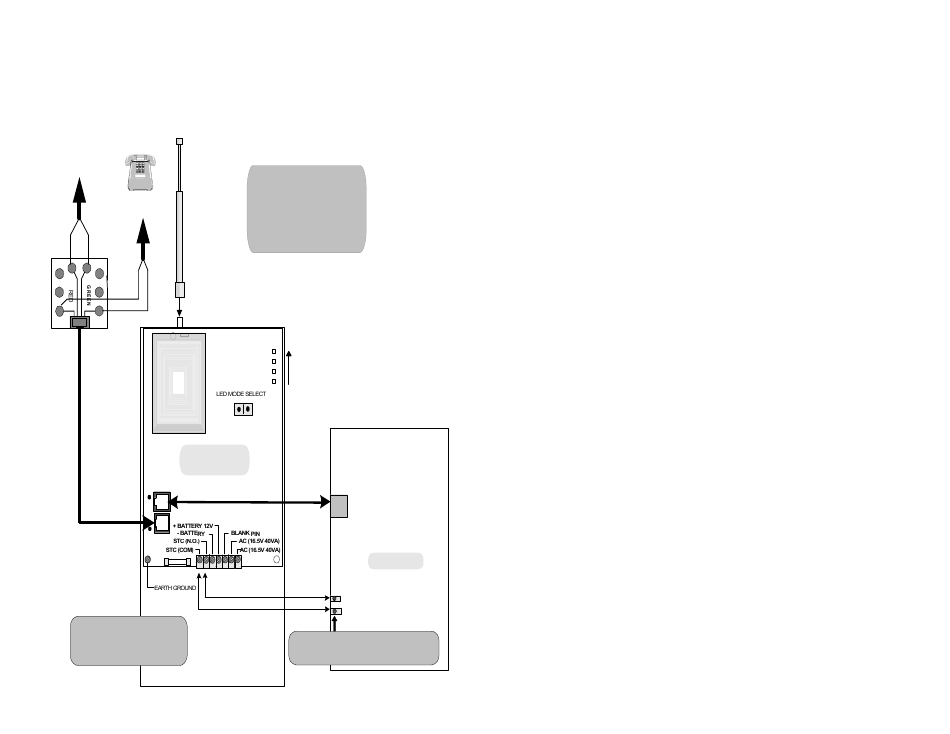

TG-100/200/300 Diagram
INCOMING
TELCO
ANTENNA
PREMISE
PHONE
4 5
3 6
R T
2 7
1 8
RJ31X
R
TRANSCEIVER
TELGUARD
T
J2
J1
R
1 2 3 4
FUSE 3A 3AG
UNPLUG AND REPLUG J/J CABLE
(SUPPLIED) AT J1 AND VERIFY THAT
TELGUARD SWITCHES TO CELLULAR AND
BACK TO TELCO BY WATCHING THE STC
LED (3 flashes for LFC).
www.Telguard.com
P/N 56020903
REFER TO INSTALLATION AND OPERATING
INSTRUCTIONS MANUAL. THIS DEVICE COMPLIES
WITH FCC RULES PART 68 AND 15.
BE SURE TELGUARD IS FIRST ON
INCOMING PHONE LINE TO PREVENT
PHANTOM TRIPPING.
NO TELCO DEVICE CAN BE IN FRONT
OF OR IN PARALLEL WITH THE
TELGUARD OR A LINE FAULT
CONDITION WILL OCCUR.
SEE APPENDICES A1.1 THROUGH A1.4 FOR
DETAILS ON JACK AND PIN ASSIGNMENTS,
TERMINAL STRIP, JUMPER, AND STATUS LEDS.
STATUS LEDS
(See Appendix A1.4)
SYSTEM TROUBLE LED (RED)
1 FLASH AC POWER FAILURE
2 FLASHES LOW BATTERY
AC POWER
SIGNAL
3 FLASHES TELCO LINE FAULT
SYSTEM TROUBLE
STRENGTH
4 FLASHES NO CELLULAR SERVICE
OPERATION MODE
LEDS
5 FLASHES RADIO COMM FAILURE
RADIO TX
6 FLASHES DIAL TONE FAILURE
ON STEADY NOT ACTIVE
J5
OUT = NORMAL
IN = RSSI
TELCO
DIALER
HOST C/C
5 6 7
24 HOUR ZONE INPUT
24 HOUR ZONE COMMON
PROGRAM ZONE SHORTED FOR "SYSTEM TROUBLE".
TELULAR CORPORATION
420 Thornton Road, Suite 109
Lithia Springs, GA 30122
(800) 229-2326 Fax: 678-945-1651
Quick Install Guide
Telguard DataBurst TG-100/200/300
Register the Telguard with TCS prior to departing for the job site.
INSTALLATION SUMMARY
STEP 1: Register the Telguard with Telular Cellular Service (TCS)
(1) Fax the completed Telular Cellular Service Activation form that was
included with the Telguard to (678) 945-1651.
STEP 2: Prepare the Telguard for installation.
(1) Put C/C account in TEST at Central Station. With C/C connected to
RJ31X, trip zones on C/C, and verify test alarms are received at
Central Station over telco line.
(2) Connect antenna and temporarily place the Telguard.
(3) Apply power to the Telguard.
(4) Program unit if necessary (see chart on next page).
(5) Check signal strength by placing J5 jumper over both pins and move
the unit/antenna until maximum LEDs are on.
(6) Disconnect buttset, if used to program, and remove J5 to one pin.
STEP 3: Activate the Telguard.
(1) Call the Telular IVR (Interactive Voice Response) at 1-888-TELULAR
(1-888-835-8527) and follow voice prompts.
(2) LEDs will change from one solid red LED to normal operating mode
when setup packets are received at Message Center. The Telguard is
now active and ready to transmit alarm signals.
STEP 4: Transmit alarm signals with the Telguard.
(1) Disconnect C/C from RJ31X and connect C/C to TELGUARD J2.
Leave RJ31X disconnected from Jack J1 on Telguard at this time.
(2) Trip zones on C/C and verify test alarms are received at Central
Station over cellular.
(3) Re-connect RJ31X to TELGUARD Jack J1 and verify that the telco line
fault condition on the STC LED has cleared.
STEP 5: Connect Supervisory Trip Output and Complete the
Installation.
(1) Connect supervisory trip output to 24 hr. trouble zone on C/C.
(Program zone so that it can be bypassed if necessary)
(2) Check trip to C/C.
(3) Attach earth ground and mount Telguard unit.
Telular Technical Support: 8AM-8PM EST (800) 229-2326
IVR – (888)TELULAR or (888) 835-8527
