TV/VCR/DVD CART
Thank you for purchasing the Arc TV/VCR/DVD Cart.
This page lists all the contents included in the box.
Please take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect
them from damage.

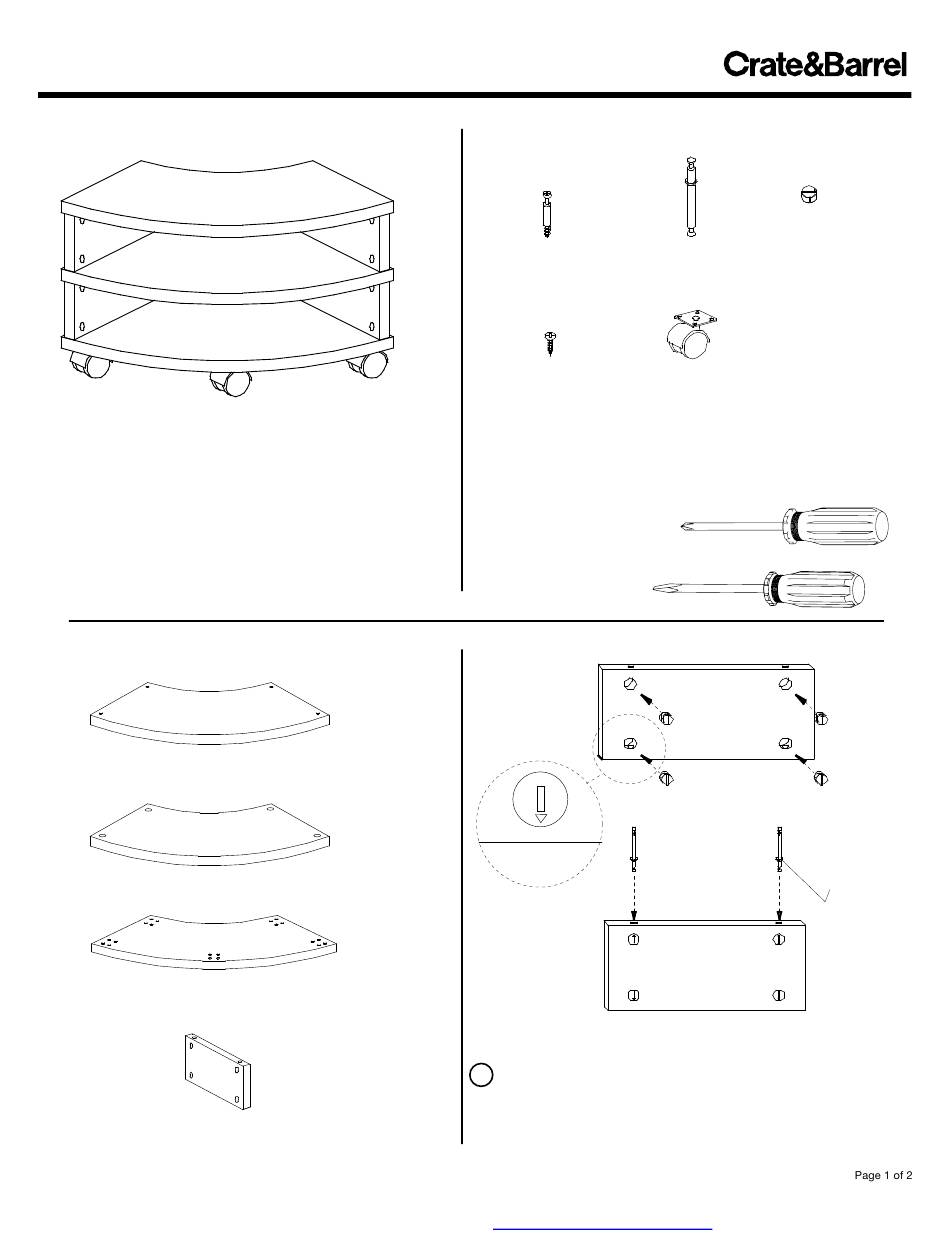

COMPONENTS
1 - top panel
1 - center panel
1 - bottom panel
4 - upright panels
Made in China - r03
Customer Service 800-967-6696 |
HARDWARE
4 - double
12 - cam pins
cam pins
5 - casters
20 - screws
Missing hardware? Please call 800.606.6387 for
replacements.
TOOLS REQUIRED
Phillips head screwdriver
Flat head screwdriver
A
Edge of Panel
B
1 A. Insert 4 cams into each of the 4 upright panels. Make
sure the arrow on each cam points towards the nearest edge.
B. Insert the short side of 4 double cam pins into the holes
on the edge of 2 of the upright panels. Secure with a phillips
head screwdriver. Do not over tighten.
http://www.crateandbarrel.com
16 - cams
x 4
Make sure the
short side of
the cam pin
is inserted
x 2
