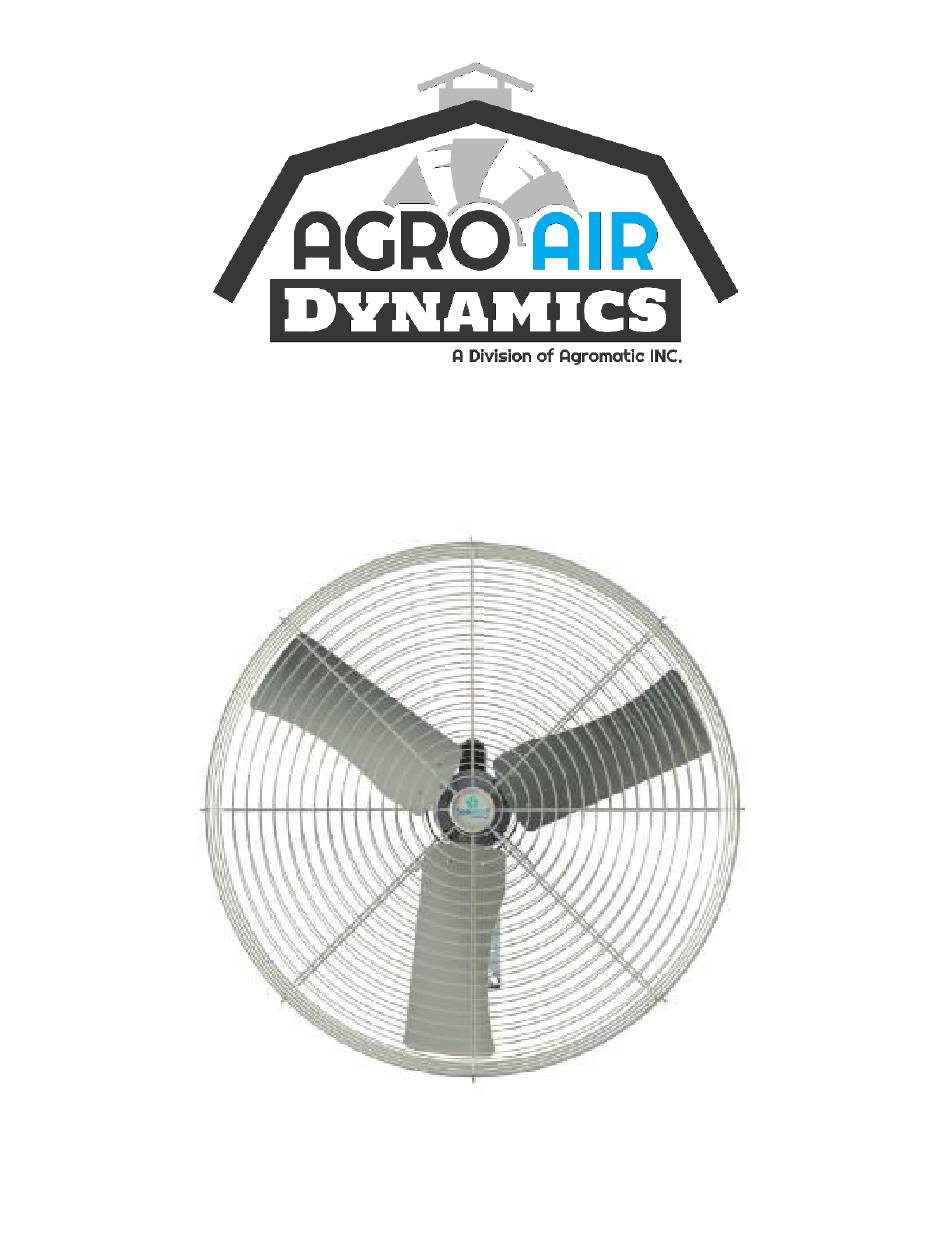

- Page 1 OWNERS MANUAL 36" basket fan 1 page No.84-3016-0 Rev.02 www.topcool.co 2017-4-21...
- Page 2 FAN ASSEMBLY 1. Place 36" basket fan Rear Guard (1) over studs on motor (3).then place the 4 Washer 6*20 (5) over the studs,followed by the 4 10-24" Locking nut (6).Tighten down the 4 nuts firmly.Max 9N.M 2. Place the blade (4) on the motor shaft with the set screws facing in toward the motor. Slide the blade on the shaft so it is flush with the end of the shaft.
- Page 3 ASSEMBLY OPERATING INSTRUCTIONS FOR BASKET FAN CAUTION: Read and follow all instructions before operating fan.Do not use fan if any part is damaged or missing. WARNING: To reduce the risk of fire or electrical shock,do not expose to water or rain.TO reduce the risk of electrical shock,do not use this fan with any solid state speed control device.
- Page 4 WARRANTY Topcool warrants every new fan to be free of defects and workmanship to the extent that, within 1 year from the date of purchase topcool shall either repair or replace at their option,any unit or part thereof, returned to topcool freight per-paid and found to be defective.A return authorization must be obtained prior to any warranty work and a proof of purchase may be required.
