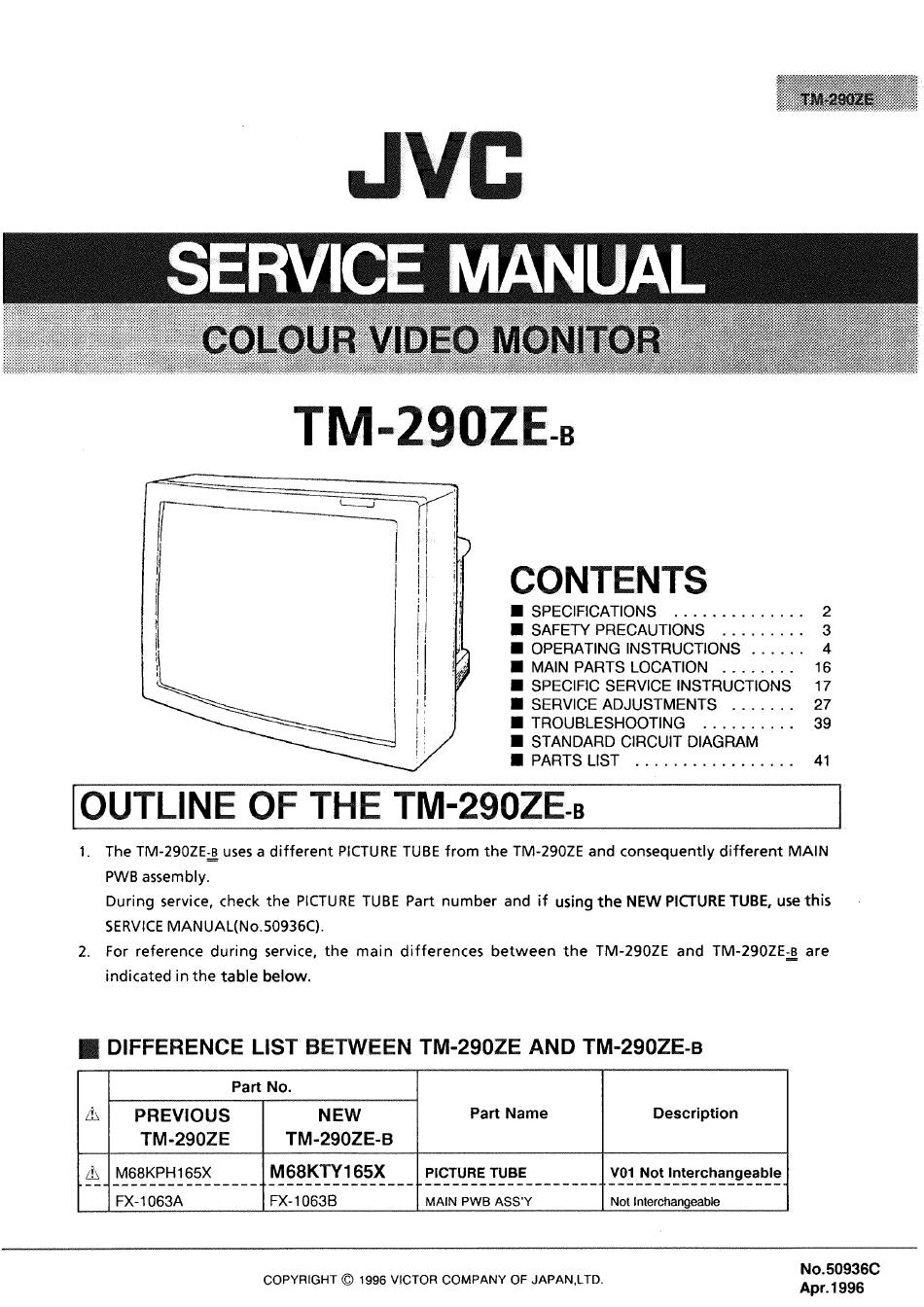

JVC TM-290ZE Instructions Manual

CONTENTS
M SPECIFICATIONS
M@ SAFETY PRECAUTIONS
@ OPERATING INSTRUCTIONS
Mi MAIN PARTS LOCATION
@ SPECIFIC SERVICE INSTRUCTIONS
M@ SERVICE ADJUSTMENTS
M@ TROUBLESHOOTING
M STANDARD CIRCUIT DIAGRAM
@ PARTS LIST
OUTLINE OF THE TM-290ZE-s
1. The TM-290ZE-8 uses a different PICTURE TUBE from the TM-290ZE and consequently different MAIN
PWB assembly.
During service, check the PICTURE TUBE Part number and if using the NEW PICTURE TUBE, use this
SERVICE MANUAL(No.
50936C).
2. For reference during service, the main differences between the TM-290ZE and TM-290ZE-8 are
indicated in the table below.
f@ DIFFERENCE LIST BETWEEN TM-290ZE AND TM-290ZE-B
Part No.
As PREVIOUS NEW Part Name Description
TM-290ZE TM-290ZE-B
A\ | M68KPH165X M68KTY 1 65X PICTURE TUBE V01 Not Interchangeable
FX-1063A FX-1063B MAIN PWB ASS'Y Not interchangeable
COPYRIGHT ©. 1996 VICTOR COMPANY OF JAPAN,LTD.
No.50936C
Apr.1996
