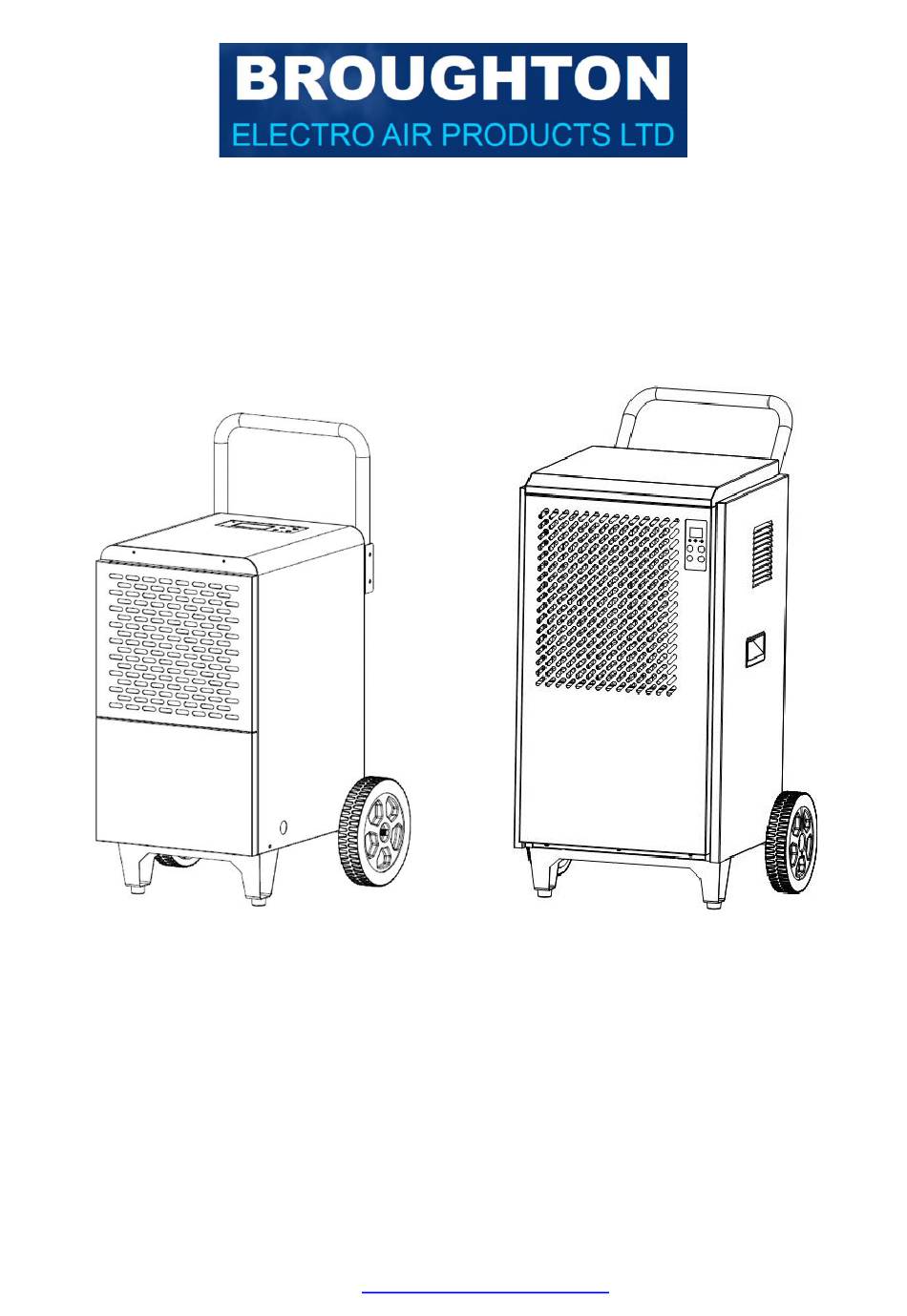

MIGHTY DRY DEHUMIDIFIERS
PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER
MD30/MDe30
MD50/MDe50
MD70/MDe70
These instruction should be read by The specifying engineer - The installation engineer -The user - The service engineer
For more information please visit
USER MANUAL
- 30 Litres per day
- 50 Litres per day
- 70 Litres per day
www.broughtoneap.co.uk
range of products, manuals and downloads
for information on our full
Advertisement
Table of Contents
Summary of Contents for Broughton MIGHTY DRY MD30
- Page 1 MIGHTY DRY DEHUMIDIFIERS USER MANUAL PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER MD30/MDe30 - 30 Litres per day MD50/MDe50 - 50 Litres per day MD70/MDe70 - 70 Litres per day These instruction should be read by The specifying engineer - The installation engineer -The user - The service engineer For more information please visit www.broughtoneap.co.uk for information on our full...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS FEATURES PRODUCT OVERVIEW POSITIONING THE DEHUMIDIFIER ASSEMBLY DRAINAGE OPTIONS CONTROL PANEL – MD30/e and MD50/e CONTROL PANEL – MD70/e OPERATION CARE AND MAINTENANCE TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS TECHNICAL SPECIFICATIONS SUPPORT... -
Page 3: Safety
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 4 Before moving the appliance the water tank should be emptied and/or the drainage pipe • must be disconnected. The appliance must be placed in a room without sources of ignition (for example: open • flames, an operating gas appliance or an operating electric heater). R290 refrigerant gas complies with European environmental directives.
-
Page 5: Parts
VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER PARTS 1m Flexible Water Pipe x 1 Bolts (For Handle) (MD30/e and MD50/e Bolts (For Axle) x 4 Only – 6m pipe pre- attached on MD70/e) Nuts (For Wheels) x 2 Washers (For Wheels) x 2 Wheels x 2 Handle... -
Page 6: Features
Panel Wheel Front Legs FEATURES Your dehumidifier belongs to the Broughton Mighty Dry dehumidifier range featuring: Easy to use controls Cost effective way to combat mould, condensation and damp Wheels for improved mobility Intelligent CPU controlled digital humidistat with 10-95% RH and room humidity display... -
Page 7: Positioning The Dehumidifier
Use in an enclosed area for maximum efficiency. Close all doors, windows to create an effective operating environment. Your Broughton Mighty Dry dehumidifier will extract water from the air, protecting your space from the harmful effects of excessive moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. -
Page 8: Assembly
ASSEMBLY The appliance must be fully assembled before plugging in. In order to prevent damage to the compressor, after assembly the unit must be left in an upright position for 2 hours before plugging in. ATTACHING THE WHEELS (MD30/MD30e and MD50/MD50e) 1. -
Page 9: Drainage Options
DRAINAGE OPTIONS INTERNAL WATER TANK (MD30/MD30e and MD50/MD50e ONLY) The 30L and 50L models are provided with a 7 Litre removeable water tank. When the water tank is full, the machine will automatically shut down and enter standby. The display will show the TANK FULL icon and an alarm will sound. -
Page 10: Control Panel - Md30/E And Md50/E
CONTROL PANEL - MD30/MD30e and MD50/MD50e Timer Humidity Timer Power Button Temperature Button Defrost Dehumidification Decrease Increase Indicator Indicator Button Button Tank Full Indicator Indicator Press once to turn the unit on. Press again to turn the unit off. Increase the desired humidity between 10% and 95%RH. Also used to adjust the timer duration following pressing the TIMER button Decrease the desired humidity between 10% and 95%RH. -
Page 11: Control Panel - Md70/E
CONTROL PANEL – MD70/MD70e Display Pump Indicator Timer Power Indicator Indicator Power Timer Button Button Increase Decrease Button Button Press once to turn the unit on. Press again to turn the unit off. Increase the desired humidity between 10% and 95%RH. Also used to adjust the timer duration following pressing the TIMER button Decrease the desired humidity between 10% and 95%RH. -
Page 12: Operation
OPERATION • The recommended humidity for a standard room is within the range of 50% to 70%, provided no special requirements are made. • Although the desired humidity can be set as low as 10%, lower settings will act as a continuous mode, as they are unlikely to be achievable in the UK. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 14: Troubleshooting
If this does not Code resolve, contact the service centre. Any other malfunctions will need to be reported to the Broughton Service team on 01527 830616. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 15: Frequently Asked Questions
TECHNICAL SPECIFICATION Model MD30/e 220-240v MD50/e 220-240v MD50/e 110v MD70/e 220-240v Power Supply AC 220-240V/50Hz AC 220-240V/50Hz AC 110V/50Hz AC 220- 240V/50Hz Dehumidifying 30L/Day (30℃ RH80%) 50L/Day (30℃ 50L/Day 70L/Day Capacity RH80%) (30℃ RH80%) Maximum 20L/Day (27℃ RH60%) 30L/Day (27℃ RH60%) 30L/Day (27℃... -
Page 16: Frequently Asked Questions/Troubleshooting
2. Is the unit plugged into the mains? Does the power adapter works? 3. Is the fuse in the power plug OK? Office hours: 830am to 5pm Monday to Thursday 830am to 2pm Friday Broughton Electro Air Products Ltd Units 24-25 Crossgate Road Park Farm Industrial Estate Redditch...
