Specification Sheet
Thermorail 240V Swivel Towel Rail
Electric Heated Towel Rail for use in bathrooms
Stock Code
SV68
Polished Stainless Steel
Ten year
warranty
Exposed or
concealed
wiring
PLEASE NOTE: Specifications are for information purposes only. Whilst every effort has been made to ensure the product specifications are accurate, due to continuing
product development and improvement the specifications are subject to change. Specifications can be used to rough in and fit timber supports in the wall however we
recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors

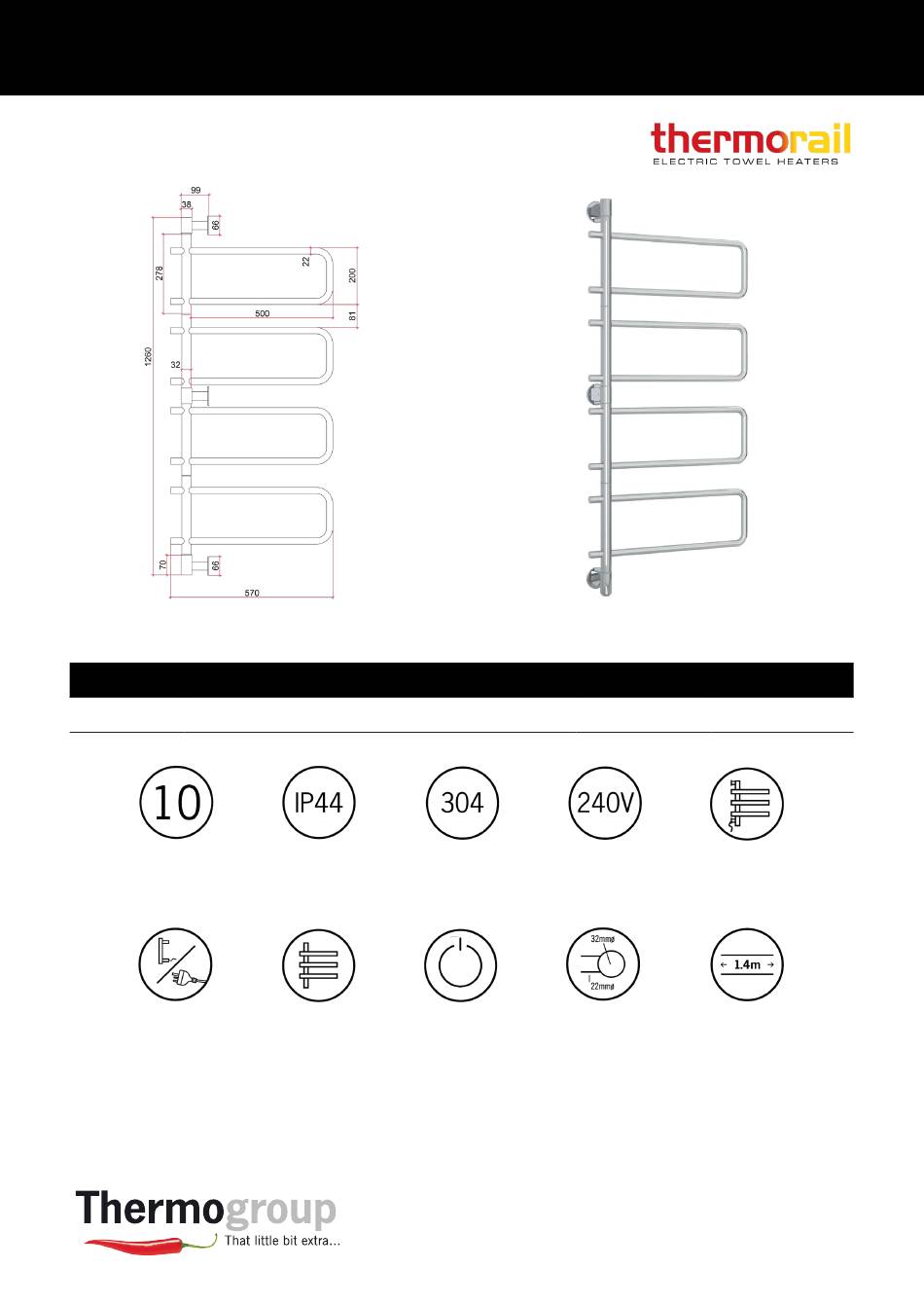

Note: All dimensions are in millimeters (mm)
Finish
W570 x H1260 x D99
Safe for use
Quality
in bathrooms
stainless
Bars swivel
On/off switch
independently
on unit
due to updated specifications.
Thermorail Swivel Range SV68
Size (mm)
Output (W)
Dry electric
element
steel
Horizontal and
vertical bar
sizes
No. of Bars
88
8
Bottom
exposed
1.4m lead
on rail
1300 368 631
sales@thermogroup.com.au
www.thermogroup.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Thermogroup Thermorail SV68
- Page 1 Specifications can be used to rough in and fit timber supports in the wall however we recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors due to updated specifications.
- Page 2 Consult your electrician for wiring requirements in your area. (Diagram for illustrative purposes only) Call us on 1300 368 631 or visit www.thermogroup.com.au...
- Page 3 Thermorail Swivel Rails 240Volt Heated Towel Rail Installation Guide Please read these instructions carefully and in full before installation. Installation should be carried out by a qualified electrician.
-
Page 4: Table Of Contents
Contents What’s in the box? Installation Safety & Care Information Warranty Technical Specifications Contact Us 1300 368 631 | www.thermogroup.com.au... -
Page 5: What's In The Box
Concealed Wiring Cap Please note these parts are not to scale You will also need: • Cross Head Screwdriver • Pencil • Spirit Level • Tape Measure • Drill Bits • Cordless Drill • Electrical Supply 1300 368 631 | www.thermogroup.com.au... -
Page 6: Installation
Insert the terminal block back into the protective connec- tion capsule and press the capsule into the bracket. See diagrams on next page. 1300 368 631 | www.thermogroup.com.au... - Page 7 3.Fix the Rail to the Wall Fix the towel rail to the wall by screwing the brackets onto the wall using the screws. Ensure that no wires are trapped between the wall and the bracket. 1300 368 631 | www.thermogroup.com.au...
-
Page 8: Safety & Care Information
The Stainless Steel finish of your Thermorail Heated Towel Rail is hard wearing and easy to maintain. However, any harsh scrubbing, scratching or acid based cleaning products will damage the surface of your towel rail. Cleaning with a soft cloth and a non-abrasive cleaning agent will give the best results. 1300 368 631 | www.thermogroup.com.au... -
Page 9: Warranty
If the product develops a fault within the warranty period due to normal wear and tear, Thermogroup at its discretion, will recognise whether it’s a faulty product or not. If it is impossible or not economical for the... -
Page 10: Contact Us
Contact Us Phone: 1300 368 631 | Technical Helpline: 1300 989 464 sales@thermogroup.com.au | www.thermogroup.com.au...
