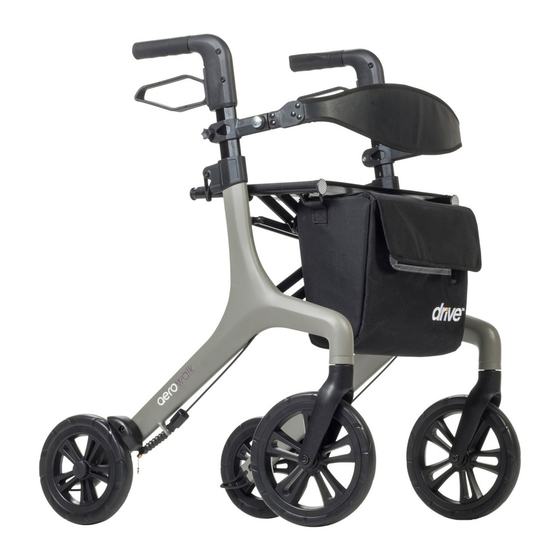

parts list WEIGHT CAPACITY: 330 LBS (150 KG) 9. Storage Bag Reflector (Handle and Seat Supports) 10. Rear Caster 2. Hand Grip 11. Curb Assist 3. Hand Brake Lever 12. Brake Pad 4. Height Adjustment Latch 13. Bag Mounting Hooks 5.
unfolding the AeroWalk™ Rollator To unfold, position the rollator on all four wheels and ensure all four wheels rest firmly on the ground. Hold each hand grip and pull outward until the rollator unlocks and opens fully (figure 1). Gently push down on each side of the seat rails near the vertical frame to ensure the unit is fully opened (figure 2).
backrest adjustment Height Adjustment: Turn backrest adjustment knob counterclockwise to loosen. Slide backrest upward or downward to desired height then turn knob clockwise to tighten (figure 5). Depth Adjustment: Push backrest adjustment button, while sliding backrest inward or outward to desired position (figure 6). An audible ‘click’ confirms the backrest is secure in the locked position.
braking / locking Pull both brake levers upward to apply the brakes while the rollator is in motion (figure 9). Always brake slowly and steadily. While the rollator is stationary, push the brake lever down to engage the parking brake (figure 10). To disengage the locked brake, grip the brake lever and lift it upward until it audibly clicks into place, indicating it is now released.
Page 6
sitting While facing the rollator, position the open and locked rollator on a flat, even, solid surface on all four wheels. Ensure the brakes are in the locked position. The rollator must remain upright and must not move. Once the brakes are securely engaged, utilize the handles for support, to turn completely around.
Do not use aggressive detergents such as chlorine, bleach or abrasive cleaners. maintenance Drive DeVilbiss Healthcare recommends periodic visual inspection of this product by the user to ensure that all parts and hardware are secure, and all components are in good working order and not worn, torn, frayed, or loose. There should be no obstructions or impediments to normal and safe operation.
The warranty does not extend to non-durable components such as rubber accessories, casters, and grips, which are subject to normal wear and need periodic replacement. If you have a question about your Drive® device or this warranty, please contact an authorized Drive® dealer.
