Vortex T10M PRO Manual

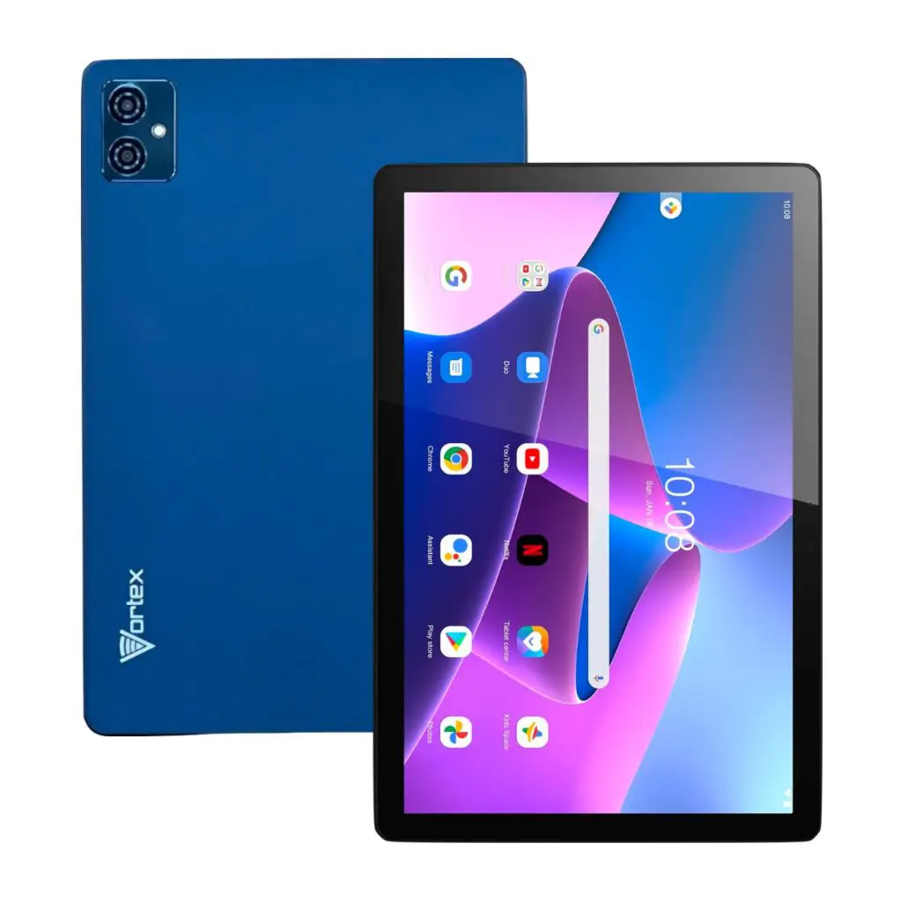

PRODUCT HEX-VISION IMAGE

VOLUME BUTTON: Short press to adjust the volume or to mute incoming calls.
POWER BUTTON: Long press to turn on the device; When the device is on, short press Power Button to shutdown or turn on the screen.

CARD INSERT MANUAL

Insert Micro-SIM Card
Insert a Micro SIM card. Insert the Micro-SIM card with the chip facing down. Note the direction of cutting a Micro-SIM card into a slot.

TF Card Installation
Please place the metal sim tray slot on TF card Place, be aware of the direction of the cut edge. Insert the card directly into the device.

Reminder:
Please turn off the tablet before changing or replacing the TF card. TF card does not come with the tablet please purchase separately.

Do not insert or remove the SiM card when the tablet is turned on.

SIM MANAGEMENT

Please choose which SIM card slot to be the main one to be for 4G network via Setting > SIM Card. Choose your preferred network types of 4G/3G/2G via Setting > Network & Internet >Mobile network >Preferred network type.

NETWORK CONNECTION

Connecting WIFI

Into the setting of WIFI via Settings > Network & Internet > Wi-Fi When WIFI is on, a list available WiFi connection will appear.
Click on the one you want to connect to, enter the password if the network is encrypted, then click Connect. When it's a public network, just click
Connect When the network shows "connected", it is available to use.

Bluetooth Function

Into the setting of Bluetooth function via Settings > Connected devices > Bluetooth Enable the Bluetooth function by clicking the Menu Button then select "Refresh", then the tablet will search for available Bluetooth devices for pairing and list on the screen. Click on the one you want to pair with, then click "Pair "on the dialog pop-up. Documents are available for transmission after Bluetooth pairing.

Reminder:
Slide down the status bar to open the shortcut switches for Bluetooth and other functions.

WIFI Hot-spot Setting

Click on via Settings > Network & tethering > Wi-Fi hotspot to turn on the Portable WIFI Hot-spot functiong.
When setting up WIFI hot-spot, enter your user name in "Network Name"and password, then click Save. Another device password of the password.

Reminder:
Please enable the Data Connection before enabling the network sharing function. Your mobile traffic will be shared by other devices, so please use it carefully. The signal of the WIFI hot-spot depends on the signal strength and devices.

CAMERA

Aim the camera at the shooting object, the tablet will start focus automatically; or you can click on the screen to choose the object you want to focus on, then click "Capture" icon to take photos. You can also choose other modes such as video recording, beautifying, panorama to take photos/videos.

INSTRUCTIONS FOR SIM-CARD &SD Card

The Device is equipped with a Single Sim card slot and SD card slot.
Its not a device with Dual SIM card

SPECIFICATIONS

BASIC INFORMATION
Model T10M PRO
Operating System Android 13
CPU Arm-Cortex A53 MPCoreTM /2.0Ghz GPU IMG PowerVR
GE8300
RAM 4GB
ROM 64GB
Battery 5000mAh

Display
Screen Size 10.1 inch
Resolution 1280*800 Pixels
Touch Capacitive multi-touch

Connection(I/O)
Band GSM:B2/3/5/8
WCDMA:B2/5
FDD:B2/3/4/5/7/12/13/17/25/26/66/71
TDD:B41HPUE
SIM/TF card 1 Micro SIM Card and 1 TF Card
WiFi IEEE802.11 a/b/g/n/ac
Bluetooth Bluetooth 5.0
GNSS GPS
FM YES
Earphone Port 3.5mm
USB Port Type-C USB

Other Features
Video File Format 3GP/MPEG4,etc
Audio File Format WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc Card
Extend Support TF card up to 256 GB
Language Support Multi-language
Sensor G-Sensor, Gravity sensor, Compass.

In the box
1*tablet
1*Type-c Cable
1* Power Adapter
1*Quick Start Guide
1* Protective Case

SECURITY INFORMATION

Security information (including BS, ES, battery security information) of third-party software installation and function may vary in different regions or by different hardware specifications. Vortex holds disclaimer for the performance problem or incompatibility caused by third-party applications, registry editing, OS software modifying. Customizing the OS may cause the device or some applications fail to work properly.
Please prevent the device or the battery in extreme cold/hot condition. Then extreme temperature will lead to deformation of the tablet and reduce the charging capacity and battery life.
Please only use the custom designed and approved battery and charger by Vortex. Incompatible battery and charger may cause damage to the tablet. Please abide by local regulation when disposing of the used batteries and tablet.
Please do not place the battery or the tablet onto or inside heating devices such as microwave, oven or radiator. The battery may explode if it gets too hot.
Please do not crush or pierce the battery. Prevent the battery from getting high pressure from outside, it may cause internal short and overheating.
