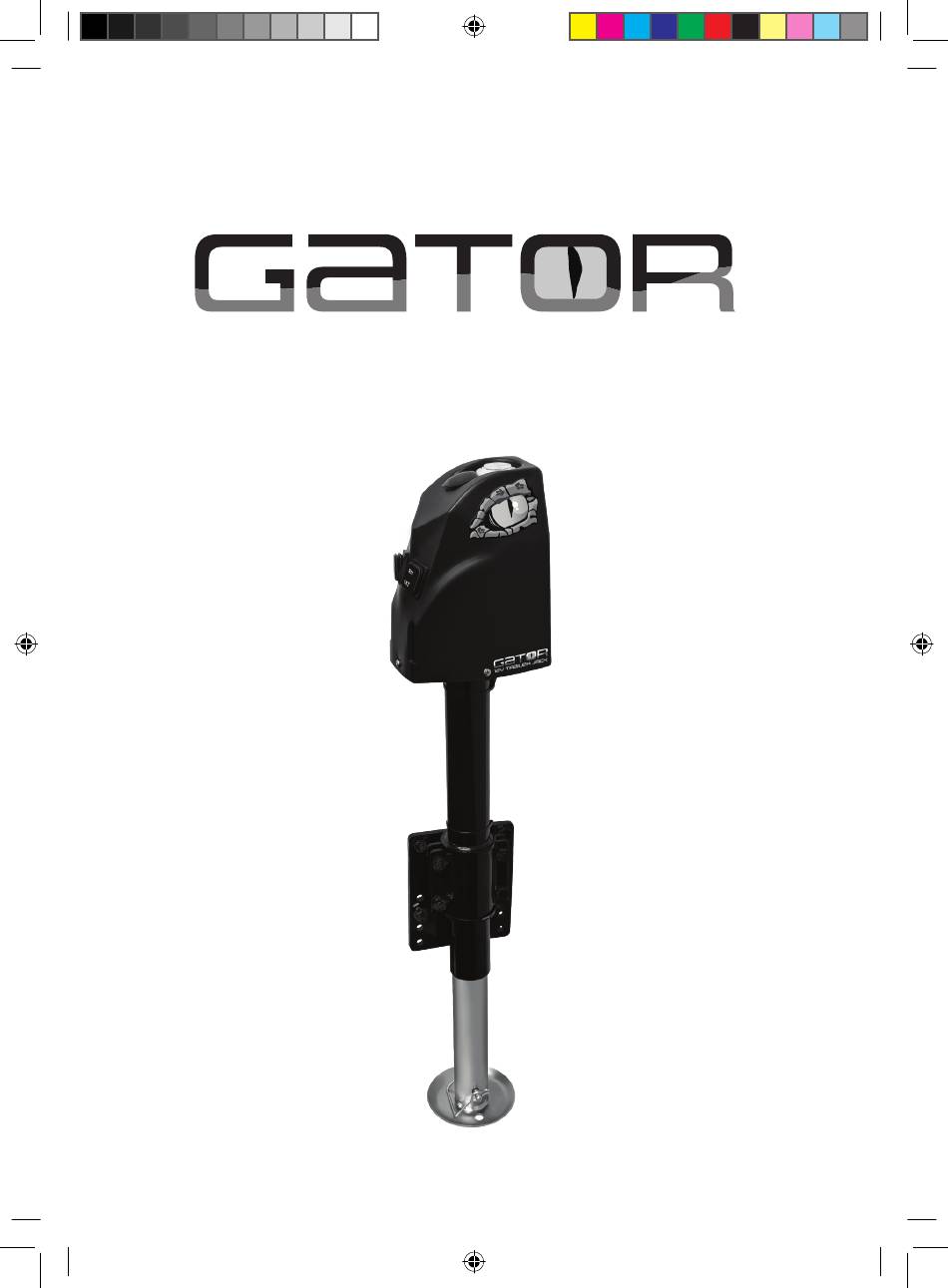

- Page 1 12V TRAILER JACK SAVE YOUR BACK | For more information visit caravanmods.com.au | (02) 9806 3055 |...
-
Page 2: Table Of Contents
12V TRAILER JACK SAVE YOUR BACK WARNING: Read and understand all instructions before using this device COMPLIES WITH AS/NZS 5601.2:2020, Gas installations, Part 2: LP Gas installations in caravans and boats for non-propulsive purposes Introduction Safety Warning Specifications What’s Included Ground Clearance and Extension Height Range Diagrams Installation Instructions Operating Instructions... -
Page 3: Introduction
The Gator is designed to assist with raising and lowering trailers with ease, utilising electronic controls for smooth and efficient operation. It is suitable for trailers of various chassis sizes and is equipped with a bracket to suit a multitude of installation scenarios (Refer page 7-8) and its full 360°... -
Page 4: Safety Warning
12V TRAILER JACK SAVE YOUR BACK SAFETY WARNING Failure to follow all warnings and instructions may result in product failure, property damage, serious bodily injury, and/or death. • This product must be installed and used in strict accordance with these instructions. The purchaser/owner must not alter or modify the product. -
Page 5: Specifications
12V TRAILER JACK SAVE YOUR BACK SPECIFICATIONS MAX LOAD 1800 kg HEIGHT RANGE REFER DIAGRAMS ON PAGES 7-8 FOOT PLATE 133mm REMOVABLE HANDLE MANUAL CRANK OVERRIDE RATIO 5:1 USING MANUAL CRANK HANDLE CONSTRUCTION STEEL AND POLYPROPYLENE FINISH OUTER POWDER COATED OUTER TUBE FINISH INNER ZINC PLATED OVERALL DIMENSIONS... -
Page 6: What's Included
12V TRAILER JACK SAVE YOUR BACK WHAT’S INCLUDED WARNING! DO NOT operate the device if any part is missing. Replace the missing part before operating. Failure to do so could result in a malfunction and personal injury. Remove the part and accessories from the packaging and inspect for damage. Check that all items listed in the contents are included. -
Page 7: Ground Clearance And Extension Height Range Diagrams
12V TRAILER JACK SAVE YOUR BACK GROUND CLEARANCE AND EXTENSION HEIGHT RANGE DIAGRAMS 3” chassis THE POWER LIFT BOTTOM OF CHASSIS FEATURE OFFERS OR CHASSIS LINE UP TO AN ADDITIONAL 345MM OF TELESCOPIC EXTENSION TO BOTTOM OF CHASSIS ANY OF THE TO BOTTOM OF FOOT MEASUREMENTS PLATE WITH INNER LEG... - Page 8 12V TRAILER JACK SAVE YOUR BACK 5” chassis BOTTOM OF CHASSIS THE POWER LIFT FEATURE OFFERS OR CHASSIS LINE UP TO AN ADDITIONAL 345MM OF TELESCOPIC EXTENSION TO BOTTOM OF CHASSIS ANY OF THE TO BOTTOM OF FOOT MEASUREMENTS PLATE WITH INNER LEG BELOW THE SET TO LOWEST HOLE CHASSIS LINE...
-
Page 9: Installation Instructions
1. Attach trailer to tow vehicle. Use vehicle’s parking brake and chock wheels of trailer. 2. The Gator Jack has been designed to attach to chassis of 3, 4, 5 and 6” heights. 3. Select your preferred mounting position, the jack can be attached to the A Frame main supports, or any cross member of 3, 4, 5 or 6 inches. -
Page 10: Operating Instructions
1. Refit the manual crank protective cap when complete. MAINTENANCE The Gator Jack motor is sealed and maintenance-free. It is important to maintain the electrical system including the battery and charger (not included). Ensure all connections are tight and free of corrosion. Make sure the battery is fully charged prior to use. -
Page 11: Troubleshooting
12V TRAILER JACK SAVE YOUR BACK TROUBLESHOOTING SUGGESTED PROBLEM POSSIBLE CAUSE SOLUTION ENSURE THE ANDERSON PLUG POOR GROUND HARNESS IS CONNECTED FULLY AT BOTH ENDS. CHECK THE SUPPLY BATTERY AND ELECTRICAL CONNECTIONS. POWER SUPPLIED MUST BE AT NO OR LOW LEAST 10 VOLTS DC. -
Page 12: Warranty Information
Warranty Against Defects WHAT THIS WARRANTY RELATES TO 1.1 This warranty covers goods supplied by Coast RV Pty Ltd T/A Coast to Coast RV Services (“Supplier”) to the Client (“Goods”) and relates to any defects in materials and workmanship under normal use and maintenance (“Defect”). - Page 13 12V TRAILER JACK SAVE YOUR BACK where the Goods are purchased already fitted in or as a component of a vehicle or RV: from the date that is twelve (12) months after the Client takes delivery of the vehicle or RV; and (ii) where the Goods are purchased separately or as an after-market item: from the date that is twelve (12) months from the date of purchase..
- Page 14 12V TRAILER JACK SAVE YOUR BACK 2 WARRANTY EXCLUSIONS 2.1 This warranty will not apply where: the Goods have been improperly modified or repaired or the Good’s defect has arisen due to the Client’s failure to properly install, fit, maintain, service or use the Goods in accordance with the specifications and instructions provided by the Manufacturer, including a failure to comply with the relevant maintenance schedule (where applicable);...
-
Page 15: Warranty Claim Form
12V TRAILER JACK SAVE YOUR BACK Warranty Claim Form Coast RV Pty Ltd trading as Coast to Coast RV Services Warranty Providers Name ABN 49 097 104 492 - ACN 101 461 330 PO Box 6287, Silverwater NSW 1811 Australia OR;... -
Page 16: Compliance Information
Recreational Vehicles), which is an exclusion area for any ignition sources that could present a risk of explosion in the event of a gas leak. The Gator Jack also meets the EMC and RCM requirements for equipment of this nature. REGULATION ROUNDUP | 14...
