RTI IVDS-B Reference Manual

Intelligent video door station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IVDS-B
Intelligent Video Door Station Black
The IVDS Intelligent Video Door Station delivers a premium front door experience fully integrated with
your RTI control system. This sophisticated IP video intercom combines cutting-edge security features
with elegant design to enhance your home's protection and convenience. With its Full HD 156-degree
wide-angle camera and Adaptive Face Zooming technology, the IVDS provides exceptional video quality
and comprehensive monitoring of your entrance area. The system immediately alerts you to unexpected
activity, allowing constant awareness of your home surroundings.
Key Features
• Clean, minimalist design.
• Adjustable button color backlight
• Resistance against vandalism, water, and dust
• Superb sound quality
• Full duplex audio with acoustic echo cancellation
• Built-in full HD camera with 156° viewing angle and motion detection
• PoE powered
• Supports SIP 2.0
• Video codecs: H.264, H.265, MJPEG
• Audio codecs: G.711, G.722, G.729, L16/16 kHz
• Seamless integration with RTI systems
• Easy installation
1
Intelligent Video Door Station
Reference Guide

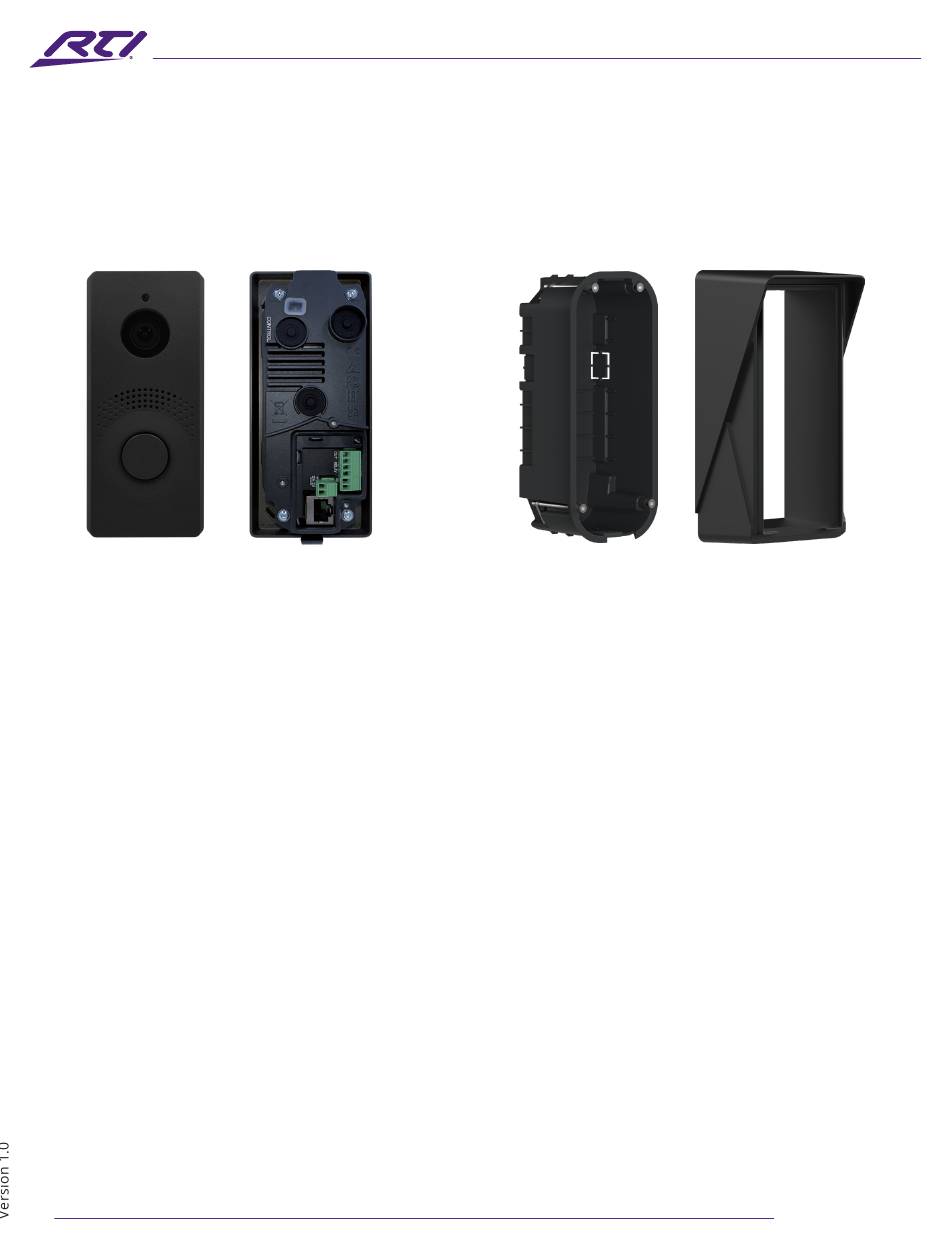

IVDS
IVDS-FIB
Flush Installation Box
INTELLIGENT SURFACES, IVDS
IVDS-SIB
Surface Installation Box
both sold separately
Product Contents
• IVDS Intelligent Video Door
Station
• Connector Plate (1)
• Torx Head Screws (3)
• Torx Wrench (1)
• Quick Start Guide
www.rticontrol.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVDS-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RTI IVDS-B

  • Page 1 The IVDS Intelligent Video Door Station delivers a premium front door experience fully integrated with your RTI control system. This sophisticated IP video intercom combines cutting-edge security features with elegant design to enhance your home’s protection and convenience. With its Full HD 156-degree wide-angle camera and Adaptive Face Zooming technology, the IVDS provides exceptional video quality and comprehensive monitoring of your entrance area.
  • Page 2 INTELLIGENT SURFACES, IVDS Dimensions 10mm 0.39” 78mm 3.07” 172mm 6.77” Mounting Depth: 56mm / 2.21” Mechanical Installation: General General Mounting Principles • Before starting the mechanical installation in a selected place, make sure carefully that the preparations associated with it (drilling, wall cutting) cannot damage the electrical, gas, water and other existing wires and pipes.
  • Page 3 INTELLIGENT SURFACES, IVDS • Make sure that the plasterboard interior does not show a pressure value significantly different from that of the room, e.g. that it is not connected with overpressure ventilation. If the difference is too great, separate the device in terms of pressure (using, e.g., a mounting box) and seal the cable passage Flush or Surface Mounting IVDS-FIB Flush Installation Box (not included) or IVDS-SIB Surface Installation Box (not included) are required to install the IVDS Intelligent Video Door Station.
  • Page 4 INTELLIGENT SURFACES, IVDS Mechanical Installation: Flush Mount 1. Cut a hole in the wall. The recommended hole depth is 56mm (2.2”). Tip: Use the drilling template that’s included in the IVDS-FIB box or download it from www.rticontrol.com 2. Remove one of the blinds on the plastic box and pull the cables through.
  • Page 5 INTELLIGENT SURFACES, IVDS 4. Close the box with a blank. This prevents the walling and surfacing dirt from getting into the box surroundings. 5. Let the walling material harden after finishing the masonry and wall surfacing and remove the blank. 6.
  • Page 6 INTELLIGENT SURFACES, IVDS 7. Insert the metal device body in the walled-in box and fit it on the bottom using a Torx head screw. Caution: Loosen the screw if too tight to make the device fit in the box. Then tighten the screw again. Mechanical Installation: Surface Mount 1.
  • Page 7 INTELLIGENT SURFACES, IVDS 3. The main unit package includes an L-shaped plastic plate and 3 Torx head screws. Cut 1–2mm (0.04-0.08”) off the upper part of the cylinder-shaped rubber on the plate. Pull the cable through the remaining part. Use a crimping tool to crimp the cable connector and insert it in the terminal.

  • Page 8: Electrical Installation

    INTELLIGENT SURFACES, IVDS Electrical Installation Power Supply IVDS can be fed either directly from the LAN if equipped with PoE 802.3af supporting network elements or from an external 12 V ±15 % / 2 A DC power supply. Caution: The device must be part of the electrical system of the building External Power Supply Use a SELV supply 12 V ±15 % dimensioned to the current consumption required for feeding the device to make your device work reliably.
  • Page 9 INTELLIGENT SURFACES, IVDS Overvoltage Protection The IVDS cables have to be protected against atmospheric overvoltage caused by external causes (lightning, e.g.). A surge can damage a device installed outside/inside the building if the wires are unprotected. Therefore, we recommend that additional overvoltage protectors (OVP) be installed on the outer walls or roof for all the wires leading outside the building.
  • Page 10 INTELLIGENT SURFACES, IVDS Example 3: Overvoltage protection installation diagram for a device and cables installed outside the building. Installation Completion Check the connection of all the wires in the board connectors. Warning: • Make sure that all the terminals of the unused connectors are properly tightened to avoid vibrations caused by sound.

  • Page 11: Web Interface Configuration

    Using mDNS (Multicast DNS) is recommended when the IVDS is assigned a dynamic IP address, as the domain name remains constant even if the IP changes. mDNS Hostname Format: IVDS-B-XXXXXX.local Replace XXXXXX with the last six characters (three pairs) of the IVDS’s MAC address. The MAC address can be found on the back of the unit or in the included Quick Start Guide.
  • Page 12 INTELLIGENT SURFACES, IVDS The below example instructions are for the certification error seen in a Google Chrome browser: Press the Advanced button to expose the option to proceed. Press the “Proceed to…” button to continue to the web GUI of the IVDS. Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
  • Page 13 Should the login screen fail to appear, you must have typed the wrong IP address, port, domain name or the administration web server has been switched off. 7. Enter the default login credentials. Default login credentials are: Username: RTI Password: RTI123 It is required to change the password immediately upon the first login:...
  • Page 14 INTELLIGENT SURFACES, IVDS Tip: It is recommended that a password is used that is difficult to break. It is not recommended that names, places or things, especially those closely related to the user, are used in the password. For increased password security, it is recommended that: •...

  • Page 15: Technical Specifications

    INTELLIGENT SURFACES, IVDS Connection with Other Devices 1. Select one of the existing Intercom Groups. 2. Enter the user phone number in the format – sip:200@xxx.xxx.xxx.xxx (Where xxx.xxx.xxx.xxx is the IP Address of the device you want to call). 3. Selecting Group Call to Next Number will call the next number as well. 4.
  • Page 16 INTELLIGENT SURFACES, IVDS Video Resolution 1920 x 1440 (4:3); FHD (16:9) Frame Rate up to 30 frames Sensor Sensitivity 14000e-/lux-sec Viewing Angle 138° (H), 114° (V) Infrared Illumination Focal Length 1.935 mm Video Stream Protocols RTP, RTSP, SRTP, HTTP ONVIF/RTSP Streaming Codecs H.264, MJPEG, H.265, MJPEG IP Camera Function Yes –...

  • Page 17: Safety Suggestions

    INTELLIGENT SURFACES, IVDS Safety Suggestions Read and Follow Instructions Read all safety and operating instructions before operating the unit. Retain Instructions Keep the safety and operating instructions for future reference. Heed Warnings Adhere to all warnings on the unit and in the operating instructions. Accessories Only use attachments/accessories specified by the manufacturer.

  • Page 18: Federal Communications Commission Notice

    INTELLIGENT SURFACES, IVDS Damage Requiring Service The unit should be serviced by qualified service personnel when: • The power supply cord or the plug has been damaged. • Objects have fallen or liquid has been spilled into the unit. • The unit has been exposed to rain.

  • Page 19: Industry Canada Compliance Statement

    2. Cet appareil doit accepter toute interférence reçue y compris des interférences qui peuvent provoquer un fonctionnement indésirable. Declaration oF Conformity (DoC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticontrol.com/declaration-of-conformity Contacting RTI For news about the latest updates, new product information, and new accessories, please visit our web site at: www.rticontrol.com...

  • Page 20: Service And Support

    Warranty claims may be initiated by an authorized RTI dealer using the original dated sales receipt or other proof of warranty coverage. In the absence of the receipt of purchase from the original dealer, RTI will provide warranty coverage extension of six (6) months from the date code of the product. Note: RTI warranty is limited to the provisions set forth in this policy and does not preclude any other warranties offered by third parties who are solely responsible for those other warranties.
  • Page 21 Loss of, or damage to, data, computer systems or computer programs. RTI’s liability for any defective product is limited to repair or replacement of the product, at the sole discretion of RTI. In cases where the warranty policy conflicts with local laws, the local laws will be adopted.
  • Page 22 Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 www.rticontrol.com © 2025 Remote Technologies Inc. All rights reserved.
