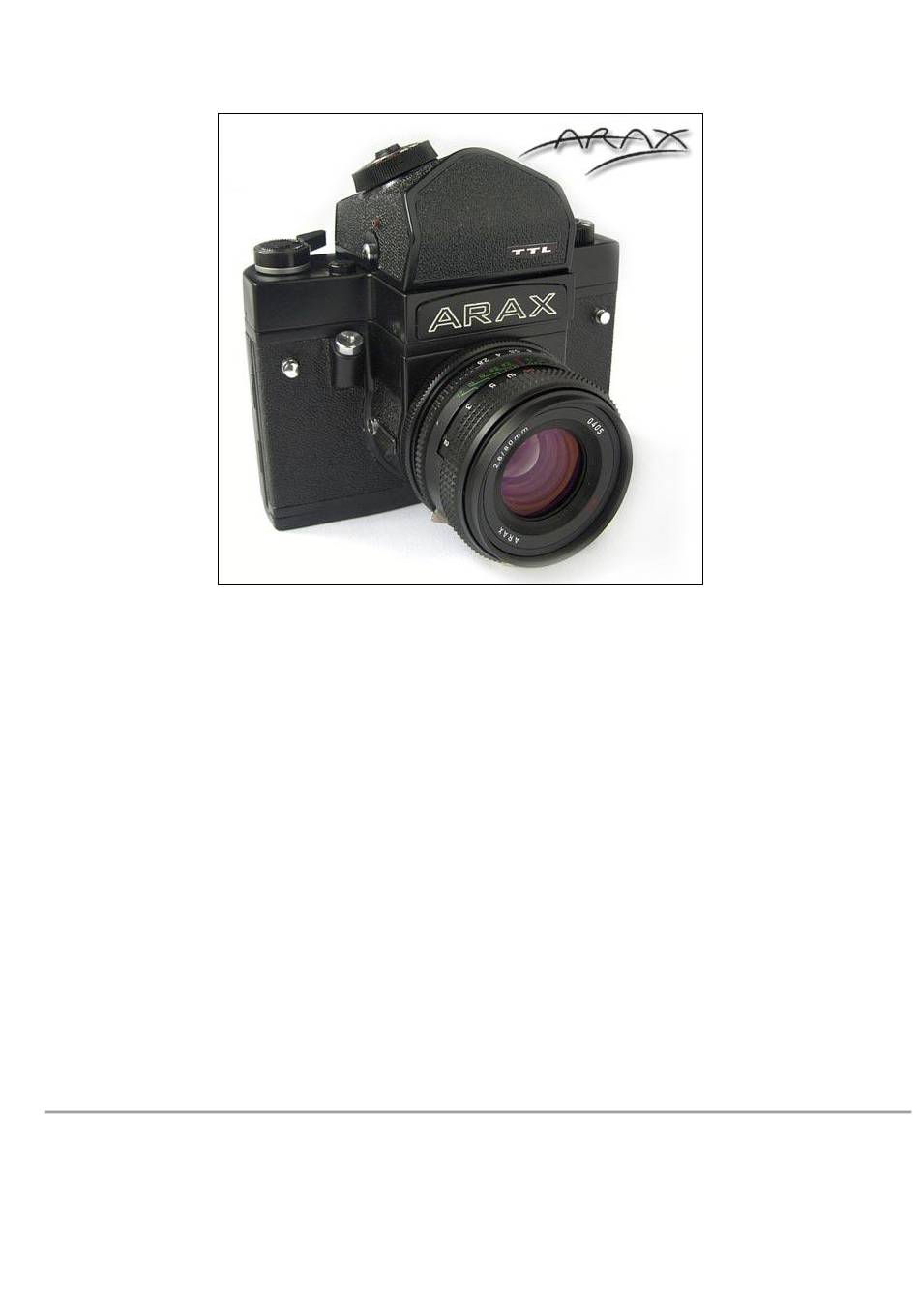

The ARAX-60 MLU is a medium-format single-lens reflex (SLR) camera, designed for photographers who demand exceptional
image quality and mechanical precision.
With a frame size of 6×6 cm (ARAX-60, 12 frames) or 6×4.5 cm (ARAX-645, 16 frames), it combines classic medium-format
capabilities with modern upgrades for enhanced durability, accuracy, and ease of use.
Each ARAX-60 camera is carefully hand-selected from the finest Kiev-60 bodies and undergoes an extensive mechanical
enhancement process.
During this process, critical systems are rebuilt, reinforced, and finely adjusted to meet professional standards.
Key upgrades include:
•
A rebuilt shutter mechanism for increased reliability
•
Improved film advance and frame spacing accuracy
•
A precision focusing screen for maximum viewfinder brightness
•
A durable, light-absorbing interior finish for superior contrast
•
An independent Mirror Lock-Up (MLU) system for vibration-free exposures
•
A tough, sandblasted matte black exterior finish for improved durability
Every ARAX camera undergoes multiple stages of quality control and a final professional inspection before delivery.
All lenses and TTL prisms are individually tested to ensure optimal optical and mechanical performance.
The ARAX-60 is compatible with a wide range of lenses using the Pentacon Six (P6/Kiev-C) bayonet mount and operates with
standard 120 roll film.
It offers shutter speeds from 1/1000 sec to 1/2 sec, plus a manual "B" mode for long exposures.
Built for reliable operation across a broad range of conditions, the ARAX-60 is rated for temperatures between –15°C and +45°C.
With proper care, your ARAX-60 will deliver outstanding medium-format results—whether in professional studios, outdoor
environments, or personal creative projects—for many years to come.
Before using your new ARAX camera, please read this manual carefully—preferably with the camera in front of you.
Once you are familiar with its operation, you'll be ready to load your first roll of film and start creating exceptional photographs.
Congratulations on your purchase, and welcome to the ARAX family!
ARAX–60 MLU
INSTRUCTIONS FOR USE
1. INTRODUCTION TO THE ARAX-60 MLU
araxfoto.com - medium format cameras, lenses, accessories, services
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60 MLU and is the answer not in the manual?

Questions and answers

Related Manuals for Arax 60 MLU

Summary of Contents for Arax 60 MLU

  • Page 1 The ARAX-60 MLU is a medium-format single-lens reflex (SLR) camera, designed for photographers who demand exceptional image quality and mechanical precision. With a frame size of 6×6 cm (ARAX-60, 12 frames) or 6×4.5 cm (ARAX-645, 16 frames), it combines classic medium-format capabilities with modern upgrades for enhanced durability, accuracy, and ease of use.

  • Page 2: Main Units And Parts

    2. MAIN UNITS AND PARTS 1 - Shutter cocking lever 2 - TTL prism viewfinder 3 - Threaded cable release socket 4 – Shutter release button 5 – Strap mount 6 – Lens mount locking ring 7 – Camera body 8 –...

  • Page 3: Operating Procedure

    3. OPERATING PROCEDURE 3.1 Camera Loading The camera can be loaded in daylight, though it is preferable to load it in shaded conditions. To load the film: To open the back cover 17, first slide button 25 to the side, then press it down. Unlock and turn locks 22 and 24 counterclockwise to release the pivots 18 and 19.
  • Page 4 Right LED lit = overexposure • Slowly rotate the biggest ring 27: Turn counterclockwise if the left LED is lit. Turn clockwise if the right LED is lit. • Correct exposure is indicated when both LEDs are illuminated simultaneously. • Choose the preferred speed/aperture combination using the exposure calculator scales 27 and 29.

  • Page 5: Flash Photography

    Pull out the delivery spool lock 24 and remove the exposed roll from the right side of camera. 5. REPLACEMENT OF LENSES The camera is designed for use with interchangeable lenses featuring an ARAX mount (also known as Kiev-C, P-Six). You can view the full list of compatible lenses with specifications here: https://araxfoto.com/lenses/info/...

  • Page 6: Care And Storage

    If you have any questions, you are welcome to ask other users in our group https://facebook.com/araxfoto/ Alternatively, you can contact the ARAX team directly using the message form here https://araxfoto.com/about/ araxfoto.com - medium format cameras, lenses, accessories, services Page 6 of 6...
