ASTA AS-MFP1022DNW Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

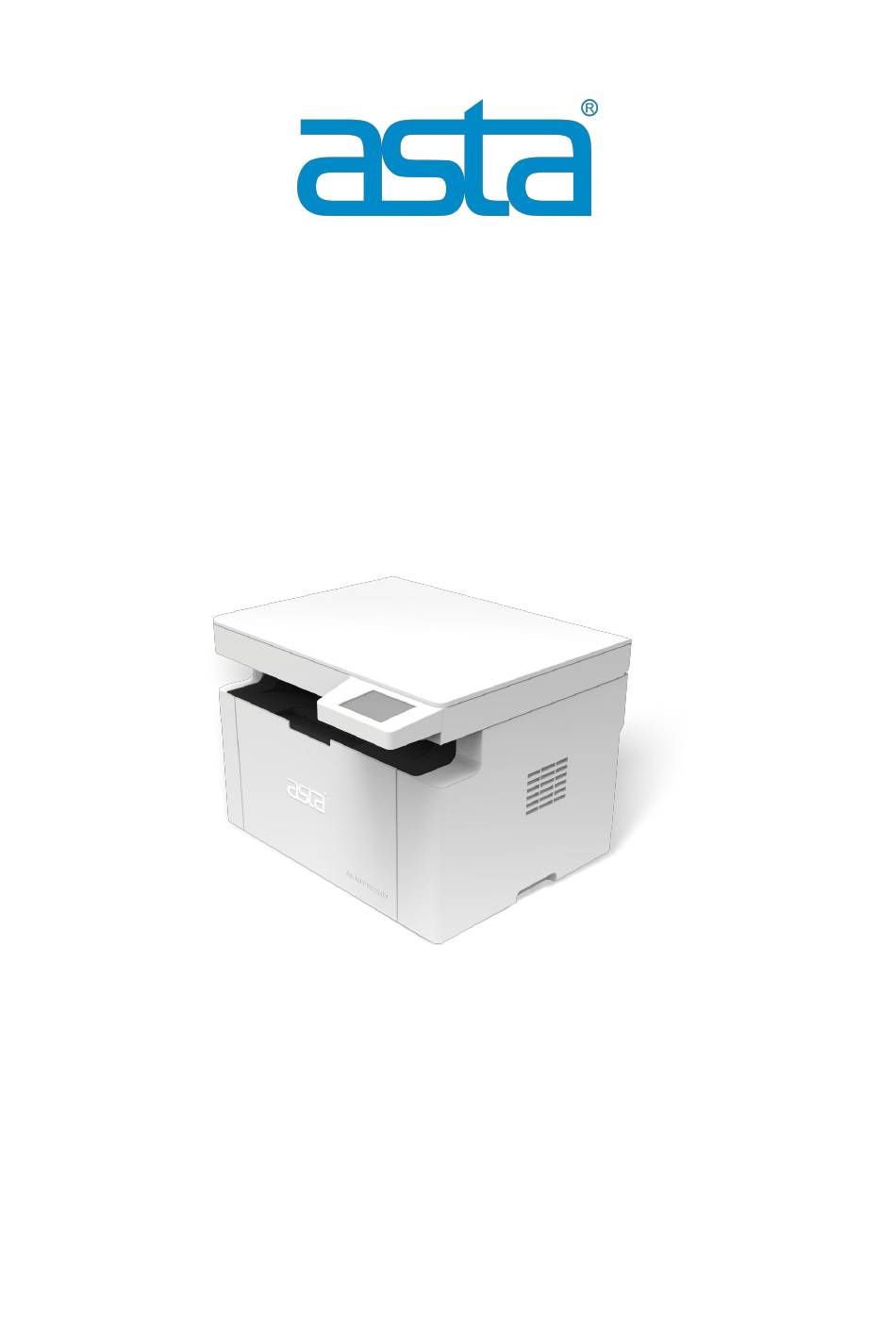

AS-MFP1022DNW
Black & White Laser
Multi-Function printer Instruction manual
Please read this manual carefully before installing and
using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-MFP1022DNW and is the answer not in the manual?

Questions and answers

Summary of Contents for ASTA AS-MFP1022DNW

  • Page 1 AS-MFP1022DNW Black & White Laser Multi-Function printer Instruction manual Please read this manual carefully before installing and using this product.
  • Page 2 ASTA will not be liable for any losses caused thereby, except for losses caused by incorrect installation operation ASTA professional maintenance personnel.
  • Page 3 represent any explanation of the software and hardware configuration this product. product configurations, please consult the contract associated with the product (if any) or consult the seller who sold the product to you. The pictures in this manual are for reference only, if there are individual pictures that do not match the actual product, please refer to the actual product.

  • Page 4: Table Of Contents

    Table of Contents 1. Product safety instructions ............1 1.1 Electrical safety .............3 1.2 Safe to install ..............6 1.3 Safe to operate ...............8 1.4 Consumables are safe ..........11 1.5 The name and content of the hazardous substance in the product ................13 1.6 Reminder of China's environmental labeling ....14 2.
  • Page 5 4.3.3 All-in-one wired network configuration ..50 4.3.4 All-in-one hotspot configuration ......54 4.3.5 All-in-one wireless network configuration ..57 4.3.6 Uninstall the all-in-one driver ......58 4.3.7 Troubleshooting and support ......65 4.4 Linux Driver Installation Instructions ......68 4.4.1 Determine the all-in-one drive ......68 4.4.2 UnionTech UOS all-in-one driver installation and uninstallation ............
  • Page 6 5.1.1 Load the paper drawer ........150 5.2 Paper settings ............154 5.2.1 Change the paper size and paper type .... 154 5.2.2 Use special paper ..........154 6. Printing jobs ................ 156 6.1 Windows print jobs ........... 156 6.1.1 Start the all-in-one ..........156 6.1.2 Print the document .........
  • Page 7 7.2.1 Scan using standard mode ......205 7.2.2 View the scan logs ......... 216 7.2.3 Troubleshooting and support ......218 7.3 Mac scan job ............. 220 7.3.1 Scan using standard mode ......220 7.3.2 Troubleshooting and Support ......224 7.4 App scan job ..............225 7.4.1 Scan parameter setting ........

  • Page 8: Product Safety Instructions

    Failure to follow these instructions may increase the risk of fire, electric shock, burns, or suffocation, and ASTA assumes no responsibility for any damage caused by the user's failure to follow the instructions in this manual.
  • Page 9 incorrectly may result in injury to the person or damage to the machine.

  • Page 10: Electrical Safety

    If you are unable to plug the plug into an outlet, please contact your local ASTA representative and replace the outlet. Do not discard the function of the grounding plug.
  • Page 11 Do not damage or alter the power cord. If the power cord is damaged or the insulated cord is exposed, ask your local ASTA representative for a replacement. note 1. Before cleaning this product, please turn off the power of the machine and unplug it.
  • Page 12 If you find any abnormalities, first turn off the power of this product and unplug it, and then contact an ASTA Communication representative. 6. After turning off the power switch of this product, zero energy consumption can be achieved when the power...

  • Page 13: Safe To Install

    1.2 Installation Security warn Do not place this product where the power cord may be stepped on or crossed by others, friction and excessive pressure may cause heat generation and eventually lead to electric shock or fire. note 1. Do not place this product in the following places: ...
  • Page 14 3. Do not make the tilt angle of this product greater than 10 degrees, otherwise, this product may fall and cause injury. 4. In order to maintain the good performance of this product, this product should be used under the following environmental conditions: ...

  • Page 15: Operational Safety

    1.3 Operational Safety warn 1. This product has a safety design, and the operator is not allowed to touch the dangerous parts. Hazardous areas are fitted with covers or baffles that require tools to remove to limit operator access. To avoid electric shock and injury, never remove these covers or baffles.
  • Page 16  This product has been dropped or the case has been damaged 3. Never stuff anything into the slots or openings of this product. Do not place the following items on this product:  Liquid containers, such as vases or drinking glasses ...
  • Page 17 Please turn off the power of this product immediately and contact an ASTA representative. 4. Please keep good ventilation when operating for a long time or printing a large number of times, as unpleasant odors will be produced in poorly ventilated rooms, which will affect the air quality in the office.

  • Page 18: Consumables Are Safe

    The remaining toner in the toner cartridge may catch fire, causing burns or explosions. If you have toner cartridges that are no longer in use, please contact your local ASTA representative for disposal. note 1. The toner cartridge should be kept away from children,...
  • Page 19 2. When replacing the photoreceptor drum and toner cartridge, please be careful not to scatter the toner. If toner is scattered, be careful not to let the toner come into contact with clothing, skin, eyes, mouth, etc., and do not inhale toner. 3.

  • Page 20: The Name And Content Of The Hazardous Substance In The Product

    1.5 Name and content of hazardous substances in the product Hazardous substances Hexavale Polybromi Polybromina merc cadm Part name lead nated ted diphenyl (Pb) chromium biphenyls ethers (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) plastics ○ ○ ○ ○ ○ ○ metal ○...

  • Page 21: Reminder Of China's Environmental Labeling

    1.6 Reminder of China's Environmental Labeling 1、 It is recommended to place devices with noise greater than 63dB in a relatively separate area. 2、 Recycled paper can be used. 3、 When using a large number of documents for a long time in a room with poor ventilation or printing a large number of documents, ventilation should be done at the right time.

  • Page 22: General Information

    2. General Information This chapter describes the status information of the control panel of this product.

  • Page 23: Overview Of The Dashboard

    2.1 Overview of the operation panel 1. WLAN key WLAN Key Indicator Meaning: (1) The green light flashes at intervals of 1 second, indicating that the device is in WLAN Routing Mode (STA) connection; (2) The green light is always on, indicating that the WLAN route mode is normally connected;...
  • Page 24 WLAN function of the device. (The WLAN mode turned on is the WLAN mode when it was last turned off by default) (2) When the WLAN function is turned on, press this button once (press and hold for 0.5 seconds) to switch between hotspot mode and route mode.
  • Page 25 "-" key function: (1) Reduce the number of copies by 1 at a time; (2) Press and hold for 3 seconds to reduce the number of copies by 10. 4. "+" button The "+" key indicator is solid when standby. "+"...
  • Page 26 5. Cancel key Cancel key indicator meaning: When standby, cancellation button indicator is off; (2) The indicator of the cancel button in the task is always on; (3) When the paper is jammed and the paper is missing, the indicator light is always on. Cancel key function: (1) Press this button once in the task to cancel the task;...
  • Page 27 Start button function: (1) Press and hold this button for 3s in standby mode, and the device will print the information page; (2) Press this button once in standby mode, and the device will start copying; (2) Press this button once in the sleep state to wake the device from sleep;...
  • Page 28 The alarm LED indicator is always on, indicating the status of the upper cover of the device, paper jam, paper shortage, machine failure, etc. 9. Digital LED Digital LED Indicator Meaning: The digital LED indicator is always on during standby, number shown indicates...

  • Page 29: Status Information

    2.2 Status Information Device status meaning information The device is cooling. Cooling Wait for a few seconds or until the inside of the device is completely cool. Canceling The machine is canceling the job. printing Please wait The device is warming up. Printing The device is printing.

  • Page 30: Product Specifications

    3. Product specifications 3.1 General Specifications All-in-one machine MFP1022NW Printing method Laser printing AC 220（1±10% ）V ，50Hz power supply ±1HZ size Unit: mm * 350 ** 245 *** 320 Weight (including consumables). About 66kg noise ≤58dB（A） 15℃ ～ 32℃ temperature reserve -25℃...

  • Page 31: Print Media Specifications

    3.2 Print Media Specifications Ordinary paper, recycled paper, The type of thin paper, thick paper, super paper thick paper A4，A5，A6，B5，B6，Letter，32k Pape ，16k，支票（85×170），自定义 Carton Paper size ： 宽 度 ： 100-216mm ； 长 度 ： (Stand inpu 148-356mm ard). The weight of 60 ～...

  • Page 32: Print Specifications

    3.3 Print Specifications Double-sided Manual double-sided printing Simulation language resolution 1200×1200dpi、600×600dpi Single-si Print 20ppm/22ppm speed printing The first page was 8 seconds or less printed...

  • Page 33: Fourth, Quick Installation Instructions

    Fourth, quick installation instructions 4.1 Machine Installation Instructions 1. Remove the packaging material and install the drum unit. Open the lid (2) and remove the toner cartridge pad...
  • Page 34 Close the lid ！ Note: ☆ If you do not use the packaging material, please send it to the local recycling company for disposal so that it can be recycled. 2. Load the paper into the paper tray. Open the front cover (2) and adjust the paper bezel (3) Put in the paper 3.
  • Page 35 (1) Connect the power cord (2) Press the power switch...

  • Page 36: Device Connection Instructions

    4.2 Device Connection Instructions 4.2.1 USB Device Connection When you choose a USB connection, make sure to connect your computer with your device via a USB cable. 4.2.2 Wired network connection When you choose a wired network connection method, you can use a network cable to connect your computer directly to the all-in-one machine, or you can connect the computer to the all-in-one computer by connecting it to a router.
  • Page 37 1. Connect the all-in-one to the wireless router with a network cable; 2. Connect your computer or smartphone to your wireless router; 3. Use the driver software to add the all-in-one on the computer, and add the all-in-one machine through the APP software on the smartphone.

  • Page 38: Wi-Fi Connection

    4.2.3 Wi-Fi Connection Use the following steps to wirelessly connect the all-in-one to your wireless router. 1. Connect the all-in-one to the wireless router wirelessly; 2. Connect your computer or mobile phone to the wireless router; 3. Use the all-in-one assistant on the computer to add the all-in-one machine, and add the all-in-one machine through the software on the smartphone.

  • Page 39: Mobile Network Connection

    If the all-in-one is in hotspot mode, you can connect the computer to the all-in-one hotspot and install the driver. If the all-in-one is in router mode, you need to connect the computer to the same wireless network as the all-in-one and install the driver.
  • Page 40 when the WLAN button indicator is blue, the all-in-one is in hotspot mode. 2. Connect your computer to the all-in-one hotspot: The initial hotspot name is: "MFP1022DNW_" plus "random number" The initial hotspot password is: 12345678 (If you need to modify the all-in-one hotspot, see 4.3.5 All-in-one hotspot configuration).

  • Page 41: Windows Driver Installation Instructions

    4.3 Windows Driver Installation Instructions This all-in-one computer is compatible with most Windows operating systems on the market, such as Windows XP, Windows 7, Windows 8, Windows Server 2012, Windows 10Windows 11 and other operating systems. This section uses Windows 7 (Enterprise Edition) as an example to describe how to install and uninstall the All-in-One Driver (MFP1022DNW).
  • Page 42 1、Open the downloaded file, double-click the "MFP1022D NW_DriverManager.exe" driver, and the "Astar MFP1022D NW Driver Manager Software" pops up. This software can install the driver with one click, or you can customize the driver installation.
  • Page 43 2. One-click driver installation: Select "Install USB device" to install the driver with one click. After the following w arning box pops up, select Always install this driver softwa Wait a whileto indicate that the installation is completeand click OK.
  • Page 44 The local print driver was successfully installed.
  • Page 45 3. Custom installation driver: If you use one-click installation, skip this section after installing the driver. If you don't use one-click installation and want to try to customize the installation driver, click "Custom Installation". The following interface pops up:...
  • Page 46 Select the , click Install, and select MFP1022DNW "Always install this driver software" after the following warning box pops up.
  • Page 47 Wait for a while, the installation will be completed, click OK.
  • Page 48 The local print driver was successfully installed. See diagram below.

  • Page 49: Install The Network Appliance Driver

    Click the Exit button to complete the installation of the local print driver. 4.3.2 Install the network all-in-one driver network connectivity this model all-in-one supports wired network connection, hotspot connection, and wireless routing connection.
  • Page 50 2、 Restart the "MFP1022DNW_DriverManager.exe" driver, and the "ASTA MFP1022DNW Driver Management Software" will pop up. This software can install the driver with one click, or you can customize the driver installation.
  • Page 51 3、 One-click driver installation: Select Install Net Device to install the driver with one click. After the following warning box pops up, select Always install this driver software.
  • Page 52 Wait for a while, the installation will be completed, click Successfully installed the network appliance driver.
  • Page 53 4、 Custom Installation Driver: If you use one-click installation, you can skip this section after installing the driver. If you don't use one-click installation and want to try to customize the installation driver, click "Custom Installation". The following interface pops up:...
  • Page 54 Failed to get the IP address of the all-in-one machine! Check your network connection, or consult your network administrator. If you know the IP address of the all-in-one network, you can enter it manually. Tick the MFP1022DNW_NET, click Install, and after the warning box pops up, select "Always install this driver...
  • Page 55 software". Wait for a while, the installation will be completed, click OK. The network print driver has been successfully installed, as shown in the figure below.
  • Page 56 Click the Exit button to complete the installation of the network print driver.  If the driver fails to be installed, check whether the network cable is connected properly or try to replace it with a new network cable.  After installing the all-in-one driver, try not to change the name of the all-in-one machine, otherwise it will easily cause problems in...

  • Page 57: All-In-One Wired Network Configuration

    uninstalling and reinstalling the driver. [Special Notice]: 1. If the driver installation fails, please try to temporarily turn off the anti-virus software and related computer protection, and then reopen it after the driver is installed. 2. After installing the all-in-one driver, try not to change the name of the all-in-one machine, otherwise it will easily cause problems in uninstalling and reinstalling the driver.
  • Page 58 mode of the all-in-one machine. (Some models can directly click on the information page 3 to print the information page) 3、Configure computer network information by information page: （1）If DHCP is enabled in wired mode on the information page, set IPV4 in the computer network to automatically obtain it, and print the information page again to view the IP address of the all-in-one machine after the IP assignment is completed.
  • Page 59 Subnet mask 255.255.255.0 gateway 192.167.17.254 The corresponding modification of computer network information is as follows: The IP address of the computer network and the IP address of the all-in-one machine must be set to the same network segment, and the IP of other PCs in the LAN should not conflict with the IP address of the all-in-one machine.
  • Page 60 5、Click the "Login" button in the upper right corner to log in as an administrator Administrator account: admin Default password: 000000 6、After successfully logging in to your administrator account, click the "Settings" button in the left navigation bar to enter "Network Settings".

  • Page 61: All-In-One Hotspot Configuration

    7、Modify the wired network settings of the all-in-one machine as needed, and click Submit. 8、After the wired network information of the all-in-one machine is modified, you need to reconfigure the computer network IPV4 information to ensure that the computer and the all-in-one computer are connected to the same local area network, otherwise you will not be able to continue to access the all-in-one management website.
  • Page 62 address of the all-in-one machine through the computer web page, and enter the all-in-one management website for configuration and modification. 1、Connect the computer to the USB port of the all-in-one with a USB cable, and the all-in-one will be powered on and powered 2、Click on the "Start"...
  • Page 63 4、Modify the hotspot name, encryption method, and hotspot password as required. 5、Define the IP address of the device according to the rules, for example: IP 192.168.137.2 Subnet mask 255.255.255.0 gateway 192.168.137.1 6、Click OK to complete the hotspot configuration of the all-in-one machine.

  • Page 64: All-In-One Wireless Network Configuration

    4.3.5 All-in-one wireless network configuration Once the local All-in-One driver is properly installed, you can modify the All-in-One wireless network information, connect the All-in-One to an available wireless network, or switch wireless networks through the MFP1022DNW Wi-Fi Setup Tool program in the Start menu. You can also access the IP address of the all-in-one computer through the web page of the computer, enter the all-in-one management website, and enter the wireless network information modification.

  • Page 65: Uninstall The All-In-One Driver

    4、Click "Settings" to complete the all-in-one wireless network configuration. 4.3.6 Uninstall the all-in-one drive Administrator privileges are required to uninstall the driver, so log in to the computer with an administrator account. Close all running applications, and it is recommended to turn off the antivirus software.
  • Page 66 There are two ways to uninstall the all-in-one driver: 1. Click (Start) > Control Panel > Programs and Functions > Uninstall or change programs, find MFP1022DNW Driver Manager, right-click Uninstall, MFP1022DNW can be unmounted. 2. Click (Start) > All Programs > MFP1022DNW > MFP1022DNW driver management software.
  • Page 67 1) In the interface, check the all-in-one driver you want to uninstall, and click the "Uninstall" button. The following prompt pops up:...
  • Page 68 Click the "Yes" button, wait for a while, and you will be prompted that the uninstallation is complete:...
  • Page 69 Click the exit button to complete the uninstallation of the driver. 2) In the interface, click the "One-click Uninstall" button, and the following prompts will pop up:...
  • Page 70 Click the "Yes" button, and the following prompt will pop up:...
  • Page 71 Click the "Yes" button, wait for a while, and you will be prompted that the uninstallation is complete:...

  • Page 72: Troubleshooting And Support

    Click the exit button to complete the uninstallation of the driver. 4.3.7 Troubleshooting and Support 4.3.7.1 Installing the network print driver cannot automatically obtain the IP address...
  • Page 73 Some versions of Windows may have the problem that the IP address of the all-in-one cannot be automatically obtained when setting the network printer driver in the network print driver, which may be caused by the following aspects:  The network connection between the all-in-one PC and the computer is abnormal, please check the network cable connection status and try again.
  • Page 74 Windows 8 when setting the computer network IP, but the custom IP addresses are defined in the network properties IPV4. If you have any questions during use, please contact the system provider or the sales or after-sales personnel of ASTA.

  • Page 75: Linux Driver Installation Instructions

    4.4 Linux Driver Installation Instructions 4.4.1 Determine the all-in-one drive Due to the different domestic operating systems and CPU architectures, the driver versions used are also different, this section introduces the adaptation scope of this model of all-in-one and how to determine the all-in-one driver. 4.4.1.1 Query system information Users can find the "My Computer"...
  • Page 76 If you can't find the "My Computer" or "Computer" icon on the desktop, you can right-click or use the shortcut key "Ctrl+Alt+T" to start the terminal, enter "uname -a" in the terminal, press the Enter key to view the CUP information, and enter "cat /etc/issue" again to press the Enter key to view the system information.
  • Page 77 4.4.1.2 Select the driver package Copy the driver package from the random drive disc to the local disk, decompress it and enter the main folder, which contains three folders: UnionTech UOS, Kirin V10, and Kirin V10SP1, which represent the three domestic operating systems that are adapted, and the file diagram is shown below.
  • Page 78 Kylin V10SP1 system both belong to Kylin operating system, the driver installation and uninstallation process is similar, so I will not make a difference here, if you encounter problems in the actual installation process, you can consult the sales staff or after-sales personnel of ASTA.

  • Page 79: Uniontech Uos All-In-One Driver Installation And

    1、Double-click the driver to install （1） Double-click the all-in-one driver: ， Click “com.asta.asta20series_2.0-0.10_mips64el.deb” "Install" in the installation interface that pops up. authentication dialog such "Authentication is required to install or remove the software"...
  • Page 80 "Installation Successful", click Finish to successfully complete installation all-in-one driver. （4）After successful installation, the "ASTA 20 Series Management Tools" widget will appear in the start menu of the computer. 2、Terminal command installation (1) Right-click the blank space of the folder where the driver is located to open the terminal or use the shortcut key "Ctrl+Alt+T"...
  • Page 81 （3）使用指令“ dpkg –I [驱动名称] ”安装驱动，终端输入 “ dpkg -i com.asta.asta20series_2.0-0.10_mips64el.de ”，按回车键等待驱动安装。 (4) As shown in the figure above, when the terminal automatically jumps to the next line and waits for the input command status, and the installation process outputs the log as shown in the above figure, the driver installation is completed.
  • Page 82 1、Add an on-premises all-in-one (1) Click the start menu in the lower left corner of the computer desktop, find "Print Manager" and click to enter the Print Manager interface. (2) Click the button above to enter the Add All-in-One dialog box, and the system will automatically find and list the currently connected All-in-One MFP1022DNW.
  • Page 83 Special Note: If the MFP1022DNW all-in-one machine is not listed in the current dialog box, you need to manually click the button on the right to manually search for it. If you still can't find the all-in-one machine, please check whether the USB cable is connected normally or check whether the all-in-one is turned on, if the above methods cannot solve the problem, please contact the sales staff or after-sales personnel.
  • Page 84 （5）If the test page is normally typed on the all-in-one device, select Yes. If the All-in-One does not print test pages properly, select No.
  • Page 85 "Reinstall" to install the driver again. If the above methods cannot solve the problem, please contact the sales or after-sales personnel of ASTA. （6）After the addition is successful, the Appliance Devices list displays the currently added Appliance devices.
  • Page 86 （2）Click OK in the "All-in-One IP Setup Tool" to enter the "ASTA A4 All-in-One IP Setup Tool" to view the IP information of the current All-in-One Machine. Select Use Static IP Address (Disable DHCP on the Appliance Function) and set the static IP address, subnet mask, and gateway.
  • Page 87 For details on how to use the ASTA A4 All-in-One IP Setup Tool, refer to 2Section 4.4.2 Instructions for using the ASTA A4 All-in-One IP Setup Tool. （3）Confirm that the all-in-one machine is connected to the computer network normally, enter the computer control center, select the network, and enter the "wired network"...
  • Page 88 （6）Open the "Print Manager" again, click the button to enter the Add All-in-One dialog box, and the system will automatically find the All-in-One Network and list the currently connected All-in-One MFP1022DNW. If you can't find the all-in-one network appliance in the Select All-in-One list, click Manually and enter the IP address of the all-in-one in the left address bar (default all-in-one IP: 192.167.17.100).
  • Page 89 （7）Select and click "ASTA MFP1022DNW (using socket protocol)" or "Unknown" (using socket protocol) on the network all-in-one machine, and if the system pops up the prompt box "The driver has been matched, please try again after connecting to the network", click OK to close the prompt box.
  • Page 90 （9）A prompt will pop up that the installation is successful, click "Print Test Page", and then the all-in-one machine will start working and type out a "Print Test Page".
  • Page 91 "Reinstall" to install the driver again. If the above methods cannot solve the problem, please contact the sales or after-sales personnel of ASTA. （11）After the addition is successful, the Appliance Devices list displays the currently added Appliance devices.
  • Page 92 There are two common ways to uninstall a driver, and the two methods are explained in turn. 1、Remove from the Start menu （1）Find "ASTA 20 Series Management Tools" in the start menu, right-click and select "Uninstall", and select "OK" in the pop-up dialog box to complete the...
  • Page 93 (Note: Please refer to 2Section 4.2.1, Terminal Command to Install Driver). （2） Enter dpkg -l|grep asta in the terminal and press enter to view the installed drivers. （3） Use the terminal command "dpkg --purge [driver name]"...

  • Page 94: Kylin System All-In-One Driver Installation And Uninstallation

    （5） Note: After the driver is uninstalled, the "All-in-One Devices" list in the Print Manager will not be uninstalled with the driver, and the All-in-One devices added to the driver need to be manually deleted. In the print manager, select the all-in-one device you button to delete.
  • Page 95 "Installation Successful", click the close button in the upper right corner to successfully complete the installation of the all-in-one driver. （4）After successful installation, the "ASTA 20 Series Management Tools" widget will appear in the start menu of the computer. 2、Terminal command installation （1）Right-click the blank space of the folder where...
  • Page 96 （3）使用指令“ dpkg -i [驱动名称] ”安装驱动，终端输入 “ ”， dpkg -i com.asta.astaa4bprinter_1.0-8_amd64.deb 按回车键等待驱动安装。 （4）As shown in the preceding figure, when the terminal automatically jumps to the next line and waits for the input command status, and the installation process outputs logs as shown in the preceding figure, the driver installation is complete.
  • Page 97 （2）Click "Add" to enter the management interface of adding a new all-in-one. Select "ASTA MFP1022DNW" in the list of devices, and then tap "Forward". （3）Click "Forward" to proceed to the next step.
  • Page 98 （4）Click "Apply" to proceed to the next step.
  • Page 99 （5）Click "Print Test Page", and then the all-in-one machine starts to work, and a "Print Test Page" is typed. （6）Click OK to close the Submitted dialog box. （7）Click OK to close the Appliance Properties dialog box. （8）After the all-in-one device is added, the list of all-in-one devices displays the currently added all-in-one device.
  • Page 100 Tools", and click to enter the all-in-one IP setting tool. （2）Click OK in the "All-in-One IP Setup Tool" to enter the "ASTA A4 All-in-One IP Setup Tool" to view the IP information of the current All-in-One Machine. Select Use static IP address (that is, disable DHCP on the all-in-one appliance) and set the static IP address and subnet mask to 255.255.255.0 and the gateway.
  • Page 101 "Confirm" after filling in, and click to connect to the current network. （5）Open the Appliance Manager again. Click "Add" to enter the Add New All-in-One dialog box （6）Open "Network Appliance Machine" and select "ASTA MFP1022DNW(192.168.). 57.200）”。 Click "Forward".
  • Page 102 If you can't find the all-in-one network in the device list, click "Find All-in-One Network", enter the IP address of the all-in-one machine in the address bar of the host on the right (default all-in-one IP: 192.167.17.100), and click "Search".
  • Page 103 The found LAN is displayed in the list on the left, select the LAN app, and click Advance. If the authentication dialog box pops up, click Cancel or Close.
  • Page 104 （7）Select "ASTA" and click "Forward". （8）In the model list, select "MFP1022DNW" and click "Forward". （9）Click "Forward" to proceed to the next step. （10）Click "Apply" to proceed to the next step.
  • Page 105 （11）Click "Print Test Page", and then the all-in-one machine starts to work, and a "Print Test Page" is typed. （12）Click OK to close the Submitted dialog box. （13）Click OK to close the Appliance Properties dialog box. （14）After the all-in-one device is added, the list of all-in-one devices displays the currently added all-in-one device.
  • Page 106 There are two common ways to uninstall a driver, and the two methods are explained in turn. 1、Remove from the Start menu （1）Find "ASTA 20 Series Management Tools" in the start menu, right-click and select "Uninstall", and select "Uninstall" in the pop-up dialog box.
  • Page 107 【 Special Note 】 Please refer to 2Section 4.2.1, Terminal Command Installation Driver. （2）Enter dpkg -l|grep asta in the terminal and press enter to view the installed drivers. （3）使用终端指令"dpkg --purge [驱动名称]"卸载驱动,终 端输入"dpkg --purge asta-asta20series",按回车键等待完成卸 载。...

  • Page 108: Instructions For The Use Of The 20 Series Management Tools

    4.4.4.2 Instructions for using the ASTA 20 Series All-in-One IP Setup Tool The ASTA A4 All-in-One IP Setup Tool (IP Setup Tool for short) allows you to set two IP address states: "Automatically obtain IP address (i.e., enable the all-in-one DHCP function)"...
  • Page 109 and "Use a static IP address (i.e., disable the all-in-one DHCP function)". The IP Setup Tool will automatically look up the current All-in-One at startup and display the IP address status of the All-in-One. The display status of the IP address depends on the DHCP status of the appliance body.
  • Page 110 2) Click "OK" and click "Yes" in the pop-up prompt. 3) After waiting for a few seconds, click "Find All-in-One", and the IP address status has been changed to "Automatically obtain IP address (i.e., enable All-in-One DHCP function)", and the All-in-One DHCP status has been set to On.
  • Page 111 2. When you select Use static IP address (i.e., disable DHCP function of the all-in-one machine), the specific operation process is as follows: 1) Click "Use a static IP address (i.e., turn off the all-in-one DHCP function)".
  • Page 112 At this time, the "Static IP Settings" will display the default IP address information, and the user can modify the corresponding IP information according to the actual needs, select the default IP information at present, and click "OK" to enter the next step. 2) 点击“Yes”，立即重启一体机。...
  • Page 113 4.4.4.3 Instructions for using the WLAN Setup Tool for ASTA 20 Series All-in-One PCs The "ASTA A4 All-in-One WLAN Setup Tool" is a tool used to set wireless WLAN modes, which are divided into two modes: client mode and hotspot mode. When users need to connect to a wireless network, they need to use the tool to set up the all-in-one first.
  • Page 114 First, you can select the appropriate model from the list above-MFP1022DNW, if you need to connect to the routing mode, you need to connect the wired network port of the PC with the router, and the all-in-one wireless connection router. Select the client mode and click on it“flushed”button to search for the name of the wireless router you want to connect, enter the password, and click“Save your changes, the all-in-one...
  • Page 115 After connecting the all-in-one to one of the above modes, you can refer to 4.4.2/4.4.3 Add the All-in-One Network Appliance in wireless mode manually and print it.

  • Page 116: Troubleshooting And Support

    4.4.5 Troubleshooting and Support 4.4.5.1 Inconsistencies in the operation process The UOS system version used in this section is "Professional Edition (1050)", and the Kylin V10SP1 system version is "2203 (V10SP1)", and there will be certain differences in the specific operation process and operation interface between different system versions.
  • Page 117 4.4.5.3 Add a Network Appliance issue If the all-in-one and the computer are connected directly via a USB cable or network cable, it is recommended that you use "Use a static IP address (i.e., turn off the DHCP function of the all-in-one device)" in the IP settings tool. Ordinary computers do not have the function of DHCP to assign IP addresses, and the dynamic IP is used to add the network all-in-one machine, which does not guarantee that the...

  • Page 118: Mac Driver Installation Instructions

    4.5 MAC DRIVER INSTALLATION INSTRUCTIONS THIS ALL-IN-ONE IS COMPATIBLE WITH MOST OF THE MAC OS OPERATING SYSTEMS ON THE MARKET, AND THIS CHAPTER TAKES MAC OS 12.1 AS AN EXAMPLE TO INTRODUCE THE INSTALLATION AND UNINSTALLATION OF THE MFP1022DNW. 4.5.1. Driver installation On Mac OS, double-click on the driver package to install it.
  • Page 119 2. Click Continue to view the software license agreement.
  • Page 120 3. If the software license agreement pops up, please click "Agree". 4. Use the default installation location or manually select the installation location.
  • Page 121 5. Enter the password of the computer installer, which is generally the password for computer boot. 6. After the installation is complete, click Close.

  • Page 122: Add An All-In-One Machine

    4.5.2. Add an all-in-one machine This all-in-one model supports USB connection, wired network connection, hotspot connection, and wireless routing connection. During the actual addition process, you can select the corresponding connection mode and add the all-in-one PC based on the usage scenario. 4.5.2.1 Add USB all-in-one machine 1.
  • Page 123 4. Select "ASTA MFP1022DNW" in the device list, click "Select Software" in the "Use" option at the bottom of the Add All-in-One interface, and select "ASTA MFP1022DNW".
  • Page 124 5. Click "Add" to complete the all-in-one addition. 4.5.2.2. Add a wired network all-in-one machine If the all-in-one machine is directly connected to the computer with a network cable, you only need to set IPV4 to automatically obtain it in the computer network settings. 1.
  • Page 125 3. Scroll down to find "All-in-one & Scanner" and click "Add". 4. Select "ASTA MFP1022DNW" in the device list, click "Select Software" in the "Use" option at the bottom of the Add All-in-One interface, and select "ASTA MFP1022DNW".
  • Page 126 5. Click "Add" to complete the all-in-one addition. 4.5.2.3 Add hotspot mode all-in-one machine 1. Turn on the wireless switch of the all-in-one machine: Press the WLAN button of the all-in-one machine for 3 seconds until the indicator light on the WLAN button lights up. 2.
  • Page 127 "System Preferences". 5. Scroll down to find "All-in-one & Scanner" and click "Add". 6. Select "ASTA MFP1022DNW" in the device list, and click "Select Software" in the "Use" option at the bottom of the Add All-in-One interface, and select "ASTA MFP1022DNW".
  • Page 128 7. Click "Add" to complete the all-in-one addition. 4.5.2.4 Add Route Mode All-in-One Machine 1. Turn on the wireless switch of the all-in-one machine: Press the WLAN button of the all-in-one machine for 3 seconds until the indicator light on the WLAN button lights up. 2.
  • Page 129 "System Preferences". 5. Scroll down to find "All-in-one & Scanner" and click "Add". 6. Select "ASTA MFP1022DNW" in the device list, and click "Select Software" in the "Use" option at the bottom of the Add All-in-One interface, and select "ASTA MFP1022DNW".

  • Page 130: All-In-One Wired Network Configuration

    7. Click "Add" to complete the all-in-one addition. 4.5.3 All-in-one wired network configuration Before configuring the wired network of the all-in-one machine, make sure that the all-in-one machine and the computer are on the same network and build a LAN connection. Access the IP address of the all-in-one machine through the desktop web page, and enter the all-in-one management website for configuration.
  • Page 131 page, and view the DHCP switch and IP information in the wired mode of the all-in-one machine. 3、Configure computer network information by information page: If DHCP is enabled in wired mode on the information page, set IPV4 in the computer network to automatically obtain it, and print the information page again to view the IP address of the all-in-one machine after the IP assignment is completed.
  • Page 132 The wired network information of the all-in-one machine on the information page is as follows: IP 192.167.17.100 Subnet mask 255.255.255.0 gateway 192.167.17.254 The corresponding modification of computer network information is as follows: The IP address of the computer network and the IP address of the all-in-one machine must be set to the same network segment, and the IP of other PCs in the LAN should not conflict with the IP address of the all-in-one machine.
  • Page 133 5、Click the "Login" button in the upper right corner to log in as an administrator Administrator account: admin Default password: 000000 6、After successfully logging in to your administrator account, click the "Settings" button in the left navigation bar to enter "Network Settings".

  • Page 134: All-In-One Hotspot Configuration

    7、Modify the wired network settings of the all-in-one machine as needed, and click Submit. 8、After the wired network information of the all-in-one machine is modified, you need to reconfigure the computer network IPV4 information to ensure that the computer and the all-in-one computer are connected to the same local area network, otherwise you will not be able to continue to access the all-in-one management website.
  • Page 135 address of the all-in-one machine through the computer web page, and enter the all-in-one management website for configuration and modification. 1. Use the matching USB cable to connect the all-in-one computer to the computer, and then turn on the power of the all-in-one machine.

  • Page 136: All-In-One Wireless Network Configuration

    Once the appliance driver is properly installed, you can connect the appliance to an available wireless network or switch wireless networks through the ASTA Status Monitoring application. You can also access the IP address of the all-in-one computer through the web page of the computer, enter the all-in-one management website, and enter the wireless network information modification.
  • Page 137 1. Use the matching USB cable to connect the all-in-one computer to the computer, and then turn on the power of the all-in-one machine. 2. Find and open "ASTA Status Monitoring" in the list of computer applications. 3. Find and select the USB-connected device in the status monitoring all-in-one list.
  • Page 138 5. Select the wireless network you want to join in the hotspot list and enter the password. 6. If the IP acquisition mode is "DHCP", you do not need to manually configure the IP address, if you need to manually configure, you can select "Manual Setting"...

  • Page 139: Troubleshooting And Support

    7. Click "OK" to complete the all-in-one wireless network configuration. 4.5.6 Troubleshooting and Support 4.5.6.1 Inconsistencies in the operation process The system version used in this section is Mac OS 12.1, and there will be some differences in the specific operation process and operation interface between different system versions.

  • Page 140: App Software Installation Instructions

    4.6 App Software Installation Instructions 4.6.1 App Installation Android mobile phone users can search for "ASTA Print" through the Android App Market (Tencent App Treasure) to download and install. IOS mobile phone users can download and install it by searching for "ASTA Print" in the "App Store".
  • Page 141 The home page of the APP is the device management interface, which can be used to quickly add the all-in-one machine, view the device status, edit and delete the device, etc., and refer to "46.3 Add All-in-One Machine". 4.6.2.2 Printing...
  • Page 142 The printing module is mainly divided into single photo, photo, document, photo, web page and ID card printing. 1. A single photo...
  • Page 143 You can rotate, crop, adjust the color value, filter and other editing operations on a single photo, and print the edited photo. 2. Photos Multiple photos can be printed, and up to 9 photos can be selected. 3. Documents It can print Word documents, Excel documents, PPT documents, TXT documents and PDF documents in the mobile phone.
  • Page 144 5. Web Pages You can type a URL to print a web page. 6. Printing of ID card You can take pictures of the front and back of the ID card and print the ID card. 4.6.2.3 Settings 1、 Cloud Print login User Registration &...
  • Page 145 prompted that you are not logged in, click "OK" to jump directly to the login interface. If you already have an account, enter your mobile phone number and password, check "Service Agreement" and "Privacy Policy", and click the "Login" button to log in.
  • Page 146 "Quick add all-in-one machine" from the home page to jump to the scanning interface to scan the code. If there is no administrator on the current device, the first person to scan the code is the administrator, and the all-in-one machine will be added directly to the home page and can be used directly.
  • Page 147 Cloud print logs The Cloud Appliance saves the document name and print time for the last 10 print jobs. The record cannot be modified or deleted. Device authorization and sharing The administrator (the first account to scan the barcode of the unbound device) can authorize the bound device, and other users can add and use the device only after the administrator authorizes the device after scanning the code.
  • Page 148 Unbind the device Different statuses will appear when different user permissions are unbound from the same device: 1) When a group member unbinds a device, only their own account will be unbound from the device, and other users will not be affected. 2) If the administrator unbinds a device, the entire sharing group will be disbanded, and other group members will be...
  • Page 149 2. Help You can jump to the official website of ASTA Communication and provide some common fault handling methods.
  • Page 150 (2) All-in-one network settings When the all-in-one is in router mode, you can connect the all-in-one to the specified wireless network, and the specific connection process can be referred to "4.". 6.4 All-in-One Network Settings". 5. Consumables information Provide all-in-one consumables information. 6.

  • Page 151: Add An All-In-One

    7、About APP You can view the version information of the app. 4.6.3 Add an all-in-one machine To add an all-in-one device to the mobile app, make sure the all-in-one wireless switch is on, if it is off, press the all-in-one WLAN button for 3 seconds until the indicator light on the WLAN button lights up.
  • Page 152 4. On the home page of the App, click "Quick Add" - "WLAN Mode". 5. Select the available devices in the device list. 6. After the addition is completed, the device information will be displayed on the home page of the App. If the addition fails or the all-in-one cannot be found, check the device connection.
  • Page 153 1. Turn on the wireless switch of the all-in-one machine: Press the WLAN button of the all-in-one machine for 3 seconds until the indicator light on the WLAN button lights up. 2. Switch the all-in-one to routing mode: Short press the WLAN button of the all-in-one machine for 0.5 seconds to switch the wireless mode until the WLAN button indicator is green, and the all-in-one machine is in routing mode.

  • Page 154: All-In-One Network Setup

    4.6.4 All-in-one network settings The all-in-one network setup allows the current all-in-one to connect to an available wireless network or switch wireless networks. If the all-in-one is not connected to the wireless network, refer to "4.". 6.3.1 Add WLAN Hotspot All-in-One Machine"After adding the All-in-One Hotspot Hotspot, set up the All-in-One network.
  • Page 155 2. Click "Configure Network" and select "All-in-One Network Settings". 3. Click on the network name, the App will enter the network search interface, select the wireless network you want to connect to in the network list, and enter the password.
  • Page 156 4. Click "One-click configuration" to complete the all-in-one network configuration. Note: If the currently added all-in-one is a route-mode all-in-one machine, after setting up the all-in-one network, please switch the phone to the same wireless network as the all-in-one and add the all-in-one again.

  • Page 157: Paper Handling

    5. Paper handling This chapter describes a series of settings, such as paper types and loading methods supported by this product. 5.1 Loading Paper 5.1.1 Load the paper drawer When you load paper of other sizes in the paper drawer, you must also change the paper size settings on the computer.
  • Page 158 3. Fully unfold the stacked paper. 4. Load the paper so that the printing side is facing up. Make sure that all four corners of the paper in the paper tray are flat, and be careful not to load too much paper, which can cause paper jams.
  • Page 159 Do not place different sizes of paper in the paper drawer at the same time, as this may result in paper jams or paper feeding errors. 5. Make sure the paper is below the maximum paper capacity, the paper tray is too full will cause paper jams.
  • Page 160 7. Send the print job to the device.

  • Page 161: Paper Settings

    5.2 Paper Settings 5.2.1 Change the paper size and paper type When you load other sizes and types of paper in the paper drawer, you must change the software's paper size and paper type settings at the same time. 5.2.2 Use special paper Sample paper must be tested before purchase to ensure the best printing results.
  • Page 162 Low-temperature dyed or hot-melt printed letterhead paper • Multi-layer paper or carbonless paper • Inkjet paper If you use any of these types of paper, you may damage your device. The damage caused by this is not covered by the warranty service of ASTA.

  • Page 163: Printing Jobs

    6. Printing jobs 6.1 Windows Print Jobs Before printing the document, read the first five chapters and install the all-in-one driver. The following takes Word documents in Microsoft Office 2013 under Windows 7 operating system as an example to introduce how to use the all-in-one computer to print documents.

  • Page 164: Printing Documents

    6.1.2 Printing Documents 1. Select the "Print" option in the "File" menu.
  • Page 165 2. In the Print dialog box, click the Printer drop-down list box and select MFP1022DNW. 3. Make sure you have the correct size of paper in the paper drawer. 4. Select the desired print page in the page range. 5. Enter the desired number of pages in the Number of Pages field.
  • Page 167 7. Select the source and type of paper in Paper/Quality in Printer Properties. 8. Set the custom paper size in the [User Table] of [Printer Properties].
  • Page 168 The user can set and add a custom size according to the actual needs, return to the [Print] option, and select the custom size in the paper type. 9. In [Other Settings] of [Printer Properties], select Zoom Printing.
  • Page 169 10. In the [Advanced] of [Printer Properties], select the paper specification, advanced printing and other information.
  • Page 170 11. Change the settings of other all-in-one machines if necessary. 12. Click OK. 13. Complete the printing operation.

  • Page 171: Print Settings

    6.1.3 Print Settings 6.1.3.1 Printer Properties - Layout 1. Direction Select the orientation of the printout (portrait or landscape). 2. Page order Select the order in which all pages of each task are printed, and support two modes: "front-to-back" and "back-to-front". 3.
  • Page 172 6.1.3.2 All-in-One Attributes - Paper/Quality 1. The source of the paper Select the paper source settings based on the printing conditions or intent. 2. Media...
  • Page 173 Select the type of media you want to use. For best results, the machine automatically adjusts the print settings based on the selected media type. 6.1.3.3 All-in-One Attributes - User Table 1. Customize the page...
  • Page 174 The user can set and add a custom size according to the actual needs, return to the [Print] option, and select the custom size in the paper type. 【Special Note】To add a custom page size in the all-in-one attribute of a Word document, you need to turn off and restart the document, otherwise the newly added paper size will not take effect immediately.
  • Page 175 6.1.3.5 Advanced Document Settings 1. Paper specifications Select the paper type. 2. Number of copies Set the number of copies. 3. Advanced printing function...

  • Page 176: Cancel The Print Job

    Turn advanced printing features on or off. 4. The layout of the number of pages printed on each sheet Support "Right then Down",“From the bottom and then to the right”、“From left and then down”、“From the bottom then think left”。 5. Image processing This is where high-quality printing can be initiated.

  • Page 177: Linux Print Jobs

    6.2 Linux Print Jobs Before using the automatic double-sided laser printer to print documents, please read the first five chapters and install the all-in-one driver, the following is an example of the Kirin V10SP1 operating system platform to introduce how to use the all-in-one machine to print documents.

  • Page 178: Printing Documents

    a sleep state after 30s without operation. 6.2.2 Printing Documents Since the printing settings interface of different documents may be different under the Linux system, here are two common interfaces as examples to describe how to use the all-in-one machine to print documents. Different types of documents and different systems will have slight...
  • Page 179 In the All-in-One column, you can click the drop-down list on the right in the Name column and select ASTA- MFP1022DNW. The "Status", "Type", "Location", and "Remarks" on the lower side reflect some information parameters of the all-in-one machine. Click [Properties] to set the print properties, which will be described in detail below.
  • Page 180 functional options of WPS software, so as not to affect your normal printing effect, please do not check them. In the [Page Range] column, you can set the page range for the print job: you can print all the text, the current page, and you can also set the print range by yourself.
  • Page 181 [Paper Size], double-click the menu on the right side of the paper size, and a drop-down menu of paper size will appear, and you can modify the paper size according to your printing needs. [Resolution], double-click the menu on the right, a drop-down menu of resolution will appear, you can choose the resolution according to your printing needs, the higher the resolution, the better the printing effect;...
  • Page 182 [Color mode], the color mode is only black and white, and there are no other options. [Zoom], double-click the menu on the right, and a drop-down menu will appear. You can choose the zoom percentage according to your printing needs. [Image Adjustment], double-click the menu on the right, and a drop-down menu will appear.
  • Page 183 1. Routine In the [All-in-one] column, you can select our all-in-one "ASTA-MFP1022DNW" from the list. In the [Range] column, you can set the page number range of the print job: you can print all the text, the current page, and you can also set the printing range by yourself.
  • Page 184 2. Page settings: Click the [Page Settings] tab to enter the all-in-one page settings On this screen, you can make some settings for the print layout and the printed paper. Click the menu on the right side of the [Duplex] option, and a drop-down menu of duplex printing settings will appear, and you can set the single- and double-sided printing settings according to your printing needs.
  • Page 185 choose to print all pages, odd pages, and even pages according to your printing needs. Click the arrow to the right of the Zoom option to scale the print format. Click the right menu of the [Paper Type] option, and a drop-down menu of paper type will appear, and you can modify the printing medium according to your printing needs.
  • Page 186 Note: For a better printing experience, make sure the Page Zoom option is selected to Shrink to printable area. 4. Tasks: Click the [Tasks] tab to enter this page. There are no special requirements on this page and generally no modifications are made.
  • Page 187 5. Image Quality: Click the [Image Quality] tab to enter this page. This project focuses on simple settings for image print quality. The higher the resolution, the better the printing effect; The lower the resolution, the higher the printing speed. 6.

  • Page 188: Check The Print Status

    [Image Zoom], double-click the menu on the right, and a drop-down menu will appear. You can choose the zoom percentage according to your printing needs. [Image Adjustment], double-click the menu on the right, and a drop-down menu will appear. According to the printing needs, the image color shade can be adjusted, including no processing, light, light, normal, darker, darker.
  • Page 189 The MFP1022DNW all-in-one machine comes with a print monitoring function, which can monitor the printing status in real time and feedback to the user in real time. (Start) > 20SER Startup Status Monitoring: Laser All-in-One Condition Monitoring Tool. Not only that, but when there are some errors on the all-in-one, the status monitoring will report the specific type of error and some simple ways to deal with it.
  • Page 190 Click Scanner. After entering the [All-in-One and Scanner] management interface, select our all-in-one "ASTA-MFP1022DNW", click [All-in-one] above, and select [View All-in-One Queue] in the drop-down box to view the printing queue. The all-in-one queue lists a list of jobs that have been printed by the all-in-one, along...

  • Page 191: Cancel The Print Job

    Attributes Management screen, select ASTA-MFP1022DNW (astafax) or ASTA-MFP1022DNW (192.168.) for the all-in-one that is printing the job57.200), and then right-click and click View Appliance Queue to enter the Appliance Queue. Click to select the print job you want to cancel, and right-click and select Cancel to cancel the print job that is in progress or in the queue.

  • Page 192: Mac Print Jobs

    In addition, you can reprint a job that has been canceled by selecting the job, right-clicking and selecting "Reprint". 6.3 MAC Print Jobs 6.3.1 Start the All-in-One Machine 1. Make sure that the power cable and USB cable are connected correctly.
  • Page 193 2. In the [All-in-one] column, you can select the all-in-one "ASTA MFP1022DNW". The options on the bottom allow you to set the printing parameters. In the [Number of copies] column, you can adjust the number of copies of the print job and set the settings for duplex printing.

  • Page 194: Cancel The Print Job

    3、 After the settings are completed, click "Print" to send the printing task to the all-in-one machine. When the all-in-one queue appears: "Please put the printed paper into the paper drawer, and click the [Start] button, please do not press and hold!" After prompting, please manually take out the printed paper and put it back in the paper tray, and click the [Start] button of the all-in-one machine to complete the printing on the other side.

  • Page 195: App Print Jobs

    3. Open the mobile phone "ASTA Print" software, and add the all-in-one machine correctly (refer to "4."). 6 App Software Installation Instructions"). 6.4.2 Print Jobs 1. Open the "ASTA Print" App and click the "Print" button in the bottom navigation bar to enter the printing interface.
  • Page 196 2. Select the content to be printed according to your needs. 3. Click the "Print" button in the upper right corner to enter the print preview interface.
  • Page 197 4. Click "Settings" in the lower left corner to set the printing parameters.

  • Page 198: Cancel The Print Job

    5. Enter the required number of copies (1~999) in the number of copies field. 6. Choose whether to print one by one. 7. Select the print color mode. 8. Select the number of pages per page in the page layout. 9.

  • Page 199: Scanning Jobs

    7. Scanning Jobs This chapter describes the instructions for using the scanned documents of this product. Before scanning documents with a monochrome laser MFP, read the first six chapters and install the All-in-One driver. 7.1 Windows Scan Jobs (Start) > All Take Windows 7 as an example, click Programs >...

  • Page 200: Scan Using Standard Mode

    Next, the standard mode scanning method is explained. 7.1.1 Scan using standard mode The following example describes how to use Standard mode for a scan job.
  • Page 201 7.1.1.1 Standard Mode Scan Settings Basic settings (1) Device selection This function can find the currently connected all-in-one device, and the found device will be displayed in the main scanning interface. There are two ways: you can choose to find automatically or manually enter, select Auto Find to search for all devices connected to the current environment, or you can choose to manually enter and select the corresponding model to...
  • Page 202 draft (3) Scan mode There are three ways to choose from Scan Mode: Scanning files in 24-bit RGB color, this mode uses more colored storage space. Documents are scanned in 256 different shades of gray, Grayscale giving them black and white gradation and depth. black and Scan documents in black and white, and this mode is white...
  • Page 203 if the image is not clear enough, or if you need to see more detail, you must still increase the resolution.  When you scan large color images at a higher resolution (600 dpi), it will significantly increase the scan time, increase the file size, and take up a lot of system resources.
  • Page 204 the brightness makes lighter or blurry handwriting a little clearer. Drag the slider left or right to decrease or increase the brightness of all colors in the image. (8) Gamma The image gamma value is used to adjust the color of the scanned computer image.
  • Page 205 (3) revolve This function supports rotating the image, which can be rotated clockwise by 0 degrees, 90 degrees, 180 degrees, and 270 degrees. (4) Automatic correction This function can correct a manuscript with a certain tilt angle to a vertical scanner, and the tilt angle should not be greater than 15 degrees.
  • Page 206 generally used for scanning multiple business cards and ID cards. Do not slant overlays between multiple originals, otherwise they will not be recognized. (9) Delete blank pages This feature allows you to delete blank pages from scanned manuscripts. Drag the slider left or right to decrease or increase the sensitivity value.
  • Page 207 The default save path is C:\Users\Public\ Pictures\ MF P1022DNW. Click the "Add" button on the right to add a new path, and click the "Delete" button to delete the selected path. Check: [Open save directory after scanning], and the system will automatically pop up the save path after the scan is over.
  • Page 208 This feature is very convenient when scanning unused documents, such as testing @0001.jpg files. (4) Save the format  When selecting an image: There are four formats to choose from. Image .jpg/.png/.bmp/.tiff  When you select a document: There are four formats to choose from. documentation Single PDF/Multiple PDF/Single OFD/Multiple OFD ...
  • Page 209 image quality Ultra-high Original image quality compressed to 90% image quality Highest The quality of the original image is not image compressed quality Scan status (1) Scan status This window displays things like scanner status, exception information, and information tips during the scan. 7.1.1.2 Perform scanning tasks Make sure that there is a clear connection between the scanner and your PC before scanning.

  • Page 210: Troubleshooting And Support

    7.1.2 Troubleshooting and Support 7.1.2.1 Look for scanner anomalies Refreshing the device list does not find the scanner, check the following:  Whether all equipment protection components have been removed.  Whether the interface cable is properly connected to the device and computer.

  • Page 211: Linux Scan Job

    7.2 Linux Scan Jobs Take UnionTech UOS as an example, click "ASTA Communication 20 Series Management Tools" in the start menu. Start the "20 Series Scanner Program".

  • Page 212: Scan Using Standard Mode

    7.2.1 Scan using standard mode The following example describes how to use Standard mode for a scan job. 7.2.1.1 Scan Settings for Standard Mode Basic settings Find a scanner...
  • Page 213 This feature finds the currently connected all-in-one device, which is loaded into the scanner drop-down list on the left. Add manually This feature is mainly used to connect network scanners across network segments, and if the all-in-one device and the connected computer do not belong to the same network segment, you can use this feature to easily connect devices from different network segments.
  • Page 214 The type of scan Scan Type: Flat panel The device scans both general and opaque manuscripts reflective from the scanner's glass platform. draft Scan mode There are three ways to choose from Scan Mode: Scanning files in 24-bit RGB color, this mode uses more colored storage space.
  • Page 215 There are four ways to choose from Resolution: 200dpi Ideal for data such as common text or tables 300dpi It is suitable for data such as common text or tables, as well as OCR recognition 600dpi High print quality for color photos and text. 1200dpi Ideal for high-definition color photos and clear printing of fine-line documents.
  • Page 216 A5(5.83×8.27’’)纵向 B5(HE) B5(JIS) 182×257mm 纵向 A6 105×148mm 纵向 notepaper Letter (8.5×11'') longitudinal contrast The higher the contrast, the sharper the image; The lower the contrast, the blurrier the image. This drags the slider left or right to decrease or increase the brightness of all colors in the image.
  • Page 217 is mainly used to measure the brightness of a color. The higher the gamma value, the brighter the color. Drag the slider left or right to decrease or increase the Gamma value. Image processing (1) Text direction recognition This function can recognize the direction of the text, recognize the text through OCR, automatically determine the orientation of the paper, and automatically rotate and correct it.
  • Page 218 This function supports the rotation of the image, which can be rotated counterclockwise by 0 degrees, 90 degrees, 180 degrees, and 270 degrees. (5) Automatic correction This function can correct the manuscript with a certain tilt angle into the vertical paper path into the scanner, and the tilt angle should not be greater than 15 degrees.
  • Page 219 generally used for scanning multiple business cards and ID cards. Do not slant overlays between multiple originals, otherwise they will not be recognized. (10)Delete blank pages This feature allows you to delete blank pages from scanned manuscripts. Drag the slider left or right to decrease or increase the sensitivity value.
  • Page 220 The default save path is /home/[current user name]/scanner/MFP1022DNW/. The "New" button on the right can add a new path, and the "Delete" button can delete the selected path. Check: [Open save directory after scanning], and the system will automatically pop up the save path after the scan is over.
  • Page 221 1-digit display, automatically add 1:1, 2, 10, 99, 100 This feature is very convenient when scanning unused documents, such as testing @0001.jpg files. (4) Save the format  When selecting an image: There are four formats to choose from. Image .jpg/.png/.bmp/.tiff ...
  • Page 222 Higher Original image quality compressed to 80% image quality Ultra-high Original image quality compressed to 90% image quality Highest The quality of the original image is not image compressed quality (6) Manual tidying This feature is effectively available when saving the format as a document.

  • Page 223: View The Scan Logs

    Make sure that there is a clear connection between the scanner and your PC before scanning. （1）Load the original （2）Start the MFP1022DNW Scan Tool： (Start) > ASTA 20 Series Management Tools > Click 20 Series Scanner Programs. （3）Find a scanner...
  • Page 224 （2）Enter your account and password The initial username is admin and the password is 1234. （3）View the logs...

  • Page 225: Troubleshooting And Support

    7.2.3 Troubleshooting and Support 7.2.3.1 Look for scanner anomalies If you can't find the scanner, check the following:  Whether all equipment protection components have been removed.
  • Page 226  Whether the interface cable is properly connected to the device and computer.  Whether the driver has been installed correctly.  Confirm that the IP address assigned to this device is available. If the problem persists after trying all of the above, try the following: ...

  • Page 227: Mac Scan Job

    7.3 Mac Scan Job Take Mac OS 13.2.1 as an example, find "ASTA Scanner" on the launchpad or in the program list to start the scanning program. Next, the standard mode scanning method is explained. 7.3.1 Scan using standard mode The following example describes how to use Standard mode for a scan job.
  • Page 228 corresponding scanner can be selected through the drop-down menu to deliver the scanning task. Click "Refresh" to re-access the list of devices. (2) Manuscript source: Manuscript Source: The device scans both general and opaque manuscripts flat from the scanner's glass platform. (3) Color mode There are three ways to choose from Color Mode: Scanning files in 24-bit RGB color, this mode uses more...
  • Page 229 well as OCR recognition 600dpi High print quality for color photos and text. 1200dpi Ideal for high-definition color photos and clear printing of fine-line documents. Resolution is measured in pixels per inch (dpi). The higher the resolution, the more detailed the image and the more space it occupies.
  • Page 230 notepaper Letter (8.5×11'') longitudinal (7) Save type Save Type allows you to save scanned documents in JPEG or PDF format. (8) revolve This feature is a page rotation setting, and there are two angles to choose from: 90 and 180 degrees. (9) Save the name This function sets the file save name, and you can customize the file save name according to the content in the...

  • Page 231: Troubleshooting And Support

    （5）Click Scan The device starts scanning, and the scanned images are saved to the destination folder. 7.3.2 Troubleshooting and Support 7.3.2.1 Look for scanner anomalies Refreshing the device list does not find the scanner, check the following:  Whether all equipment protection components have been removed.

  • Page 232: App Scan Job

    All-in-One App, and add the All-in-One correctly. Take an Android phone as an example, open the "ASTA Print" App, click the "Scan" button in the bottom navigation bar, and switch to the scanning interface to scan the operation.

  • Page 233: Scan Parameter Setting

    7.4.1 Scan parameter setting (1) Scan size This model of all-in-one only supports A4 size scanning in the mobile app. (2) Scan mode Scan Mode: The device scans both general and opaque manuscripts flat from the scanner's glass platform. (3) Color mode There are two ways to choose from Color Mode: Scanning files in 24-bit RGB color, this mode uses more colored...

  • Page 234: Perform A Scanning Task

    7.4.2 Perform a scanning task Please make sure that the connection between the scanner and your phone is unobstructed before scanning. （1）Load the original （2）Open the "ASTA Print" app and switch to the scanning interface （3）Set the scan parameters （4）Click Scan （5）After the manuscript is scanned, the App enters the...
  • Page 235 （6）Click Save, select the save format and enter a file name to complete the scan...

  • Page 236: Photocopying

    8. Photocopying 8.1 Routine Copying (1) Make sure you have the correct size of paper in the paper drawer. (2) Place the original face down on the scanner. (3) If necessary, you can change the number of copies. Press or on the panel to adjust the number of copies...

  • Page 237: Make A Copy Larger Or Smaller

    the [Cancel] button. To stop copying, press 8.2 Enlarge or Shrink Copying Select the magnification or zoom out ratio to adjust the size of the copy data. (1) Load the original. (2) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots.
  • Page 238 (3) Open the browser of the computer host, enter the corresponding IP address in the address bar, and enter the setting page of the all-in-one machine. For the first time, you can click [Login] in the upper right corner of the page , the initial login user name of the webpage is admin, and the initial login password is:...
  • Page 239 (4) Click "Copy Settings" on the left sidebar enter the Copy Settings screen. (5) In [Zoom Settings], enter a magnification or reduction scale between [25] and [400]. Click "Submit" to complete the settings. (6) If necessary, you can change the number of copies. Press or on the panel to adjust the number of...

  • Page 240: Use Page Layouts For N-In-1 Copying

    8.3 N-in-1 Copying Using Page Layouts The N-in-1 copy function can copy two pages of documents on a single sheet, effectively saving paper. (1) Load the original. (2) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots. Press and hold the [Start] button to print out the information page on the all-in-one machine, and check...
  • Page 241 (5) Select the appropriate layout option in [Layout].  2-in-1 (portrait)  2-in-1 (landscape)  Proportional photocopying (2*2).  Proportional photocopying (3*3). The format of the proportional copy scan is A4 size.  Image duplication (1*2).  Image duplication (2*2).
  • Page 242 The image is re-scanned in A6 size. (6) If necessary, you can change the number of copies. Press or on the panel to adjust the number of copies copied from the panel. (7) Press [Start], the [Start] button on the panel flashes green to start scanning, and the start button will flash quickly after the first page is scanned.

  • Page 243: Changing The Copy Quality

    8.4 Changing the Copy Quality Select the copy quality based on the type of document being copied. (1) Load the original. (2) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots. Press and hold the [Start] button to print out the information page on the all-in-one machine, and check the corresponding IP address on the information page.

  • Page 244: Change The Copy Density

    or on the panel to adjust the number of copies copied from the panel. (7) Press [Start] and the [Start] button on the panel flashes green to start copying. 8.5 Changing the Copy Density If the original page is lighter or darker, you can change the contrast to improve the quality of the copy.

  • Page 245: Change The Copy Contrast

    (4) Click "Copy Settings" on the left sidebar enter the Copy Settings screen. (5) Select the desired brightness level (from light to dark) in [Concentration]. (6) If necessary, you can change the number of copies. Press or on the panel to adjust the number of copies copied from the panel.
  • Page 246 the setting page of the all-in-one machine. For the first time, you can click [Login] in the upper right corner of the page , the initial login user name of the webpage is admin, and the initial login password is: 000000.
  • Page 247 (2) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots. Press and hold the [Start] button to print out the information page on the all-in-one machine, and check the corresponding IP address on the information page. (3) Open the browser of the computer host, enter the corresponding IP address in the address bar, and enter the setting page of the all-in-one machine.
  • Page 248  These recommended values are for reference only, but if the image is not sharp enough, or if you want to see more detail, you must still increase the resolution.  When you scan large color images at a higher resolution (600 dpi), the scan time is significantly longer.

  • Page 249: Change The Copy Paper Type And Paper Size

    8.8 Change the copy paper type and paper size The paper size and paper type that must be set when the paper drawer is loaded with other sizes and types of paper. (1) Load the original. (2) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots.
  • Page 250 (6) In [ Paper Size], select the correct paper size to place in the paper tray. (7) If necessary, you can change the number of copies. Press or on the panel to adjust the number of copies copied from the panel. (8) Press [Start] and the [Start] button on the panel flashes green to...

  • Page 251: Copy Of Id Card

    8.9 Copy of ID card the [2-in-1 ID Card Copy] function to copy both sides of your ID card to the same page at their original size. (1) Place your ID face down near the top left corner of the scanner.
  • Page 252 (2) Press [2-in-1 ID Card Copy]. (3) If necessary, you can change the number of copies. Press or on the panel to adjust the number of copies copied from the panel. (4) Connect the computer host to the all-in-one computer through network cables, routers, or wireless hotspots.
  • Page 253 (8) Press [Start], the [Start] button on the panel flashes green to start copying, and after the first side of the ID card is scanned, the start button will flash rapidly. (9) After the device has scanned the first side, turn the ID over and place it in the upper left corner of the tablet scanner as well.

  • Page 254: Troubleshooting

    9. Troubleshooting Resolve any problems you may encounter while using this device in accordance with this section. By following the fault information displayed by the condition monitor, you can quickly find the problem and resolve most of the problems yourself. 9.1 Paper jamming If the machine has a paper feeding failure during the printing process, please follow the fault information displayed...
  • Page 255 sensor rod, so that the print sensor completely please open is in the state of paper passing remove upper cover, take out drum unit, and the toner cartridge, remove remove jammed paper jammed paper After the print sensor detects that Open the upper feed paper...

  • Page 256: Paper Jam In The Paper Drawer

    9.1.1 Paper jam in the paper drawer 1. Open the upper cover and scanning unit. 2. Take out the drum unit.

  • Page 257: Identify The Problem

    3. Clear the paper jam. Pull out the jammed paper outward with both hands to easily remove the jammed paper. 3. Load the toner cartridge and close the lid and scanning unit. 9.1.2 Paper jam inside the machine If the device's status monitor shows that the paper jam location is inside the machine, follow these steps: 1.
  • Page 258 2. Remove the drum unit. 3. Slowly pull out the jammed paper.
  • Page 259 4. Load the drum unit into the device. 5. Close the lid and scanning unit.

  • Page 260: Identifying Problems

    3. Whether the paper has been properly placed in the paper box. 4. Whether the interface cable has been properly connected to the device and computer. 5. Check the device status displayed in the ASTA status monitor on your computer.

  • Page 261: Daily Maintenance

    10. Daily maintenance The content of this chapter solves your daily maintenance problems during use and helps to extend the service life of the all-in-one machine. need replace parts product maintenance or repair, if there are unwanted circuit boards and electronic parts, or if you dispose of the product, please dispose of it as electronic waste.
  • Page 262 3. Remove the drum unit from the device. 4. Unpack the new toner cartridge. 5. Load the new toner cartridge into the whole machine.

  • Page 263: Cleaning The Appliance

    6. Close the lid and scanning unit. 10.2 Cleaning the Appliance Use a soft, lint-free, dry cloth to clean the exterior and interior of the device regularly. When you replace the toner cartridge, make sure to clean the inside of the device. If the printed page is smudged with toner, use a soft, lint-free, dry cloth to clean the inside of the device.

  • Page 264: Clean The Drum Unit

    to clean the inside or outside of this product, as failure to do so may result in fire. Use a soft, lint-free, dry cloth to clean the device. ！ Note: Do not use isopropyl alcohol to wipe dust on the operating panel, as this may crack the panel.
  • Page 265 3. Remove the drum unit from the device. 4. Flip the toner cartridge to the other side as shown in the figure below. Make sure the drum unit's gear is on the left.
  • Page 266 5. Please gently wipe the surface of the toner cartridge with a dry cotton swab until the imprint is completely removed. Never clean the surface of the toner cartridge with sharp objects or any liquids. 6. Replace the drum unit with the device. 9、Close the lid and the scanning unit.

  • Page 267: Clean The Rubbing Rollers

    10.2.2 Clean the paper roller 1. Turn off the power of the device. 2. Open the front cover. 3. Open the upper cover and scanning unit. If there is paper in the tray or if something is stuck inside, remove it. 4.
  • Page 268 5. Wring out the lint-free cloth soaked in warm water, and wipe off the paper scraps on the paper roller inside the equipment and...
  • Page 269 the dust on the paper separation pad. 6. Reload the toner cartridge and close the lid and scanning unit. 7. Turn on the power of the device.
