OPERATION MANUAL

Forced Convection Oven, Large

Model : OF3-G, OF3-H series

Manual No. : 18215L002 Version : 2.0

Table of Contents

Need help?

Do you have a question about the OF3-G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Jeio tech OF3-G Series

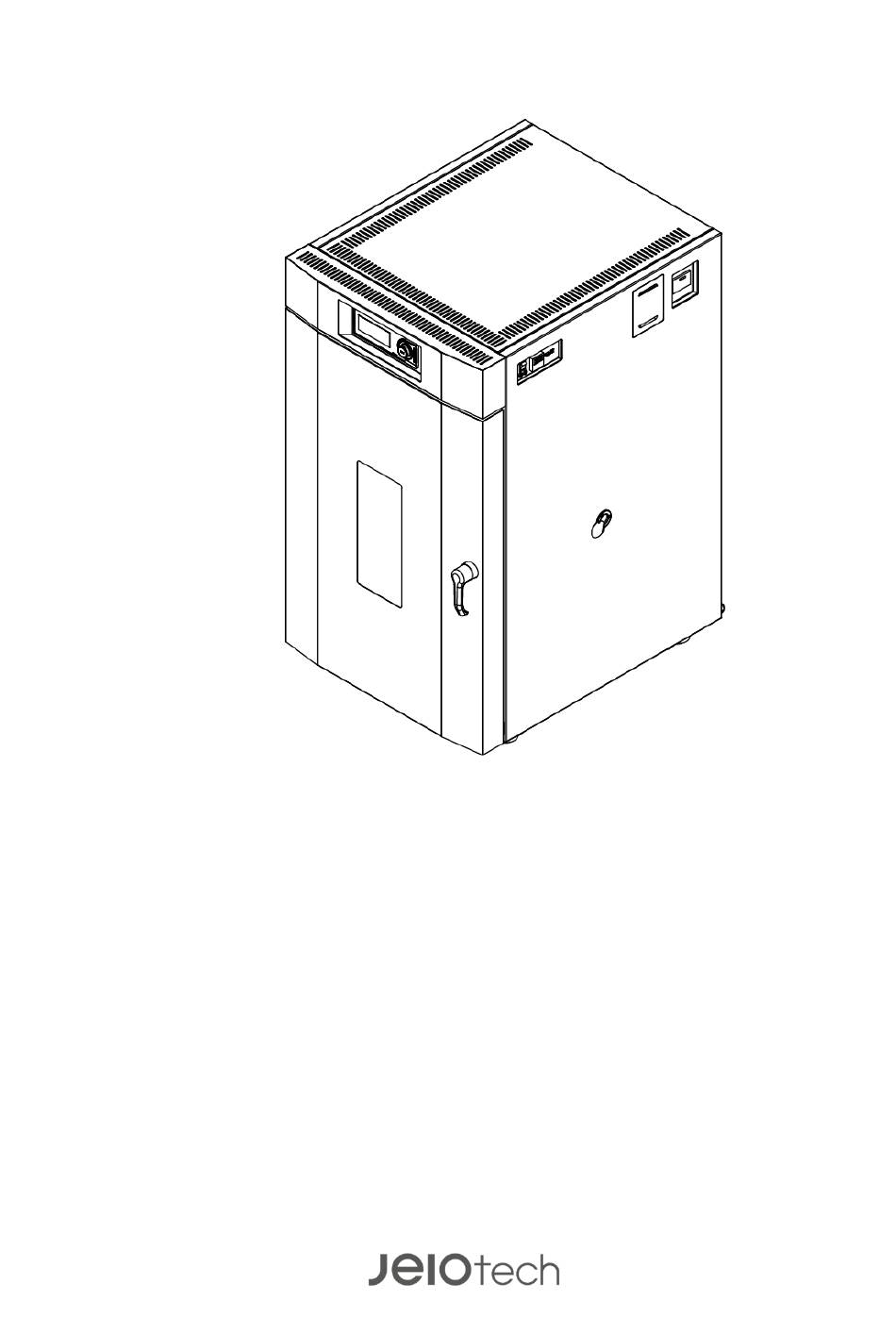

Page 1 OPERATION MANUAL Forced Convection Oven, Large Model : OF3-G, OF3-H series Manual No. : 18215L002 Version : 2.0...
Page 2 Thank you for purchasing Jeio Tech’s products. Jeio Tech Co., Ltd. is committed to customer service both during and after the sale. If you have questions concerning the operation of your unit or the information in this manual, contact our Sales Department. If your unit fails to operate properly, or if you have questions concerning spare parts or Service Contracts, contact our Service Department.
Page 3: Quality Management System
Disclaimer Jeio Tech Co., Ltd. is committed to a continuing program of product development and improvement, and reserves the right to change information, such as specifications, appearance, and dimensions, described in this document without notice.
Page 4: Table Of Contents
Table of Content 1.0 Safety ............................................ 1 1.1 How to use the Manual ............................2 1.1.1 Introduction ....................................... 2 1.1.2 Chapter summary ..................................2 1.1.3 Model number nomenclature..............................2 1.2 Responsibility ..............................2 1.2.1 General Liability ....................................3 1.2.2 Responsibility of the users ................................. 4 1.2.3 Preventative Maintenance ................................
Page 5 4.4.2 Timer OFF ....................................... 31 4.4.3 Timer end......................................31 4.5 Product preferences ............................32 4.6 System Configuration ............................32 4.6.1 Auto Tune ......................................32 4.6.2 Temp Calibration ..................................34 4.6.3 Temp Deviation .................................... 38 4.7 Warning and Fault Messages ........................... 38 4.7.1 Warning ......................................
Page 6 9.3 Warranty ................................70 9.3.1 Warranty period .................................... 70 9.3.2 Technical Service Contact Points ............................70 9.3.3 Certificate of Product Warranty .............................. 71...
Page 7: Safety
1.0 Safety Manual NO. 18215L002 Version : 2.0...
Page 8: How To Use The Manual
This manual is intended for individuals requiring information about the use of product. Use this manual as a guide and reference for installing, operating, and maintaining your Jeio Tech product. The purpose is to assist you in applying efficient, proven techniques that enhance equipment productivity This manual covers only light corrective maintenance.
Page 9: General Liability
on the manual should be complied. 1.2.1 General Liability In any case, safety is the first priority. The owner of the machine, user, and/or maintenance personnel must be fully aware of the safety which is the most important part of our everyday business.
Page 10: Responsibility Of The Users
After repair and maintenance, check the work performed and clean tools. Do not apply the power to the unit until all workers clean the area. The device must be checked if there are no problems with the unit before operating the machine. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 11: Symbols Used In This Manual
1.3 Symbols used in this Manual The following signal word panels, safety symbols and non-safety symbols are used to alert you to potential personal injury hazards or information of importance. Obey all safety messages that follow these symbols to avoid possible personal injury or death. 1.3.1 Signal word panels Signal word panels are a method for calling attention to a safety messages or property damage messages and designate a degree or level of hazard seriousness.
Page 12: Safety Symbols
The following safety symbols are used in this manual. Mandatory Read Manual. Wear gloves. Wear a face mask. Wear eye protection. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 13 Prohibition high frequency No direct sunlight. noise. No corrosive fluids No water. or cleaners. Warning Foot crush. Hand crush or pinch. Do not take the device Lifting hazard. apart deliberately. Flammable or fire could be Electrical shock. caused. Sharp points. Hot surface.
Page 14: Non-Safety Symbols
The following illustrations show where the safety labels should be attached to the oven until service of the product is discontinued. If the safety labels are damaged, please contact your local Jeio Tech office or distributor to request new labels. 1.5 Precautions for use This product is designed to provide safe and reliable operation when installed and operated within design specifications.
Page 15: Warning Statements
1.5.1 Warning statements Indicates a hazardous situation which, if not avoided, could result in death or serious injury Observe all warning labels. DO NOT remove warning labels. Check the voltage, phase and capacity of the power supply and connect properly. Do not ground the oven to gas pipes or water pipes.
Page 16: Caution Statements
Do not put heavy things on the power line. Do not put the machine on the line. Installation power outlet near instrument and may be convenient. Do not sprinkle insecticide or flammable spray on the product Please power off while product cleaning. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 17 Do not pour water directly on the outside of product. Do not clean product by solvent and harsh detergents, please use neutral detergent and smooth cloths. Do not inject any flammable objects, and conductive objects outside of product hole or vent.
Page 19: Introduction
2.1 Introduction This programmable forced convection oven is for multi-purpose use such as following applications essential for biology, chemistry, medicine, pharmacology, bioengineering, Sample drying, Quick glassware drying, Sterilization, Preheating, Heat-resistance tests for electronic parts and building materials, Aging tests, Batch tests, Thermal denaturation experiments, Thermosetting experiments, Shelf life tests for food and beverage.
Page 20: Improved Safety
There are fuses for Controller and Heater and works separately. (5) Door Limit Switch If Door is opened while it is working, Heater and Blower are supposed to stop to reduce heating loss and protect user as well. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 21: Structure
2.3 Structure (1) Door There are air barrier between door surface and dual insulation of the door. Door handle has itself locking function, and viewing window is optional. The viewing window is composed of tempered glass and low-e glass, so it is safe because the surface temperature of the viewing window does not rise even when operating at the highest temperature.
Page 22 Power is cut off input of MC. (12) Caster It is easy to move and adjust level and preventing from vibration while it is working. (13) Chamber Inner chamber is made of stainless steel and has good anti-corrosion. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 23: Installation
3.0 Installation Manual NO. 18215L002 Version : 2.0...
Page 24: Components
Also, check the identification plate on the side of the unit to make sure you received the model number your ordered. If you didn’t receive one or more of the components or if the model is incorrect, contact your local Jeio Tech office, or the distributor from which the unit was purchased Item Figure...
Page 25: Preparing Before Installation
3.2 Preparing before installation 3.2.1 Space requirements You need to figure out the space when you open door as below figures. Model OF3-30 OF3-45 OF3-75 Dimension 1235 1525 1785 1050 1050 1150 1820 1820 2000 1318 1318 1653 (unit : mm) Manual NO.
Page 26: Environmental Setting
SCR (Silicon-controlled rectifiers). Please keep Ambient temperature 5℃~40℃ (The Optimum temperature is 25 ℃) Relative humidity not to exceed 80% Altitude not to exceed 2000m (6,562 feet) Check a ground wire of the unit. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 27: Installation
3.3 Installation 3.3.1 Installation (1) Please install the unit inside of laboratory room not to access easily by people (2) Please make balance and horizontally on the flat floor (3) Do not install it near sunlight or heating generation. (4) Do not install it near water or vapor which some machinery makes (5) Please keep some distance from wall or other instruments.
Page 28: Leveling Unit
Step 4 : Turn the height adjustment to raise or lower the unit until the incubated shaker is level. Remove inflammable things or explosive things around unit • • Please acquaint this manual 1.5.1 ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 29 Please install it with horizontality on flat floor. • Do not install it in the place with dirty and dust. • Do not install it in the place where does not have ventilation. • Do not install it outdoor. • You must fix caster after installation.
Page 30: Connection Power
If you have the wrong electrical cord, please contact your local Jeio Tech office, or the distributor from which the incubated shaker was purchased to get the correct electrical cord.
Page 31: Initial Start-Up
3.6 Initial Start-up Pre start-up checks 3.6.1 Make sure all unit and wall outlet electrical connections are tight. Make sure caster feet are lowered and have locked the incubated shaker in place. Make sure unit is level side to side and front to back. Make sure the accessory (ies) are securely attached to the product.
Page 33: Control Panel Name And Function
4.1 Control panel name and function This product control is organized the VFD panel, dial knob for set value, and assistant input membrane buttons. Status Display Displayed the product operating condition. • Run: Displays the unit is operating • A-tune: Displays the auto-tuning •...
Page 34: Control Structure
* Turn the knob to search the menu. Press the knob to enter each menu. Press the knob to save the set value. * Press the knob for a while to load the set temperature. Control Structure ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 35: Basic Operation
Basic Operation 4.3.1 Unit Operation Turn of the power switch. “JEIOTECH” is displayed and all LED lights will be on VFD. In 3 seconds, main screen is displayed. 4.3.2 Temperature control 4.3.2.1 Temperature control start In the status of 4.3.1, press Start/Stop button to start temperature control. 4.3.2.2 Temperature control stop Press Start/Stop button to stop operation.
Page 36 Press menu button during set value adjustment to enter to the previous step. If you press the menu button in the status of menu selected to move to the main screen. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 37: Timer Operation
Timer Operation Two type of timers. Wait on timer: After a set time, machine will be operated for temperature control. Wait off timer: After arriving at a set temperature, machine will maintain the temperature during set time. Press timer button to set timer. Timer is displayed on main screen after set timer. 4.4.1 Timer ON set (1) Press TIMER button once and the timer set value is displayed.
Page 38: Product Preferences
Please see the below sequence to enter the Auto Tuning menu. The unit can tune the best temperature control following PID control and save 3settings at AT-1 ~ AT-3 ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 39 AT--1 AT--2 AT--3 SELET DFLT RESET A.TUNE (1) Press the MENU button > SYSTEM CONFI > AUTO TUNE to enter the relevant menu and press the knob at the below display. (2) Choose AT-1~3 using control knob at the below picture and enter the main using temperature.
Page 40: Temp Calibration
You can check the value of temperature at this function. Choose the temperature point among the 3 points. Locate the user reference thermostat sensor. Choose the calibration temperature the user wants and press Knob to run the unit. Wait until Actual ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 41 Temperature catch up with setting temperature. After that, press Knob to input the value of reference thermostat sensor. Press Knob to save and the unit will follow the temperature of the reference sensor. Enter the menu following below procedure and the unit can perform temperature calibration with 3points (CALI1, CALI2, CALI3).
Page 42 (1) Select MENU > SYSTEM CONFI > CALIB TEMP to enter below menu. (2) Choose CALI 1~3 using control knob and set the temperature for calibration. [In case of setting CALI2 on 50.2C] ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 43 (3) After actual temperature inside of the chamber reaches setting value, press the knob to enter the temperature value which user wants to have calibration. [In case of setting value of 50.0C] (4) Press MENU > SYSTEM CONFI > CALIB TEMP > CALIB VIEW to check the calibration value.
Page 44: Temp Deviation
The unit check it once the present value reached to setting value. Once the gap is over the permission range, the alarm is generated. Door Open After 2 minutes of door opening, the audible / visible alarm is ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 45: Fault
effective. If user set the "Sound off" in Configuration, the audible alarm will be not operation for the warning condition. 4.7.2 Fault This chart show the fault classified which is made product forced stop. Press the Knob, then the visual warring will be release. The product will be stopped the operation for protect themselves. Over Activated the electronic temperature limiter.
Page 46: Other Notifications
The unit has function to stop running and shows Error message and audible in controller in case of Temp. in the chamber is much higher than SV. (Please refer 2.3(6)) (1) Press MODE button for 2seconds to enter user configuration mode. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 47 (2) In case of changing SV, refer below table to edit the configuration using . Press MODE to save changed value. Manual NO. 18215L002 Version : 2.0...
Page 48: Current Protection
(2) Fuse Fuse is connected to each controller and heater. it can automatically shut off the current when overcurrent condition immediately. 4.8.3 Door Switch The unit stops running when door is open automatically. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 49 Manual NO. 18215L002 Version : 2.0...
Page 50: Current Protection
Because user can know immediately and prevent risks from the power abnormal. 4.8.5 Door open warning (Door Switch) During the operating the door is opened, the heater and fan will be automatically stopped. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 51: Maintenance
5.0 Maintenance Manual NO. 18215L002 Version : 2.0...
Page 52: Inspection Cycle
● Display Temperature correction Temperature ● correction ● PC Sync operation Controller and timer ● operation Electric line connection Electric line fault ● Electric line ● pollution Electric line fixed ● condition ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 53: Cleaning
 In operation, check the condition of filter, the material disturbing air flow, chemicals.  Be cautions of the parts of machine and system not get damaged.  Be careful not exposure and contact between the machine and the material (nitric acid, sulfuric acid, sodium hydroxide, acetone, benzene, phenol, toluene, chloroform, cresol, acetic acid, chloric acid.
Page 54 Do not pour water for cleaning. • Do not dismantle for cleaning as you please! IF clean the unit with any other method not mentioned above, contact Jeiotech HQ and get • the instruction. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 55: Replacement Of Fuse
5.3 Replacement of Fuse Each unit comes with spare fuses (2ea for Control part / 2 or 3ea for Heater). Keep the spare fuses near the unit and replace them when the fuse blows (main power is off and heater is not working at the condition of the circuit breaker is not on). Additionally, if the fuse is necessary, ask the seller as below.
Page 56: Replacement Of Fuses
Warning of Electric shock. Before replacement of fuse, turn off the unit and check the electric connection again.  If electric line is connected, it makes serious injury and death Electrical Shock Hazard. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 57: Major Maintenance Checklist
5.4 Major Maintenance Checklist Please check the following checklist again to check the devices work properly. (1) Check the connection between the device and the power supply. (2) Lower the foots than the wheels of the caster to make sure that the equipment and systems are properly fixed.
Page 59: In Case Of Product Stopped During The Operation
6.1 In case of product stopped during the operation. Description Solution Display Message In case of over temp. condition of Check the set on the electronic inside, the electronic over temperature regulator and over temperature the operating. Restart after regulator is active to temperature reduce.
Page 60: Power Troubles
Set the SV of the over temp. limit Stop by over temp. Check the error message controller 10 to 15 % higher than the limit error on the display. SV of the unit. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 61 Check whether there are If there is high-frequency devices high-frequency around the unit, move the unit to devices around the unit. other place. Stop without display Check the SV of the over any error message. temp. limit devices of dry Set the SV of the over temp.
Page 63: Accessories
7.1 Accessories Digital Digital Designation Perforated Shelf Wire shelves Recorder Recorder OF3-30/30W/30P/30PW AAA18501 RTD1196 OF3-45/45W/45P/45PW AAA18501 RTD1196 OF3-75/75W/75P/75PW AAA18502 RTD1197 AAA8T500 AAAE1503 OF3-30H/30HW/30HP/30HPW AAA18501 RTD1196 OF3-45H/45HW/45HP/45HPW AAA18501 RTD1196 OF3-75H/75HW/75HP/75HPW AAA18502 RTD1197 7.2 Digital Recorder (Option) During the Elapsed time of device operation, automatically record temperature, voltage, and amount of current.
Page 65: Monitoring Program Installation
Monitoring Program installation (1) The software is automatically installed. When user put the “Next” button, the screen showed “License Agreement” page. (2) Please consider and carefully read “License” contents before install the JeioTechSoft. (3) Set the software install location. And press the “Install” button. Manual NO.
Page 66 In case of press the keyboard Delete key, the enter value will input “0”. In case of user enter value greater than possible input value, the value will be • entered maximum possible input value. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 67: Communication Protocol
Communication protocol It is possible to communication from this product to external device by RS-232C port. Providing Jeiotech software can be supported the bothway communication, check the operating status, data recording, and data saving. In addition, if you want to modify the software, please refer below communication protocol and communication reference.
Page 68 60L ~ MOD_MAN_OFF_T manual mode wait off 3599940 time read/set MOD_MAN_ONT_ manual mode wait on ONOFF time on/off MOD_MAN_OFFT_ manual mode wait off ONOFF time on/off MOD_SYS_RUN_ST system operation start/stop MOD_REPORT system report ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 69: Modbus Protocol Description
MOD_SYS_TEMP_L system temp limit temp R/I, MOD_DEVI_TEMP_ system deviation /high temperatrue range temp R/I, MOD_DEVI_TIME_ system deviation time 3599L 8.2.4 Modbus Protocol Description Command Description Modbus System function boot Buzzer Write Beep code beep data sounds System Data key beep Return Modbus equipment...
Page 70 ONOFF on/off set 1 : wait on timer on modbus 0 : wait off function code timer off MOD_MAN_OFFT_ wait off timer ONOFF on/off set 1 : wait off timer on ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 71 modbus function 0 : system code stop MOD_SYS_RUN_S system operation set 1 : system start modbus function code manual mode report usb_c Manual NO. 18215L002 Version : 2.0...
Page 72 P_LMT limit addres high temp data temp limit limit modbus function retur code addres devi data temp MOD_DEVI_TEMP temperature deviation set _SET Unit modbus function value Max./Min. code value value ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
Page 73 modbus function retur code addres data devi time MOD_DEVI_TIME_ temperature deviation time modbus function value code 3599L(sec.) value 8.2.5 Decimal point setting and read Decimal point reading Decimal point writing typedef union D2I_DOUBLETYPE_PACKET DOUBLE_2_INT_8_BYTE d2i_packet; d2i_packet.dData = dValue; double dData; unsigned char cData[8];...
Page 75: Technical Specifications
9.1 Technical Specifications 9.1.1 OF- /OF-H OF3-30 OF3-45 OF3-75 Model OF3-30H OF3-45H OF3-75H Chamber volume (L) 314/11.1 450/15.9 760/26.8 +10 to 200/ +10 to 200/ +10 to 200/ Ambient Ambient Ambient +18 to 392 +18 to 392 +18 to 392 Ambient Ambient Ambient...
Page 76: Disposing Of Product
2. Please contact your local governing body for regulations regarding disposal of electrical, electronic, metal (brass, aluminum, steel and stainless steel), refrigeration and rubber components. Jeio Tech recommends the user find a local scavenger or laboratory equipment recycler to properly dispose of the unit and its components.
Page 77 9.3.3 Certificate of Product Warranty This is a guide to the product quality warranty and service terms provided by JEIOTECH Co., Ltd All products are guaranteed to operate normally when installed under proper conditions, as specified in the user manual for each product, and used according to the intended purposes and permissible operating conditions.
Page 78  This warranty does not apply to consumables and is non-transferable.  The contents of this manual can be changed or upgraded without prior notice.  The copyright of this manual is reserved by Jeio Tech. ©2025. All Rights Reserved. Jeio Tech Co., Ltd...
