Inspect bath carefully and report any

damage or faults before installation. No

claims can be entered in to after

Protect the bath throughout installation

Installation must be carried out by

suitably qualified tradesman in

accordance with the instructions.

The quality of this product is in your hands. Please read all the instructions before

No installation should take place until all items have been deemed cosmetically acceptable. Once installation

commences all products then enter into their governing warranty periods and no returns can be accepted, by

commencing with the installation you are accepting the goods cosmetic state with all 'workings' being

covered by warranty. (contact us for more information beofre installing if required)

Installation Instructions: WB 89

installation.

process.

starting the installation.

Table of Contents

Need help?

Do you have a question about the WB 89 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vidalux WB 89

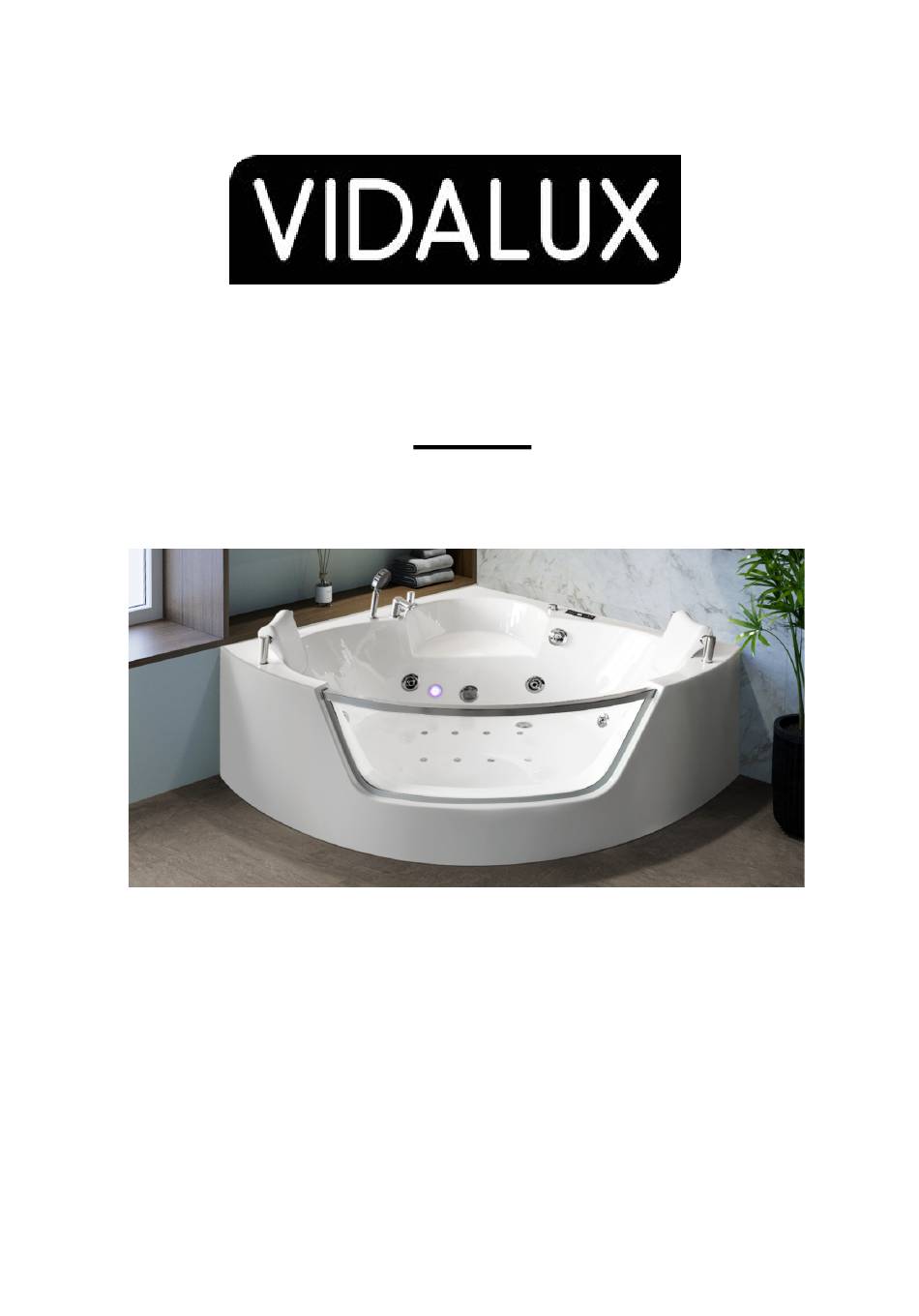

Page 1 Installation Instructions: WB 89 Inspect bath carefully and report any damage or faults before installation. No claims can be entered in to after installation. Protect the bath throughout installation process. Installation must be carried out by suitably qualified tradesman in accordance with the instructions.
Page 2 VIDALUX CLEAR & BRIGHT WATER SOFTENER Guaranteed to get rid of limescale Live in a hard water area?? Limescale in the kettle and on bathroom fixtures?? Suffering from unknown adverse health effects from this polluted drinking water?? If you have a shower and any feature becomes blocked with limescale and stops working THIS IS...
Page 3: Important Notice
IMPORTANT NOTICE Before you proceed with fi tting your Vidalux bath please read and understand the following: By commencing testing and installation of the unit you are agreeing to the Terms and Conditions set out by us: copies of which are available by contacting us by by email or by telephone (details on the cover of this manual).
Page 4: Before You Begin
Before you begin Assembly requires two persons. Tools needed to assemble this shower cabin: Electric screwdriver with a selection of heads, regular screwdrivers, pipe grips, spanners, spirit level, sharp knife and rubber mallet. Connection of the electrical supply and plumbing may require additional tools. Do not fully tighten any screw fixings initially during build as this allows the frame to move a little and aid location of all holes and screws;...
Page 6: Installation
Installation Open the packaging and check the whirlpool bathtub for any damage or missing parts. Place the bathtub in the designated location. Adjust the screw rods to ensure the bathtub is level and stable. Connect the hot and cold water supply. The pipes should be routed through a concealed section of the bathtub and connected using flexible hoses.
Page 7: Safety Warnings
Safety Warnings Use caution if you have heart disease, high blood pressure, or are elderly. Please consult a doctor before use if unsure. Children and individuals with disabilities must be supervised by a responsible adult when using the whirlpool bathtub. Children and elderly individuals should not operate the bathtub unsupervised.
Page 8: Cleaning And Maintenance
Cleaning and Maintenance Clean the bathtub using mild liquid detergent and a soft cloth. Do not use acetone, ammonia-based cleaners, or abrasive chemicals. For adhesive residue (e.g., tape), use a cloth dipped in petrol or a mild solvent. The scales on glass surfaces can be removed using a soft cloth with diluted mild acids such as lemon juice or vinegar.
Page 9: Electrical Connections
Electrical Connections Electrical connections must be carried out in accordance with local regulations. Confirm that the motor's voltage and frequency match the local power supply, as shown on the nameplate. ⚠ Important: Only qualified electricians should open the motor cover to avoid the risk of injury. Do not make any connections inside the pump terminal box unless the power supply has been completely switched off.
Page 10: Pump Operation
Pump Operation Maximum start/stop frequency: Do not exceed 50 cycles per hour. The pump is designed for clean water and similar non-aggressive, non-explosive liquids. It must not be used with liquids containing solid particles or fibers. The pump is not self-priming. Never run the pump dry –...
Page 12: Troubleshooting Guide
Troubleshooting Guide Issue Possible Cause Solution No Power or Power Cuts Loose or poor connection in power Check the power supply, switch, and ground. wiring or switch. Fix any loose connections. No Power or Power Cuts Electrical leakage grounding Inspect and resolve any grounding or electrical issue.
Page 13 Check Capillary pipe is attached to on/off button and pump...
Page 14 This form must be filled out by the plumber/installer and electrician (where applicable) in order to validate the warranty. You are required to register the warranty online at www.vidalux.co.uk You MUST register the product warranty within 90 days following delivery...
Page 15 FOR TECHNICAL ASSISTANCE PLEASE EMAIL US ON: sales@vidalux.co.uk OR CALL US ON: 01524 489939...
