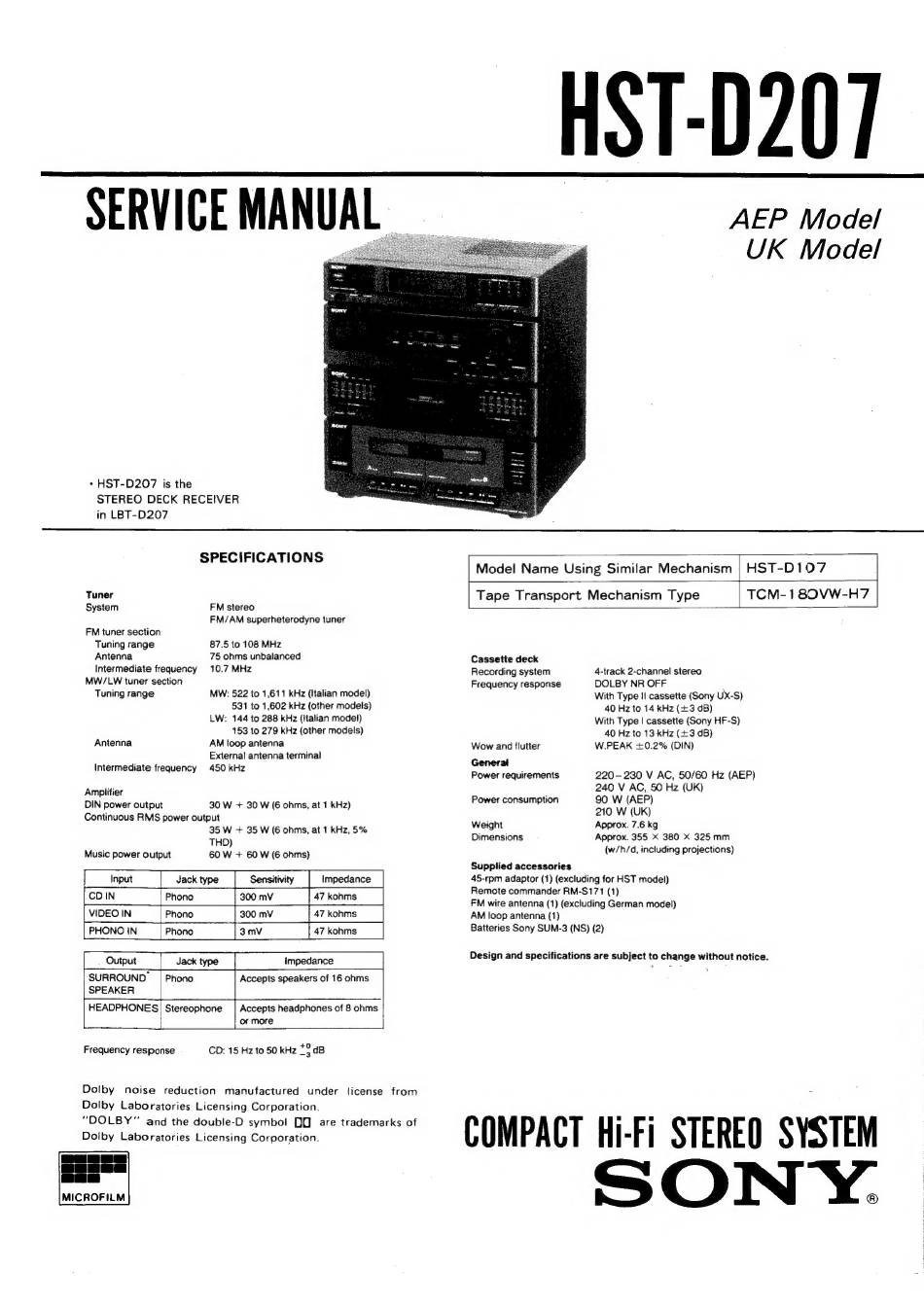

Sony HST-D207 Service Manual

SERVICE MANUAL AEP Model
UK Model
|
i
* HST-D207 is the
STEREO DECK RECEIVER
in LBT-D207
SPECIFICATIONS
Model Name Using Similar Mechanism | HST-D107
Tuner
Tape Transport Mechanism Type
| TCM-180VW-H7
System FM stereo
FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 to 108 MHz
Antenna 75 ohms unbalanced Cassette deck
Intermediate frequency 10.7 MHz Recording system 4-track 2-channel stereo
MW/LW tuner section Frequency response DOLBY NR OFF
Tuning range MW: 522 to 1,611 kHz (Italian model) With Type I! cassette (Sony UX-S)
531 to 1,602 kHz (other models) 40 Hz to 14 kHz (+3 dB)
LW: 144 to 288 kHz (Italian model) With Type | cassette (Sony HF-S)
153 to 279 kHz {other models) 40 Hz to 13. kHz (+3 dB)
Antenna AM loop antenna Wow and flutter W.PEAK +0.2% (DIN)
External antenna terminal
: General
Intermediate freque 450 kH.
S N e a, . Power requirements 220-230 V AC, 50/60 Hz (AEP)
ie 240 V AC, 50 Hz (UK)
Amplifier : :
DIN power output 30 W + 30 W (6 ohms, at 1 kHz) Fower consumption SW ue )
Continuous RMS power output , A : 6 :
35 W + 35 W (6 ohms, at 1 kHz, 5% Weight eka eee,
THD) Dimensions Approx. 355 x 380 x 325 mm
Music power output 60 W + 60 W (6 ohms) (w/h/d, including projections)
Supplied accessories
Input Jack type Sensitivity Impedance 45-rpm adaptor (1) (excluding for HST model)
[2 Remote commander RM-S171 (1)
CD IN 47 koh i
Phono 300 mv ene FM wire antenna (1) (excluding German model)
VIDEO IN Phono 300 mV 47 kohms AM loop antenna (1)
PHONO IN __| Phono 3mv 47 kohms Batteries Sony SUM-3 (NS) (2)
Output Jack type impedance Design and specifications are subject to change without notice.
SURROUND Phono Accepts speakers of 16 ohms
SPEAKER
| eceratices
HEADPHONES | Stereophone | Accepts headphones of 8 ohms
or more
Frequency response CD: 15 Hz to 50 kHz *9 dB
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol DQ are trademarks of s .
Doiby
Laboratories Licensing Corporation.
[- |
