Summary of Contents for TruckX Wired ELD Tablet
- Page 1 TruckX Wired ELD Tablet Driver User Manual Need Help? Contact TruckX support at support@truckx.com, +1(650) 600-0008, and live chat at www.TruckX.com...
- Page 2 Get Wired ELD Tablet • Contact TruckX Inc to get your ELD device • Reach us at sales@truckx.com www.TruckX.com • We will ship one of these devices NOTE: We provide both Bluetooth and Wired ELD. This handbook is for Wired ELD...

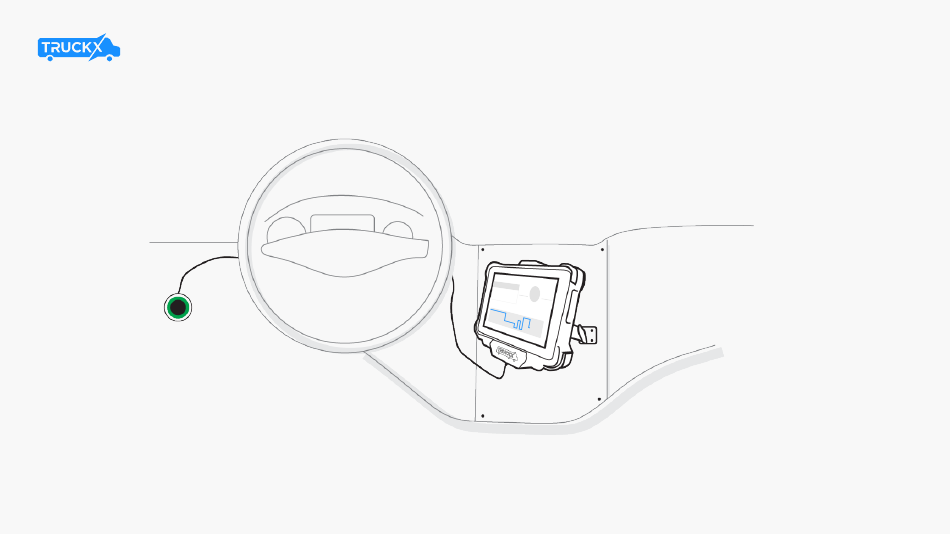

- Page 3 Connect ELD to Your Vehicle • Find the diagnostic port • Plugin the device to the 9-pin connector • If you have a different connector, TruckX will provide with adapter cables. NOTE: Newer Volvo/Mac or pickup trucks will have 16-pin OBD2 connector www.TruckX.com...
-
Page 4: Driver Login
Driver Login • Download and Open the TruckX application • Enter driver cell phone to login • Hit “Continue” and a text will be sent with login code NOTE: Driver has to added by the dispatcher before they can login to the ELD... - Page 5 Driver Login Complete • Enter PIN received via text • Hit Continue when done • TruckX will synchronize and setup your logbook on the phone/tablet • At this time driver has to set their own PIN for future logins www.TruckX.com...
- Page 6 Login Complete • Once Login is complete, driver can look into the logbook screen • It shows current Duty Status at the top • HOS information in the tile below • 7-14 days logbook graphs below www.TruckX.com...
- Page 7 Verify ELD is Connected • Driver name section will turn GREEN • You will see the truck VIN number www.TruckX.com...
- Page 8 Driving/On Duty with Wired ELD Tablet • Start driving the truck with device connected • Driver state will automatically change to “Driving” when speed is more than 5MPH • Will switch back to “On DUTY” when vehicle is stopped www.TruckX.com...
- Page 9 Switch to OFF/SB When Done • Click drop-down( ) button next your status • Tile with expand with options • Choose the desired status “Off Duty” or “Sleeper” www.TruckX.com...
- Page 10 24 hours • Driver needs to re-generate paper logs for past 7 days when this happens • Continue maintaining paper logs until the time ELD is serviced • Company can create inspection report and send it to TruckX for diagnostic www.TruckX.com...
- Page 11 See Violations and Notifications HOS VIOLATION Please find a safe place to stop Dismiss www.TruckX.com...
- Page 12 Complete Daily Logbook Information www.TruckX.com...
- Page 13 Sign Driver Logbook Daily www.TruckX.com...
- Page 14 Roadside Inspection Download Inspection Card: https://truckx.com/wp-content/uploads/2019/12/Wired-ELD-DOT-Inspection-Card.pdf To view driver logs details Click to reach here from any pages Print Inspection Report Click here to transfer logs details to officer www.TruckX.com...
- Page 15 Roadside Inspection Download Inspection Card: https://truckx.com/wp-content/uploads/2019/12/Wired-ELD-DOT-Inspection-Card.pdf Click here to transfer logs details to officer www.TruckX.com...
-
Page 16: Need Help
Need Help? Contact TruckX support at support@truckx.com, +1(650) 600-0008, and live chat at www.TruckX.com...
