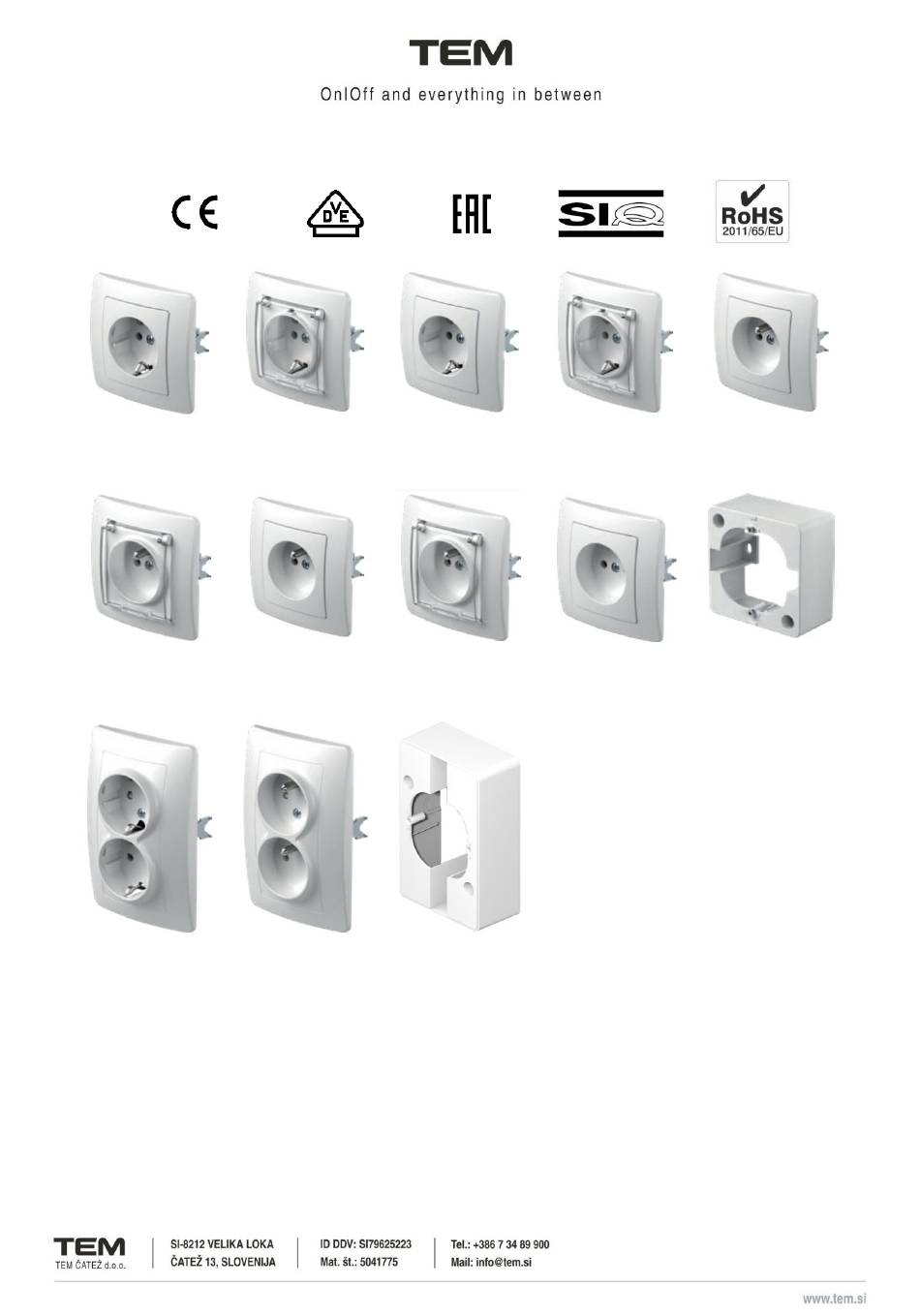

EKONOMIK socket instruction manual
Schuko 2P+E
Schuko + cover 2P+E
(VE10)
French + cover 2P+E
(VE41)
Schuko double 2P+E
French double 2P+E
(VE16)
User instructions
Before installation, read the instructions carefully and check that the product is not damaged. This avoids the
possibility of a fault that could cause personal injury or damage to the electrical wiring. The instructions are
intended for all users. Show this document to a qualified person before installing the switches.
Schuko 2P+E plug-in
(VE11)
(VE12)
French 2P+E
French + cover 2P+E
plug-in
plug-in
(VE42)
(VE43)
Box NO for double
(VE46)
(AE31)
Schuko + cover 2P+E
plug-in
(VE13)
Socket 2P
(VE30)
French 2P+E
(VE40)
Box NO1
(AE30)
