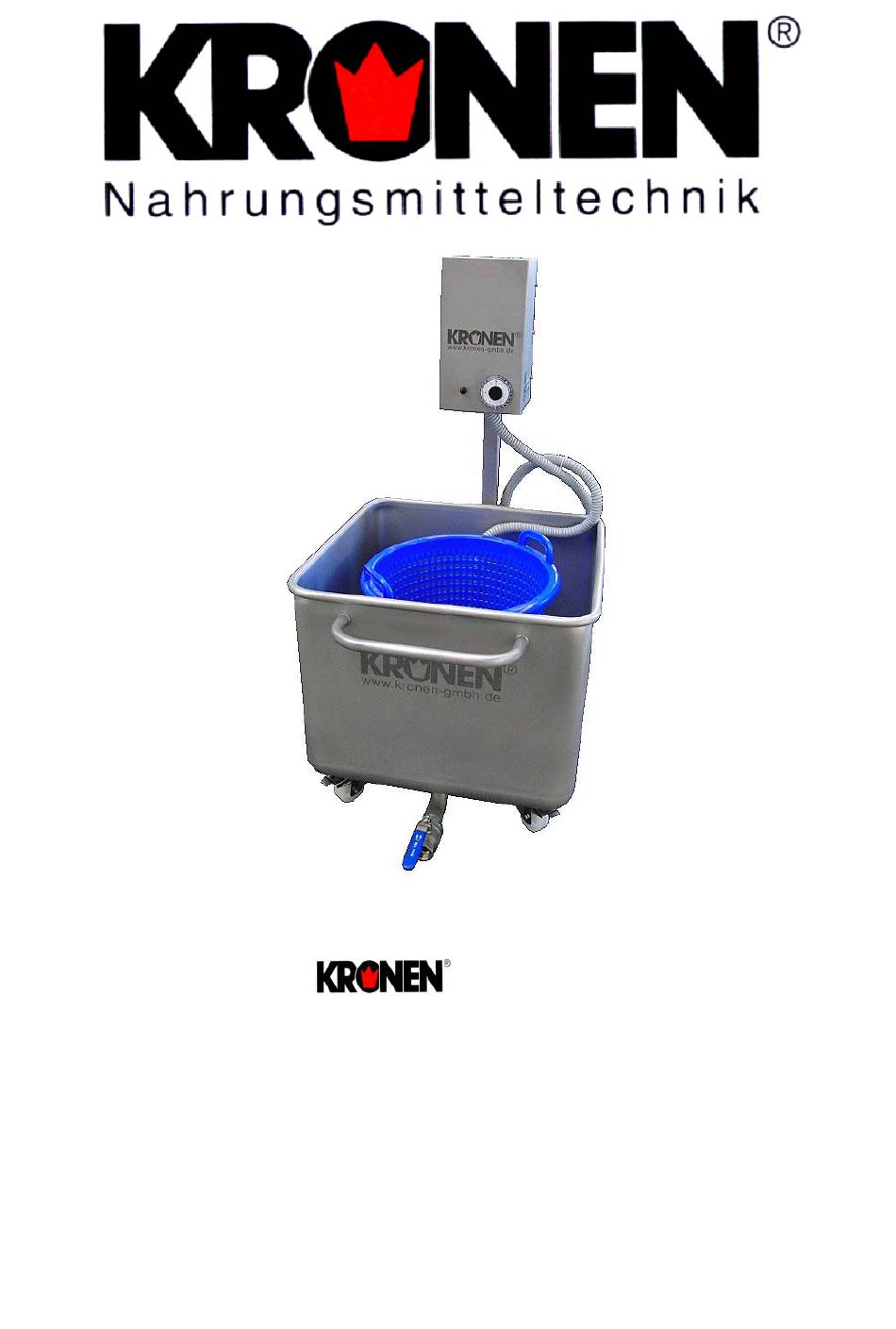

- Page 1 Operating instructions Washmachine for the DS1000mobil Version 08-11_EN Römerstraße 2a D-77694 Kehl am Rhein Tel.: (++49)7854-9646-0 / Telefax: (++49)7854-9646-50...
-
Page 2: Table Of Contents
MECHANICAL DESIGN DS1000 MOBIL ............25 6.1 Assembly sheeme ..................25 ELECTRICAL DESIGN DS1000MOBIL ............26 7.1 Circuit diagramm DS1000mobil ..............26 SAFETY INSPECTION ..................27 REPAIRS CARRIED OUT ................. 28 NOTES ON BEHAVIOUR, INFORMATION ON THE DESCRIPTION OF ... -
Page 3: Eu Declaration Of Conformity
Modifying the machine without our prior approval and written permission will invalidate this declaration of conformity. Place: Kehl am Rhein, Germany Date: 10. May 2023 Signature: Position in company: Eric Lefebvre, Chief Engineer of Kronen GmbH DS1000 mobil... -
Page 4: Declaration Of Conformity
Regulation (EU) 2020/1245 of 2 September 2020 amending and correcting Regulation (EU) No 10/2011 on plastic materials and articles intended to come into contact with food The following materials in machines of KRONEN GmbH come into contact with foods: polyethylene (PE) -
Page 5: Note; Legal Provisions On The Operating Instructions
Note; legal provisions on the operating instructions These operating instructions are subject to copyright, which is exercised by the company Kronen. Copying these operating instructions, even in extract only, as well as adding or removing pages, is not permitted. If modifications or extensions to the machine are necessary for the manufacturer, he will also supplement these operating instructions and make them available to the operator of the machine. -
Page 6: Foreword To The Operating Instructions
Operating instructions DS1000mobil Foreword to the operating instructions These operating instructions are intended to enable you to familiarize yourself with the machine, including the observance of all the safety notes as well as their functions, and thus to achieve optimum use of the machine. -
Page 7: Manufacturer's Notes On Residual Risks
Operating instructions DS1000mobil Manufacturer’s notes on residual risks Although we meet a high safety standard in designing and manufacturing the machine, there remain the following residual risk factors: damage to the electrical lines (externally at the socket or at the machine socket) as a result of external influences;... -
Page 8: Manufacturer-Specific Safety Notes
Operating instructions DS1000mobil Manufacturer-specific safety notes So as to keep the risks as low as possible, take the following measures: check the electrically conducting lines daily before beginning production so as to ascertain any visible, external damage; check the full functioning of all protective equipment daily before beginning production;... -
Page 9: Basic Safety Notes
Operating instructions DS1000mobil Basic safety notes 2.2.1 Warning notes and symbols The operating instructions include the following words and symbols for particularly important information: Note: information in respect of the economic use of the system/machine; Warning: special information, requirements and prohibitions in respect of accident prevention;... -
Page 10: Selection And Qualification Of Personnel; Basic Duties
Operating instructions DS1000mobil Use protective equipment in so far as it is necessary or required by regulations. (Cf. Manufacturer-specific safety notes on setting up the machine as well as on maintaining the machine.) Pay attention to all the safety and risk notes on the machine. -
Page 11: Safety Notes On Certain Operating Phases
Operating instructions DS1000mobil 2.2.5 Safety notes on certain operating phases For standard operation Do not do anything which could impair safety. Before beginning work, familiarize yourself with the working environment where the machine is being used. The working environment should be checked for obstructions in respect of working and moving. -
Page 12: Special Work In Connection With Using The Machine As Well As Maintenance Work And Trouble Shooting During Operation; Waste Disposal
Operating instructions DS1000mobil 2.2.6 Special work in connection with using the machine as well as maintenance work and trouble shooting during operation; waste disposal Observe the setting, servicing and inspection work and inspection times which are specified in the operating instructions, including the information on replacing parts and equipment parts. -
Page 13: Notes On Particular Types Of Risk
Operating instructions DS1000mobil 2.2.7 Notes on particular types of risk Electrical energy Use only original fuses with the specified strength of current. Switch off the machine immediately in the event of faults in the supply of electrical energy. Work on electrical systems or equipment must be carried out only by a specialist... -
Page 14: Transportation And Installation Of The Machine
Operating instructions DS1000mobil Transportation and installation of the machine Transportation and installation by the manufacturer The service personnel who are authorized by the manufacturer carry out the transportation as well as the installation of the machine correctly, i.e. observing the valid... -
Page 15: Instructions For Correct Operation Of The Machine
Operating instructions DS1000mobil Instructions for correct operation of the machine Prior to the start-up of the machine please assure yourself that no debris will be in the wash basin. 2) Please insert the wash pipe 3) Please apply the basket retainer above the according to the illustration into wash pipe. - Page 16 Operating instructions DS1000mobil 7) Now you can start up the machine by turning the timer clockwise (pos. 7.1) and set the time of the wash cycle. The controller (7.2) serves for choosing the wash intensity. Just turn it into the desired position.
-
Page 17: Cleaning And Maintenance Of The Machine
Conveyor belts which have become soiled during the process of cutting foodstuffs (salad, carrots, etc.). Application/Dosage rates: Depending on the level of soiling, Kronen-Destain can be used undiluted or mixed with water at a ratio of 1:1. Application time 24 - 48 hours; once this time is up, rinse thoroughly with clean water. - Page 18 Operating instructions DS1000mobil Designation: CITREX 2000 all-purpose concentrated detergent Part number: BIO1001 Supplier: Effectiveness / CITREX 2000 all-purpose concentrated detergent is a high- concentration: performance combination of entirely natural products for use in all routine cleaning applications; it boasts the following quality...
- Page 19 Operating instructions DS1000mobil Designation: BIOTEC concentrated limestone remover Part number: BIO1002 Supplier: Effectiveness / BIOTEC limestone remover is a high-performance acid cleaner concentration: with a pleasant fresh smell. For the effortless removal of limestone deposits, urine scale, water marks and soap residue, cement residue and rust stains from tiles, stone, ceramic and porcelain sanitary wear.
- Page 20 Operating instructions DS1000mobil Designation: Myko mould remover Part number: BIO1003 Supplier: Effectiveness / An effective and long-lasting way to remove yeast and mould: concentration: No need for total remediation No build-up of dirt Any risk to human health is only present for a minimum period We achieve this using a special product developed specifically for use in sensitive areas (nurseries, schools).
- Page 21 Operating instructions DS1000mobil Designation: BIOTEC algae and grease remover Part number: BIO1004 Supplier: Effectiveness / Green film concentration: Only dry surfaces can be treated. Spray the affected surface with undiluted product from a spray bottle or garden spray. Do not rinse with water following application. Ensure even distribution.
- Page 22 Operating instructions DS1000mobil Designation: CITREX 215 kitchen disinfectant cleaner Part number: BIO1005 Supplier: Effectiveness / CITREX 215 kitchen disinfectant cleaner is a cleaning and concentration: disinfecting productwhich can be used on any waterproof surface in a kitchen. High cleaning power, small quantities go a long way, excellent...
- Page 23 Kronen-Destain PLUS Part number: BIO1006 Supplier: Effectiveness / Kronen-Destain PLUS is a high performance alkaline detergent. concentration: It is ideal for the cleaning of washing machines. Long-term reduction of mud production / accumulation Does not foam, phosphate-free Does not contain any aggressive or abrasive substances...
-
Page 24: Notes On Personal Protective Equipment
Operating instructions DS1000mobil Notes on personal protective equipment Protection and hygiene measures: clean hands after finishing work and before each break. Immediately take off dirty clothing. Avoid contact with the eyes. Hand protection: protective gloves Eye protection: protective goggles Information on toxiocology:... -
Page 26: Mechanical Design Ds1000 Mobil
Operating instructions DS1000mobil Mechanical design DS1000 mobil Assembly sheeme Kronen GmbH Version 08-11_EN page: 25... -
Page 27: Electrical Design Ds1000Mobil
Operating instructions DS1000mobil Electrical design DS1000mobil Circuit diagramm DS1000mobil Kronen GmbH Version 08-11_EN page: 26... -
Page 28: Safety Inspection
Operating instructions DS1000mobil Safety inspection Date: List of the mechanical and electrical faults Signature of the person charged by which have been found and remedied: the manufacturer with servicing the machine Kronen GmbH Version 08-11_EN page: 27... -
Page 29: Repairs Carried Out
Operating instructions DS1000mobil Repairs carried out Date: List of the mechanical and electrical work Signature of the person charged by which has been carried out (in key words): the manufacturer with servicing the machine: Kronen GmbH Version 08-11_EN page: 28... -
Page 30: Notes On Behaviour, Information On The Description Of Faults
Operating instructions DS1000mobil Notes on behaviour, information on the description of faults Telephone and fax number for servicing Make sure of the following points before you telefone us: First ensure that no protective equipment is inoperative, e.g. might the plexiglass hood be incorrectly closed. -
Page 31: Spare Parts
Operating instructions DS1000mobil 10.1 Spare parts If you have located the failure you can order following spare parts for the DS1000mobil : Kronen GmbH Version 08-11_EN page: 30... -
Page 32: Spare Parts List
Operating instructions DS1000mobil 10.2 Spare parts list Pos. Description Part-no. speed controller 48564 blower 66614 timer 63517 flexible tube 2,0m 63160 release handle 25568 basket 119050 perforated insert with basket holder 67876 wash pipe 63103 castor 45686 ball valve 65036... -
Page 33: Request Sheet For The Operating Instructions
Operating instructions DS1000mobil Request sheet for the operating instructions Kronen GmbH Nahrungsmitteltechnik Maschinenbau Römerstraße 2a D-77694 Kehl am Rhein Re.: Request for the operating instructions Dear Sirs, Please send me / us the operating instructions as soon as possible, as described below, at. -
Page 34: Declaration Of Transfer
Operating instructions DS1000mobil Declaration of Transfer To ensure that the operating instructions are passed on to the operator Machine type: DS1000 mobil Machine no.: Address of the operator Company Contact person Tel. Fax. Road City / postcode Country The machine which is listed above with type and number was acquired by me. -
Page 35: Declaration Of Acceptance
The service personnel charged or authorized by the manufacturer certify to the operator that the KRONEN DS1000 mobil salad and vegetable washing machine was installed in accordance with the guidelines laid down in the operating instructions as well as the valid safety regulations.
