Summary of Contents for Timekettle T1

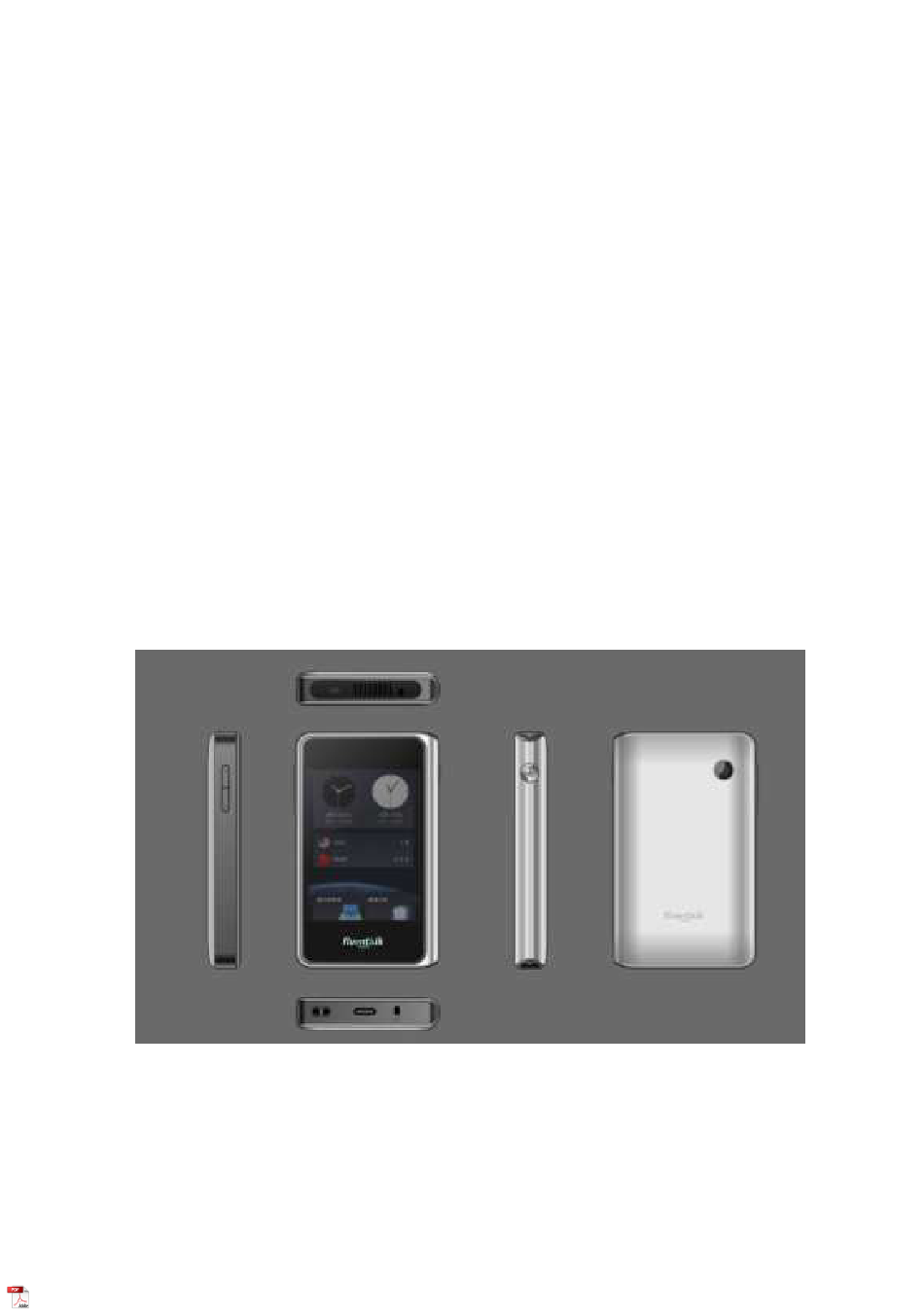

- Page 1 Product Manual 1、Packing List Translator Type-C charging cable (note: without data transmission function, do not refer to it as a "data cable") Lanyard Instructions 2、Product Overview...
-
Page 2: Basic Operations
3、Basic Operations Power on/off/restart Press and hold the power button, and the translation machine will automatically turn on. Press and hold the power button again to select power off/restart. Attention: When using a translation machine for the first time, you need to activate the device according to the operating instructions in the interface. - Page 3 according to the actual hanging rope style). Gesture operation 1. Return to the superior page After entering the second level page, slide right on the left edge of the screen to return to the previous level page. 2. Quick Settings Bar Swipe down on the screen status bar to bring up the shortcut settings bar.
- Page 4 2. Adjust the camera: Adjust the translation machine so that the desired text is located in the middle of the screen; Ensure that the text size in the screen is clear and visible, and do not tilt; 3. Photo translation: Click the photo button, and the translation machine will automatically scan and translate the text;...
-
Page 5: Frequently Asked Question
the screen upwards can activate the shortcut statement function. 2. You can customize the content you want to play in [Settings Quick Statements]. 5、Frequently Asked Question 1. Low translation accuracy? It may be due to excessive environmental noise, which affects the recording quality. -
Page 6: Product Information
We suggest that you use a translator in areas with good signal coverage, or switch to a more stable WIFI connection. 6、Product Information Product Name: Portable Translator Product model: Timekettle T1 Mini Size: 91 * 54.8 * 13.1mm Processor: 4-core ARM 28nm 1.28GHz... - Page 7 Storage space: 1G (RAM) 8G (ROM) Operating system: Android 10 Screen size: 2.83 inches Resolution: 480 * 640 Camera: 5 million pixels Microphone: Dual microphone array Charging: Type-C 5V ⎓ 1A Speaker: single speaker Battery capacity: 1500mAh Communication method: WIFI/traffic card (built-in) Network frequency band: 2G/3G/4G 7、Wireless technical parameters 2.4G WLAN:2400-2483.5MHz；...
-
Page 8: Security Information
1765-1780MHz(B3)，1920-1940 MHz(B1) 2.4G WLAN≤40MHz; 5.1G WLAN≤40MHz;5.8G WLAN≤40MHz; Occupied GSM≤200kHz; WCDMA≤5MHz; Bandwidth TD- LTE:≤20MHz; LTE-FDD:Band 1≤20MHz; Band 3≤15MHz; Band 5≤10MHz; Band 8≤5MHz; 2.4GHz WLAN≤20dBm(EIRP); 5.1GHz WLAN≤23dBm(EIRP); 5.8GHz WLAN≤33dBm(EIRP); Transmitting GSM900:33dBm±2dB;GSM1800:30dBm±2dB; Power WCDMA≤24dBm+1.7/-3.7dB TD-LTE≤23dBm±2.7dB LTE FDD ≤23dBm±2.7dB 8、Security Information Please read the following safety information before using this product. -
Page 9: Warranty Card
9、Company Information Company Web：www.timekettle.co Customer service email: support@timekettle.co Manufacturer: Shenzhen Spacetime Pot Technology Co., Ltd Address: Room 612, Building 4, Private Enterprise Science and Technology Park, Pingshan 1st Road, Nanshan District, Shenzhen Copyright: Shenzhen Spacetime Pot Technology Co., Ltd... -
Page 10: Warranty Regulations
E-mail……………………………………………………………… Postal……………………………………………………………… Address…………………………………………………………… Postal Code……………………………………………………… 11、Warranty Regulations 1. When purchasing a machine, please keep the purchase evidence and warranty card as proof of warranty. 2. From the date of purchase, if there are quality issues with the product during normal use within one year or six months for accessories, free repair services can be provided with the purchase certificate and warranty card. - Page 11 to the official website announcement. 12、Safety Reminder ① If consumers use a power adapter for power supply, they should purchase a matching power adapter that has obtained CCC certification and meets standard requirements. ② Attention: If the battery is not replaced properly, there is a risk of explosion.
- Page 12 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 13 Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components.
- Page 14 IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The SAR limit of USA is 1.6 W/kg averaged over one gram of tissue.
- Page 15 de l'utilisateur et le dos du combiné. L'utilisation de pinces de ceinture, étuis et accessoires similaires ne doivent pas contenir de composants métalliques dans son ensemble. L'utilisation d'accessoires qui ne satisfont pas à ces exigences ne peuvent pas se conformer aux exigences de la IC, et devrait être évitée. Porté...
