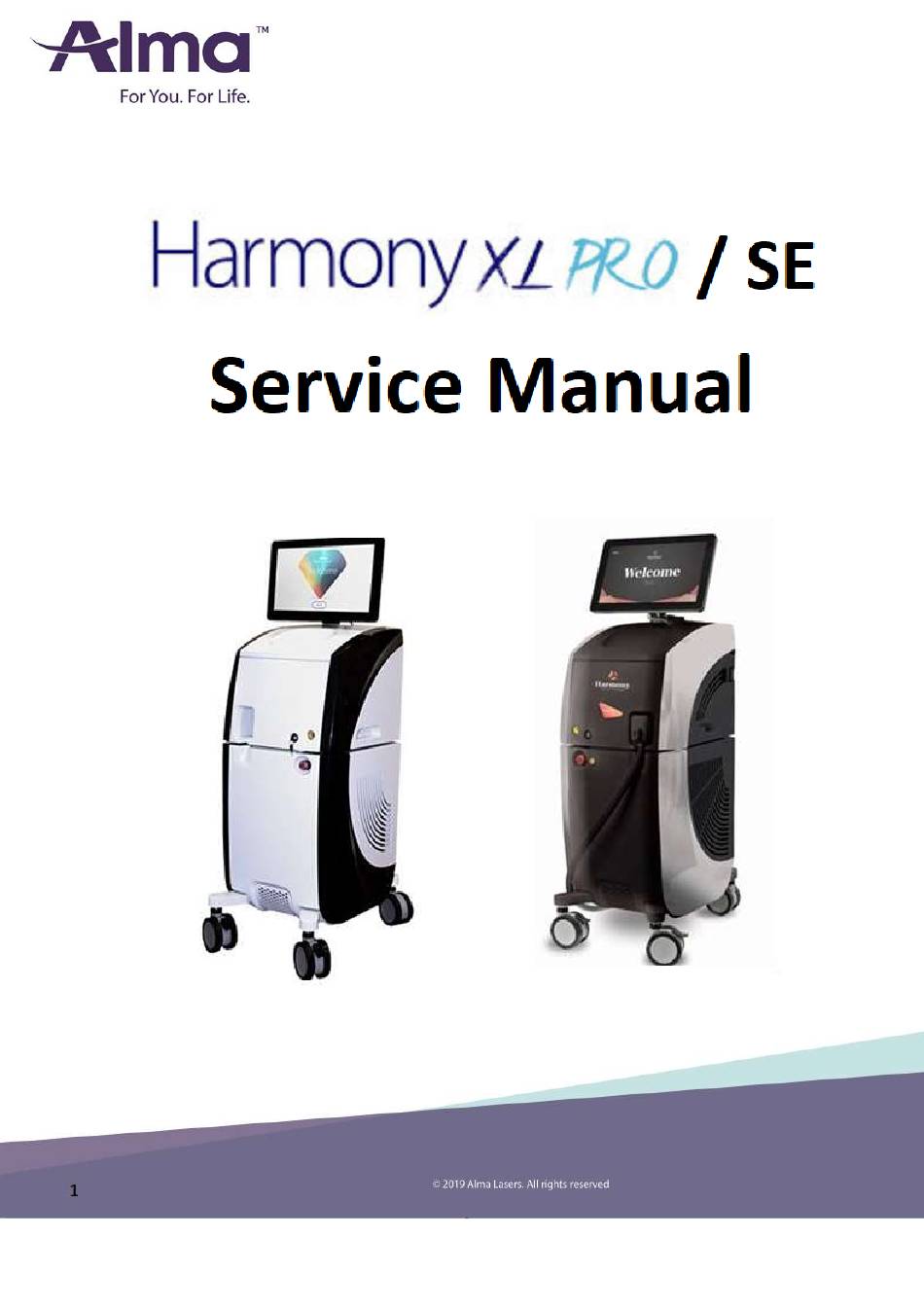

Alma Harmony XL PRO Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harmony XL PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Alma Harmony XL PRO

Summary of Contents for Alma Harmony XL PRO

  • Page 2: Table Of Contents

    1.3. Use of the Operator Manuals ............. 1.4. Physician Responsibility ..............1.5. Maintenance ..................1.6. Modification of the System ............... 1-3 1.7. Resale Inspection ................1-4 1.8. Abbreviations and Acronyms ............1-4 Harmony XL Pro /SE/ SE System Service Manual...

  • Page 3: Introduction

    Each time the operator presses the footswitch, the Harmony XL Pro /SE emits a single pulse when using the non-laser modules. Laser emission with the modules, however, is enabled only when the module’s trigger and the footswitch are pressed simultaneously.

  • Page 4: Physician Responsibility

    Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure. Therefore, before attempting to use or operate the system, personnel operating the Harmony XL Pro /SE system should read this manual and the Modules Manual, and become thoroughly familiar with all its safety requirements and operating procedures.

  • Page 5: Resale Inspection

    System Overview 1.7. Resale Inspection The Harmony XL Pro /SE is a precision, technical medical device. If any Alma Lasers device is resold by anyone other than an authorized sales representative, Alma Lasers offers a resale inspection by an Alma Lasers technician to assure that the device is working in accordance with manufacturer’s specifications.
  • Page 6 Pulse repetition rate Quality switched Second(s) Super hair removal Skin rejuvenation Super skin rejuvenation STBY Standby Superficial vascular lesions Thermo-electric cooling Ultraviolet radiation (290-320nm) Volt(s) Volt(s) alternating current Vascular lesions Vascular/Pigmented (lesions) Watt(s) Harmony XL Pro /SE/ SE System Service Manual...
  • Page 7 CHAPTER 2 Safety Chapter Contents: Section Title Page 2.1. Introduction..................2-3 2.2. System Safety Measures ..............2-4 2.2.1. Electrical Safety ................2-4 2.2.2. Light and Laser Safety ..............2-4 2.3. The Treatment Room ................. 2-6 2.4. General Precautions and Cautions ............. 2-7 2.4.1.
  • Page 8 Safety 2.9. Module Labels ................. 2-19 2.9.1. Packaging Label ................2-22 HarmonyXL Pro/ SE System Service Manual 2-2...

  • Page 9: Introduction

    This chapter describes general safety issues regarding the use of the Harmony XL Pro /SE system,, with special emphasis on optical and electrical safety. For the specific treatment indications, please refer to the Harmony XL Pro /SE Modules operator’s manual.

  • Page 10: System Safety Measures

    Safety 2.2. System Safety Measures The Harmony XL Pro /SE system, was designed to maximize safety for both patient and personnel. The following are some of the HarmonyXL Pro’s preventive safety measures: Electrical Safety 2.2.1. The system is protected by a semi-automatic circuit breaker.
  • Page 11 Warning Any laser or pulsed light-emitting device can cause injury if used improperly. High voltages are present inside the Harmony XL Pro /SE system,. Personnel who work with lasers or pulsed light sources must always be aware of the possible dangers and must take the proper safeguards as described in this manual.

  • Page 12: The Treatment Room

    The treatment room must be clearly labeled with signs indicating that high intensity light and/or laser energy are in use. The treatment room sign that is supplied with the Harmony XL Pro /SE system, is shown in Figure 2-1. Figure 2-1: Treatment Room Warning Sign The treatment room should not include any light reflecting objects such as a mirror.

  • Page 13: General Precautions And Cautions

    This includes making internal adjustments to the power supply, cooling system, optics, modules, etc. Verify that the Harmony XL Pro /SEis wired for the appropriate electrical voltage of your country (120VAC or 230VAC). Maintenance performed by the operator must only take place when the system is shut down and disconnected from the electrical power source.

  • Page 14: Warnings Related To Laser And Intense Pulsed Light Emission

    Warnings Related to Laser and Intense Pulsed Light Emission 2.5.1. Burn Hazards The Harmony XL Pro /SE system, emits a wide wavelength spectrum, which, in part, is invisible to the human eye and can cause third degree burns. 2.5.2. Direct and Reflected Eye Exposure Hazards...

  • Page 15: Explosion And Fire Hazards

    If necessary, use soap and water to clean before treatment. If alcohol is used to clean and disinfect any part of the Harmony XL Pro /SE system,, allow it to dry thoroughly before operating the system.

  • Page 16: System Safety Features

    Safety 2.6. System Safety Features The Harmony XL Pro /SE system, is equipped with a number of safety features. All treatment room personnel should be familiar with the location and operation of these safety features. 2.6.1. Emergency Shut-Off Knob This red knob is used for emergency shutdown. When pressed, it immediately shuts off power to the entire system.

  • Page 17: Double-Tiered Security For Laser Emission

    Not suitable for use in presence of flammable anesthetic mixture with air or nitrous oxide The Harmony XL Pro /SE system, complies with the following standards: ISO 13485: Medical devices - Quality Management Systems - Requirements for Regulatory Purposes (2003).
  • Page 18 Medical Devices (2007). ISO 15223-1: Medical Devices - Symbols to Be Used with Medical Device Labels, Labeling and Information to Be Supplied (2012). EN 1041: Information Supplied By the Manufacturer with Medical Devices (2008). Harmony XL Pro /SE system, Service Manual 2-12...
  • Page 19 Emergency shut-off knob Remote interlock connector Proper labeling In accordance with the regulations, a recommended routine inspection and maintenance schedule is provided in the chapter of this manual (see Maintenance Chapter 7). Harmony XL Pro /SE System Service Manual 2-13...

  • Page 20: Device Labels

    The following labels are adhered to the Warning Certification Identification Harmony XL Pro /SE system,: Identification Label which is located on the service panel. This label contains the following information: Manufacturer's details Name of the system Serial number and date of manufacture...
  • Page 21 Laser Danger Class IV warning and information label. Risk Group 3 label Grounded power cable warning label – located on the bottom of the rear panel, next to the cooling system's venting port. Another card with the same message is attached to the power cable's coiling stud Electrical Requirement and Hazard label –...
  • Page 22 Caution Warning Date of Manufacture Manufacturer Serial Number Complies with the European Union Medical Device Directive Deionized Water Only label indicates the proper coolant to be used in the system. Footswitch label located on the service panel to identify the footswitch connection port Vent label identifies the connection port for the air vent of the cooling system's coolant reservoir Fill label identifies the connection port for the...
  • Page 23 Fragile - Cargo marked with this symbol should be handled carefully and should never be tipped over or slung Top - The package must be always transported, handled and stored in such way that the arrows always point upwards. Rolling, Swinging, severe tipping or tumbling, or other such handling must be avoided.

  • Page 24: Installation

    Connecting the Module ..............3-6 3.5. Remote Interlock Connection ............3-7 3.6. Connecting the Footswitch ..............3-7 3.7. Filling the Coolant Reservoir ............. 3.8. Storage and Transportation ..............3-8 3.9. Moving the System ................3-8 Harmony XL Pro /SE system, Service Manual...

  • Page 25: Introduction

    Installation 3.1. Introduction The Harmony XL Pro /SE system, is designed for installation in an office or a clinic and requires minimal site preparation. When the Harmony XL Pro /SE system, is purchased, complete on-site installation, including initial system testing and calibration, is included.

  • Page 26: Facility Requirements

    Good grounding is essential for safe operation. Warning Verify that the Harmony XL Pro /SE system, is wired for the appropriate line voltage of your country. Depending on which of the Harmony modules have been purchased...

  • Page 27: Space And Positioning

    Note The positioning of the system shall guarantee access to the system’s service panel and disconnection devices: Mains switch, Circuit Breaker and Mains plug. 44 cm / 17’’ Figure 3-1: System Dimensions Harmony XL Pro /SE system, Service Manual 3-4...

  • Page 28: Environmental Requirements

    90kPa to 110kPa. Note When the system is used intensively it emits heat. Therefore, it is recommended to install air conditioning in the room in which the system will be used. Harmony XL Pro /SE system, Service Manual 3-5...

  • Page 29: Connecting The Module

    To disconnect the module, reverse steps 1 through 3 above. Caution Never use tools to tighten the module connector – finger-tight pressure is sufficient. Module Connector Connection Latch Port Locked Figure 3-2: Module Connection Harmony XL Pro /SE system, Service Manual 3-6...

  • Page 30: Remote Interlock Connection

    The footswitch supplied with the system is pneumatically operated for increased safety. To connect the footswitch, connect the footswitch's black tube to the connection port on the system's service panel (see Figure 3-3). Figure 3-3: Remote Interlock and Footswitch Connections Harmony XL Pro /SE system, Service Manual 3-7...

  • Page 31: Filling The Coolant Reservoir

    This operation is performed by Alma Lasers-authorized technical personnel. 3.8. Storage and Transportation Transportation of the Harmony XL Pro /SE system should be under normal environmental conditions within the following range: Ambient temperature: 0º to 50ºC Relative air humidity: 10% to 60%...
  • Page 32 Installation To move the Harmony XL Pro /SE system, to a different site: The Harmony XL Pro /SE system, is comprised of two modular sections that can be separated from each other when transporting the system (refer to Figure 3-4): Disconnect the module and store it in its dedicated carrying case.
  • Page 33 Installation 10. Connect the desired module and resume normal operation. If further advice is needed, consult your Alma Lasers service representative. Harmony XL Pro /SE system, Service Manual 3-10...

  • Page 34: System Description

    4.2.4. The Service Panel ................4-5 4.2.5. Cooling System ................4-6 4.2.6. Switching Module ................4-7 4.2.7. Isolation Transformer ..............4-7 4.2.8. Footswitch ..................4-7 Harmony XL Pro /SE Modules – General Description 4.3......4.3.1. Applicators Description ..............4-8 4.4.

  • Page 35: Introduction

    Modules Manual. 4.2. System Components and Controls The Harmony XL Pro /SE system consists of the following major components (see Figure 4-1): The main console unit that incorporates the touch-screen control panel, power supply modules, cooling system, switching module, service panel and isolating transformer.
  • Page 36 System Description Touch-Screen Control Panel Module Cradle Module System Controls Module Connector Emission Indicator and Port Keyswitch Emergency Shut- Off Knob Footswitch Figure 4-1: Major System Components Harmony XL Pro /SE System Service Manual 4-3...

  • Page 37: Main Console

    System Description Figure 4-2 presents a block diagram of the Harmony XL Pro /SE system: Pump Figure 4-2: Block Diagram 4.2.1. Main Console The main console incorporates the following components: Control panel System controller Power supply modules Cooling system Switching module...

  • Page 38: Power Supply Modules

    Light emission indicators (See Section 2.6.3). Control Panel: the LCD display provides information on the status and settings of the Harmony XL Pro /SE system, with touch-screen technology for system operation. The various module screens and their operation are described in detail in the Modules Manual.

  • Page 39: Cooling System

    4.2.5. Cooling System The Harmony XL Pro /SE's cooling system incorporates a water pump, water reservoir, a dual-fanned radiator, particle filter, deionizer, flow switch and thermal sensor. The system circulates water from the fan-cooled radiator to the module.

  • Page 40: Switching Module

    If an AFT, near IR, UV or LED module is connected to the Harmony XL Pro /SE system, a pulsed light emission occurs only when the footswitch is pressed. When any of the laser modules are connected, a pulsed emission is enabled only when both the footswitch and module trigger are simultaneously pressed.

  • Page 41: Harmony Xl Pro /Se Modules - General Description

    Each module is connected to the system console by an umbilical cable that houses the wiring and cooling water tubes. The Harmony XL Pro /SE cannot be operated unless a module is connected to the system.

  • Page 42: System Specifications

    5-25 Flash lamp 780-950 Timer: 10,30,90 sec Acne 30, 40, 50 msec 5-25 Acne Flash lamp 420-950 S-Acne 2 msec 0.3-1.2 High Power UV Flash lamp 270-380 30, 40, 50 msec 2-4.5 Harmony XL Pro /SE System Service Manual 4-11...
  • Page 43 1,2,3,4,5,6 20 nsec 1,2,4 1064 Pixel 20 nsec 1,2,4 High Power Q-Switched Q-Switched 2,3,4 mm KTP 20 nsec 1,2,4 600-1200 mJ/p 1064nm Nd:YAG Nd:YAG 1064 5X5 Roller 20 nsec 1064 7x1 Roller Harmony XL Pro /SE System Service Manual 4-12...
  • Page 44 Short: 200-600 mJ/p 7x1 Scanner Medium: 300-800 mJ/p Long: 400-1000 mJ/p Laser Er:Glass cooled modules 4 mm 300 – 1000 mJ/P Er:Glass 1540nm Er:Glass 1540 30, 40, 50 msec 1,2,3 7 x 7 Pixel Harmony XL Pro /SE System Service Manual 4-13...

  • Page 45: Operation And Control Specifications

    44 x 54 x 125 cm 17 x 21 x 49 inches Weights Total: 60 kg. / 133 lbs. Upper unit: 15 kg. / 33 lbs. Lower unit: 45 kg. / 100 lbs. Harmony XL Pro /SE System Service Manual 4-14...

  • Page 46: Classifications

    This is the microcontroller unit that controls the system, it controls the following parts: Digital I/O: o Buzzer o Yellow Lamp o Key Switch Interlock FootSwitch o Cap Charger inhibit o Discharge Simmer Status Harmony XL Pro /SE System Service Manual 4-15...
  • Page 47 System Description o Leakage Status o IGBT Trigger o Scanner board o Flow Switch o Thermal Switch o Level Switch RS232 interface with LCD touch screen All analog I/O: o Charge voltage control o Charge voltage monitor o Tip ID. Figure 4-8: Interface Controller 4.4.5.1.
  • Page 48 Figure 4-10: Switching module 4.4.5.3. Dump Card The Dump card is responsible to measure capacitors voltage and to dump capacitors on a command from the Interface controller. Harmony XL Pro /SE System Service Manual 4-17...

  • Page 49: Power Supplies

    System Description Figure 4-11: Dump Card 4.4.5.4. Power Supplies 1. 24VDC 70 Watts PS to LCD, Interface controller and Impact generator see Figure 4-12 2. 24VDC 220 Watts to fans, water pump and TEC see Figure 4-12. 3. 48VDC 120 Watts to Impact Generator, located under the LCD Screen see Error! Reference source not found.
  • Page 50 Self unit that tests several parameters in the system and send feedback to the interface Controller, if there's any fault, Interface Controller will display an error on system's LCD and will stop system operation. Figure 4-8: PIC Controller (Controller Mini) Harmony XL Pro /SE System Service Manual 4-19...

  • Page 51: Lower Unit

    System Description 4.4.5.7. iPixel Scanner Controller Board Scanner Controller Board allows using iPixel Scanner Handpiece on Harmony system, iPixel Scanner controller board is installed at factory on every new Harmony systems as of HXL01125. If required it can be installed on previous systems per kit order or per handpiece iPixel Scanner order.
  • Page 52 OFF, the contactor connects the capacitors to the dump resistor and discharges the capacitors. In normal operation, when the user reduces the energy the dump card connects the capacitors to the dump resistor and discharges the capacitors. Harmony XL Pro /SE System Service Manual 4-21...
  • Page 53 System Description Figure 4-12: Dump Module Harmony XLPro System Service Manual 4-22...

  • Page 54: Water System

    In order to maintain good cooling and long lasting handpiece, once a year the deionizer filter, particles filter and deionized water should be replaced. Heat exchanger (Radiator) and all air filters should be cleaned from dust. Figure 4-13: Water System Components Harmony XL Pro /SE System Service Manual 4-23...

  • Page 55: Controls And Indicators

    Emergency Shut-off Knob ..............5.6. Light Emission Indicator ..............5-3 5.7. Audio Indicator .................. 5.8. Touch-Screen Control Panel .............. 5.9. Service Panel ..................5-5 5.10. Footswitch ..................5.11. Laser Module Trigger ................ 5-7 Harmony XL Pro /SE system, Service Manual...

  • Page 56: Introduction

    Main Circuit Breaker The semi-automatic circuit breaker is located on the system's service panel (see Figure 5-1) and protects the Harmony XL Pro /SEagainst excessive current consumption. The circuit breaker disconnects power to the system in case of an electrical overload. To resume operation after the circuit breaker trips off, lift the circuit breaker handle and restart the system.

  • Page 57: Keyswitch

    - when the system is turned on, and in Standby mode – during Ready mode Blinking – during light emission (footswitch or footswitch Continuous and moduletrigger are pressed) Emission Indicator Keyswitch Emergency Shut-Off Knob Figure 5-2: System Controls Harmony XL Pro /SE system, Service Manual...

  • Page 58: Audio Indicator

    Refer to Chapter 6 for detailed explanations regarding the soft-keys. Proprietary information for each of the individual module operating screens may be found in the Modules Manual. Figure 5-3 presents a view of the control panel. Figure 5-3: Touch-Screen Control Panel Harmony XL Pro /SE system, Service Manual...

  • Page 59: Service Panel

    The service panel is located on the HarmonyXL Pro's rear side and incorporates the system controls and connections exhibited in Figure 5-4. Remote Interlock System Footswitch Separation Latch Knob Connection Port Main Switch Cooling System Circuit Breaker Connection Fittings Fan Grills Figure 5-4: Service Panel Harmony XL Pro /SE system, Service Manual...

  • Page 60: Footswitch

    (see Figure 5-4). Figure 5-5: Footswitch Warning If the system is in mode, laser beam emission occurs when the footswitch Ready and the moduletrigger are simultaneously activated. Harmony XL Pro /SE system, Service Manual...

  • Page 61: Laser Module Trigger

    Figure 5-6: Laser Module Trigger Warning If the system is in mode, laser beam emission occurs when the footswitch Ready and the module trigger are simultaneously activated. Harmony XL Pro /SE system, Service Manual...

  • Page 62: Maintenance

    CHAPTER 6 Maintenance Chapter Contents: Section Title Page 6.1. Introduction................... 6.2. Periodic Service ..................6.3. Service Information ................6.4. Routine Maintenance ................6.4.1. Cleaning and Disinfecting the System ..........6.4.2. Cleaning and Disinfecting the Non-LaserModules ......6.4.2.1. Cooled Modules ................ 6.4.2.2.

  • Page 63: Introduction

    Maintenance 6.1. Introduction This chapter contains maintenance instructions for the Harmony XL Pro /SE system,. Routine maintenance may be performed by clinic staff unless otherwise specified. Any maintenance procedure not mentioned in this chapter must be performed only by Alma Lasers authorized technical personnel.

  • Page 64: Service Information

    Maintenance Warning The Harmony XL Pro /SE system, generates hazardous voltages within main console. The interior of the system may be serviced only by Alma Lasers authorized technical personnel. 6.3. Service Information In communications with Alma Lasers authorized representatives regarding the system, always include the part number and serial number indicated on the identification label located on the system's service panel.

  • Page 65: Routine Maintenance

    The following routine maintenance procedures should be performed by the clinic staff on a regular basis determined by the clinic protocol. Warning The Harmony XL Pro /SE system, generates high voltages and pulsed light/laser radiation when powered up. Always turn the system off and unplug the power cable before performing maintenance procedures.

  • Page 66: Non-Cooled Modules

    Maintenance 6.4.2.2. Non-Cooled Modules Note Cleaning and disinfection should be performed after each treatment. 6.4.2.2.1. The Module parts: 1. Applicator 2. Light-guide (LG) 3. Light-guide sleeve (LGS) 4. Umbilical Cord 5. Connector Figure 0-1 : The Module's Parts (1) Figure 0-2: The Modules Parts (2) HarmonyXL ProSystem Operator's Manual...

  • Page 67: Cleaning And Disinfection Instructions

    Maintenance 6.4.2.2.2. Cleaning and Disinfection Instructions 1. Turn the system "off ". 2. Clean external surface of LG with soft cloth or cotton ball. Wipe and cleanany traces of ultrasonic gel from the LGS external surface using a dry cloth. 3.

  • Page 68: Cleaning And Disinfecting The Laser Modules

    Maintenance 6.4.3. Cleaning and Disinfecting the Laser Modules The cleaning and disinfection instructions should be applied to the all of the laser modules and their tips. It is imperative that the laser module tips and their lenses remain clean and free of dirt.

  • Page 69: Laser Modulestandard Tip Cleaning & Disinfection Instructions

    Maintenance 6.4.3.2. Laser ModuleStandard Tip Cleaning & Disinfection Instructions Turn the system off. Unscrew the tip from the laser module. Pull the guiding tip out of the tip body and push the removable lens out of the tip body. Wipe and clean any traces of gel or dirt from the three components using a dry cloth.

  • Page 70: Cleaning The Ipixeler:yag/ Yag 1064 Qsw Ipixel Laser Module's Wheeled Tip Section

    Maintenance 6.4.4.1. Cleaning the iPixelEr:YAG/ YAG 1064 QSW iPixel Laser Module's Wheeled Tip Section Prepare Enzol enzymatic detergent (or equivalent natural pH enzymatic) solution according to the manufacturer's recommendations (1 oz. per gal./8 ml. per liter), using lukewarm tap water. If at any time during the cleaning procedure the detergent becomes grossly soiled, prepare fresh detergent.

  • Page 71: Sterilizing The Ipixeler:yag/ Yag 1064 Qsw Ipixellaser Module's Tip Sections

    Maintenance wheels, for a minimum of one minute. Ensure that the wheels are exposed 360 degrees throughout the rinsing pass. Repeat the previous rinsing step two more times (total of 3 times), using fresh tap water each time for each soak and flush. Each rinse should be at least 2 minutes long with the entire rinse time totaling a minimum of 6 minutes.

  • Page 72: Filling/Draining The Cooling System's Water Reservoir

    30 minutes 6.5. Filling/Draining the Cooling System's Water Reservoir The Harmony XL Pro /SEcooling system's water reservoir must be filled/refilled with deionized water in the following instances: Upon installation of a new system. Every 3 months add water to compensate for water loss during disconnection of modules.

  • Page 73: Water Filling Procedure

    Maintenance Water Filling Procedure Refer to Figure 0-7: Disconnect the mains power supply cable. Connect the elbow fitting to the right port (labeled ) on the lower right Vent side of the service panel. Connect the clear tube with the funnel to the port labeled in the middle- Fill right of the service panel.
  • Page 74 Maintenance Filling Port Drain Port Vent Port Figure 0-7: Cooling System Fill, Drain and Vent Ports HarmonyXL ProSystem Operator's Manual...
  • Page 75 CHAPTER 7 Troubleshooting and Software Insllation Chapter Contents: Section Title Page 7.1. Introduction..................7-2 7.2. Troubleshooting Guides ..............7-2 7.3. Software Installation Instructions ..........7-6 7.3.1. Required Equipment ..............7-6 7.3.2. Software installation on the Rabbit 4000 ......7-6 7.3.3. LCD Software Installation 1.

  • Page 76: Introduction

    The following troubleshooting tables do not attempt to list all possible system failures. Any fault not listed should be referred to Alma Lasers Service personnel. Warning Do not attempt to open or disassemble the system covers.
  • Page 77 1. Turn system off, wait 1 minute and restart; resume FlowSw Error Cooling system malfunction normal operation 2. If problem persists, call Alma Lasers Service 1. Turn system off, wait 1 minute and restart; resume FlowSw OFF Error Cooling system malfunction normal operation 2.
  • Page 78 1. Turn system off, wait 1 minute and restart; resume Data Buffer Overload System malfunction normal operation 2. If problem persists, call Alma Lasers Service 1. Turn system off, wait 1 minute and restart; resume Date Time Error System malfunction normal operation 2.
  • Page 79 Symptom Probable Cause Corrective Action Check power cable Power disconnected Plug cable into wall System does not start Call Alma Lasers customer Internal fuse blown support Red emergency shutoff knob is Release emergency shutoff engaged knob by turning it clockwise...

  • Page 80: Software Installation Instructions

    Troubleshootingand Software Installation 7.3. Software Installation Instructions 7.3.1. Required Equipment 1. PC computer 2. Disk On Key 3. Programing cable for Rabbit 4000 4. RFU 10.72 (Rabbit Field Utility) 7.3.2. Software installation on the Rabbit 4000 1. Run the RFU.exe file (Rabbit Field Utility) on your computer from its location;...
  • Page 81 Troubleshootingand Software Installation Figure 7-2: connecting the programming cable to the Rabbit Processor 3. Check the box of the of the port that end's with USB (see Figure 7-3) 4. From the opening screen menu bar, select Setup and Communications. 5.
  • Page 82 Troubleshootingand Software Installation Figure 7-3: Communication Options 6. Check the Use USB to Serial Converter box. And Uncheck the Enable Processor Detection box. (see Figure 7-3) 7. Connect the power cable to the Harmony XL system and turn the system on. 8.
  • Page 83 8. Connect the DOK (memory stick) to the USB connector (on the back of the LCD) 9. Press "Install Local App" 10. If the installation was successful, the start screen will appear on the screen 11. Disconnect the DOK (memory stick) and restart the system HarmonyXL ProSystem Operator's Manual7-11...
  • Page 84 CHAPTER 8 Spare Parts Catalog...
  • Page 85 Spare Parts Catalog Table of Contents Section Page 3 ......................... Introduction 8.1 3 ......................... Spare Parts List Harmony XL Pro /SE System Operator's Manual...

  • Page 86: Spare Parts List

    The following spare parts catalog lists all of the Harmony XL modules and parts that should be stored by the Alma Lasers depot or distributorship for the use of the field service engineers. The Item # column of the table indicates the item number as shown in the illustration on the pages following the table.
  • Page 87 Figure 32 Solid State Relay EGIP15110501 Figure 33 Power Supply TXL-220-24S EGHP16010601 Figure 34 Interface module for Harmony XL Pro /SE ELGG05111311 Figure 35 Switching Module ( Harmony XLI Pro) AAHL03011201 Figure 35 Switching Module ( Harmony XL Pro /SE)
  • Page 88 Spare Parts Catalog Harmony XL Pro /SE System Operator's Manual...
  • Page 89 Figure 1: Thermal Switch,turns the system off when water temperature exceeds 50 degrees Figure 2: Fan 120x120x38 24VDC, fan for pushing cool air through the system Figure 3: Switch Rocker,Indicates that the system is connected to the electricity power grid Harmony XL Pro /SE System Operator's Manual...
  • Page 90 Spare Parts Catalog Figure 4: Filter 1/4" NPT 178 Micron,filters large particlesin the water system Figure 5: Fan Control, control system fans Harmony XL Pro /SE System Operator's Manual...
  • Page 91 Spare Parts Catalog Figure 6: Contactor 220V Figure 7: Emergency Stop Switch, performs immediate disabling system Harmony XL Pro /SE System Operator's Manual...
  • Page 92 Spare Parts Catalog Figure 8: Main RFI Filter, filters Radio Frequency Interference, cannot be opened Figure 9: CONTACTOR LP4-K09004BW3 Harmony XL Pro /SE System Operator's Manual...
  • Page 93 Spare Parts Catalog Figure 10: Level Switch, water level indicator Figure 11: CONTACTOR LP1K09008BD 24V DC Harmony XL Pro /SE System Operator's Manual...
  • Page 94 Spare Parts Catalog Figure 12: Filter Water DI Cartridge,mineral ions filter for water system, cannot be opened Figure 13: Harmony Pro Water Tank,contains all the water of the cooling system, cannot be opened Harmony XL Pro /SE System Operator's Manual...
  • Page 95 Spare Parts Catalog Figure 14: RESISTOR 200W 220 OHM, Load for discharge capacitors, cannot be opened Figure 15: Circuit Braker 10A Harmony XL Pro /SE System Operator's Manual...
  • Page 96 Spare Parts Catalog Figure 16: Flow switch (service), water flow indicator Figure 17: Water Pump CPD 8800 (Service),activate cooling water circulation, cannot be opened Harmony XL Pro /SE System Operator's Manual...
  • Page 97 Spare Parts Catalog Figure 18: Heat Exchanger 731 1/4"" NPTF Fittin-Thermatron,Heat exchange connected to the water cooling system, cannot be opened Figure 19: Cap. Charger CCPF-1500-0.6-Dual, charge the capacitors bank, cannot be opened Harmony XL Pro /SE System Operator's Manual...
  • Page 98 Spare Parts Catalog Figure 20: Castor with stopper, front system wheel Figure 21: Castor without stopper,back system wheel Harmony XL Pro /SE System Operator's Manual...
  • Page 99 Spare Parts Catalog Figure 22: Lamp Filament 24-30V, indication lamp Figure 23: Signal Indicator Yellow Rafix 16,cover for indication lamp Harmony XL Pro /SE System Operator's Manual...
  • Page 100 Spare Parts Catalog Figure 24: FAN 80*80*25mm 24VDC, Heat exchanger fan for pushing cool air through the system Figure 25: Switch, Foot Switch, pneumatic trigger Harmony XL Pro /SE System Operator's Manual...
  • Page 101 Spare Parts Catalog Figure 26: Footswitch pedal, pneumatic trigger operate by foot press Figure 27: Vacuum Pump Harmony XL Pro /SE System Operator's Manual...
  • Page 102 Spare Parts Catalog Figure 28: Figure 29: Dump Card CL21060101-A, measure capacitors voltage and to dump capacitors Harmony XL Pro /SE System Operator's Manual...
  • Page 103 Spare Parts Catalog Figure 30: KEY SWITCH Lovely, manual system Lock Figure 31: Power Supply 70W 24V, Supplies power to the Interface controller and LCD, cannot be opened Harmony XL Pro /SE System Operator's Manual...
  • Page 104 Spare Parts Catalog Figure 32: Solid State Relay, electronic switching device controls current for TEC, cannot be opened Figure 33: Power Supply TXL-220-24S, Supplies power to fans, water pump and TEC, cannot be opened Harmony XL Pro /SE System Operator's Manual...
  • Page 105 Spare Parts Catalog Figure 34: Interface module for Harmony XL Pro /SE,Controlled system data via software Figure 35: Switching Module, This unit ignites the lamp in the Handpiece and partial discharges the capacitor bank to the lamp, cannot be opened...
  • Page 106 Spare Parts Catalog Figure 36: system screen iDisplay 15.6", cannot be opened Figure 37: Controller Mini For HXL, Self-unit that tests several parameters in the system and send feedback to the interface Controller Harmony XL Pro /SE System Operator's Manual...
  • Page 107 Spare Parts Catalog Figure 38: Lasers Tip Scanner AssyFor HXL, Scanner controller Board allows using iPixel Scanner Harmony XL Pro /SE System Operator's Manual...
  • Page 108 Spare Parts Catalog Harmony XL Pro /SE System Operator's Manual...

  • Page 109: Electrical Schematic

    Harmony XL Pro /SE System Service Manual APPENDIX A Electrical Schematic...
  • Page 110 Service Manual – Electrical Schematics Harmony XL Pro /SE System Table of Contents Section Page A.1. Upper Part Wiring Diagram..................A.2. Lower Part Wiring Diagram ..................SMSPNXLI10071001, Rev. A...
  • Page 111 Harmony XL Pro /SE System Service Manual – Electrical Schematics A.1. Upper Part Wiring Diagram SMSPNXLI10071001, Rev. A...
  • Page 112 Service Manual – Electrical Schematics Harmony XL Pro /SE System A.2. Lower Part Wiring Diagram SMSPNXLI10071001, Rev. A...
  • Page 113 Harmony XL Pro /SE System Service Manual – Electrical Schematics Notes: SMSPNXLI10071001, Rev. A...
