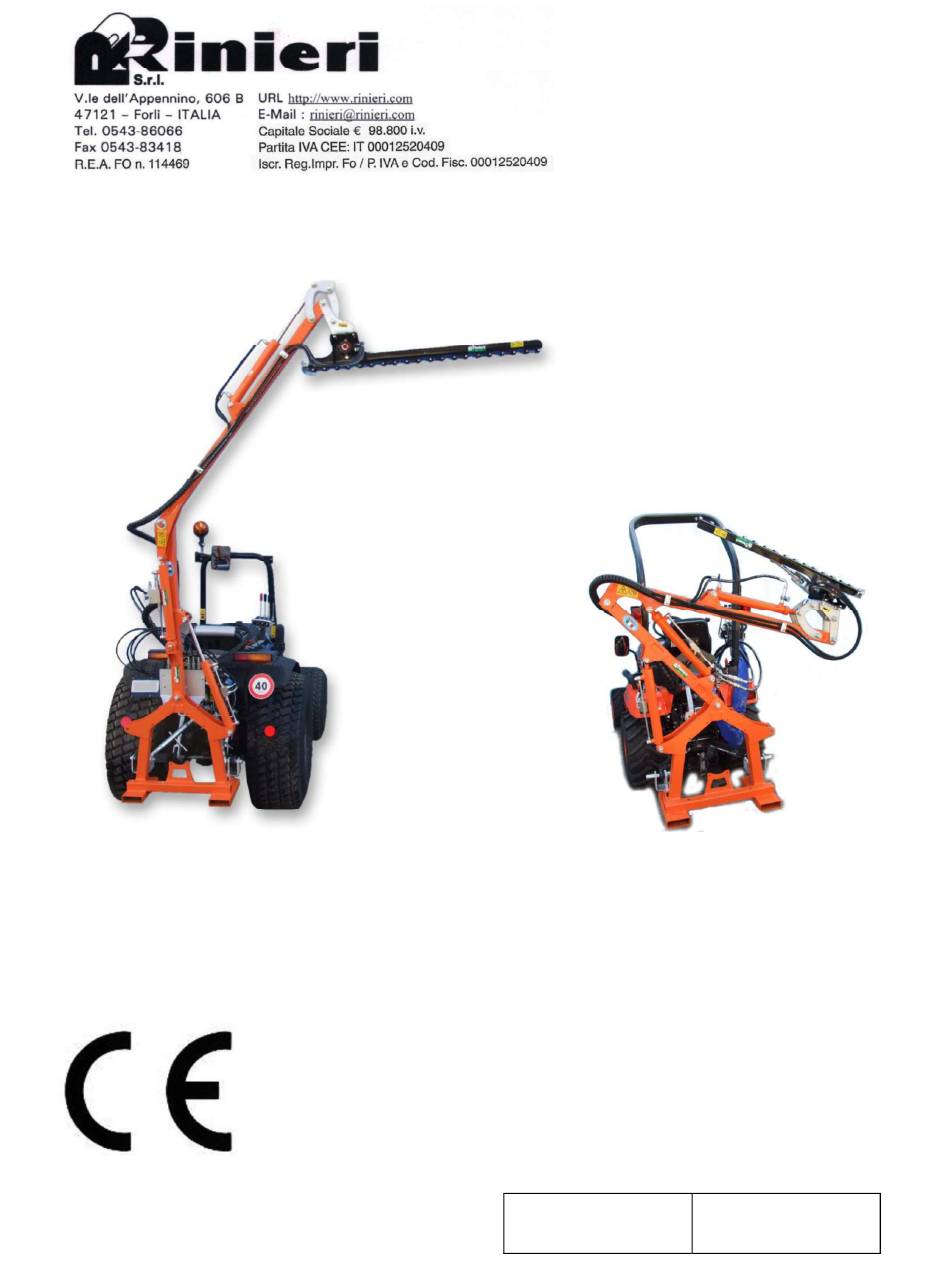

- Page 1 Hedge Bush Cutter Machine Instructions for use and maintenance The following instructions must be read carefully prior to using the machine. In accordance with article 2006/42/CE SERIAL and subsequent modifications...
- Page 2 In regards to safety and reliability this machine was designed in accordance with the provisions and subsequent The manufacturer therefore cannot be held responsible for machine use where modifications have been made without persons. For safety issues not covered in this text please refer to general standards concerning the prevention of accidents. Below is a list of definitions, descriptions and abbreviated terms most frequently used in the text.
-
Page 3: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY As stated by the EC directive 2006/42/CE and subsequent modifications The undersigned RINIERI S.r.l. - Forlì Italia - Declares under its responsibility that the machine: Hedge Bush cutter machine ... Model Code no. Serial no. Is in accordance with essential health and safety requirements of the machinery directive 2006/42/CE and its subsequent modifications. - Page 4 Page intentionally left blank...
- Page 5 ATTENTION THE PURPOSE OF THIS TEXT IS TO INTRODUCE YOU TO THE BASIC STANDARDS AND CRITERIA YOU HAVE TO FOLLOW IN ORDER TO USE AND MAINTAIN THIS MACHINE AND THUS IT HAS TO BE READ BEFORE USING THE MACHINE. This manual has to be considered as an integral part of the machine and must be passed on with the machine if resold. If you lose it or if it is not readable, it is important that you ask for a new copy to the producer, to the dealer or to the importer.
-
Page 6: Table Of Contents
INDEX DESCRIPTION Page EC DECLARATION OF CONFORMITY INDEX INTRODUCTION GENERAL INFORMATION - INSTRUCTION MANUAL - PRESERVATION AND CARE OF MANUAL - IN HOUSE TESTING - DELIVERY - INSPECTION - PACKAGING - MACHINE DETAILS RECOMMENDATIONS DESCRIPTION OF THE MACHINE USING PRE-OPERATION - 3-pin plug - Stabilizer bars - CONNECTION AND HYDRAULIC DIAGRAM... -
Page 7: Introduction
INTRODUCTION Dear Customer, The purpose of this text is to introduce you to the basic standards and criteria you have to follow in order to use and maintain this machine and thus it must be read before using the machine. If any part of this publication is not understandable, please consult your retailer, as this is a necessary precondition to using this machine safely. -
Page 8: Very Important
We remind you that some machines mechanical parts have linear or rotatory movement and can cause serious damage or injury to people, animals and things. It is forbidden to remove or tamper with the safeguards of the machine. It is obligatory to wear the correct protective clothing and safety equipment. It is necessary to keep the machine clean and in working order especially the nameplates, couplings and controls. -
Page 9: Using
Weight Recommended Motor Max bar Tractor Code Model Tool cm. tractor flow pressure Weight kg. 6BRM12 12 litres/minute 15-20 Mono Blade 6BRM15 20 litres/minute 20-30 Mono Blade 6BRM20 20 litres/minute 20-30 Mono Blade The cutting head of the BRM, with 3 point attachment lower than 40 cm., has a big range of movements and angles which are hydraulic controlled and that you can find in the schedule here. -
Page 10: 3-Pin Plug
CAUTION: When the machine is disconnected from the tractor, the joystick can be unhooked and put on the machine or left on the tractor by releasing only the cable coming from the solenoid valves and placing it on the machine; in this case, when reconnecting the cable pay attention to the phase of the plug. -
Page 11: Connection And Hydraulic Diagram
-point hitch. It already has the stabilizer bars fixed to it. link to the upper hole in the plate, block it with the supplied bolt and connect it to the - Apply the lower links of the tractor and the free spherical joint of the stabilizer bars to the lower links of the machine that have a double fork as standard. - Page 12 CAUTION Use a maximum speed of 200 turns/min. CAUTION The power takeoff must be set to 540 rpm. CAUTION carefully before using the equipment or performing any kind of work on it. CAUTION Danger: machinery may suddenly Hook for hoisting and handling the shift laterally.
-
Page 13: Safety Regulations
CAUTION The machinery contains rotating discs or blades. Keep safety distance and wait for the components to stop rotating before performing any work on them. CAUTION The machinery contains rotating discs or blades. Wait for the components to stop rotating before performing any work on them before intervening to perform checks or maintenance. -
Page 14: Improper Use
headphones for acoustic pressure in places of work it is greater than 85 db. hoes, unbuttoned jackets or blouses which can get caught in moving parts. We advise you to use approved articles of clothing for accident prevention for example sturdy gripped boots, safety goggles and face mask, above all if the vehicle is automatic without a cabin. -
Page 15: Method Of Use
WARNING: the manufacturer cannot be held responsible for any injury to people, animals or damages to things resulting from improper or irresponsible use, as mentioned above. METHOD OF USE Users Users are divided into two categories: - OPERATOR: a person without technical knowledge but trained to use the machine and carry out simple maintenance and adjustments. -
Page 16: Auto-Alignment
All movements are illustrated with pictograms on the table; Stick the movement pictogram next t order to remind the movements of the machine parts in case this should be necessary. The controller has a connection plug to the cable that comes from the solenoid valve. This cable also includes a 3-pin plug for electricity supply. -
Page 17: Risks
RISKS Every machine can cause a risks so this very dangerous let somebody be near the machine if not authorized. In order to eliminate risks, REMEMBER to take of the key and to mount again the security devices in good and sure position. -
Page 18: Cleaning
While using compressed air to clean and/or dry machine parts protect your eyes with goggles and limit the pressure. Keep the machine clean and in order. Replace immediately any warning or instruction adhesives, which are no longer visible or missing. Do not solder near the hydraulic tubes in order to prevent fires. -
Page 19: Replacing The Single Blade
Check the structure. Remember that it is strictly forbidden to make holes or modify the structure. WARNING: for maintenance we recommend that the machine is disassembled from the tractor. WARNING: we recommend contacting the retailer or authorized technician for specific maintenance, repairs and/or setting up the machine. -
Page 20: Replacing The Disc Saws
Replacing the disc saws When cutting quality decreases or the saws are very worn, we recommend replacing or sharpening them. Remove the safety ring 5, unscrew the screws 4, remove the safety ring 3 and the saw. Replace the saws with original saws only. These have to have calibrated holes. -
Page 21: Unistallation Of Machine
The machine mounted on the centre of the tractor is not homologated for the transfers on common roads. So they have to be disassemble and loaded on implements on issue and transfered by homologated trailers. Also the machines which are more than 2.5 m. width have to be transfered by homologated trailers and longitudinal positioned to avoid projecting parts. -
Page 22: Conditions Of Guarantee
CONDITIONS OF GUARANTEE This machine is guaranteed for 12 months from the date of purchase. The guarantee covers the replacement of parts agreed as initially defective and for errant assembly operations. breakage caused by negligence or non observance of the standards outlined in this manual. Use or maintenance carried out by untrained or unskilled persons.
