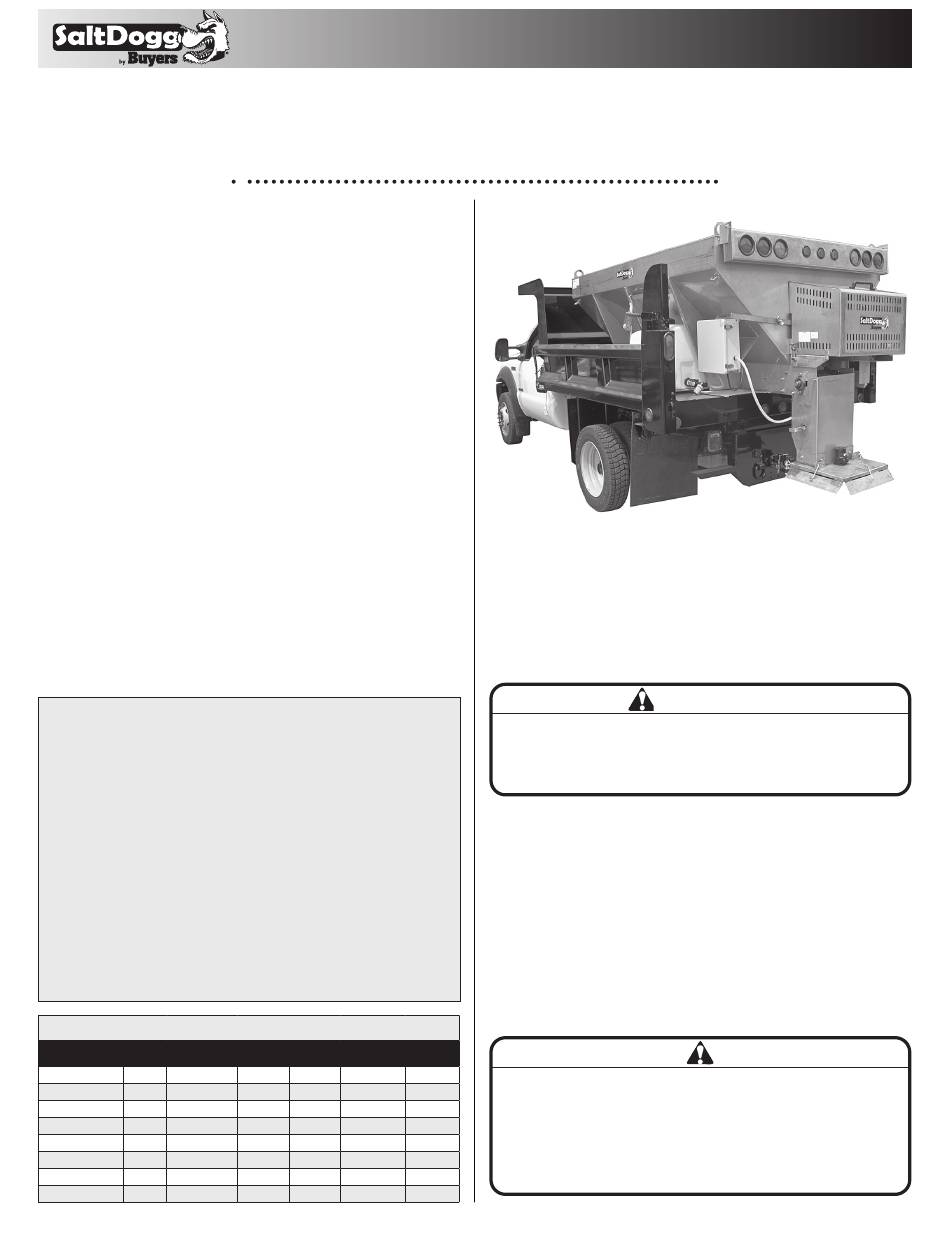

Stainless Steel Self-Contained
Hopper Spreaders, Gas Chain Feed
Table of Contents
Spreader Warranty Information .............................................................. 1
Spreader Models and Specifications ..................................................... 1
General Information ................................................................................ 1
Recommended Vehicle Requirements: .............................................. 1
Average Material Weights: .................................................................. 1
General Safety Precautions .................................................................... 2
Safety Precautions - Gas Powered Models ....................................... 2
Safety Symbols ....................................................................................... 2
Installation Instructions ........................................................................... 3
Mounting the Spreader onto the Vehicle: ........................................... 3
Cab Control Box and Vehicle Wiring Harness Installation ................. 3
Spinner Chute Installation Instructions .............................................. 3
Spreader Operation ................................................................................ 4
Cab Control Box Functions ................................................................ 4
Starting the Gasoline Engine .............................................................. 4
Stopping the Gasoline Engine ............................................................ 4
Clutch Operation ................................................................................. 4
Spinner/Chute Operation .................................................................... 5
Spreader Start-up ............................................................................... 5
Operating the Spreader ...................................................................... 5
Spreader Maintenance ........................................................................... 6
In-Season Maintenance .......................................................................... 6
End of Season / Off-Season Storage Maintenance ............................... 6
Gasoline Engine Maintenance ................................................................ 6
Throttle Motor Replacement Instructions............................................... 6
SPREADER WARRANTY INFORMATION
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein. Buyers Products Company war-
rants all parts of the product to be free from defects in material and workman-
ship for a period of one (1) year. Parts must be properly installed and used
under normal conditions. Normal wear is excluded. Any part which has been
altered, including modifications, misuse, accident, or lack of maintenance
will not be considered under this warranty. The sole responsibility of Buyers
Products Company under this warranty is limited to repairing or replacing
any part(s) which are returned, prepaid, 30 days after such defect is dis-
covered, and returned part(s) are found to be defective by Buyers Products
Company. Authorization from Buyers Products Company must be obtained
before returning any part. The following information must accompany defec-
tive parts returned to Buyers Products Company: RMA#, spreader model,
serial number, date installed, and distributor from whom purchased. Buyers
Products Company shall not be liable for damage arising out of failure of any
unit to operate properly, or failure, or delay in work, or for any consequential
damages. No charges for transportation or labor performed on any part will
be allowed under this warranty.
Spreader Models and Specifications
HOPPER
MODEL #
POWER
SIZE
14708F381211
Gas
96" x 38"
14708F461211
Gas
96" x 46"
14709F381211
Gas
108" x 38"
14709F461211
Gas
108" x 46"
14709F521211
Gas
108" x 52"
14710F381211
Gas
120" x 38"
14710F461211
Gas
120" x 46"
14710F521211
Gas
120" x 52"
Installation Manual
OVERALL
OVERALL
EMPTY
CAPACITY
LENGTH
WIDTH
WEIGHT
(YDS.)
116"
58"
1,455
116"
70"
1,685
128"
58"
1,570
128"
70"
1,800
128"
70"
1,907
140"
58"
1,666
140"
70"
1,911
140"
70"
2,026
General Information
Recommended Vehicle Requirements:
This spreader is to be used on trucks with dump bodies or
flatbed trucks with a Gross Vehicle Weight Rated chassis of
15,000 lbs. or greater
Do not overload vehicle beyond the vehicle's Gross Vehicle
Weight Rating (GVWR) or Gross Axle Weight Ratings (GAWR).
Check the vehicle's load rating certification sticker for maxi-
mum vehicle capacity.
Average Material Weights:
MATERIAL WEIGHT (pounds per cubic yard)
• Rock Salt - 2,160 lbs per cubic yard
• Sand weight, course dry - 2,565 lbs per cubic yard
• Sand weight, course wet - 3,240 lbs per cubic yard
Note: To calculate the total Gross Spreader Weight (including
ice control material), add the empty spreader weight plus the
ice control material and spreader accessories.
General Safety Precautions
2.5
This symbol points out important safety instructions which,
3.6
if not followed, could endanger the personal safety and/or
2.9
property of yourself and others. Read and follow all instructions
4.1
in this manual before attempting to install or operate this
5.1
spreader. Failure to comply with these instructions may result in
3.2
4.6
personal injury. When you see this symbol. HEED ITS WARNING!
5.6
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
CAUTION
Advertisement
Table of Contents
Related Manuals for Buyers SaltDogg 14708F381211
Summary of Contents for Buyers SaltDogg 14708F381211
-
Page 1: Table Of Contents
Normal wear is excluded. Any part which has been altered, including modifications, misuse, accident, or lack of maintenance will not be considered under this warranty. The sole responsibility of Buyers Average Material Weights: Products Company under this warranty is limited to repairing or replacing... -
Page 2: General Safety Precautions
Safety Symbols DANGER The following pages show safety symbols that may appear on This spreader was built to be operated according to the safe this product. Read and fully understand all safety decals on the operation practices in this manual. As with any type of power spreader before operating the spreader. -
Page 3: Installation Instructions
Installation Instructions Vehicle Wiring Installation • Determine a wiring path for the vehicle wiring harness. Mounting the Spreader onto the Vehicle: This model of spreader is intended to be installed on a standard WARNING 34" wide truck chassis or inside an appropriate length dump or platform body. -
Page 4: Spreader Operation
• "START" position: While holding in this position, the IMPORTANT spreader’s engine starter is activated. • Throttle Switch: The throttle switch is a two-position switch Do not over-tension either roller chain. Over tensioning can with the following functions: cause damage to bearings, roller chain, sprockets, or the engine. •... -
Page 5: Spinner/Chute Operation
Spinner/Chute Operation Spreader Start-up • The spread pattern and the amount of material dispensed will 1. Set feed gate opening and baffle positions for desired depend on the following factors: material flow and spread pattern. • Engine RPM 2. Check to make certain that no loose parts or other material •... -
Page 6: Spreader Maintenance
Spreader Maintenance 4. Store hopper indoors, in a cool, dry place. 5. If applicable, remove controller from truck. Store controller Check and maintain the correct oil level for both the engine indoors, in a cool, dry place crankcase (gasoline models) and the gearbox (all models). The engine crankcase is filled with 1 quart of SAE 5W-30 motor oil Gasoline Engine Maintenance at the factory. - Page 7 Gas Engine Assembly Bill of Material ITEM PART NO. OTY. DESCRIPTION 3008326 Stand, Engine Mount 3006887 Engine, 9 (10.5) HP Briggs, w/ Recoil & Fuel Tank FWF031075006 Washer, 5/16 SAE, ZN FCS031018150 Screw, HHC 5/16-18 x 1.5 Gr. 5, ZN FWL031058008 Washer, Spring Lock, 5/16 ZN FNH031018025...
-
Page 8: Hopper Assembly
Hopper Assembly 11 12 17 18... - Page 9 Hopper Assembly Bill of Materials ITEM PART NO. OTY. DESCRIPTION ITEM PART NO. OTY. DESCRIPTION 3049336 FLOOR WELDMENT, 8FT FCS038016100SS SCREW, HHC 3/8-16 X 1 304 SST 3050127 FLOOR WELDMENT, 9FT 3008289 COUPLING, DRIVE SHAFT/ GEARBOX 3050400 FLOOR WELDMENT, 10FT 1410803 PIN, CLEVIS, 3/8 X 2, 1038 ST, YZN 3014960...
-
Page 10: Chute Assembly
Chute Assembly Bill of Material ITEM PART NO. QTY. DESCRIPTION 3008378 CHUTE, WELDED GAS SPINNER 3009067 BEARING, SPINNER SHAFT 3008827 SHAFT, SPINNER DRIVE 3008611 DISC, SPINNER ASSEMBLY 3009632 PIN, CLEVIS 3/8 x 2.5 UL FPC007800075 COTTER PIN, 5/64 X 3/4 3008835 SPROCKET, 24 TOOTH, #40 R CHAIN ITEM... - Page 11 Top Screen Assembly - 38" Tall Hopper Bill of Material ITEM PART NO. QTY. DESCRIPTION 3028154 TOP SCREEN HALF, 8FT 3028143 TOP SCREEN HALF, 9FT 3025436 TOP SCREEN HALF, 10FT Top Screen Assembly - 46"/52" Tall Hopper Bill of Material ITEM PART NO.
- Page 12 www.buyersproducts.com Phone (440) 974-8888 Fax 800-841-8003 Inverted V Assembly - 38" Tall Hopper Bill of Material ITEM PART NO. QTY. DESCRIPTION 3049460 INVERTED VEE,WELDMENT 8FT 3028141 INVERTED VEE,WELDMENT 9FT 3025254 INVERTED VEE,WELDMENT 10FT 3030225 BAR, INVERTED VEE 3049463 CROSS MEMBER, 38IN HOPPER 3003873 WASHER, FLAT 1/2"...
