version 2.45
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Octo Valve and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog way Octo Valve

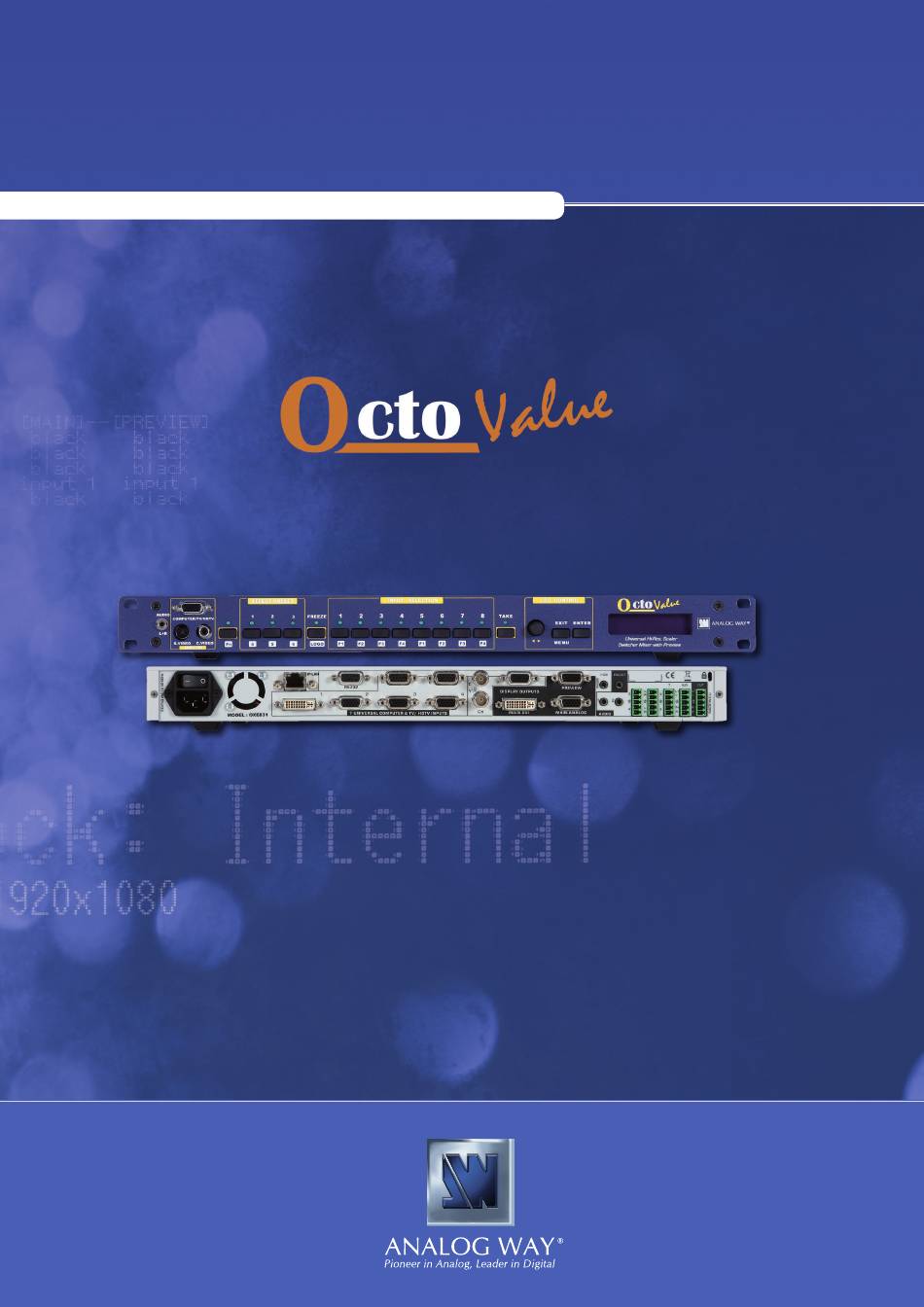

  • Page 1 version 2.45 USER MANUAL...

  • Page 2: Table Of Contents

    THANK YOU Thank you for choosing Analog Way. By following these simple steps, you should be able to unleash the powerfull Octo Value High Resolution Digital and Analog Computer & Video Up/Down Scaler Switcher straight out of the box. TABLE OF CONTENTS...
  • Page 3 FRONT PANEL MENU DISPLAY DESCRIPTION 5-1. Introduction 5-2. Control buttons 5-3. Status mode 5-4. Control mode 5-5. Function description UPDATING THE DEVICE 6-1. Connections 6-2. Update instructions REMOTE CONTROL SOFTWARE 7-1. Connections 7-2. Software installation 7-3. Communication setup 7-4. Using the software 7-5.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS All of the safety and operating instructions should be read before the product is operated and should be retained for further reference. Please follow all of the warnings on this product and its operating instructions. CAUTION : • WARNING : To prevent the risk of electric shock and fire, do not expose this device to rain, humidity or intense heat sources (such as heaters or direct sunlight).

  • Page 5: Instructions De Securite

    INSTRUCTIONS DE SECURITE Afin de mieux comprendre le fonctionnement de cet appareil nous vous conseillons de bien lire toutes les consignes de sécurité et de fonctionnement de l’appareil avant utilisation. Conserver les instructions de sécurité et de fonctionnement afin de pouvoir les consulter ultérieurement. Respecter toutes les consignes marquées dans la documentation, sur le produit et sur ce document. • ATTENTION : Afin de prévenir tout risque de choc électrique et d’incendie, ne pas exposer cet appareil à la pluie, à l’humidité et aux sources de chaleur intense. • INSTALLATION : V eillez à assurer une circulation d’air suffisante pour éviter toute surchauffe à l’intérieur de l’appareil. Ne placez pas l’appareil sur ou à proximité d’une surface textile susceptible d’obstruer les orifices de ventilation. N’installez pas l’appareil à proximité de sources de chaleur comme un radiateur ou une poche d’air chaud, ni dans un endroit exposé...
  • Page 6 INSTRUZIONI DI SECUREZZA Allo scopo di capire meglio il funzionamento di questa apparecchiatura vi consigliamo di leggere bene tutti i consigli di sicurezza e di funzionamento prima dell’utilizzo. Conservare le istruzioni di sicurezza e di funzionamento al fine di poterle consultare ulteriormente. Seguire tutti i consigli indicati su questo manuale e sull’apparecchiatura. • ATTENZIONE : A l fine di prevenire qualsiasi rischio di shock elettrico e d’incendio, non esporre l’apparecchiatura a pioggia, umidità e a sorgenti di eccessivo calore.
  • Page 7 SICHERHEITSHINWEISE Um den Betrieb dieses Geräts zu verstehen, raten wir Ihnen vor der Inbetriebnahme alle Sicherheits und Betriebsanweisungen genau zu lesen. Diese Sicherheits- und Betriebsanweisungen für einen späteren Gebrauch sicher aufbewahren. Alle in den Unterlagen, an dem Gerät und hier angegebenen Sicherheitsanweisungen einhalten. •...
  • Page 8 INSTRUCCIONES DE SECURIDAD Para comprender mejor el funcionamiento de este aparato, le recomendamos que le acuidadosamente todas las consignas de seguridad y de funcionamiento del aparato antes de usarlo. Conserve las instrucciones de seguridad y de funcionamiento para que pueda consultarlas posteriormente. Respete todas las consignas indicadas en la documentación, relacionadas con el producto y este documento.

  • Page 9: Accessories Supplied

    1-2. OCTO VALUE GENERAL INFORMATION The OCTO VALUE by Analog Way is a High Resolution Digital and Analog Computer & Video Up/Down Scaler Switcher. In addition, the device offers a true scaled preview and many effects including High Resolution PIP in Computer & Video formats.

  • Page 10: Devices & References

    1-3. DEVICES & REFERENCES REFERENCE DESIGNATIONR EFERENCE DESIGNATION OXE831 OCTO VALUE. 1-4. INSTALLATION IMPORTANT : Please read all the safety instructions page 3 before starting. • Table Top Mounting : The device can be used directly on a table : the unit is equipped with 4 plastic feet. •...

  • Page 11: Front Panel Description Of The Octo Value

    1-5 FRONT PANEL DESCRIPTION OF THE OCTO VALUE INPUT #8 : Universal (computer and video) input. This input accepts the following sources : • AUDIO L+R : Audio stereo source on jack 3.5 female connector. • COMPUTER/TV/HDTV : Computer (RGBHV, RGBS or RGsB) or video (SDTV or HDTV) source on a HD15 female connector.

  • Page 12: Rear Panel Description Of The Octo Value

    1-6. REAR PANEL DESCRIPTION OF THE OCTO VALUE 100-250 VAC, 1A, 50-60 Hz : AC power inlet. O / I : AC power switch (O = OFF, I = ON). IP/LAN : LAN communication port on a RJ45 connector. RS-232 : RS-232 communication port on a DB9 female connector.

  • Page 13: Octo Value Connections

    STARTING 2-1. OCTO VALUE CONNECTIONS NOTE : Turn OFF all of your equipment before connecting. Connect the AC power supply cord to the device and to an AC power outlet. ❶ Connect your computer & video sources to the 8 universal inputs of the device. ❷...

  • Page 14: Input #1 Description

    2-2. INPUT #1 DESCRIPTION 1) CONNECTION : You can connect to this input one of the following sources : • A composite video source. • A S.video source. • A Component video source. • A HD-YUV source. • A RGBS video source. •...

  • Page 15: Input #2 To 8 Description

    2-3. INPUT #2 to 8 DESCRIPTION 1) CONNECTION : You can connect to these inputs one of the following sources : • A composite source. NOTE : Input #7 can accept a composite video source on the BNC connector. Input #8 can accept a composite on the RCA connector.

  • Page 16: Audio Inputs

    4) DVI-I PIN ASSIGNMENT : Function Function Function Function Function Function TMDS Data 2- TMDS Data 1- TMDS Data 0- TMDS Data 2+ TMDS Data 1+ TMDS Data 0+ TMDS Data 2 Shield TMDS Data 1 Shield TMDS Data 0 Shield Not used. Not used. Not used. Not used.

  • Page 17: Prelist Audio

    MCO male connector Input #3 to 7 & AUX are equipped with this connector. Connect your audio sources as follow : Input #3, 4, 5, & 6 : unbalanced connection only. LEFT Input #3 RIGHT GROUND(S) LEFT Input #4 RIGHT UNBALANCED - Inputs #7 &...

  • Page 18: Operating Mode

    OPERATING MODE The device can be used in two different switching modes : • SEAMLESS MODE, allows switching seamlessly, fading and titling between the “reference” COMPUTER input and the other inputs. Other inputs are scaled to the same format as the “reference” COMPUTER format. NOTE : Input #1 and #8 can be used as the reference capter input. NOTE : The “reference” Computer is not scaled. • FAST SWITCHING MODE allows selecting an output format corresponding to your application. All video inputs are scaled to the selected format.
  • Page 19 IMPORTANT : The CUT, FADE, PIP and TITLE effects are active in SEAMLESS mode and only between the reference computer input and the other inputs. • CUT (SEAMLESS) : Pre-select the reference computer input with the INPUT SELECTION button (The LED is blinking). Select an EFFECT PRESET, assign it the CUT effect.
  • Page 20 • FADE COLOR : The FADE COLOR allows switching between 2 sources with a fading to a color of you choice. This transition operates in Fast Switching mode and sometimes in Seamless mode (only when the other effects are not possible). You can select the color of the fading with the LCD CONTROL menu.

  • Page 21: Display Device Adjustments

    3-3. DISPLAY DEVICE ADJUSTMENTS • IN SEAMLESS MODE : Select the reference computer source. The reference computer image is displayed onto the output. A djust directly the display device itself, using its position and size controls, to fill the computer image in full screen. ❷ ❶ • IN FAST SWITCHING MODE : Display the centering pattern with the LCD menu (OUTPUT > test pattern > centering). Display a black output.

  • Page 22: Logo Insertion

    USING FRAME & LOGO INSERTION 4-1. LOGO INSERTION This function allows storing up to 8 static logos & 1 animated logo in order to key them into the displayed image (up to 2 logos simultaneously). IMPORTANT : The output format used when displaying logos should be the same as the one used during the logo storing.

  • Page 23: Using The Frame Store

    4-2. USING THE FRAME This function allows memorizing up to 4 frames (images) in order to display them at any time during the show. IMPORTANT : The output format used when displaying the frame should be the same as the one used during the FRAME storing.

  • Page 24: Introduction

    FRONT PANEL MENU DISPLAY DESCRIPTION 5-1. INTRODUCTION The front panel display menu presents 2 modes : STATUS MODE CONTROL MODE. • STATUS MODE indicates the input and output status of the device. • CONTROL MODE allows selecting and adjusting the parameters of the device. 5-2.

  • Page 25: Control Mode

    5-4. CONTROL MODE Output rate 1 Fast switching 1 SWITCHING internal ] [ follow #1 ] [ follow #8 ] 2 Seamless Seamless [ seamless #1 ] [ seamless #8 ] 1 Auto-setting 2 INPUT 2 Input status 1 SDTV Composite 1 NTSC/PAL/SECAM 2 SDTV S.VIDEO 2 NTSC...
  • Page 26 5 LOGO/FRAME 1 Use logo 1 Display 1 Input #1 ....8 Input #8 OFF 1 None 2 Logo 1 Index 1 ► Logo 2 2 Assignment 1 All inputs 3 Logo 2 Index 2 None 2 Input #1 4 Empty ........9 Input #8 Use logo 3 Position Index 1 ► Logo 2...
  • Page 27 9 CONTROL 1 Versions 1 Red level 1 Fade color 2 Transition 2 Green level 2 Clean cut 3 Blue level 3 Fade frame 1 Frame 1 Fade duration ------------- ========xxs 4 Frame 4 3 Sync-loss 1 Black 2 Input #1 ------------- 13 Input #4 4 RS232 / LAN port...

  • Page 28: Function Description

    5-5. FUNCTIONS DESCRIPTION 1►[SWITCHING] + ENTER. [Fast switching] + ENTER. Select an item with ◄► + ENTER. • [Internal rate] : T he output frame rate is 60 Hz or 75 Hz depending of the selected output format. A higher frame frequency gives a better visual aspect when displaying static pictures. • [Follow # x] : T he output frame rate is identical to the selected input Frame Rate : 50 Hz if the input video standard is PAL or SECAM and 59.94 Hz if the input video standard is NTSC. This function allows improving the motion pictures. [Seamless] + ENTER. Select the computer input used as reference with ◄► + ENTER.
  • Page 29 3► [OUTPUT] + ENTER. [Output status] + ENTER. Indicates the status of the output. [Output format] + ENTER. Select one of the available output formats with ◄► + ENTER. For the MAIN output : For the PREVIEW output : ----- 16/9] • [1024x768 --- - 4/3] • [852x • [800x ----- 4/3] •...
  • Page 30 4►[IMAGE] + ENTER. ► If the selected input type is a VIDEO signal the IMAGE MENU displays the following items : [Pos. settings] + ENTER. Select one of the following functions with ◄► + ENTER. 4-1-1 [H position] + ENTER. Adjust the Horizontal position with ◄► + ENTER. 4-1-2 [V position] + ENTER. Adjust the Vertical position with ◄► + ENTER. 4-1-3 [H size] + ENTER. Adjust the Horizontal size with ◄► + ENTER.
  • Page 31 If the selected input type is a COMPUTER signal the IMAGE MENU displays : ► [Centering] + ENTER. Adjust automatically the image in the centering pattern. [Pos. settings] + ENTER. Select one of the following functions with ◄► + ENTER. 4-2-1 [H position] + ENTER. Adjust the Horizontal position with ◄► + ENTER. 4-2-2 [V position] + ENTER. Adjust the Vertical position with ◄► + ENTER.
  • Page 32 5► [LOGOS/FRAME] + ENTER [Use logo] + ENTER. Select an item with ◄► + ENTER. 5-1-1 [Display] + ENTER. T his function allows turning the assigned logos of each input ON or OFF. Select an input with ◄► and press ENTER to select ON or OFF. NOTE : To display a logo the output format should be the same as the one used during the storing. 5-1-2 [Assignment] + ENTER.
  • Page 33 5-3-5 [Luma key level] + ENTER. T his function allows “erasing” the darkest portion of your logo area in order to make special logo contour. Ad- just the luma key level with ◄► + ENTER. 5-3-6 [Back. Color] + ENTER. T his function allows coloring the “erased portions” of the logo when using the luma key. Select a level with ◄►+ ENTER. 5-3-7 [Recording time] + ENTER. Adjust the recording time with ◄► + ENTER. 5-3-8 [Store] + ENTER. This function allows storing the logo into the memory. The memorization will take few seconds. [Record frame] + ENTER.
  • Page 34 6►[EFFECT] This menu allows storing an effect in each of the effect buttons (EFFECT PRESET). ① First select an effect button with LCD menu or with the front panel button. ② Then select one of the following effects: 6-x-1 [Cut] : allows switching seamlessly the pre-selected input onto the MAIN output. 6-x-2 [Fading] allows fading the pre-selected input to the MAIN output.
  • Page 35 7► [AUDIO MAIN] + ENTER. [Master volume] + ENTER. Adjust the audio output level with ◄► + ENTER. [Audio mode] + ENTER. Select the output audio mode with ◄► + ENTER. • [Mono] : Set the output in mono mode. • [Stereo] : Set the output in stereo mode. [Audio source] + ENTER. Select an item with ◄► + ENTER : • [auto follow] : The audio follows the video image.
  • Page 36 9►[CONTROL] + ENTER. [Versions] + ENTER. Version _._= update version. I1 to I4 = Identification number. K, A, B, C, O = status of the internal firmware versions. [Transition] + ENTER. Select an item with ◄► + ENTER 9-2-1 [Fade color] + ENTER. This function allows selecting the color of the frame during the fade through frame transition. Select a color (red, green and blue) with ◄► + ENTER and adjust the level with ◄► + ENTER. During the adjustment the color is displayed on the output.
  • Page 37  MAC address : The MAC address, also referred to hardware address, is a unique number assigned to each device. The MAC address is available on the bottom device label. [key locking] + ENTER. Select an item with ◄► and change the mode with ENTER. • [All] : Locks/unlocks all the front panel switches. •...

  • Page 38: Updating The Device

    UPDATING THE DEVICE 6-1. INTRODUCTION The device can be updated thanks via RS232 communication port or via LAN communication port of a computer (PC). 6-2. CONNECTION Connect the device to an AC power outlet. Switch ON the device (REAR PANEL SWITCH = I). Connect the device to the computer used for the update via the desired communication port.

  • Page 39: Remote Control Software

    - Connect the LAN port (RJ45 connector) of the device to your network according to your installation. 7-2. SOFTWARE INSTALLATION Turn your computer ON and wait for Windows to completely start. ① Insert the CD-ROM into your drive : the ANALOG WAY home window will open automatically. ② S elect the language of the CD-ROM menus, then click on “Install a Remote Control Software” and select the ③...

  • Page 40: Using The Software

    • CASE OF LAN PORT : - W ith the front panel display menu of the device, verify the configuration of the LAN communication port (CONTROL > LAN setup), then activate the LAN communication port (CONTROL > RS232/LAN port > LAN). - W ith the Control menu of the software, select RS232/LAN setup and LAN Setup. Then configure the Local port, the Remote IP address and the Remote port and click on Apply to setup the new values.

  • Page 41: Frames & Logos Loader

    Click on the Image tab and adjust your input. ④ ⑤ Click on the Audio tab and select Automatic (follow switching mode) or an Audio source (breakaway mode). Then adjust the Level and the Balance of each audio source. 7-5. Frames and Logos Loader The RCS provides additional functionality.

  • Page 42: Technical Specifications

    TECHNICAL SPECIFICATIONS 8-1. COMPUTER & VIDEO INPUTS • ANALOG COMPUTER Connectors : HD15 (inputs #2 to 8) and DVI-I (input #1). Line frequency : Up to 110 kHz. Frame frequency : Up to 130 Hz. Resolution : Up to 1600 x 1200/60Hz. Sync. types : RGBHV, RGB/S, RGsB (Sync On Green). Levels : R, G, B = 0.7 Vp/p. H & V Sync = TTL Composite Sync = TTL and 0.3 V.

  • Page 43: Display Outputs

    8-2. DISPLAY OUTPUTS • MAIN ANALOG Connectors : HD15 and DVI-I (2x buffered). Resolution : 4/3 & 5/4 : 800x600, 1024x768, 1280x1024, 1400x1050, 1600x1200. 16/9 & 16/10 : 852x480, 1280x720, 1280x768, 1366x768, 1920x1080. Frame frequency : 50, 60, 72***, 75*** Hz and follow (*** = not available for all resolutions). Sync. types : RGBHV, RGB/S, RGsB (Sync On Green). Levels : R, G, B = 0.7 Vp/p. H & V Sync = TTL Composite Sync = TTL and 0.3 V.

  • Page 44: Communication Ports

    8-6. COMMUNICATION PORTS • RS232 (on DB9 female connector) Data Rate : 9600 Bauds, 8 data bits, 1 stop bit, no parity bit, no flow control. Pin-out : PIN # FUNCTIONS Tx1 (transmit data to the control device) Rx1 (receive data from the control device) Rx2 (receive data from the display device) GROUND (Gnd) Reserved for manufacturer. Tx2 (transmit data to the display device) •...

  • Page 45: Introduction

    APPENDIX : PROGRAMMER’S GUIDE A. INTRODUCTION If you need to use your own Software Control program from a PC or WORKSTATION with an RS232 port, the device allows communication through an ASCII code protocol. The device treats any character that it receives on the RS-232 as a possible command but only accepts legal com- mands.

  • Page 46: Commands And Responses Table

    D. COMMANDS AND RESPONSES TABLE VALUE RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION SELECTION COMMANDS MAIN selected input. 0 1 = input #1 2 = input #2 Background selection (PIP effect only) Rd/Wr 0 8 3 = input #3 4 = input #4 PREVIEW selected input (read only). 0 8 5 = input #5 6 = input #6 Input pre-selection or PIP switching Rd/Wr 0 8 7 = input #7 8 = input #8 9 = frame #1 10 = frame #2 11 = frame #3 Black screen on the MAIN output Rd/Wr 0...

  • Page 47: Image Commands

    VALUE CD RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION IMAGE COMMANDS Automatic centering (M). Rd/Wr 0 1 1 = centering action (automatic reset). Horizontal position (M). Rd/Wr 0 255 Vertical position (M). Rd/Wr 0 255 Horizontal size (M). Rd/Wr 0 255 Vertical size (M). Rd/Wr 0 255 Brightness adjustment (M). Rd/Wr 0 255 Contrast adjustment (M). Rd/Wr 0 255 Color adjustment (M). Rd/Wr 0 255 Hue adjustment (M).

  • Page 48: Audio Commands

    VALUE CD RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION EFFECTS COMMANDS Effect selection. Rd/Wr 0 4 0 = CUT. 1 = FADING. 2 = TITLE. 4 = PIP. Effect duration selection. Rd/Wr 5 255 5 = 0.5 second 244 = 24.5 seconds 255 = holding Horizontal position of the effect. Rd/Wr 0 255 Vertical position of the effect Rd/Wr 0 255 Horizontal size of the effect Rd/Wr 0 255 0 = PIP 1:1...
  • Page 49 VALUE CD RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION FRAME & LOGOS COMMANDS Frame/logo mode. Rd/Wr 0 3 0 = use & assignment mode. 1 = logo recording mode. 2 = animated logo recording mode 3 = frame recording mode. 4 = erasing logo mode. 5 = erasing frame mode. 6 = logo transfer mode.
  • Page 50 VALUE CD RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION FRAME & LOGOS COMMANDS Horizontal position of the logo 1 (P). Rd/Wr 0 255 Vertical position of the logo 1 (P). Rd/Wr 0 255 Logo 1 horiz. size % output format (P). Rd 5 255 5 = 3% 255 = 100% Logo 1 vert. size % output format (P). 5 255 5 = 3% 255 = 100% Logo 1 type (P). 0 2 0 = incrusting logo 1 = cutting logo 2 = animating logo Pixels number in a line of the logo 1 (P). Rd 0 65535...

  • Page 51: Communication Commands

    VALUE /VALEUR RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION CONTROLS COMMANDS Erase all memories. Rd/Wr 0 1 1 = erase all memories (automatic reset). Auto-lock Rd/Wr 0 1 0 = off 1 = on. Red adjustment of the FADE. Rd/Wr 0 255 Blue adjustment of the FADE. Rd/Wr 0 255 Green adjustment of the FADE. Rd/Wr 0 255 Transition. Rd/Wr 0 5 0 = fade color 1 = clean cut 2 = frame 1 3 = frame 2 4= frame 3 5 = frame 4...
  • Page 52 VALUE RESPONSE COMMAND DESCRIPTION TYPE DESCRIPTION STATUS COMMANDS Measures unity in tens of kHz. 65535 ex : 14500 = 145 MHz Horizontal period of input signal (M) 65535 Line frequency (in kHz) = (UN VALUE)x10 ÷ (IL VALUE). Horizontal period of input signal (P) 65535 Line frequency (in kHz) = (UN VALUE)x10 ÷ (il VALUE). Vertical period of input signal (M) 65535 Frame frequency (in Hz) = (Line frequency in Hz) ÷ (ID VALUE). Vertical period of input signal (P) 65535 Frame frequency (in Hz) = (Line frequency in Hz) ÷ (id VALUE). Input Sync. detection (M). 1 0 = no Sync. detected 1 = Sync. detected. Input Sync. detection (P). 1 0 = no Sync. detected 1 = Sync. detected. Sign of the horizontal input Sync. (M) 1 0 = negative 1 = positive.

  • Page 53: Ascii / Hex / Dec Table

    E. ASCII / HEX / DEC TABLE ASCII ASCII ASCII space " & ’ < > PAGE 52...
  • Page 54 F. RS-232 Sample for OVX How to use : The device treats any character that it receives on the RS-232 or LAN as a possible command but only accepts legal commands. There is no starting/ending code needed in a command string. A command can be a single character typed on a keyboard and does not require any special character before or after it.
  • Page 55 Serial command Response from switcher Comment from controller 0EO EO0 Activate the cut opening effect 0EC EC0 Activate the cut closing effect Activate the fade opening effect Activate the fade closing effect 27Eo Eo27 Set up the opening fade duration to 2,7 seconds 18Ec Ec18 Set up the closing fade duration to 1,8 seconds Take the preview All the other commands can be found in the OVX831 RS-232 command file.

  • Page 56: Analog Way Limited Warranty

    WARRANTY & SERVICES INFORMATION ANALOG WAY LIMITED WARRANTY Analog Way products have a 3 years warranty on parts and labor, back to factory, but do not include faults resulting from user negligence, special modifications, electrical surges, abuse (drop/crush), and/or other unusual damage. SERVICES AND RMA In the unlikely event that a product is required to return for repair, please call the regional Maintenance center / Customer Service, and ask to receive a Return Material Authorization number (RMA).

  • Page 57: Contact Information

    If the product is used for business purposes and you want to discard it : Please contact your Analog Way dealer who will inform you about take-back of the product. You might be charged for the costs arising from take-back and recycling.
  • Page 58 Version : 2.45 - 23/11/11 Code : 140113 Designs and specifications are subject to change without notice The illustrations and screens described in this manual may be exaggerated or simplified for easy recognition and may be slightly different from the actual unit. ANALOG WAY SAS 33 rue du Saule Trapu Parc du Moulin 91300 Massy - France...
