2/2024
Operating instructions
Variants:
Moisture sensor FMS410iD-K Sensor in POM cup with POM measuring orifice plate
Moisture sensor FMS410iD-C Sensor in POM cup with ceramic measuring orifice plate
Moisture sensor FMS410iD-T
Moisture sensor FMS410iD-S Sensor in Teflon cup with ceramic measuring orifice plate
Mütec Instruments GmbH
Bei den Kämpen 26
D-21220 Seevetal
332
Sensor in Teflon cup with PTFE measuring orifice plate
Tel.: +49 (0) 4185-80 83-0
Fax: +49 (0) 4185-80 83-80
FSI410iD
FMS410iD-*
e-Mail: muetec@muetec.de
Web:
www.muetec.de
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Mutec FMS410iD Series

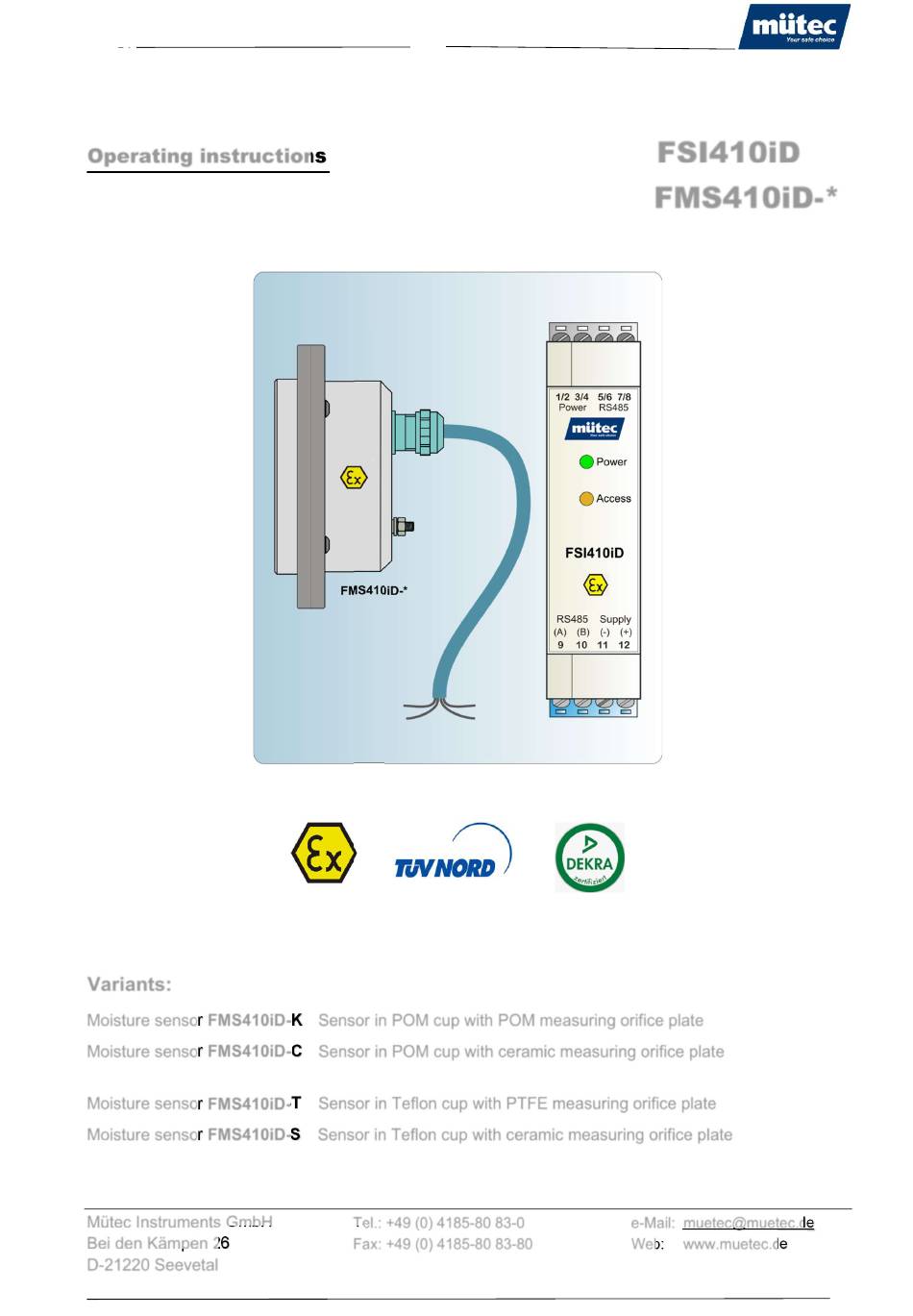

- Page 1 2/2024 FSI410iD Operating instructions FMS410iD-* Variants: Moisture sensor FMS410iD-K Sensor in POM cup with POM measuring orifice plate Moisture sensor FMS410iD-C Sensor in POM cup with ceramic measuring orifice plate Moisture sensor FMS410iD-T Sensor in Teflon cup with PTFE measuring orifice plate Moisture sensor FMS410iD-S Sensor in Teflon cup with ceramic measuring orifice plate Mütec Instruments GmbH Tel.: +49 (0) 4185-80 83-0...
- Page 2 2/2024 Operating instructions for: Moisture sensor interface FSI410iD Moisture sensor FMS410iD-* Publication no.: BA 332 Issue date: 2/2024 Manufacturer: Mütec Instruments GmbH Bei den Kämpen 26 21220 Seevetal Germany Tel: +49 (0) 4185 8083-0 Fax: +49 (0) 4185 808380 e-mail: info@muetec.de Internet: www.muetec.de License, trademark and copyright notices Modbus...
-
Page 3: Table Of Contents
2/2024 Table of Contents Table of contents ............................... Safety regulations and instructions............installation ........ Classification of the safety instructions ......................General information ............................1 General information for installation and operation ..................2 ATEX relevant data ............................3 Technical data of the sensor interface.......... -
Page 4: Safety Regulations And Classification Of The Safety Instructions
2/2024 Safety regulations and instructions Follow the instructions for installation: Note: Installation, operation and maintenance may only be carried out by qualified personnel. The applicable safety guidelines (including the national safety guidelines), accident prevention regulations and general technical regulations must be observed when installing and operating the appliance. - Page 5 2/2024 Classification of the instructions This manual contains instructions that you must observe for your personal safety and to prevent damage to property. The instructions are highlighted by a warning triangle and shown as follows, depending on the degree of danger. DANGER means that death or serious bodily injury will occur, if the appropriate precautions are not taken.
-
Page 6: General Information
2/2024 General information This appliance has left the factory in a technically safe condition. In order to maintain this condition and to ensure safe operation of the appliance, the instructions and warnings given in these operating instructions must be observed by the user. ATTENTION For reasons of clarity, these instructions do not contain all detailed information on all types of the product and cannot take into account every conceivable case of installation, operation or... -
Page 7: General Information For Installation And Operation
2/2024 General information for installation and operation Labeling according to Directive 2014/34/EU: 0158 II (2) G Checkpoint Device group Associated equipment with external circuits for connection to category 2 devices for explosive mixtures of air and flammable substances Gases, vapors or mists Marking of the type of protection: [Ex ia Ga] IIC associated electrical operating... -
Page 8: Installation And Commissioning
2/2024 The FSI410iD moisture sensor interface, optionally also installed in a field housing (FGA160), is an associated piece of electrical equipment with circuits of ignition protection type Ex ia IIC and must always be operated outside potentially explosive atmospheres. Only the intrinsically safe supply or interface circuit may be routed into the potentially explosive area and connected to the FMS410iD-* moisture sensor. -
Page 9: Atex Relevant Data
2/2024 ATEX relevant data Moisture sensor interface FSI410iD Certificate IBExU 18 ATEX 1064 Edition 1 II (1)G [Ex ia] IIC II (1)D [Ex ia] IIIC Da Conformity EN IEC 60079-0:2018 General requirements EN 60079-11:2012 Intrinsic safety "i" Supply circuit (terminals 1/2 and 3/4) Rated voltage 18 ... - Page 10 2/2024 Ambient temperature range 0 °C to +70 °C (amb)ient Process temperature range 0 °C to +70 °C processt Moisture sensor FMS410iD-C Ex certificate IBExU 18 ATEX 1064 Edition 1 II 1G Ex ia IIB T6 Ga II 2G Ex ia IIC T6 Gb II 1D Ex ia IIIC T80 °C Da 0 °C ≤...
- Page 11 2/2024 Technical data of the moisture sensor interface Moisture sensor RS485 interface [Ex ia IIC] Galvanic isolation from the power supply and all other inputs/outputs! Protocol: MODBUS, RTU mode RS485: Half-duplex, terminated Baud rate: 19200 bps Moisture sensor supply circuit [Ex ia IIC] Galvanic isolation from the power supply and all other inputs/outputs! DC supply: 20 V, 25 mA...
-
Page 12: Technical Data Of The
2/2024 Assembly The appliance may only be installed outside a potentially explosive atmosphere! The ME-MAX housing can be combined with a 5-pin TBUS connector/ DIN rail connector. The RS485 interface and the supply voltage can be conveniently wired through via the TBUS connector snapped into the top-hat rail. - Page 13 2/2024 Mechanical data Housing: Stainless steel 1.4301 Protection class: IP 67 according to EN 60529 Weight: approx. 1050 g Response time: approx. 1 second Connection cable: Shielded cable, 4-core, min. 0.5 mm² Cable length: as required up to max. 250 m Material of the measuring surface FMS410iD-K: FMS410iD-T:...
- Page 14 2/2024 Block diagram of the FSI410iD with FMS410iD-* 6 Block diagram of the FSI410iD in the FGA160 field housing with FMS410iD-* 7 Terminal assignment of the FSI410iD in the field housing FGA160...
- Page 15 2/2024 Cable connection of the FMS410iD-* moisture sensor The cable shield is in the sensor closed at the earthing contact. If the cable shield is also earthed at the other end of the cable and there is a potential difference between the two earthing points, this can result in a more or less large equalizing current via the cable shield.
- Page 16 2/2024 10 Type plates of the FMS410iD-* moisture sensors...
