Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Familiarise yourself with this product's application and limitations, as well as any specific potential hazards peculiar to the beacon.
9
Replace or repair damaged parts. Use recommended parts only. Non authorised parts may be dangerous and will invalidate the
9
warranty.
DO NOT use the beacon for any purpose other than for which it is designed.
8
DO NOT allow children to operate the beacon.
8
DO NOT operate the beacon if any parts are missing or damaged as this may cause failure or possible personal injury.
8
When not in use switch the beacon off and where appropriate remove plug from power supply.
9
This beacon is intended to be used only in 12V or 24V DC systems.
9
The beacons are meant to be used as a warning signal. Applications e.g. Trucks, excavators, agricultural machines and tractors etc.
9
DO NOT look straight into the light. The bright light may cause a serious eye damage.
8
Make sure that the beacon is properly installed before driving the vehicle.
9
Follow the country-specific regulations when installing the warning lights on the roof of the vehicle.
9
2. INTRODUCTION
Fitted with 45 x 0.5W high power SMD LEDs which make the beacon highly visible. Beacon is IP65 rated, suitable for use in all
weather conditions, in addition to it's wide operating temperature range of -30°C to 50°C. 12mm Bolt fixing for easy installation on
a wide range of vehicles. Light pattern can switch between Rotating, Single Flash and Double Flash. Certified to ECE R65 and ECE
R10 regulations.
3. SPECIFICATION
Model No
Lens colour
Nett Weight
Voltage
IP Rating
1
2
3
4. FIXING INSTRUCTIONS
4.1.
SINGLE BOLT FIXING
4.1.1.
Drill a 12mm mounting hole in a suitable point on the vehicle.
4.1.2.
Connect to cables of at least 2mm² section and use an 8A fuse; check polarities.
4.1.3.
Fix the beacon by using nuts and washers according to the type and shape of the mounting surface
4.2.
BOLT FIXING BASE
4.2.1.
Drill mounting hole 12mm. Also make provision to route cables into the vehicle.
4.2.2.
Connect to cables of at least 2mm² section and use an 8A fuse; check polarities.
4.2.3.
Fix the beacon with 1x 19mm nut with spring washer and flat washer.
© Jack Sealey Limited

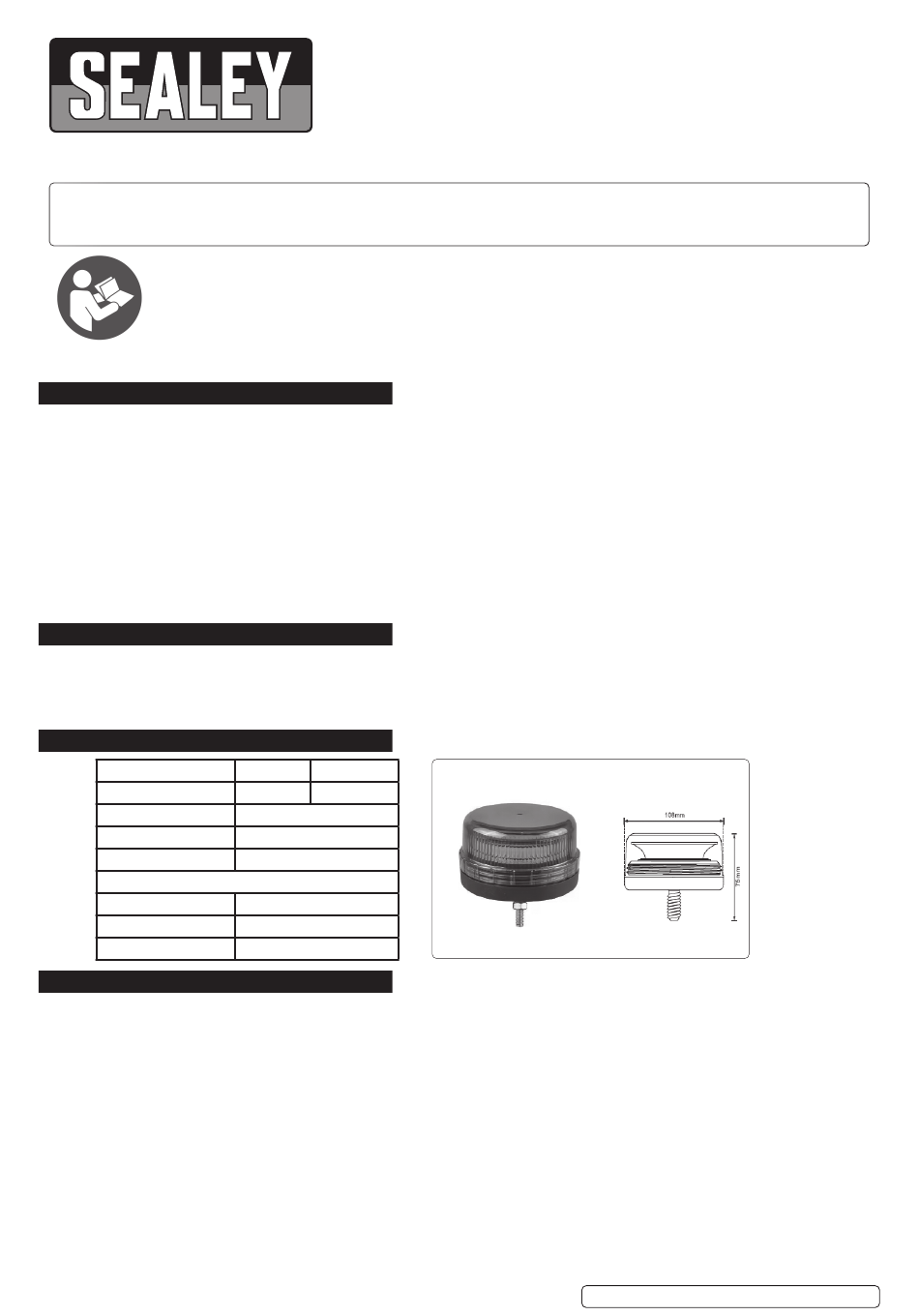

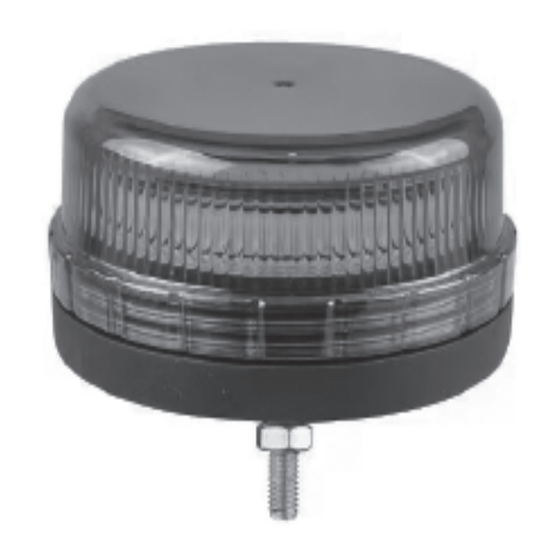

ROTATING FLASHING WARNING BEACON WITH
12MM BOLT FIXING SMD LED 12V/24V
MODEL NO:
WB45LED
WB45LEDG
Amber
Green
0.25kg
12/24V
IP65
Functions
Single Flashing (R65)
Double flashing (R65)
Rotating
Original Language Version
WB45LED, WB45LEDG
WB45LED WB45LEDG Issue 1 22/10/24
