Waterway Renegade Gunite Operating Instructions Manual

RENEGADE GUNITE SKIMMER OPERATING INSTRUCTIONS
Maximum Flow Rate: 75gpm
Replacement Weir Door
550-9950 White
550-9951 Black
550-9957 Gray
550-9959-DKG Dark Gray
550-9959-BEI Beige
(bagged individually)
Designed,
Engineered &
Manufactured
in the USA.
©2025 Waterway Plastics
Public Pool Skimmer - Model 540-6200

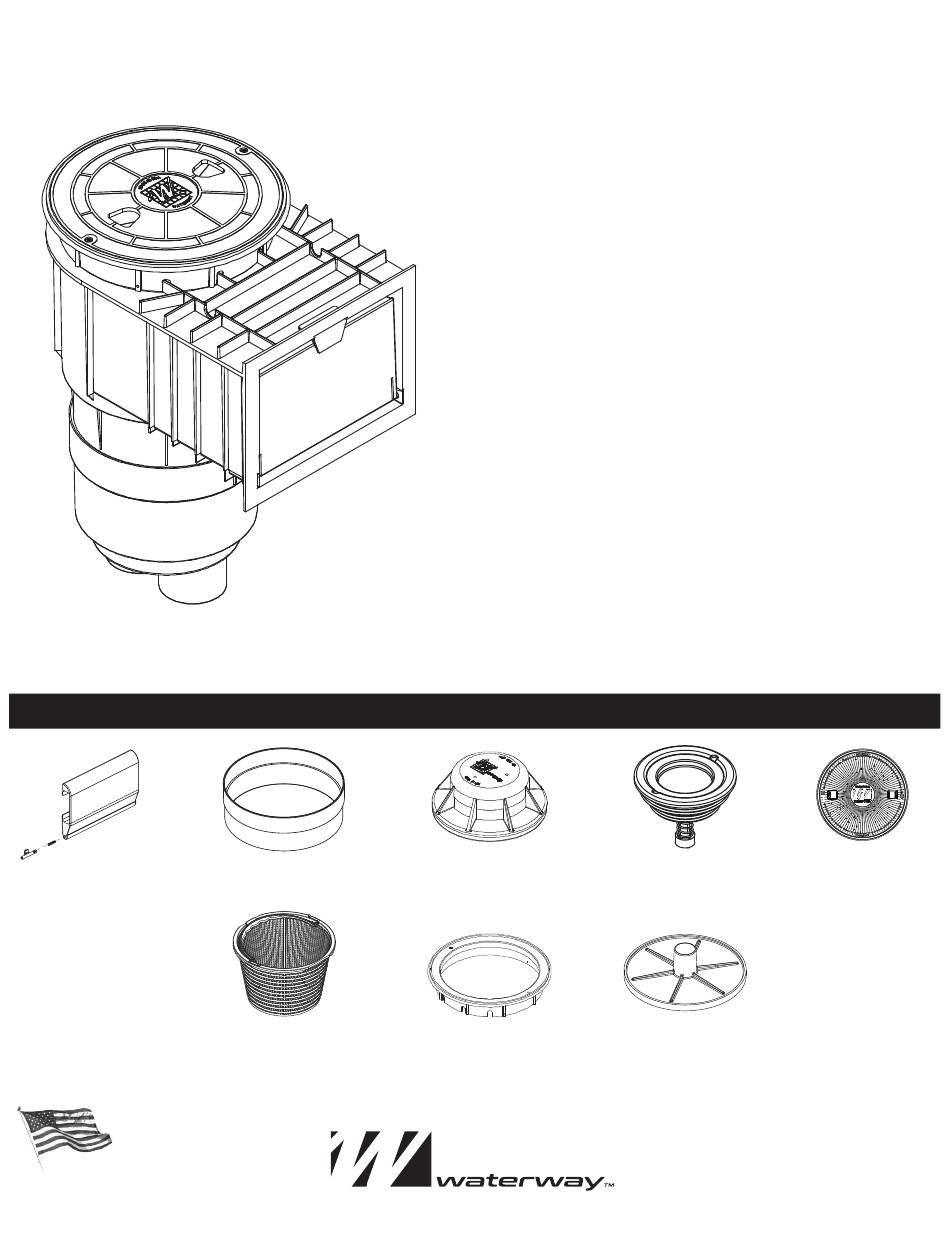

RENEGADE GUNITE SKIMMER REPLACEMENT PARTS
Extension Ring
519-6570 White
Skimmer Basket
542-3240 White
2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403
www.waterwayplastics.com • waterway@waterwayplastics.com
NORMAL OPERATION
Water passes over the weir door, down through the basket and float valve assembly to
the pump. The trimmer plate on the float valve assembly or the diverter plate are both
open.
ADJUSTING THE SKIMMER FLOW
If the skimmer flow is too fast due to excessive flow rate from the pump, either rotate
the float valve trimmer plate or the diverter plate over the port to the pump until
required flow is achieved.
VACUUM/BRUSHING THE POOL
To vacuum the pool, first remove the float valve, then close the diverter plate over the
main drain. Install the vacuum plate above the basket and connect the vacuum hose
to the vacuum plate to proceed with the brushing operation.
MULTIPLE SKIMMERS
Rotate the diverter plate at the bottom of the skimmer over the pump port to restrict
the flow and balance the flow from each skimmer.
LOW WATER LEVELS
When the water level drops below the weir door, water will no longer flow from the
pool through the upper part of the skimmer. The pump will evacuate the remaining
water from the skimmer causing the float valve to close and water will flow from the
main drain only, or until the water level is increased. The same can occur when and if
the basket gets filled with leaves and debris.
Float Valve Assembly
542-6200 White
Mounting Ring
519-6420 White
519-6427 Gray
519-6429-BEI Beige
Equalizer Valve Lid Assembly
540-6010 540-7800WW-10 White
540-7801WW-10 Black
540-7807WW-10 Gray
540-7808WW-10 Clear
540-7809WW-B10 Beige
540-7809WW-D10 Dark Gray
Vacuum Plate
519-6480
810-0054.0425
