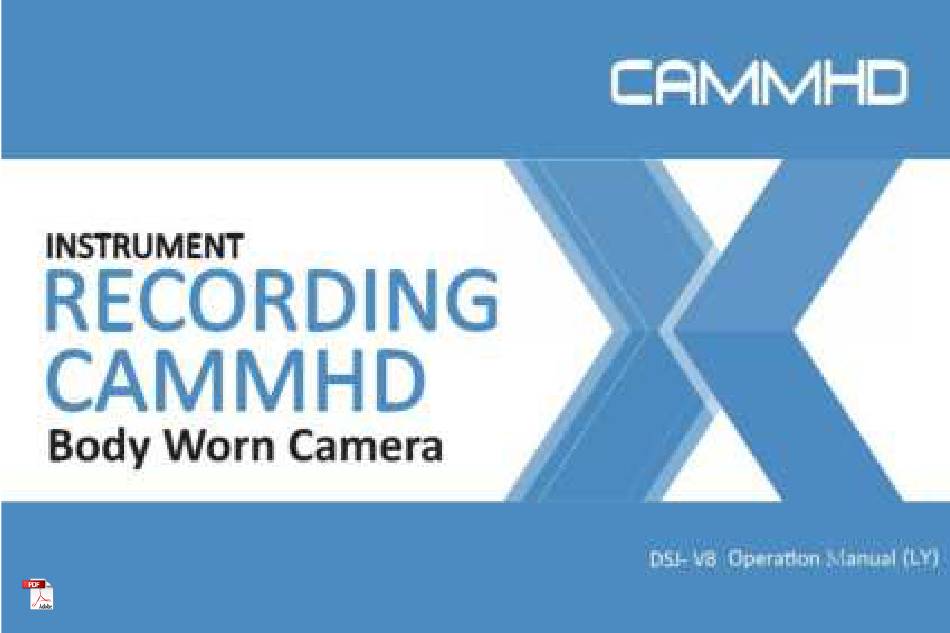

CAMMHD DSI-V8 Operation Manual

Body worn camera
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSI-V8 and is the answer not in the manual?

Questions and answers

Related Manuals for CAMMHD DSI-V8

Summary of Contents for CAMMHD DSI-V8

  • Page 2 Notes： Please feel free to contact us if you need manuals in English, French or Italian. Si vous avez besoin d'un manuel en anglais, français ou italien, n'hésitez pas à nous contacter. Wenn Sie ein Handbuch in Englisch, Französisch oder Italienisch benötigen, zögern Sie ni cht, uns zu kontaktieren.
  • Page 3 Introduction Thank you all for purchasing our company's recorder. Please read this manual carefully before using it. At the same time, please keep this manual properly for inquiries when needed. The final interpretation of the relevant contents of this manual belongs to our company. Subject to change without notice. This manual is the user manual of the product. It briefly introduces the product's functional characteristics, performance indicators, appearance structure, usage methods and precautions.

  • Page 4: Product Description

    Product description The body camera is the latest law enforcement live audio and video product created by our company. It contains a number of latest video and audio processing technologies. It has comprehensive functions and reliable performance. It can be widely used in law enforcement agencies such as public security, inspection, court, judicial, armed police, industry and commerce, and taxation.

  • Page 5: Parts Guide

    Parts guide...

  • Page 8: Product Features

    Product features > Power button-(short press) When the power is turned on, short press the power button to turn on the laser, and short press the power button to turn off the laser. (Long press) In the shutdown state, long press to turn on the device, and long press to turn off the device.
  • Page 9 (Long press) When the machine is turned on, press and hold the light button to turn on the infrared night vision mode, and press the other keys again to turn off the infrared mode. This screen will be displayed when you turn on the infrared mode. It's black and white, which is normal. >...

  • Page 10: Main Features

    Main features > Super night vision function: in total darkness, you can see the outline of the human body within 15 meters. > Dual filter switch: no color cast during the day, clearer at night. > The videos and photos of the character superimposition function are accompanied by non-editable evidence information such as time, item number, and user number.
  • Page 11 > Support the fastest automatic video cleaning when the loop video is full, which is easy to use. > Lighting: support convenient LED night light, support red and blue light alarm, can be turned on as a warning light under special circumstances. >...

  • Page 12: Performance Index

    Performance index...
  • Page 13 Quick to use >Switch machine When the power is off, press and hold the power button of the recorder, and the machine can be turned on In any state, press and hold the power button for 3 seconds to shut down the machine. >Video After the recorder is turned on, in the standby preview state, short press the'recording button to start recording.
  • Page 14 >Photo After the recorder is turned on, in the standby preview state, short press the camera button to take a picture. In the dark environment at night, you need to turn on the machine's infrared light or LED white light to take the picture. Press the camera button during recording to take a snapshot.
  • Page 15 brightness of the external environment, and chooses to turn on or off the infrared mode. >Motion detection When there is a moving object within the shooting frame of the recorder, the recorder will automatically start video recording and save the video file automatically. >Key Mark During the video shooting process, short press the menu button, the key mark appears at the top of the display, which is to mark the key file.
  • Page 16 >Continuous shooting The recorder can perform continuous shooting, and can set single shooting//3 pictures/5 pictures//10 pictures/, continuous shooting means that in the standby state, press the camera button once, the recorder can take multiple pictures continuously, the default state The next is no continuous shooting, only one photo is taken.
  • Page 17 blue lights can be turned on for alarm or warning. >Secret mode In the secret shooting mode, the recorder will remain silent and no light, which is suitable for shooting in special scenes. >Motion Detection In the motion detection mode, the recorder will automatically start recording when there are moving objects in the viewfinder screen of the recorder, and automatically switch to the standby state when the viewfinder screen is in a static state to save memory and increase battery life.

  • Page 18: Parameter Setting

    Parameter setting The menu setting can set the video and system parameters. In the standby mode, short press the menu key once to enter the setting menu. In the setting menu interface, you can use the up/down keys to select items. After adjusting to the item that needs to be set, press Enter the parameter selection by pressing the OK key, and then press the "up/down key"...
  • Page 19 >Video resolution resolution several options 2160P/1440P/1296P/1080P/720P/480P. The larger the value, the larger the file, and the shorter the recording time with the same memory and battery. The default resolution is "2160 30p" >Video Segmentation There are four options for video segmentation, 5/10/15/20 minutes. Video segmentation means: the video is automatically saved as a file in the set time segment during recording.
  • Page 20 >Interval recording Interval recording related; 1 second-1 frame; 2 seconds-1 frame; 5 seconds- 1 frame; 10 seconds-1 frame; 30 seconds-1 frame; 1 minute-1 frame. The default setting is off. >Preliminary settings Video prerecording has two options of on/off. When the recorder is turned on, the recorder is in the prerecording state when it is turned on, and the video icon in the upper left corner of the screen displays red.
  • Page 21 >Motion detection There are two options related to motion detection/on. When set to on, the recorder will automatically start shooting when there are moving objects within the shooting range of the recorder. When no moving objects enter the shooting range continuously, the recorder will automatically stand by. This setting is off by default.
  • Page 22 >Car Mode Settings There are two options related to car mode and on. When set to on, the recorder will automatically power on and start recording after power on. After power off, it will automatically stop recording and shut down. The default is off. >WDR settings WDR related and on two options, when set to on, wide dynamic is that the particularly bright part and the particularly dark part in the scene can be seen very...
  • Page 23 >Encoding setting The encoding method can be set to "H.264" and "H.265" two options, the H.265 encoding method can save a longer video in the same memory under the condition of ensuring the definition. The default setting is H.264. >Photographic resolution setting camera resolution options...
  • Page 24 >Continuous shooting settings There are four options for continuous shooting: off/single shooting/three continuous shooting/five continuous shooting/ten continuous shooting. Continuous shooting means that in the standby mode, press the camera button once, and the recorder can take multiple photos continuously. The default continuous shooting setting is "Single Shot".
  • Page 25 >Date and time settings Enter the time setting, use the "up and down keys" to increase and decrease the number size, and press the "confirm key" to adjust to the next setting. After setting the year/month/day/hour/minute/second, press the menu key to return to the upper level The interface is set up.
  • Page 26 >Key sound settings There are two options for the button sound on/off. When it is set to off, there is no sound when pressing the button. >Language Settings The recorder can be set to multiple system languages, and the default setting is English.
  • Page 27 >Police ID setting The police ID can be set to use the six-digit number of the personnel ID. Use the up/down keys to adjust the number and press the OK key to confirm the selection. The set police officer’s old display is at the top of the standby interface. >...
  • Page 28 >Modify password settings When changing the device password, you need to enter the ID password first. The default password is 0001. Use the up/down keys to adjust the size of the number, and press the OK key to confirm the selection. After the setting is completed, the screen will display the new password information.
  • Page 29 >View version information Here you can view the current version information of the recorder.

  • Page 30: Data Transfer

    Data transfer After the password protection is turned on, when the recorder is turned on, use the USB data cable to connect the recorder to the computer. The recorder display will jump out of the left interface, enter the initial password 0001 to enter the recorder U disk, and find "Removable"...

  • Page 31: Faults And Solutions

    Faults and solutions The fault Fault diagnosis Troubleshooting phenomenon Dead battery Enough to charge for 4 hours Host protection After pressing the Reset button, reboot The host cannot be turned on Use the data cable to connect to the computer, unplug Host protection and plug the recorder port several times to activate the device, and restart...
  • Page 32 CAMMHD cam m hd@ 163. com...
