Assembly and Operating Instructions
3042650, 3039632R
Steel Frame
Walk Behind Broadcast Spreader
ASSEMBLY
Tools Needed for Assembly
• (2) 10mm Wrenches
• (2) 1/2 in Wrenches

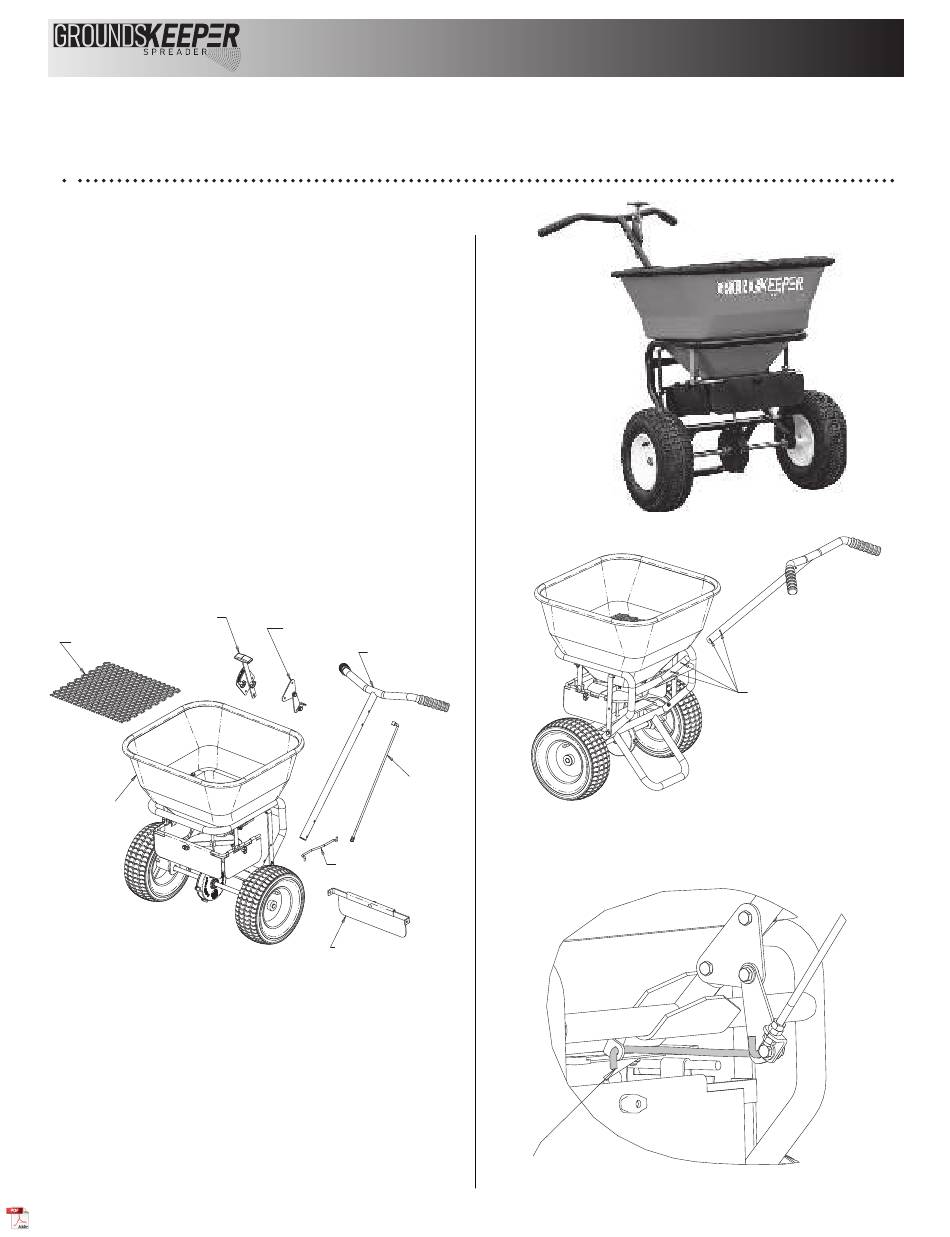

Contents of Box – Figure 1
Remove and check contents of box against the parts list
to make sure all components are included. When ordering
replacement parts, refer to the parts list for part numbers.
Fig. 1
Rain Cover And Hardware Kit Are Not Shown
Control Handle
Assembly
Screen
Preassembled
Spreader
Attaching the Handle, Linkage Plate Assembly,
and Lower Linkage – Figures 2 thru 5
A. Place the pre-assembled portion of the spreader upright on
its wheels
B. Slide the Handle onto the spreader frame and line up the holes
Linkage Plate Assembly
Handle Assembly
Upper
Linkage
Lower Linkage
Rear Deflector
Assembly
Fig. 2
C. Carefully insert the Lower Linkage into the Restrictor Plate
underneath the Hopper as shown. (The Lower Linkage has two
bent ends & the Upper Linkage has one threaded end).
Fig. 3
Step C: Insert Lower Linkage Into
Restrictor Plate and Rotate To This Position
1
www.buyersproducts.com
Phone (440) 974-8888
Fax 800-841-8003
Step B: Slide
Handle Onto Frame
And Line Up Holes
