Summary of Contents for Kimo Instruments HQ 210

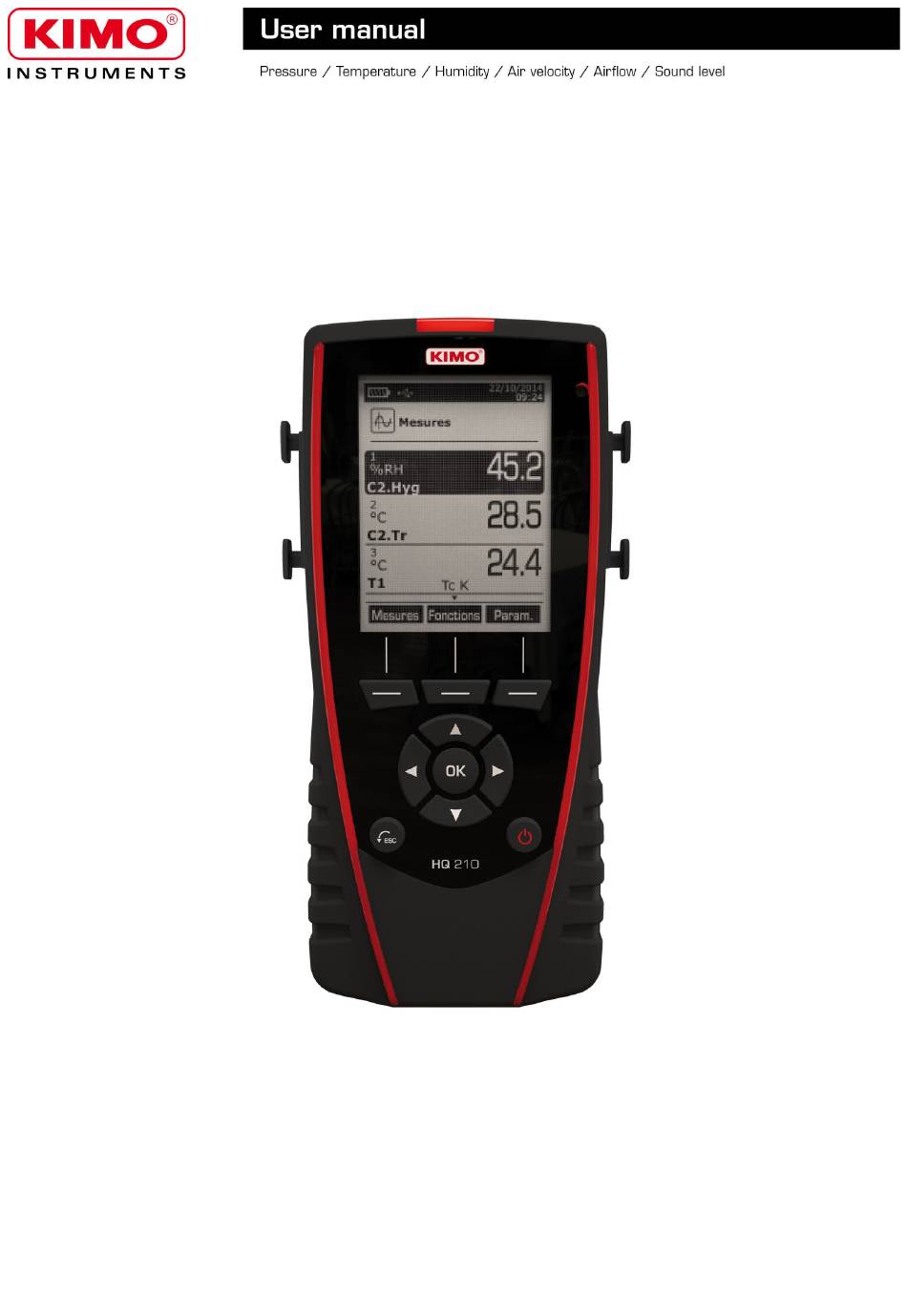

  • Page 1 HQ 210 Thermo-hygrometer-air quality...

  • Page 3: Table Of Contents

    Table of contents 1. Presentation............................5 1.1. Instrument description........................5 1.2. Keys description...........................5 1.3. Remove battery..........................6 2. Connections of the HQ210........................7 2.1. Main features..........................7 2.2. Connections..........................7 3. Information............................9 4. Set the instrument..........................10 4.1. Set language..........................10 4.2. Set date and time........................10 4.3. Activate or deactivate the beep key...................10 4.4.

  • Page 5: Presentation

    1.1 Instrument description Battery level Date and time Measurement menu Dataset menu Information menu Configuration menu Home screen Function keys Navigation arrows OK button ESC button On/Off button 1.2 Keys description ➢ Left key: allows to navigate from left to right ➢...

  • Page 6: Remove Battery

    1.3 Remove battery ➢ Turn off the instrument. ➢ Turn it over. ➢ Press the red button while sliding down the battery. Presentation...

  • Page 7: Connections Of The Hq210

    Module Location to remove the module Probe handle C2 mini-DIN C1 mini-DIN Light indicator for connection connection USB connection battery charging + power supply Battery 2.1 Main features Screen • 120x160 pixels graphic display and backlight. Display of 6 measurements, 3 simultaneously. Size 50x67 mm. Printer (available as option) •...
  • Page 8 Climatic conditions module : • Allows to measure hygrometry, ambient temperature and atmospheric pressure. Wire probes with SMART-2014 system • Wire probes with SMART 2014 system are automatically recognized when connected to the instrument. Probes are connected on min-DIN connectors C1 and / or C2 (excepted thermocouple probes) Overmolded mini-DIN...

  • Page 9: Information

    “Information” menu allows to view information about the instrument, probes and module connected to the “Wireless probe”, “Mini-DIN 1”, “Mini-DIN 2” or “Module” connections. To enter in this menu from home screen, select the “Information” menu with the arrow keys then press OK. Available information for probes and module is : Type of probes and module •...

  • Page 10: Set The Instrument

    The instrument is on. ➢ With the arrow keys, go to “Configuration” menu. ➢ Press OK. 4.1 Set language “Configuration” screen is displayed. ➢ Select “Language” with the arrow keys then press OK. Available languages are displayed. ➢ Press Up and Down arrows to select the required language : FRA, ENG... ➢...

  • Page 11: Set Backlight

    4.5 Set backlight “Configuration” screen is displayed. ➢ Select “Backlight” with arrow keys then press OK. ➢ Select the backlight level between 1 and 9 or “Auto” with Up and Down keys. ➢ Press OK to validate. 4.6 Set security This part allows to activate or deactivate a security code.

  • Page 12: Set The Probes

    5.1 Use of the wire probes and modules Connect a probe • ➢ Connect the mini-DIN cable on the mini-DIN connection of the probe. ➢ Connect the mini-DIN cable with the probe on the instrument. A beep indicates that the operation has been correctly performed. Arrow in front of the user Arrow in front...

  • Page 13: Use Of Wireless Probes

    Use of wireless probes Add a wireless probe • With arrow keys, go to Turn on the wireless probe In “Information” menu go to On the bottom of the “Information” menu and keep it press until the “Wireless probe” then press screen press the light blinks then press OK.

  • Page 14: Channel Configuration

    The channel configuration allows to modify the displaying of the measured parameters. The instrument is on. ➢ With the arrow keys, go to “Measurement”. Press OK. ➢ Press the function key “Channels”. ➢ The different functions of the probe are displayed. It is possible from the “Channels”...

  • Page 15: Delta T

    *For a Ø100 mm vane probe, K factor is not available . It is possible to select “Cone” in addition to “Rect” and “Circ” : ➢ To select “Cone”, go to the line “Cone” then press OK. Select the type of cone : K25 or K85 and press OK. •...

  • Page 16: Start And Record Datasets

    The instrument in on. ➢ Select with arrows keys “Measurement” menu. Press OK. ➢ ➢ Select with arrows keys the measurement in which the dataset will be performed. Press “Functions” key then select “Dataset” with arrow keys and press OK. ➢...

  • Page 17: 3View The Recorded Datasets

    Press OK on the line “Interval”. ➢ Go to “min” with the arrow keys then press OK, set the duration with arrow keys then press OK. ➢ ➢ Perform the same procedure for the seconds. Press the function key “Validate” when the interval is set. ➢...

  • Page 18: 2Automatic Average

    To delete a letter press the function key “Delete”. ➢ Press the function key “Validate” to validate the name. The recap of the Point/Point average is displayed. ➢ Press OK to display the graph. Press the function key “Zoom+” to display the detail of the calculated points.

  • Page 19: Comax

    and duration are displayed. ➢ Press OK to add a new measuring point to the calculation. The countdown starts. ➢ Press the function key “Details” to get details of the results. Press the function key “Save” to save the results of the automatic average. ➢...
  • Page 20 turbulence index • temperature • air velocity • ➢ Press Up and Down keys to display alternatively the temperature and the air velocity At the end of the 3 minutes, the turbulence index is displayed. Start and record datasets...

  • Page 21: Setting Of Measurement Parameters

    The instrument is on. ➢ Go to “Measurement” menu with the arrow keys and press OK. ➢ Select the measurement to set with the arrow keys. Press the function key “Params”. ➢ The different parameters are displayed. For all probes and modules, it is possible to modify the channel number. Select “Channels”...

  • Page 22: Co-Co2/Temperature/Hygrometry Probes

    8.2.2 Alarm Temperature : Go to the line “Temp.alarm” and press OK. ➢ Select “High alarm” and/or “Low alarm” by pressing OK. ➢ It is possible to set the high and low thresholds. Go to the line “High threshold” and press OK. ➢...

  • Page 23: Light Probe

    Temperature : Go to the line “Temperature” and press OK. ➢ Select the required unit : °C or °F ➢ ➢ Press OK to validate the unit selection. Airflow : ➢ Go to the line “Airflow” and press OK. ➢ Select with the arrow keys the required unit : m /h, L/s, cfm or m Press OK to validate the unit selection.
  • Page 24 Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE.
