Summary of Contents for Optoma UHZ35

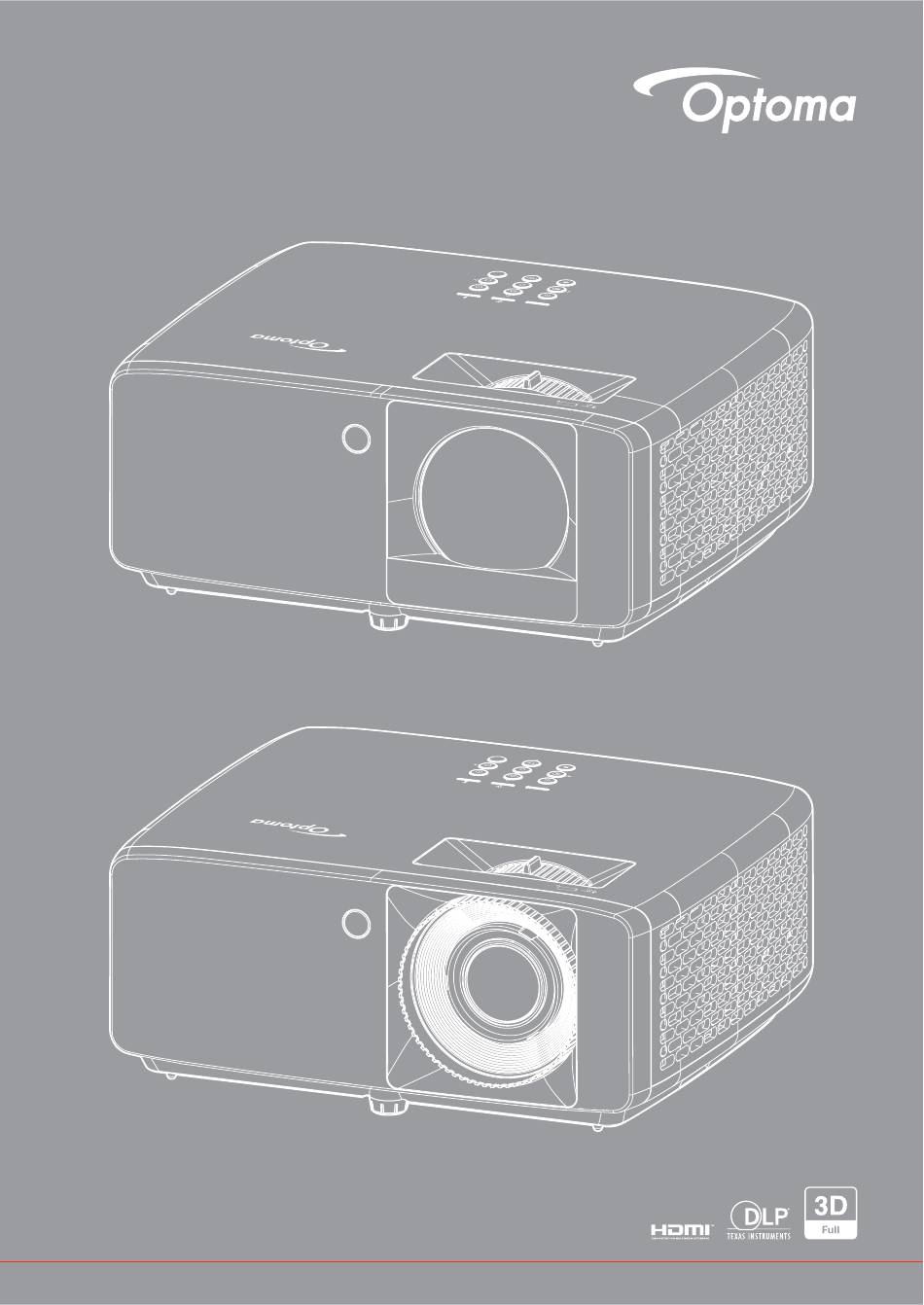

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY....................4 Important Safety Instruction....................... 4 Laser Radiation Safety Information ................... 5 Laser Notice ..........................6 Copyright ........................... 7 Disclaimer..........................7 Trademark Recognition ......................7 FCC ............................7 Declaration of Conformity for EU countries ................8 WEEE ............................8 Cleaning the Lens........................
  • Page 3 ADDITIONAL INFORMATION............52 Compatible resolutions ......................52 Image size and projection distance ..................55 Projector dimensions and ceiling mount installation..............57 IR remote control codes ......................59 Troubleshooting ........................61 Warning indicators........................63 Specications ........................... 64 Optoma global ofces....................... 65 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yoursel. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma beore you send the unit or repair. ‡ See projector enclosure or saety related markings.

  • Page 5: Laser Radiation Safety Information

    ‡ When switching the projector o, please ensure the cooling cycle has been completed beore disconnecting power. Allow 90 seconds or the projector to cool down. ‡ Turn o and unplug the power plug rom the AC outlet beore cleaning the product. ‡...

  • Page 6: Laser Notice

    ‡ Do not open or disassemble the projector as this may cause damage by the exposure o laser radiation. ‡ Do not stare into beam when the projector is on. The bright light may result in permanent eye damage. Not ollowing the control, adjustment or operation procedure may cause damage by the the exposure o laser radiation.

  • Page 7: Copyright

    Copyright This publication, including all photographs, illustrations and sotware, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any o the material contained herein, may be reproduced without written consent o the author. © Copyright 2023 Disclaimer The inormation in this document is subject to change without notice.

  • Page 9: Introduction

    INTRODUCTION Thank you or purchasing an Optoma laser projector. For ull list o eatures please visit the product page on our website, where you will also nd additional inormation and documentation such as FAQs. Package Overview Careully unpack and veriy that you have the items listed below under standard accessories. Some o the items under optional accessories may not be available depending on the model, specication and your region o...

  • Page 10: Product Overview

    INTRODUCTION Product Overview 4K 1.3x/4K 1.6x model 4K Short Throw model Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item IR Receivers...

  • Page 11: Connections

    INTRODUCTION Connections 4K 1.3x/4K 1.6x model 4K Short Throw model Item Item HDMI 1 Connector Audio Out Connector HDMI 2 Connector DC Jack RS-232 Connector Kensington Lock Port USB Power Out (5V 1.5A) Connector RJ-45 Connector Note: ‡ Signal mode support varies rom dierent model in each sales region. English...

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item Power LED IR Receiver Lamp LED Enter Temp LED Keystone Correction Inormation 10. Menu Re-Sync 11. Source Four Directional Select Keys 12. Power English...

  • Page 13: Remote Control

    INTRODUCTION Remote control Item Item Aspect Ratio Freeze Power On / O AV Mute Mode 11. Volume + Enter Menu Return 13. Four Directional Select Keys Mute 14. Settings/Setup Menu Volume - 15. Source Keystone Correction Note: ‡ Some keys may have no function for models that do not support these features. ‡...

  • Page 14: Setup And Installation

    SETUP AND INSTALLATION Installing the projector Your projector is designed to be installed in one o our possible positions. Your room layout or personal preerence will dictate which installation location you select. Take into consideration the size and position o your screen, the location o a suitable power outlet, as well as the location and distance between the projector and the rest o...
  • Page 15 SETUP AND INSTALLATION Projector installation notice ‡ 360° ree orientation operation ‡ Allow at least 30 cm clearance around the exhaust vent. Minimum 100mm Minimum 300mm Minimum 300mm (3.94 inches) (11.81 inches) (11.81 inches) Minimum 100mm (3.94 inches) Minimum 100mm Minimum 100mm (3.94 inches) (3.94 inches)

  • Page 16: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item HDMI Cable Power Adapter HDMI Dongle Power Cable USB Power Cable RS232 Cable Audio Out Cable RJ-45 Cable Note: ‡ To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or Premium Certied HDMI cables up to 5 meters.

  • Page 17: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator eet or adjusting the image height. Locate the adjustable oot you wish to adjust on the underside o the projector. Rotate the adjustable oot clockwise or counterclockwise to raise or lower the projector. 4K 1.3x/4K 1.6x model: Tilt-Adjustment Feet Tilt-Adjustment Ring...
  • Page 18 SETUP AND INSTALLATION Zoom and focus ‡ To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size. ‡ To adjust the ocus, turn the ocus ring clockwise or counterclockwise until the image is sharp and legible.

  • Page 19: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Press rmly and slide the battery cover o. Install new battery into the compartment. Remove the old battery and install new one (CR2025). Ensure that the side with a “+” is acing Put the cover back.
  • Page 20 SETUP AND INSTALLATION Eective range Inra-Red (IR) remote control sensor is located on the top and ront sides o the projector. Ensure that the remote control is held at an angle 30 degrees perpendicular to the projector’s IR remote control sensor to ensure correct unctionality.

  • Page 23: Using The Projector

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety o settings. The projector will automatically detect the source. To open the OSD menu, press the button on the projector keypad or remote control.

  • Page 24: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Note: The OSD menu tree items and eatures are subject to models and region. Optoma reserve the right to add or remove items to improve product perormance without notice. Main Sub Menu Sub Menu 2...
  • Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu O Blackboard Light Yellow Wall Color Light Green Light Blue Pink Grey O 3D Mode DLP-Link 3D Sync Type 3D Sync Image 3D-2D Conversion Auto Side by Side (SBS)
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu -30 ~ 30; V Keystone -15 ~ 15 (4K Short Throw model only) -30 ~ 30 H Keystone -15 ~ 15 (4K Short Throw model only) Geometric Four Corner Correction...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu O Menu Timer Menu Settings O Inormation Hide O High Altitude O Direct Power On O Signal Power On Auto Power O Power Settings 0 ~ 180 (1 min increments) (min.) Sleep Timer...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu O Auto Source O Auto Input Switch O HDMI Link Inclusive o TV Input HDMI CEC Mutual Settings Power On Link PJ  Device Device ...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu O Crestron (Port 41794) O Extron (Port 2023) O PJ Link (Port 4352) Control AMX Device O Control Discovery (Port 9131) O Telnet (Port 23) O...

  • Page 30: Image Menu

    USING THE PROJECTOR Image menu Image picture mode menu There are several predened display modes that you can choose rom to suit your viewing preerence. Each mode has been ne-tuned by our expert colour team to ensure superior colour perormance or wide range o content. ‡...

  • Page 31: Image Contrast Menu

    USING THE PROJECTOR Image contrast menu The contrast controls the degree o dierence between the lightest and darkest parts o the picture. Image sharpness menu Adjust the sharpness o the image. Image gamma menu Set up gamma curve type. Ater the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

  • Page 32: Image 3D Menu

    USING THE PROJECTOR Image 3D menu Note: ‡ This projector is a 3D ready projector with DLP-Link 3D solution. ‡ Please ensure that 3D glasses are in use for DLP-Link 3D content before enjoying your video. ‡ This projector supports rame sequential (page-ip) 3D via HDMI1/HDMI2 ports. ‡...

  • Page 33: Display Menu

    USING THE PROJECTOR Display menu Display projection orientation menu Select the preerred projection between ront, rear, ceiling-top, and rear-top. Display light source mode menu Select a light source mode depending on the installation requirements. Display dynamic black menu Use to automatically adjust the picture brightness in order to give optimum contrast perormance. Display gaming mode menu Enable this eature to reduce response times (input latency) during gaming to 4.4ms (1080p@240Hz).

  • Page 34: Display Aspect Ratio Menu

    USING THE PROJECTOR Display aspect ratio menu Select the aspect ratio o the displayed image between the ollowing options: ‡ 4:3: This ormat is or 4:3 input sources. ‡ 16:9: This ormat is or 16:9 input sources, like HDTV and DVD enhanced or Wide screen TV. ‡...

  • Page 35: Display Geometric Correction Menu

    USING THE PROJECTOR Display geometric correction menu V Keystone Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one o the sides. This is intended or use with vertically on-axis applications.

  • Page 36: Setup Test Pattern Menu

    USING THE PROJECTOR Setup menu Setup test pattern menu Select the test pattern rom green grid, magenta grid, white grid, white, or disable this unction (o). Setup language menu Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Danish, Finnish, Greek, Traditional Chinese, Simplied Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, and Romanian.

  • Page 37: Setup Security Menu

    USING THE PROJECTOR Power Mode (Standby) Set the power mode setting. ‡ Active: Choose “Active” to return to normal standby. ‡ Eco: Choose “Eco.” to save power dissipation urther < 0.5W. Setup security menu Security Enable this unction to prompt or a password beore using the projector. ‡...

  • Page 38: Input Menu

    USING THE PROJECTOR Input menu Input auto source menu Choose this option to let the projector automatically nd an available input source. Input auto input switch menu When HDMI input signal is detected, the projector will automatically switch the input source. Input HDMI CEC settings menu Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them...

  • Page 39: Audio Volume Menu

    USING THE PROJECTOR Audio menu Audio volume menu Adjust the volume level. Audio mute menu Use this option to temporarily turn o the sound. ‡ On: Choose “On” to turn mute on. ‡ O: Choose “O” to turn mute o. Note: “Mute”...

  • Page 40: Control Menu

    USING THE PROJECTOR Control menu Control device ID menu ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command. Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website. Control remote settings menu IR Function Set the IR unction setting.
  • Page 41 USING THE PROJECTOR How to use web browser to control your projector How to use web browser to control your projector Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address. Open the web browser in your PC and type in the projector’s IP address (“Control >...

  • Page 42: Control Control Menu

    USING THE PROJECTOR Control control menu This projector can be controlled remotely by a computer or other external devices through the wired network connection. It allows the user to control one or more projectors rom a remote control center, such as powering the projector on or o, and adjusting the image brightness or contrast.

  • Page 43: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease o operation, the projector provides diverse networking and remote management eatures. The LAN / RJ45 unction o the projector through a network, such as remotely manage: Power On / O, brightness, and contrast settings.
  • Page 44 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). On the PC (Laptop), select Start > Settings > Network & Internet. In the Ethernet section, select Properties. In the IP settings section, select Edit. English...
  • Page 45 USING THE PROJECTOR Type in the IP address and Gateway, then select “Save”. Press the “Menu” button on the projector. Open on projector Control > LAN. Enter the ollowing connection parameters: ± DHCP: O ± IP Address: 192.168.0.100 ± Subnet Mask: 255.255.255.0 ±...
  • Page 46 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Log in When you open the web page or the rst time, you will see a screen like the one below. Please enter valid user password. When you open the web page ater entering a valid password, you will see a screen like the one below.
  • Page 47 USING THE PROJECTOR System Status The current status o the projector is displayed.You can check projector model name, rmware version, current LAN conguration, and change the interace language i needed. The version name displayed on the web page in the diagram may dier rom the actual display. General Setup The projector name set here is also used in PJLink control.Only alphanumeric characters can be used as projector name.
  • Page 48 USING THE PROJECTOR Projector Control You can control the projector with this item. The items or control are described in this section. Control button: When you click a button, the corresponding unction will be perormed. Network Setup Set the network o the projector. English...
  • Page 49 USING THE PROJECTOR Alert Setup You can send email alerts when an error occurs. You can carry out settings or alert mail in this section. 1. Alert types: Check the type o error or which you want to send alert mail. 2.

  • Page 50: Control Reset Menu

    Telnet connection should be ready or RS232 command control. Specication or “RS232 by TELNET”: Telnet: TCP. Telnet port: 23 (or urther details, please contact the Optoma service team). Telnet utility: Windows “TELNET.exe” (console mode). To end the Telnet session, just close the Command Prompt app window.

  • Page 51: Information Menu

    USING THE PROJECTOR Information menu Information menu View the projector inormation as listed below: ‡ Regulatory ‡ Serial Number ‡ Device ID ‡ Source ‡ Resolution ‡ Reresh Rate ‡ Picture Mode ‡ Color Bit Depth ‡ Color Space ‡ Color Gamut ‡...

  • Page 52: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Input Signal for HDMI Signal Resolution Reresh Rate(Hz) Notes for Mac 640 x 480 Mac 60/72/85/ SVGA 800 x 600 60(*2)/72/85/120(*2) Mac 60/72/85 1024 x 768 48/50(*4)/60(*2)/70/75/85/120(*2) Mac 60/70/75/85 SDTV(480I) 720 x 480 SDTV(480P) 720 x 480 SDTV(576I) 720 x 576 SDTV(576P)
  • Page 53 ADDITIONAL INFORMATION True 3D Video Compatibility Input timing 1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom 1280 x 720P @ 50Hz Frame packing HDMI 1.4a 1280 x 720P @ 60Hz Frame packing 3D Input 1920 x 1080i @ 50Hz Side-by-Side(Hal) 1920 x 1080i @ 60Hz Side-by-Side(Hal)
  • Page 54 ADDITIONAL INFORMATION EDID (Digital) HDMI1/2 for PCM B0 / B0 / B0 / B1 / B1 / Established Timing Standard Timing Detail Timing Video Mode Detail Timing 800 x 600 @56Hz 1280 x 720 @60Hz Native timing: 1920 x 1080p @120Hz 2560 x 1440 @120Hz 800 x 600 @72Hz 1280 x 800 @60Hz...

  • Page 55: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance 4K Short Throw model Screen Size (W x H) Projection Distance (D) Oset (Hd) Diagonal Length Size of (inch) (eet) (16:9) Screen Width Height Width Height Wide Tele Wide Tele (inch) 36.43 0.81 0.45 31.75 17.90...
  • Page 56 ADDITIONAL INFORMATION 4K 1.3x model Screen Size (W x H) Projection Distance (D) Oset (Hd) Diagonal Length Size of (inch) (eet) (16:9) Screen Width Height Width Height Wide Tele Wide Tele (inch) 31.15 0.69 0.39 27.15 15.30 3.28 0.06 2.36 50.00 1.11 0.62...
  • Page 58 ADDITIONAL INFORMATION For ceiling mounting, you could purchase a cable tie whose length is over 250mm to x the AC adapter i needed. Install the cable tie to the designated holes on the bottom o the projector. Then place the AC adapter onto its slot.

  • Page 59: Ir Remote Control Codes

    ADDITIONAL INFORMATION IR remote control codes Customer Code Key Code Description format Byte 1 Byte 2 Byte 3 Byte 4 Power Format 1 Press to turn on / o the projector. Press to change the aspect ratio o a Aspect ratio Format 1 displayed image.
  • Page 60 ADDITIONAL INFORMATION Customer Code Key Code Description format Byte 1 Byte 2 Byte 3 Byte 4 Volume + Format 2 Press to increase the volume. Freeze Format 1 Press to reeze the projector image. Press to adjust image distortion Keystone Format 1 caused by tilting the projector.

  • Page 61: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting I you experience a problem with your projector, please reer to the ollowing inormation. I a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 62 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ I possible, turn o the projector, then unplug the power cord and wait at least 20 seconds beore reconnecting power. Remote control problems If the remote control does not work ‡...

  • Page 63: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or ash, the projector will automatically shutdown: ‡ “Lamp” LED indicator is lit red and i “Power” indicator ashes red. ‡ “Temp” LED indicator is lit red and i “Power” indicator ashes red. This indicates the projector has overheated.

  • Page 64: SpeciCations

    ADDITIONAL INFORMATION Specications Item Description Technology Texas Instrument DMD, 0.65”-HSSI DMD Native Resolution 2160P ‡ 4K Short Throw: 0.496 @89.07” Throw ratio ‡ 4K 1.3x: 1.06 to 1.45 ‡ 4K 1.6x: 1.4 to 2.24 ‡ 4K Short Throw: 2.8 F-stop ‡...

  • Page 65: Optoma Global Ofces

    ADDITIONAL INFORMATION Optoma global ofces For service or support, please contact your local ofce. Japan Optoma Technology, Inc. 888-289-6786 https://www.optoma.com/jp/ 47697 Westinghouse Drive. 510-897-8601 Fremont, Ca 94539 services@optoma.com Taiwan https://www.optoma.com/tw/ Canada Optoma Technology, Inc. 888-289-6786 China 47697 Westinghouse Drive. 510-897-8601...
  • Page 66 www.optoma.com...
