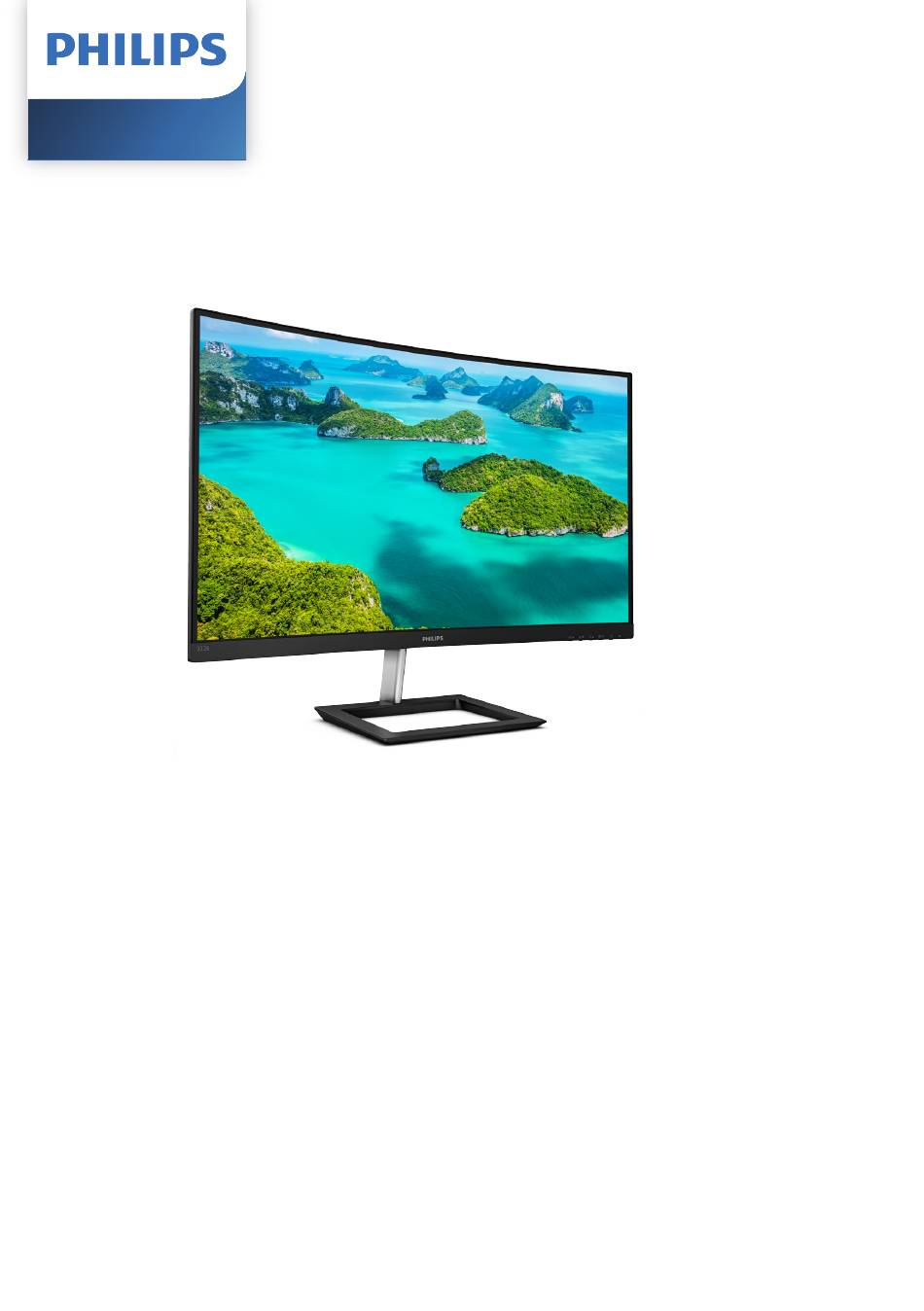

E Line
322E1
EN
User manual
Register your product and get support at www.philips.com/welcome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Line 322E1CB/75 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips E Line 322E1CB/75

Summary of Contents for Philips E Line 322E1CB/75

  • Page 1 E Line 322E1 User manual Register your product and get support at www.philips.com/welcome...

  • Page 2: Table Of Contents

    6.1 Resolution & Preset Modes ..17 7� Power Management ������������������ 18 8� Customer care and warranty ��� 19 8.1 Philips’ Flat Panel Displays Pixel Defect Policy ......... 19 8.2 Customer Care & Warranty ..22 9� Troubleshooting & FAQs ����������� 23 9.1 Troubleshooting ......

  • Page 3: Important

    This electronic user’s guide is intended electronics. for anyone who uses the Philips monitor. Take time to read this user manual • Do not block the ventilation holes in before you use your monitor. It contains the cabinet.
  • Page 4 • Do not knock or drop the • Unplug the monitor if you are not monitor during operation and/or going to use it for an extensive period. transportation. • Unplug the monitor if you need to • Excessive usage of the monitor clean it with a slightly damp cloth.

  • Page 5: Notational Descriptions

    1.2 Notational Descriptions • “Burn-in”, “after-imaging”, or “ghost imaging” is a well-known The following subsections describe the phenomenon in LCD panel notational conventions used in this technology. In most cases, the document. “burn-in”, “after-imaging” or “ghost imaging” will disappear gradually Notes, Cautions, and Warnings over some time after the power has Throughout this guide, blocks of text may...

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take- packaging illustrates that, under...

  • Page 7: 2� Setting Up The Monitor

    Package contents E Line 322E1 Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the stand. (2) Use your fingers to tighten the Power * HDMI...

  • Page 8: Operating The Monitor

    Connecting to your PC 2.2 Operating the monitor Description of the control buttons AC power input DisplayPort input HDMI input VGA input AUDIO OUT Switch monitor’s power ON OFF. Kensington anti-theft lock Access the OSD menu. Connect to PC Confirm the OSD adjustment.
  • Page 9 Input HDMI 1.4 On-Screen Display (OSD) is a feature in DisplayPort Auto On, Off all Philips LCD monitors. It allows an end Picture SmartImage Game FPS, Racing, RTS, Gamer1, Gamer2, LowBlue Mode, EasyRead, Off user to adjust screen performance or...

  • Page 10: Remove The Base Assembly For Vesa Mounting

    2.3 Remove the Base Assembly Physical Function for VESA Mounting Tilt Before you start disassembling 20° the display base, please follow the instructions below to avoid any possible -5° damage or injury. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen.
  • Page 11 3. Remove the hinge cover from monitor body by using your fingers. 100mm 100mm Warning This product is a curve design, when attaching/detaching the base, place the protective material under the monitor and, to avoid damage, do not press down on the monitor.

  • Page 12: 3� Image Optimization

    Racing, RTS, Gamer 1, Gamer 2, LowBlue brightness, contrast, color, and sharpness Mode,EasyRead and Off. in real-time. Whether you're working with text applications, displaying images,  or watching a video, Philips SmartImage delivers great monitor performance.   Why do I need it? ...

  • Page 13: Smartcontrast

    LED displays can cause eye What is it? damage and affect vision over time. Developed for wellbeing, Philips It is a unique technology that LowBlue Mode setting uses a smart dynamically analyzes displayed content...

  • Page 14: 4� Designs To Prevent Computer

    • Reposition your screen to the appropriate measurment syndrome (CVS) according to your own height. 4. Choose a Philips monitor for viewing Philips monitor is designed to prevent that is easy on the eyes. eye strain caused by prolonged • Anti-glare screen: This feature computer use.

  • Page 15: 5� Adaptive Sync

    5. Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • Processor A-Series Desktop and • Mobility APUs Adaptive Sync AMD A10-7890K • AMD A10-7870K • PC gaming has long had an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates.

  • Page 16: Technical Specifications

    6. Technical Specifications Picture/Display Display Panel Type Backlight W-LED Panel Size 31.5" W (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.36375 x 0.36375mm Contrast ratio(typical) 3000:1 1920 x 1080 @ 60 Hz (HDMI/DP) Native Resolution 1920 x 1080 @ 75 Hz (VGA) 1920 x 1080 @ 75 Hz (VGA) Maximum Resolution 1920 x 1080 @ 100 Hz (HDMI/DP)
  • Page 17 Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 230VAC , at 100VAC , 50Hz at 115VAC , 60Hz 50Hz Normal Operation 35.7 W (typ.) 35.2 W (typ.) 35.5 W (typ.) Sleep (Standby mode) 0.5 W(typ.) 0.5 W(typ.) 0.5 W(typ.) Off mode 0.3 W(typ.)
  • Page 18 Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 19: Resolution & Preset Modes

    Please note that your display works best at the native resolution of 1920 x 1080. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.

  • Page 20: 7� Power Management

    7. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.

  • Page 21: 8� Customer Care And Warranty

    Other Pixel Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 22 Note A red or bright blue dot must be period, a TFT Monitor panel in a Philips more than 50 percent brighter than flat panel monitor must have pixel neighboring dots, while a bright...
  • Page 23 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...

  • Page 24: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 25: 9� Troubleshooting & Faqs

    • First, ensure that the power button • Disconnect the monitor from mains on the front of the monitor is in the power source immediately for safety OFF position, then press it to the • Contact with Philips customer ON position. service representative immediately. No Picture (Power LED is White) Imaging Problems • Make sure the computer is turned...
  • Page 26 Service contact information listed may cause "burn in", also known as in Important information manual "after-imaging " or "ghost imaging", and contact Philips customer service on your screen. "Burn-in", "after- representative. imaging", or "ghost imaging" is a * Functionality different according to well-known phenomenon in LCD display.

  • Page 27: General Faqs

    • Shut down your computer, disconnect your old monitor, and Is the LCD screen resistant to reconnect your Philips LCD monitor. scratches? Ans.: In general it is recommended • Turn on your display and then turn that the panel surface is not on your PC.
  • Page 28 Ans.: Yes. All Philips LCD monitors are ethyl alcohol, ethanol, acetone, hexane, etc. fully compatible with standard PCs, Macs, and workstations. Can I change the color setting of You may need a cable adapter my display? to connect the monitor to your Ans.: Yes, you can change your color...
  • Page 29       Q14: Where can I find the Important information manual mentioned in EDFU? Ans.: Important information manual can be downloaded on the Philips website support page.
  • Page 30 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
