Summary of Contents for i Display Connect Box
- Page 1 Connect Box User Manual...
-
Page 3: About This Guide
This guide describes how to setup the Connect box. This guide is intended for retail personnel, sales people and anyone who wants to set up the Connect box in a retail environment. Introducing the Connect box, page 6, introduces the Connect box its and components Getting Started, page 8, describes how to set up and start the Connect box. - Page 4 Index Safety and Warnings Introducing the Connect box Getting Started Playing Content Accessories...
-
Page 5: Safety And Warnings

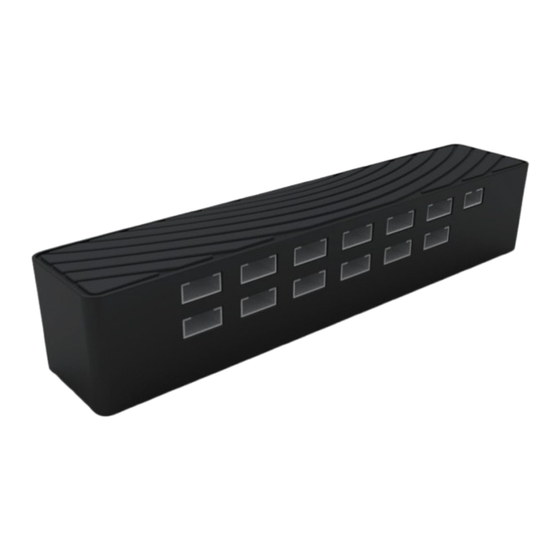

Safety and Warnings NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. - Page 6 This chapter introduces the Connect Box and its components. What is the the Connect Box? i DISPLAY’s Connect Box is an exciting new accessory that integrates with i DISPLAY’S Retail tablets, Android Advertising Display and Android Media Player. The Connect Box has twelve ports designed for mechanical push buttons or touch sensor buttons, and one port designed for motion sensor.
- Page 7 Description Push Button Molex connectors Motion Sensor Molex connector Main Molex Connector for media device Mounting option 3M Stickers Introducing the Connect Box...
-
Page 8: Getting Started
Getting Started This chapter describes how to set up and start the Connect Box. Setting Up the Connect Box To set up the Connect Box: Remove the Connect box from the box. Connect the molex cable to molex connector located on the back of the connect box and connect the other end to the Android media device (i.e. -
Page 9: Playing Content
Playing Content In order to play content the connect box must be connected to a media device (i.e. Retail tablets, media player, advertising display). For specific playing instructions for the media device please consult the product manual or visit www.i-display.com... - Page 10 Accessories This chapter describes the accessories that can be connected to the Connect box. Push Buttons The push button accessories easily attach to the connect box to enhance the interactivity of content. Motion Sensor The motion sensor accessories easily attach to the connect box. With this accessory, content will play when a person’s presence is detected.
- Page 12 For further information or support, please contact: support@i-display.com...
- Page 13 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
