Summary of Contents for THERMACUT EX-TRACK EX-0-716-002

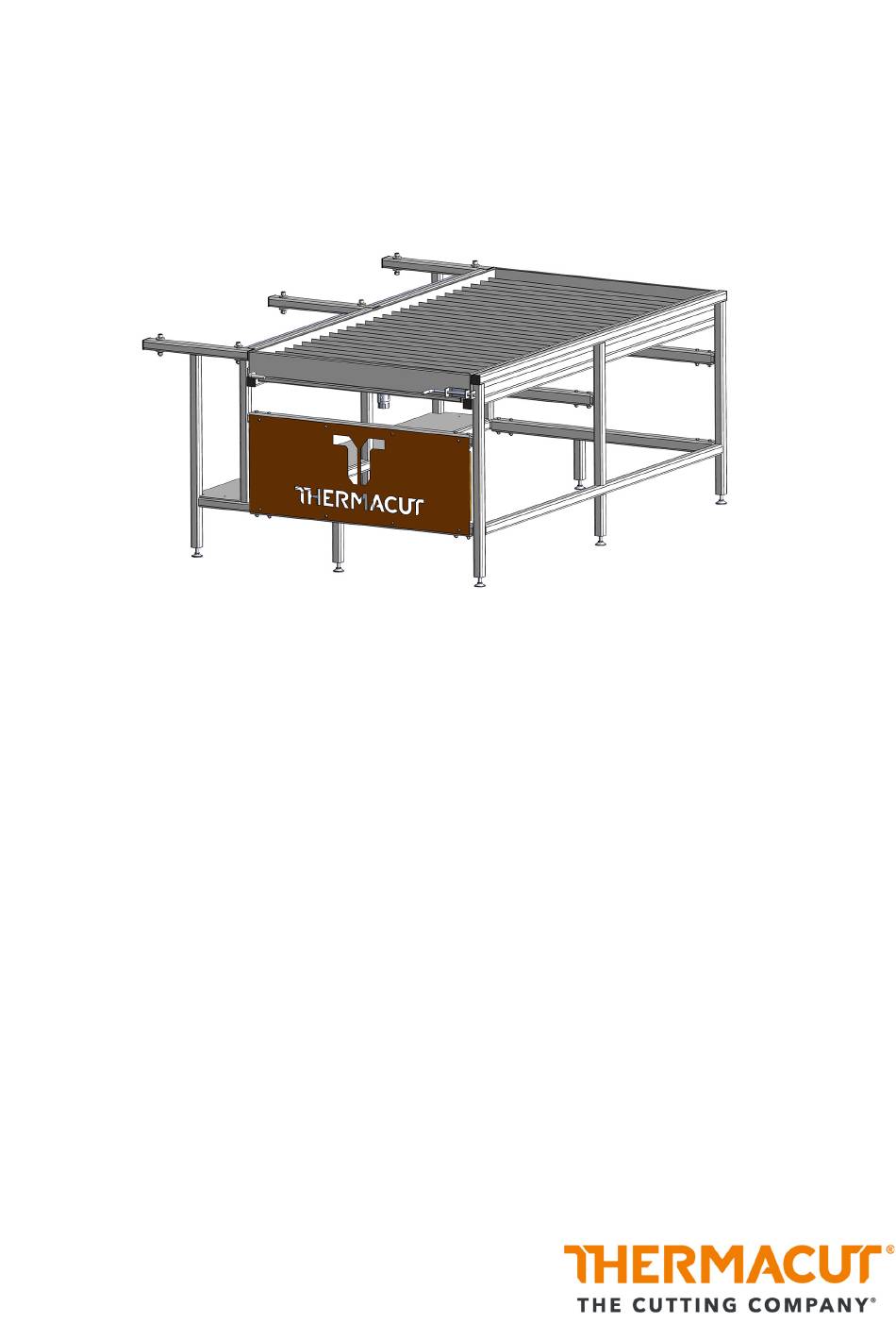

- Page 1 ® EX-TRACK Water cutting table Operating instructions – EX-0-910-002/N-23646 Revision 1, 27 May, 2024...
-
Page 2: Table Of Contents
® EX-TRACK water table Table of contents Identification ............... EN-3 Marking....................EN-3 Signs and symbols used..............EN-3 Classification of the warnings ............EN-3 Safety................EN-4 Designated use................. EN-4 Responsibilities of the user ............. EN-4 Warning and information signs ............EN-5 Basic safety instructions.............. -
Page 3: Identification
This reduces emissions. The water table is suitable for cutting in the workshop, for small batch metal production. ® The water cutting table must only be operated using original Thermacut ® spare parts. These operating instructions describe only the EX-TRACK water cutting table. -
Page 4: Safety
® 2 Safety EX-TRACK water table Safety This chapter provides basic safety instructions and warnings about residual hazards that should be kept in mind in order to operate the product safely. Non-observance of the safety instructions may result in risks to the life and health of personnel as well as cause environmental or material damage. -
Page 5: Warning And Information Signs
® EX-TRACK water table 2 Safety 2.3 Warning and information signs The following warning, notice and mandatory signs can be found on the product: Wear a respiratory mask. Environmental hazard. Information Ecological disposal. These markings must always be legible. They may not be covered, obscured, painted over, or removed. -
Page 6: Product-Specific Safety Instructions
® 2 Safety EX-TRACK water table Keep the work area in order. Ensure good lighting of the work area. Switch off the power, gas, and compressed air supplies and unplug the mains plug for the entire duration of servicing, maintenance, and repair work. -
Page 7: Scope Of Delivery
® EX-TRACK water table 3 Scope of delivery Scope of delivery The cutting table is delivered disassembled into the following main parts. Fig. 1 Water table parts Main structure with rail holder Socket head cap screw M14x80 Grid slats (27x) with washer 14 and nut M14 (11x) L profiles for grid slats (2x) Self-tapping screw 4.8x25 (8x) -
Page 8: Product Description
® 4 Product description EX-TRACK water table Goods-in inspection Use the delivery note to check that everything has been delivered. Check the delivery for damage (visual inspection). Complaints If goods are damaged, contact the final carrier. Keep the packaging for possible checks by the carrier. Returns ... -
Page 9: Technical Data
® EX-TRACK water table 4 Product description 4.2 Technical data 4.2.1 Ambient conditions Table 1 Ambient conditions for transport and storage Ambient temperature −10°C to +40°C Relative humidity 80% non-condensing Table 2 Ambient conditions for operation Ambient temperature +10°C to +40°C Relative humidity 70% non-condensing 4.2.2 Product data... -
Page 10: Transport And Installation
® 5 Transport and installation EX-TRACK water table Transport and installation THE TABLE IS NOT DESIGNED TO BE MOVED. To change the table location, the table must be disassembled and then reassembled in the new location according to the instructions in the manual. WARNING Risk of injury due to improper transport and installation Improper transport and installation can cause the product to tip or fall... -
Page 11: Assembly
® EX-TRACK water table 5 Transport and installation 5.1 Assembly Required tool: Allen wrench size 12 mm. Assemble the table in the desired location. Verify the ground is level. Use four bolts M8x65 (I) to fasten the two struts (E) at the back and front end of the table. - Page 12 ® 5 Transport and installation EX-TRACK water table The partly constructed table. Use eight self-tapping screws 4.8x25 (H) to fix the cover plate (J). The partly constructed table. Slide on the water tank (D). Fasten the water tank (D) to the side structure (F).
- Page 13 ® EX-TRACK water table 5 Transport and installation Place the two L profiles for grid slats (C) on either side. Insert the grid slats (B). Slide in the shelf for the power supply (K). Turn in the feet and adjust the height.
-
Page 14: Commissioning
® 6 Commissioning EX-TRACK water table Commissioning 6.1 Filling the water tank CAUTION Risk of slipping due to water escaping into the installation area If the water drain valve is not firmly sealed, water can escape into the installation area causing people to slip and injure themselves. Before filling the water tank, ensure that the water drain valve is firmly sealed (turned to the right). -
Page 15: Operation
® EX-TRACK water table 7 Operation Operation WARNING Risk of burns due to hot surfaces, flying sparks and glowing slag Sparks and glowing slag are produced during thermal cutting processes. The surfaces of the product and the workpiece can get extremely hot. This poses a risk of burns. -
Page 16: Maintenance And Cleaning
® 8 Maintenance and cleaning EX-TRACK water table Maintenance and cleaning Scheduled maintenance and cleaning are prerequisites for a long service life and trouble-free operation. If the product is operated for more than 8 hours a day, the maintenance intervals should be changed as needed. We recommend recording the inspections. -
Page 17: Replacing The Grid And Grid Slats
Observe the local and official regulations. 9.5 Packaging ® Thermacut has reduced the transport packaging to the necessary minimum. The ability to recycle packaging materials is always considered during their selection. EN - 17... -
Page 18: Ordering Information
General Terms and Conditions. Exceptions in the case of specific products are regulated separately. Warranty will also be rendered invalid ® if spare and consumables are used that are not original Thermacut parts and if the product has been repaired improperly by the user or a third party. -
Page 19: Addresses And Contacts
Fax: +49 (0)2736 29 49 11-77 E-mail: thermacut@gs.t-com.hr E-mail: info@thermacut.de www.thermacut.hr www.thermacut.de POLAND FRANCE THERMACUT-POLAND SP. Z O.O. THERMACUT FRANCE ul. Stawowa 20 6 Rue des Frères Lumière 43-400 Cieszyn 67201 Eckbolsheim POLAND Tel.: +33 3 88 76 58 75 Tel.: +48 33 852 13 34... - Page 20 E-mail: ac@binzel.se E-mail: info@binzel.fi ket@binzel.se www.thermacut.net www.thermacut.net BELARUS SLOVAKIA IOOO „ABICOR BINZEL Technics“ THERMACUT SLOVAKIA, s.r.o. ul. Timirjazeva 97-10 Priemyselná ulica 1239 BY-220020 Minsk 931 01 Šamorín Tel.: +375 29 5 800 300 Tel.: +421 31 591 0121 E-mail: info@thermacut.by +421 903 644 954 www.thermacut.by...
- Page 21 E-mail: ezio.minh@mnt.com.vn E-mail: info@thermacut.com.kz www.thermacut.net www.thermacut.kz SOUTH KOREA JAPAN Abicor Binzel Korea Ltd. Thermacut Japan Ltd. #A-101, 263, Gaejwa-ro 3F Shin-Osaka Hankyu Building Guemjeong-gu 1-1-1, Miyahara, Yodogawa-ku, Osaka Busan 532-0003 Japan Tel.: 0082 (31) 732 6065 / 6066 / 6067 Mob.: +81 (0)80 4738 9752...
-
Page 22: Revision History
Revision history The latest version of these operating instructions is available on our website: www.ex-track.com. Revision 1/05_2024... - Page 24 © Copyright 2022 Thermacut k.s, Subject to change without a notice. All Rights Reserved.
