Precision CBR-2 Owner's Manual

Bottle rinser

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Precision Water Systems

CBR-2 Bottle Rinser

Manufactured By:

Precision Design & Manufacturing Inc.

9024 – 100

Street,

Westlock, AB, Canada

T7P 2L4

http://www.precisioncanada.com

e-mail: info@precisioncanada.com

Phone:

(780) 349 4933

Fax:

(780) 349 4957

Owners' Guide

Model: CBR-2 BOTTLE RINSER

Part No: 900004

Series: 0002

Owners Guide Part No. 90004,S2A

Printed in Canada

Please read this Owners' Guide

completely before installing or

Precision Water Systems

Specifications are subject to

Sep 20 2018

operating your

CBR-2 Bottle Rinser

change without notice.

Table of Contents

Need help?

Do you have a question about the CBR-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Precision CBR-2

Page 1 Precision Water Systems CBR-2 Bottle Rinser Owners’ Guide Model: CBR-2 BOTTLE RINSER Part No: 900004 Series: 0002 Manufactured By: Please read this Owners’ Guide Precision Design & Manufacturing Inc. completely before installing or 9024 – 100 Street, operating your Westlock, AB, Canada...
Page 2 This page left intentionally blank.
Page 3: Table Of Contents
Operation and Procedures……………………………………………………………… 15 Activating Rinse Cycle………………………………………………………… 15 Maintenance and Cleaning..………………………………………………………….… 16 Troubleshooting …………………………………………………..………………………17 Contact Information……………………………………………………………………….17 Optional Accessories…………………………………………………………………… 18 Specifications and Technical Information…………………………………………… 20 Wiring List and Diagram for CBR-2………………………………………………….… 21 Wiring List and Diagram Ozone Generator………………………………………… 22 Warranty Registration……..…………………………………………………………….. 23...
Page 4: Introduction
Congratulations on the purchase of your new Precision Water Systems CBR-2 Bottle Rinser. When installed and maintained properly, your CBR-2 will provide years of safe, trouble free service. It is important to observe and follow the safety and maintenance instructions carefully.
Page 5: Records
The owner is responsible for all shipping charges to and from the service centre. Warranty is void if the CBR-2 Rinser is found to have been consumer damaged or misused, caused by acts of God, unauthorized alteration, repair or vandalism.
Page 6: Important Safety Precautions
Important Safety Precautions When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. To protect against electrical shock do not immerse cords or plugs in water or other liquid. Close supervision is necessary when any appliance is used near children. Do not allow children to operate this appliance.
Page 7: Features

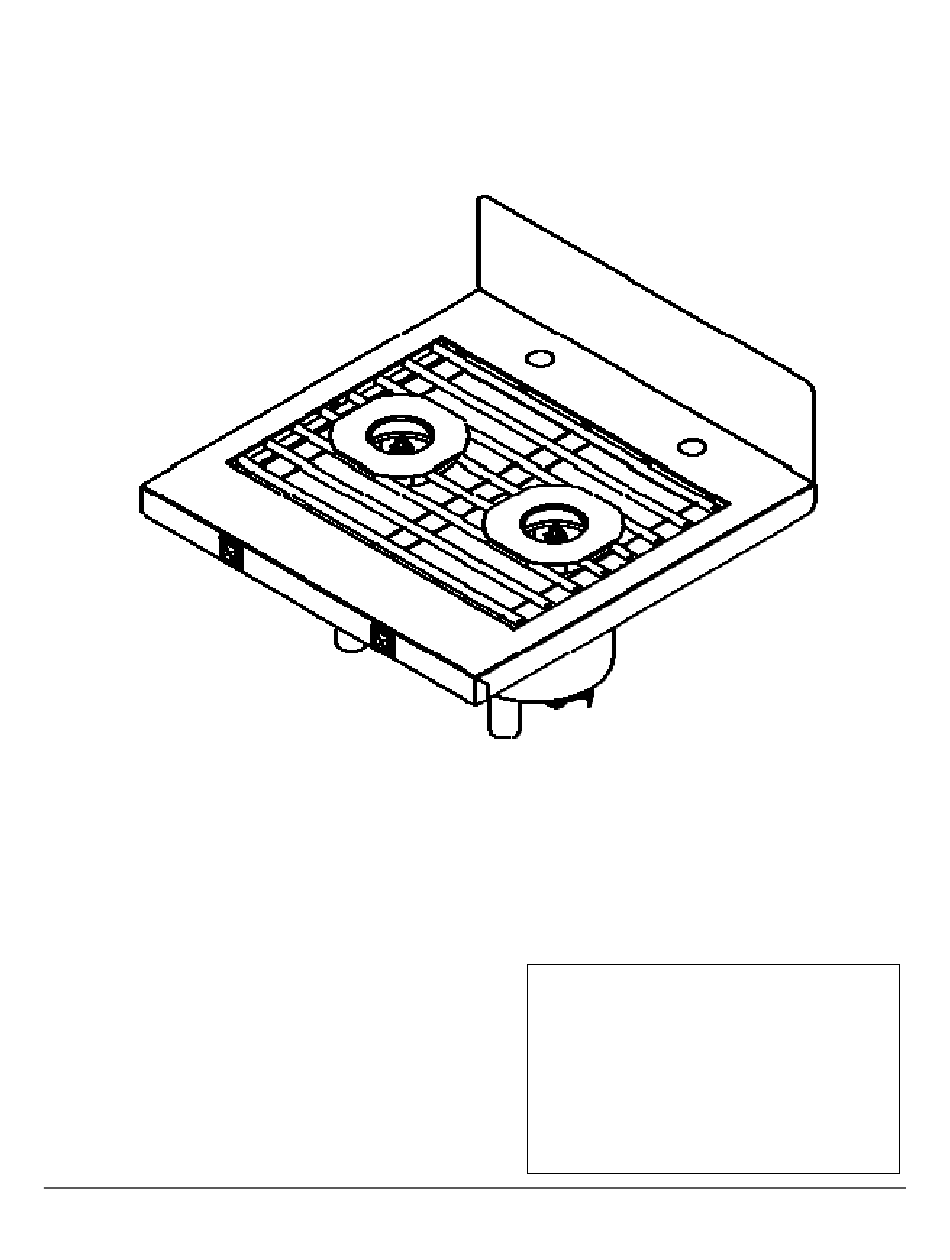

Features The CBR-2 Rinser has been engineered from the ground up and includes the features shown in the diagram below: Fig.1 CBR-2 Bottle Rinser Main Parts & Features Diagram (Optional Cabinet)
Page 8: Cbr-2 Internal Diagram
Fig.2 CBR-2 Bottle Rinser Internal Features Diagram...
Page 9: Finding A Good Installation Location
Finding a Good Installation Location Before installing your CBR-2 Bottle Rinser, it is important to find a good location. Following the points listed below will provide the best location for your CBR-2 Rinser. Plan for the plumbing requirements for the CBR-2 Rinser. The Pre-Installation Preparation section in the Installation section of this guide explains the plumbing requirements in detail.
Page 10: Unpacking Your Cbr-2
Removing the staples/screws off the cardboard at the bottom and lift the cardboard Remove stretch wrap material. If any parts are missing or if you have been given the wrong part, DO NOT return the CBR-2 unit. Contact your dealer for the required parts. They will be pleased to assist you.
Page 11: Assembly
Assembly The CBR-2 Rinser is designed to fit on a standard 24” vanity cabinet. Fig.4 Assembly Diagram It will be necessary to drill a hole in the exterior of the cabinet for plumbing and electrical requirements.
Page 12: Installation
Pre-Installation Preparation Introduction To ensure that installation of your CBR-2 Bottle Rinser can be completed as quickly as possible, it is best to have all of the electrical supplies and plumbing fittings installed before your station arrives. All connections should be located so when your system arrives, all you have to do is assemble it, slide it against the wall, and connect the electrical and plumbing with a minimum amount of trouble.
Page 13: Drain Connections
There are 2 drain connections required on the CBR-2 Bottle Rinser. Drains from both side of CBR-2 should been teed into a solid 1-1/2” line located along the wall behind the station and then drained to a suitable floor drain in a manner, which meets local plumbing codes.
Page 14: Electrical Connections
Electrical Connections The CBR-2 should be installed according to local electrical and plumbing codes. If you are unable to install the station according to code, then have a plumber complete all connections for you. Electrically, the CBR-2 is designed with a 24V DC power supply.
Page 15: Operation And Procedures
Operation NOTE: Read all parts of the Owners Guide before operating the CBR-2 Bottle Rinser Introduction The following operation steps are provided as a guideline to the user and may need to be adjusted to suit individual needs. Plug system into an 110volt outlet.
Page 16: Activating Rinse Cycle
ACTIVATING RINSE CYCLE Once the neck of a bottle is placed in the opening located at the top of the CBR-2, the manual button is pushed and held for approximately 10 seconds in order to rinse the bottle. Release when finished.
Page 17: Troubleshooting
2. Remove blockage and/or flush valve with clean water. Contact any Precision Water Systems Service Centre to correct any problems with your CBR-2 that is not covered in this guide. To locate a Service Centre in your area contact the manufacturer at: Precision Design & Manufacturing Inc.
Page 18: Optional Accessories
Optional Accessories All Options are available from your Precision Water Systems Dealer or Service Centre OZONE BOTTLE RINSING PKG. Part # 0104D Insert ozone into the rinsing systems in order to kill surface bacteria in bottle. Fig.10...
Page 19 GOOSE NECK FILLING FAUCETS Part # 900178, Single faucet (CBR-2 accepts 2 faucets) For filling various size containers Fig.11...
Page 20: Specifications And Technical Information
Specifications and Technical Information Fig.12 CBR-2 Specifications Diagram...
Page 21: Wiring List And Diagram For Cbr-2
Wiring List Wiring List (CBR-2) PARTS # 900521-S2- SERIES 0002 No. Part# Color Ga LengthFrom Conn. ToConn. From Location To Location 1 900XXX BLK 18 48" #10RING #18-#22 F250 #18-#22 TRANSFORMER (SMOOTH) TERMINAL BLOCK #A1 2 900XXX BLK 18 48"...
Page 22: Wiring List And Diagram Ozone Generator
Wiring List - Optional Ozone Generator (CBR-2) # 900522,S2A SERIES 0002 No. Part# Color Ga LengtFrom Conn. ToConn. From Location To Location 1 080377 18 36" MALE PLUG FEMALE PLUG TRANSFORMER OZOTECH UNIT INPUT 12VDC PORT 2 900XXX 18 36"...
Page 23: Warranty Registration
Warranty Registration Precision Design & Mfg Inc. IMPORTANT! IMPORTANT! Thank you for purchasing this fine Precision CBR-2. Please complete the information below and return it within the next ten days so we may register your purchase. Store Name Contact Name...
