Clear Touch 8000MAX Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

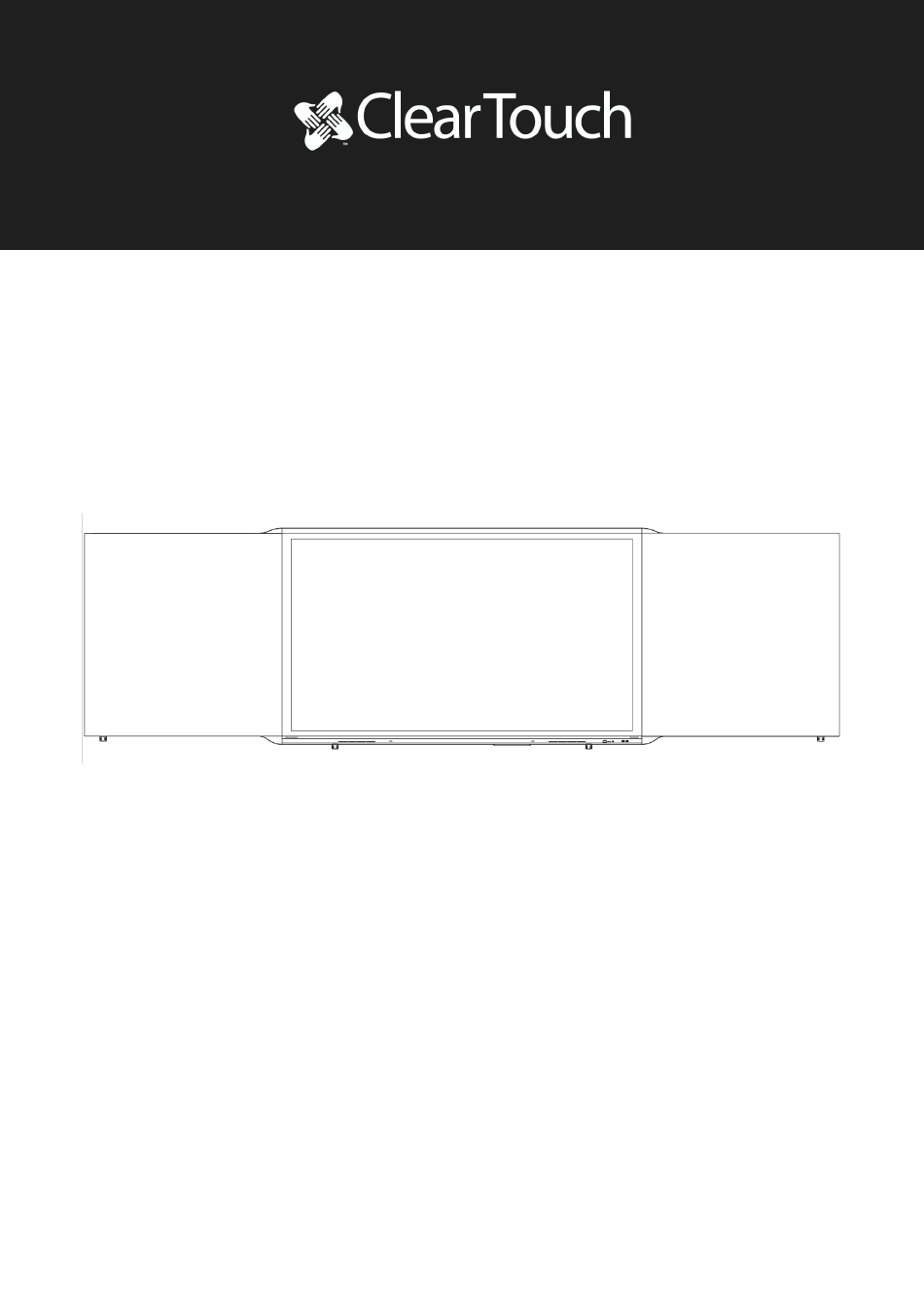

8 0 0 0 M A X S E R I E S
User's Manual
Note: All the pictures in this manual are for reference only, subject to our available products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000MAX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Clear Touch 8000MAX Series

Summary of Contents for Clear Touch 8000MAX Series

  • Page 1 8 0 0 0 M A X S E R I E S User’s Manual Note: All the pictures in this manual are for reference only, subject to our available products.

  • Page 2: Table Of Contents

    Contents Safety Warning ..................1 Control Panel ..................8 Connection and Setting ..............19 Simple Troubleshooting ..............24 Maintenance ..................30...

  • Page 3: Safety Warning

    Safety Warning Before operating, please read this manual thoroughly, and keep it for future reference. Image shown in this manual is indicative only. There may be differences between the pictures and the actual product, please prevail in kind. Placement Do not put heavy objects on top of the unit. Do not put the unit near appliances that generate magnetic fields.

  • Page 4: Power Supply

    Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf. Do not put any liquid near or on the unit, make sure do not spill any liquid inside the unit. Power Supply Please keep power cable from physical or mechanical damage.

  • Page 5: Led Screen

    Check that the unit's operating voltage is identical with your local power supply. Please use the original power cable from the accessory bag, don't modify or lengthen it. Please unplug power supply, when there is nobody home or the unit will be in idle for a long time. LED Screen Unplug the power cable before cleaning.
  • Page 6 Never use any other hard or sharp object to replace the touch pen. Better for the panel lifetime and the display performance, do not display high brightness image for long time. Temperature Normal operating temperature is 0 ~ 40℃. Do not place the unit near or over a radiator or a heater. If your unit is suddenly moved from a cold to a warm place, please unplug the power cable and do not turn it on at least 2 hours, making sure the moisture inside the unit is all...
  • Page 7 Humidity Do not expose the unit in rain, or place in high humidity area. Please make sure indoor environment is dry and cool. Normal operating humidity is 10%~90%RH. Ventilation Please put the unit in a well-ventilated place, so the heating can be released easily.
  • Page 8 Using the earphone to listen loud sound for a long time might affect the hearing. Standby It will enter standby mode but not turn off the unit after press the standby key. Battery Please make sure the battery gets proper disposal or recycle after using.

  • Page 9: Notes For Cleaning

    Notes for Cleaning There are vents on back cover, please do not use any liquid or spray directly during cleaning. Power Switch Status Signs “I” means power on, “O” means power off. Notes for Maintenance This machine can only be maintained by certified engineer.

  • Page 10: Control Panel

    Control Panel 1. Prepare to Install 4 5 7 Number Items Wireless module Magnetic zone: Area for placing the absorptive magnetic pen. Loudspeaker : Tap to enter energy-saving, press at least 2 seconds to enter standby mode. Remote control signal receiver: Receive the remote signal.
  • Page 11 USB Type-C: Support charging, data transmission, extension for audio and video output interface, etc. Note: The maximum rated power of the USB Type-C port of this product is 65W. When using this port to charge electronic devices, the charging power of the electronic device cannot exceed the rated power of this port.
  • Page 12 2. Terminal Interface Number Items Function description HDMI Connect to the devices with HDMI OUT* input function. Connect USB devices such as mobile hard disk, U disk, USB keyboard and mouse, USB drives, etc. Touch signal output to the external TOUCH computer.
  • Page 13 High-definition multimedia interface signal input, connect to devices with HDMI IN HDMI output interface (personal computer with HDMI output, set-top box, or another video device). USB Type-C: Support data transmission, extension for audio and video output interface, etc. Carry multichannel sound via optical SPDIF signals.
  • Page 14 AUDIO IN External computer audio input. Connect RJ45 terminals. Serial interface, used for mutual RS232 transfer of data between devices. AUDIO Audio output to the external speaker. AC power input, connect AC power AC IN supply. To open or shut down AC power supply.“I”means power on,“O”...
  • Page 15 3. Remote Control 1) Remote Control Button Instruction...
  • Page 16 2) Detailed Function Description Number Items Function description Power on/off Enter or exit mute mode Start PC's Windows key Space PC's Space key Alt+Tab PC's Alt+Tab key Alt+F4 PC's Alt+F4 key Numeric keys Numeric input Display Display channel information Input Pop up settings menu Home Return to Android system...
  • Page 17 main screen Menu Pop up menu Enable or disable keys and Touch Green Enable or disable keys Yellow Call out clock Pop out or close the screen Blue freezing tools Turn off or turn on the screen backlight PC's Backspace Scroll Up Scroll Left Scroll Right...
  • Page 18 Scroll Down Enter Confirm selection state Quickly start writing software Return to the last operating Back interface PgUp Page Up PgDn Page Down CH.+/CH.- VOL+/VOL- Increase/reduce the volume F1-F12 PC's F1 - F12 function keys NOTE: All computer - related function keys are not available without a built-in computer.
  • Page 19 3) Remote Control Instruction Install Batteries 1) Open back cover of battery component on the back of remote control. Install AAA type battery according to the corresponding electrode, make sure battery positive and negative pole are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries.
  • Page 20 Range of remote control Remote control can work normally within the range of 3 meters distance, 10 degrees left and right from the remote-control receiver; in order to protect environment, please dispose waste battery into recycling box. If the battery is replaced by an incorrect type, it may lead to explosion.

  • Page 21: Connection And Setting

    Connection and Setting For the safety of you and the machine, please do not connect any power plug before connection. (1) External Computer and Touch Connection 1) Use USB Type-C cable To connect the computer(Or Use VGA cable to connect to VGA output port of external computer, and meanwhile use headphone audio cable to connect to external computer audio output interface.
  • Page 23 VGA OUT / HDMI OUT, Audio-OUT, USB Interface Support Resolution 800×600,1024×768,1920×1080, 3840×2160 (2) Audio and Video Equipment 1) Use HDMI cable to connect audio and video equipment with HDMI output. After cable connection, plug in power cord, and switch power on. Press to turn equipment on.
  • Page 24 (3) Audio and Video Equipment 1) Use HDMI cable to connect audio and video equipment with HDMI input. After cable connection, plug in power cord, and switch power on. Press to turn equipment on. (4) RS232 Connection After using serial port cable to connect central control equipment and machine, certain function of the machine can...
  • Page 25 be controlled via central control equipment, such as: machine ON/OFF, and adjustment of sound volume, etc. (5) LAN Connection (6) USB Connection (7) AUDIO OUT Connection...

  • Page 26: Simple Troubleshooting

    Simple Troubleshooting Machine Fails to Work Normally Check whether there are other objects between remote control and equipment control receiving window, thus leading to failure of remote Remote control control. failure Check whether the battery electrode in the remote control is correct. Check whether remote control needs to replace battery.
  • Page 27 The system will automatically shut down if the interactive intelligent Panel's external channel loses signal for 5 minutes. Please check the input and connection of the signal. PC Mode Check whether display is set correctly. Check whether resolution is the best Signal out of range resolution.

  • Page 28: Touch Function

    Select automatic correction in menu. Background has vertical lines or Adjust clock and phase position in streaks menu. Check whether VGA is not well Image lack of connected or has quality problem. color, color is Adjust chromatic and brightness or incorrect contrast in menu.
  • Page 29 Touch positioning Check whether touch pen is facing not correct the screen. Video Function Can't Work Normally Check whether the machine is started state. Check whether signal wire is well No picture and no plugged, whether INPUT is sound corresponding to it. If in internal computer mode, check whether internal computer is started.
  • Page 30 image dithering Check whether other electronic equipment or power tools are placed around the machine. Adjust chromatic and brightness or No color, color is contrast in menu. weak, or image is Check whether signal wire is well weak connected. Audio Function Can't Work Normally Check whether mute button is pressed for mute.
  • Page 31 Adjust sound balance in menu. Check whether computer sound Only one speaker control panel only sets up one sound has sound channel. Check whether audio line is connected correctly. HDMI output Check whether connect external without sound device.

  • Page 32: Maintenance

    Maintenance Proper maintenance can avoid many early faults and regular careful cleaning can make machine brand new. Please unplug power plug before cleaning and maintenance, to prevent electric shock. Clean Screen Please mix and stir even a little fabric softener or tableware detergent with alcohol.
  • Page 33 Clean Face Frame Please use dry, soft, lint-free cloth to wipe front frame. No Use of Machine for A Long Time In case of no use of machine for a long time, such as holiday, please make sure to unplug the plug to prevent any possible dangers caused by power supply ripple from lightning.
