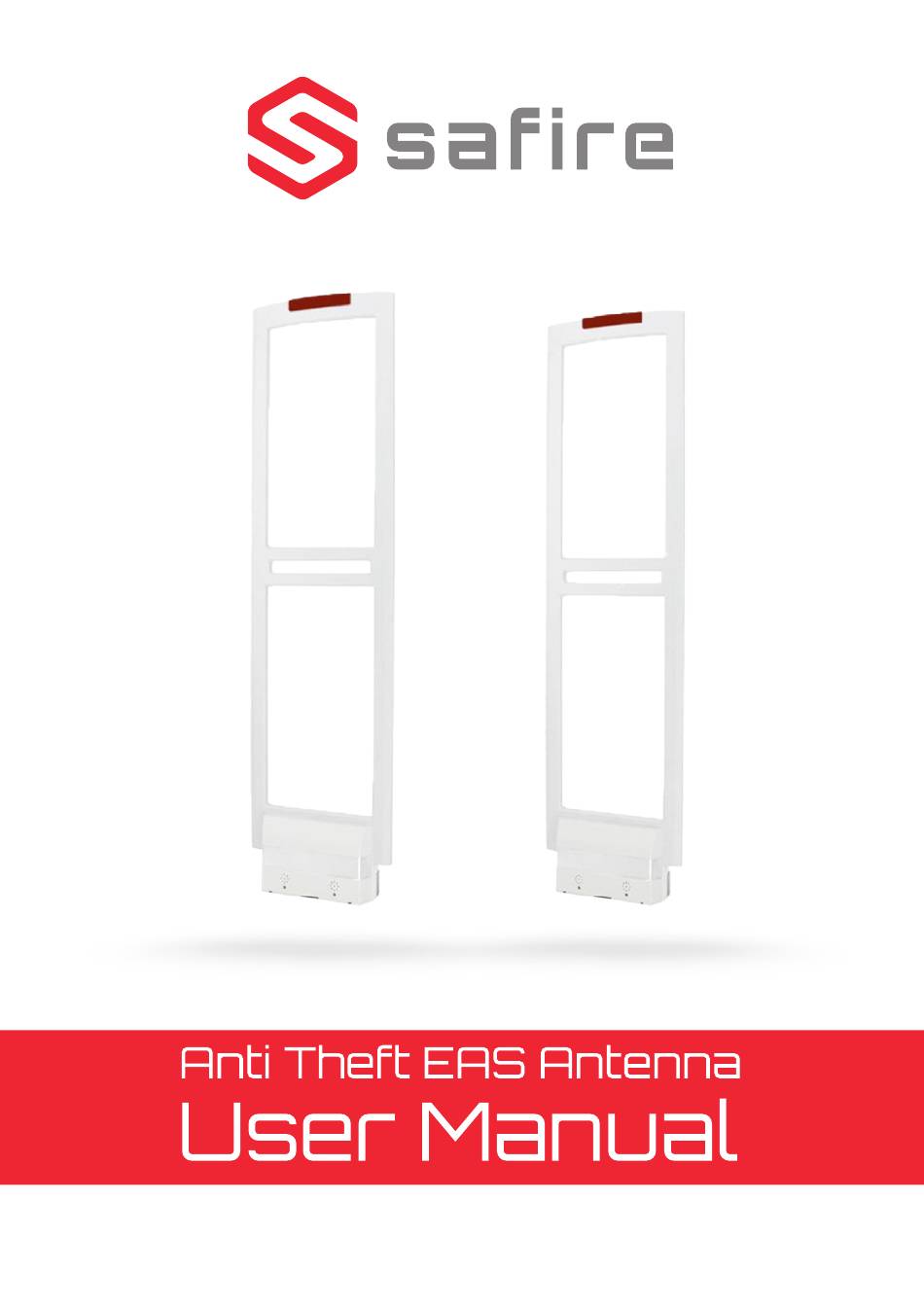

Safire SF-EASGATE101-AM User Manual

Anti theft eas antenna
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SF-EASGATE101-AM and is the answer not in the manual?

Questions and answers

Summary of Contents for Safire SF-EASGATE101-AM

  • Page 2 High-voltage electronics! Non-professionals should not warning open the power supply and antenna frame. Inside is sensitive electronic components. Please ensure that the equipment is well grounded to avoid damage caused by static electricity. All AM equipment should be powered by a separate commercial power line.
  • Page 3 Master antenna board Signal Serial port Power in The alarm sound size can be adjusted, clockwise to increase, counterclockwise to small. Increase receive gain of currently selected channel. Increase receive gain of currently selected channel. Switch signal display channel. DS1-DS4 is environmental noise signal, DS5-DS7 is status and channel indicators.ALARM is alarm light.
  • Page 4 Slave antenna board Input R4: The alarm sound can be adjusted, clockwise to increase, counterclockwise to decrease WiFi module RESTART AP/STA RESET Use software to remote access address information. Use software to remote access address information. Reset button, hold down for 6 seconds and then release, the wireless routing module will be restored to factory settings.
  • Page 5 Slave(CH2) Master(CH1) Slave(CH3) The connection between master and slave machines does not support hot plugging. The port must be removed after the power is turned off. Live plugging may cause the board break down. 2.4G WIFI When using wireless routing module, please install 2.4G WIFI signal antenna correctly,and the antenna should not be in contact with the metal to ensure that the module signal can be received at a long distance.
  • Page 6 The software runs on Windows systems only. Please close all anti-virus programs when installing the software. Opening anti-virus program installation may result in the software not working. Step 1:Double-click AM_Manager_Setup.exe to launch the installer. Step 2: Select the language of the installer and click 【OK】 to continue. Step 3: After entering the installation program, follow the software instructions to complete the installation.

  • Page 7: System Connection

    System Connection Factory setting is AP mode. Step 1: Use your computer Wi-Fi to search for and connect to the module. Login account: EX-Link_XXXX (XXXX corresponds to the last four digits of the MAC address), login password: 12345678 Step 2: Start the AM Manager software, click the software [Add Group] to create a new module management Group, enter the management group name and click [Confirm] to save.
  • Page 8 tep 3: Enter the new module management group, click [LAN search], and the module will be automatically added. Enter the management list, and then click the added module to enter the settings page to start debugging. NOTE: it is also possible to add the device manually by the MAC address of the antenna. Step 4: To connect the antenna to the WiFi, access to the interface of the device and click the [Network] bu�on.
  • Page 9 Step 5: Select [STA Mode] and fill in the WiFi name and the WiFi password (only supports WiFi 2.4 GHz). Then, click [Confirm]. Step 6: A�er that, you will have to write the password of the antenna the first �me you access. When the status of the added module is displayed in green, it means the connec�on is normal and can be accessed directly.
  • Page 10 Pedestal Mode Working mode op�on. There are five working modes to choose from (the factory se�ng is MONO mode). When set to MONO, each antenna can independently alarm. When it is necessary to reduce the alarm distance outside the channel, other op�ons can be set. For op�ons, please refer to Appendix A Working Mode Introduc�on.
  • Page 11 NOTE: Is is not recommended to change the values by default of Recogni�on rate and Trasnmi�er Power. Receiver Receive signal display window, red is tag signal, blue is background noise. The signal size can be controlled by adjus�ng the corresponding GAIN value, which is typically controlled below 100. Phase setting, adjustment range 0-249, factory setting is 0.

  • Page 12: Appendix A: Working Mode

    Appendix A: Working Mode...

  • Page 13: Appendix B: Change The Wifi Network

    Appendix B: Change the WiFi network If you need to change the WiFi network, follow these steps: 1) Hold the AP/STA bu�on of the WiFi module for 6 seconds. The LED light will change from light flashes to sta�c light. 2) Follow the steps described in the manual to connect the antenna to the new WiFi.
