UDM 11 Energy
MANUAL
Version V-01.00
Date 05-03-2025
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDM 11 Energy and is the answer not in the manual?

Questions and answers

Related Manuals for EOM UDM 11 Energy

Summary of Contents for EOM UDM 11 Energy

  • Page 1 UDM 11 Energy MANUAL Version V-01.00 Date 05-03-2025...

  • Page 2: Table Of Contents

    CONTENTS Overview ............................3 Product Features ......................... 3 Technical Parameter ........................3 Dimension ................................3 E3 Series Model Comparison Table ........................5 Technical Index ..............................6 Installation and Wiring ......................8 Installation Description ............................8 Meter Wiring ................................ 8 The quick installation steps of E3CL\E3RO ......................9 Installation of temperature sensors ........................

  • Page 3: Overview

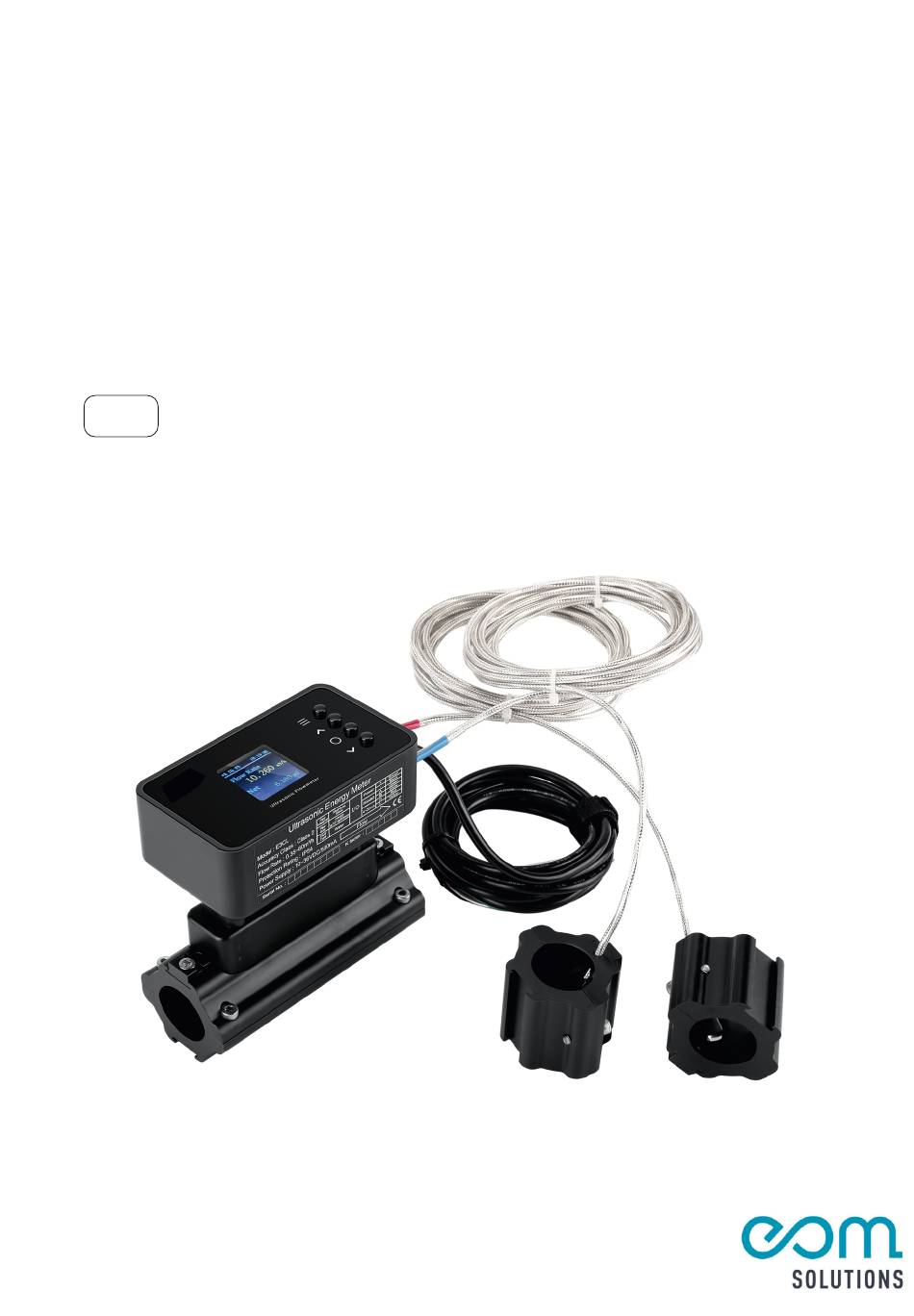

    Overview Gentos quick measure Ultrasonic Thermal Energy/BTU Flow Meter E3CL\E3RO adopts the ultrasonic transit time measurement principle,combined with Gentos patented flow algorithm technology, it realizes accurate measurement of the fluid flow in the pipe.The product is an all-in-one and clip-on structure design, which is simple and convenient to install.
  • Page 4 Pipe Size Comparison Table Unit: mm Nominal Ø Model Bore Diameter DN20 DN25 DN32 E3CL DN40 E3RO DN50 DN65 DN80 3.1.2 Temperature Transducer Clamp Dimension Revision：3.1.1 Page 4 of 26...

  • Page 5: E3 Series Model Comparison Table

    Pipe Size Ø Pipe clamp inner diameter Ø1 Pipe clamp outer （mm） diameter （ mm） DN20 DN25 DN32 DN40 DN50 DN65 DN80 E3 Series Model Comparison Table Model Port Configuration E3CL RS485 4~20mA E3RO RS485 OCT & Relay Note: according to the needs of customers, E3RO can provide three port configuration methods, namely RS485+OCT RS485+relay and OCT+relay.

  • Page 6: Technical Index

    Technical Index Performance Index Flow Velocity 0.03~5.0m/s Nominal diameter DN20~DN80 ±2% Accuracy level 0~60 ℃ Temperature range Temperature difference 2~50K range Temperature resolution 0.01℃ Measuring medium Water Carbon Steel, Stainless Steel, Copper, PVC Pipe Material (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) Functional Index...
  • Page 7 IP54 Physical Characteristics Transmitter Integrated Transducer Clamp on Cable Ø 5 six core cable, standard length: 2m The accuracy obtained by Gentos flow standard device may cause errors due to the type of pipeline, fluid type, temperature, etc. used by the customer. Revision：3.1.1 Page 7 of 26...

  • Page 8: Installation And Wiring

    Installation and Wiring Installation Description 1. Carefully read "Section 7. Choose Measurement Point". After the designated location is selected, the area outside the pipe to be installed must be cleaned, and the dense part of the pipe must be selected for installation. 2.

  • Page 9: The Quick Installation Steps Of E3Cl\E3Ro

    The quick installation steps of E3CL\E3RO Step 1 Take out this device from the package and clip the upper and base bracket on the selected position of the pipe. Step 2 Tighten the screws. Step 3 Install the transmitter part into the slot of the upper pipe clamp and tighten the screws.

  • Page 10: Installation Of Temperature Sensors

    If the brackets is still loose after locking, the black rubber pad (2mm thick) attached to the accessory bag can be pasted on both sides of the inner wall of the brackets. Rubber pad Installation of temperature sensors 4.4.1 Clip-on temperature sensor 1.

  • Page 11: Display And Setting

    Display and Setting Display Description Ind ica tes the mea suremen t status (*R ind ica tes no rmal measurement, *I indicates no signal, *G indicates searching for signal) Uppe r pa rt of the 93 ind ica tes signa l qua lity. It is con sisten t with Sec tion 6.1 "Display display area Interface five ".

  • Page 12: Menu Window Description

    Menu Window Description Display Interface Press the ≡ key on the instrument panel to switch between the display interface and the menu interface. After switching to the display interface, press the ∧ key and the ∨ key to display interface one ~ interface nine in sequence. Display Category Display Content Description...

  • Page 13: Menu Interface

    Menu interface Press the ≡ key on the instrument panel to switch between the display interface and the menu interface. After switching to the menu interface, press the ∧ key and the ∨ key to display 5 items in the level-1 menu in sequence. Press the key again to enter the corresponding level-2 menu to display or set related parameters.
  • Page 14 A menu B menu Function Instruction Remark Select Net Int Pulse: 1 pulse is Current OCT Mode output when each flow unit of 1.OCT Mode Freq Output yield is accumulated. Options of Net Int Pulse the flow unit: m3, L, Gal. 2.OCT Freq Range Set OCT frequency range 0~9999...
  • Page 15 A menu B menu Function Instruction Remark Optional flow unit: m3, L, Gal Select the flow unit and time 2.Flow Unit unit of instantaneous flow Optional time unit: h, m 3.Totalizer Unit Select cumulative flow unit Optional flow unit: m3, L, Gal Year-Month-Day, 4.System Time Set the current time...
  • Page 16 A menu B menu Function Instruction Remark An offset superimposed on the 5.Manual Zero Set zero shift measured value can be entered. 6.Back Also known as the instrument 1.Scale factor K-factor, it is used to correct Calibrated at the factory the flow measurement results.
  • Page 17 A menu B menu Function Instruction Remark Short press for fine adjustment, long press for coarse adjustment, Calibrate the inlet water note: the cable resistance 3.In Temp Max temperature to the maximum compensation needs to be set to value (100 degrees Celsius) zero during calibration (it has been calibrated at the factory, please operate with caution)

  • Page 18: Choose Measurement Point

    Choose Measurement Point The Thermal Energy/BTU Flow Meter is simple and convenient to install. As long as a suitable measuring point is selected, Clamp the product sensor surface on the pipe section directly and fix the pipe clamp, and then the power is turned on, the flow measurement can be ealized. When selecting measuring points, it is required to select pipe sections with uniform fluid flow field distribution to ensure measurement accuracy.

  • Page 19: Communication Protocol

    Communication protocol The hot (cold) meter adopts the reply communication method, and th host computer sends “ command”, requires sub-hot (cold) scale responses. The baud rate of asynchronous communication ( Primary station, computer system, hot (cold) meter is generally 9600bps. A single byte data format (10bits): one start bit, one stop bit and eight data bits.
  • Page 20 die+(cr) Heat accumulation die-(cr) Cumulative amount of cooling capacity Note: 1. (cr) expresses carriage return. Its ASCII values is 0DH. (if)expresses line feed. Its ASCII value is 0AH. 2. “d” expresses 0-9 number. 0 value is expressed as +0.000000E+00. “d” expresses 0-9 number.

  • Page 21: Modbus Protocol

    MODBUS Protocol This MODBUS Protocol uses RTU transmission made. The Verification Code uses CRC-16-IBM (polynomial is X16+X15+X2+1) shield character is 0xA001) which is gained by the cyclic redundancy algorithm method. MODBUS RTU mode uses hexadecimals to transmit data. 8.2.1 MODBUS Protocol Function Code and Format The flow meter protocol supports the following two-function codes of the MODBUS.
  • Page 22 Please notice the order in which the data is stored in the example above. When C programming language is used to interpret values, Pointers can be used to directly put the required data into the corresponding variable address. Generally, the sequence of storage is low bytes first. For example, in the above example of 1.2345678m/s, the sequence of storage of 3F 9E 06 51 data is 06 51 3F 9E.
  • Page 23 8.2.4 MODBUS Register Address List The MODBUS register of this instrument consists of read-only register and single write register. Read only register address list (read with 0x03 function code) Register Register Register Data description Data type Explanation address number Instantaneous flow per second - Low $0000 40001 32 bits real...
  • Page 24 $003B 40060 Rate unit - Characters 1,2 String $003C 40061 Rate unit - Characters 3,4 Instantaneous traffic unit - Characters $003D 40062 String Note 1 Instantaneous traffic unit - Characters $003E 40063 $003F 40064 Cumulant unit - Characters 1,2 String Instantaneous unit of energy - $0040 40065...
  • Page 25 Note: 1. The units of cumulative quantity can be selected as follows: 0. “m3” -Cubic meter 1. “l” -Litre 2. “gal” -Gallon 2. Energy units are available as follows: 0. “GJ” -Gijoule 1. “Kc” -Kilocalorie 2. “kw” -Kilowatt-hour 3. When the meter address or communication baud rate is changed, the meter will work at the new address or communication baud rate immediately after returning the response with the original address or...

  • Page 26: Appendix 1 - Flow Meter Pipe Diameter Comparison Table

    Appendix 1 Flow meter pipe diameter comparison table Pipe clamp adapts to pipe Flow measurement outside diameter range Nominal inside range Pipe Model diameter of (mm) Material (0.03~5m/s) pipe (m3/h) A level B level DN20 25~29 21~25 0.04~6 DN25 32~36 28~32 0.05~9 DN32...
