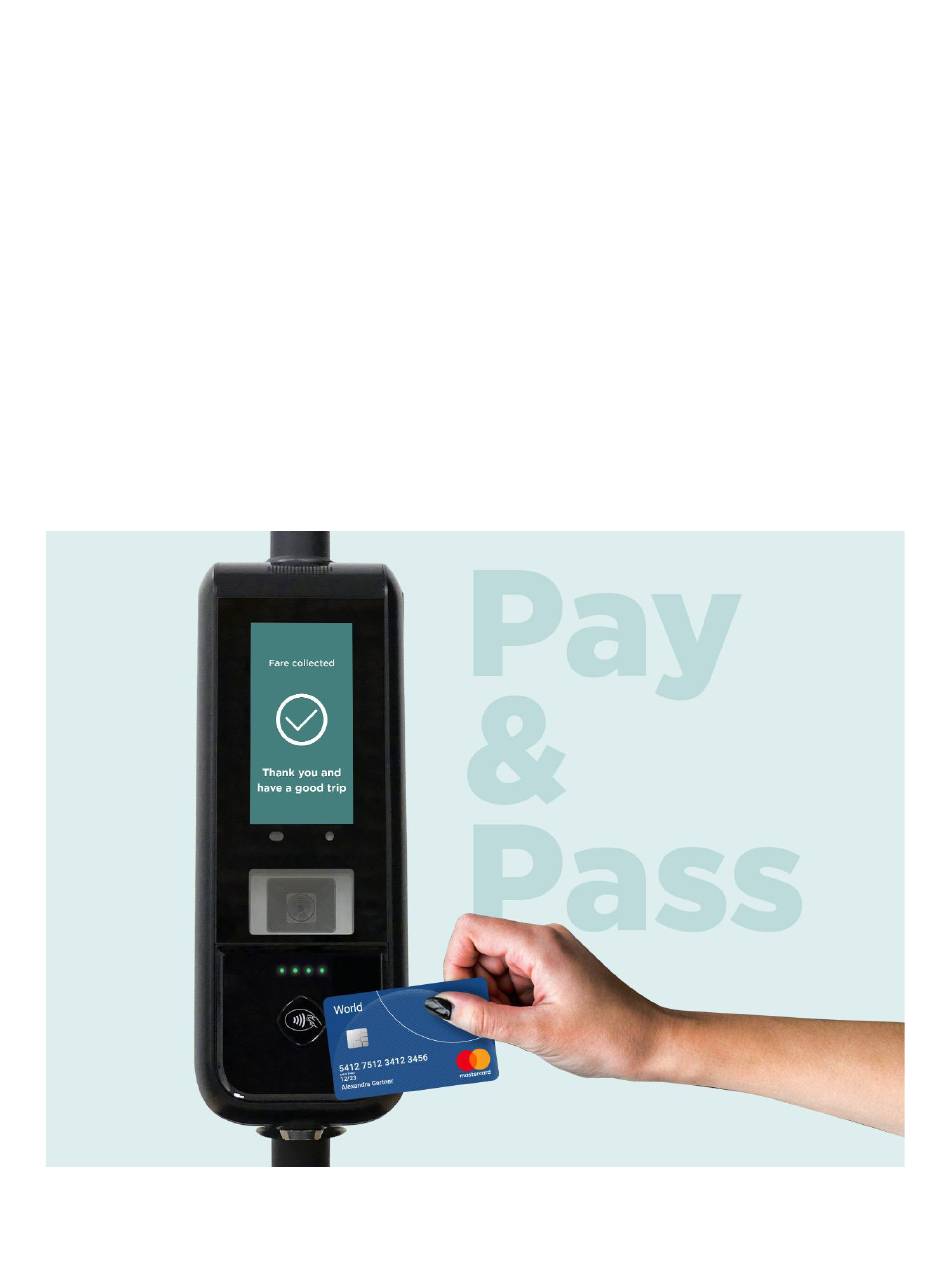

- Page 1 User Manual FX925RF-ING NFC Android Validator Hardware Versions: FX925RF-ING-VPDC-GEN,0101 FX925RF-ING-VWDC-GEN,0101 FX925RF-ING-VPDC-GEN,1101 FX925RF-ING-VWDC-GEN,1101 FX925RF-ING-VPDC-PRE,0101 FX925RF-ING-VWDC-PRE,0101...
-
Page 2: Table Of Contents
How to install the front casing 8.2.5 Troubleshooting & Maintenance How to clean plastic surfaces How to store FX925RF-ING How to switch the device ON or OFF Home screen and synchronization How to read a smartcard How to read an EMVco card How to read a 1D / 2D code 8.10 About the SIM/SAM slots... -
Page 3: Copyright
4 Limitation of liability Famoco shall not be liable for any loss of profits or indirect, special, incidental, or consequential damages resulting from or arising out of or in connection with using this product, whether or not Famoco had been advised, knew, or should have known the possibility of such damages. -
Page 4: Device Layout
Applications and their functions may vary by country, region, or hardware specifications. ● Famoco is not liable for performance issues caused by applications from any provider other than Famoco. Famoco is not liable for performance issues or incompatibilities caused by edited registry ●... -
Page 5: Package Content And Accessories
Famoco 7.1 Product Delivery Famoco FX925RF-ING is provided to you not fully assembled, you will need to access the internal parts of your device for a proper installation. Thus, whether for the Pole or the Wall configuration of the product, it is provided in two parts - a front and back casings - that will need to be assembled at the final product destination. -
Page 6: Electrical Installation
Famoco FX925R series User manual 8.2.1 Electrical installation Warning: Make sure that the power supply is switched off during the entire installation, setting up, disassembly or any other maintenance operation on the device may damage the device and cause harm to anyone operating on it. - Page 7 Famoco FX925R series User manual Input voltage of 12V DC: Copper section mm2 12V DC (25 W/h, I=2,08) Cable length (m) minimum maximum Rigid wire’s (both ways) (PT 5%) (PT 2.5%) cross-section AWG equivalence 0.06 0.12 0.5 mm2 AWG 20 0.12...
-
Page 8: How To Install A Back Casing - Wall Configuration
Famoco FX925R series User manual This connection is not needed for the product to operate nominally, if you do not need or use this feature, please let this connector free. 8.2.2 How to install a Back Casing - Wall Configuration 8.2.2.1 Tools of the installer... - Page 9 Famoco FX925R series User manual Electric cable Power cables, section and length depending on the voltage and the location of the power plug (*) (*) refer to chapter "Electrical recommendations" 8.2.2.2 Prerequisite installation 8.2.2.2.1 Installation surface To ensure proper installation and sealing at the rear of the unit, the installation surface must be straight and level.
- Page 10 Famoco FX925R series User manual 1. To ensure the tightness of the device, the breakable openings are available both for fixing and for the passage of cables. Identify and break only those that will be required for fixation among those available.
- Page 11 NOTE: Only drill and make openings according to these instructions and following the drilling templates.provided by Famoco. Creating openings in the product at other location may result in a nonfunctional product as the cable routing may conflict with other peripherals as well as void...
- Page 12 Famoco FX925R series User manual Cables can be routed directly from the rear of the unit, in the case of a hollow wall, or through the bottom of the cable gland. In both cases, the breakable or pierceable openings are available.
- Page 13 Famoco FX925R series User manual 8.2.2.3 Assembly & electric installation 8.2.2.3.1 Mounting preparation In detail, the back of the validator in wall mounting consists of: ● A back casing ● Two seals ● A central room, housing the power supply electronics The validator support installation uses the following elements: ●...
- Page 14 Famoco FX925R series User manual is supplied with a seal which makes it possible to seal in the event of irregularities on the surface, make sure to place it during the installation. 2. The rear phase has two USB-A female connectors, to connect external devices (dongles or USB cables).
- Page 15 Famoco FX925R series User manual c. The jumper available allows activating the 12/24 VDC power line in the front casing, for both FX925RC-ING and FX925RF-ING, the jumper must be plugged. d. In the case of cables passing through protruding grommets, use the lower bracket to tighten and secure the cables against possible tearing.
- Page 16 Famoco FX925R series User manual 5. For the installation of the intermediate part and the closing of the rear face, use the 8 screws supplied and the Torx screwdriver TT20, with rod length of 80 mm minimum to go to the bottom of the barrel, in order to screw and close the wall mount.
-
Page 17: How To Install A Back Casing Pole
Famoco FX925R series User manual 8.2.2.4 End of installation test Once the Back Casing is installed, you can test the electrical connection and the correct power supply of the unit by checking, with a multimeter, the following test points ● VCC +5V DC must be lowered and stabilized in 5V DC ●... - Page 18 Famoco FX925R series User manual 8.2.3.2.2 List of supplies Designation Commentaries Quantity 5.5 mm drill bit Drilling for the anti-rotation screw Drill bit between 12 and 16 mm Central hole drilling Tapered reamer, diameter of 20 Central hole drilling 1, optional...
- Page 19 Famoco FX925R series User manual 8.2.3.3.4 Standard drilling template Place the unit at the desired height from the floor. Take care to check the specific height instructions for each use case. The standard drilling template is as follows: 1. Use the drilling template to identify the position and the different holes to be drilled on the pole to fix the support.
- Page 20 Famoco FX925R series User manual 8.2.3.3.5 Drilling template for data cabling In case of data cables (USB) should arrive at the rear casing, and extra drilling holes on the pole could be considered. 8.2.3.4 Mechanical assembly & electrical installation Warning: For safety reasons, make sure that the power supply is turned off throughout the operation.
- Page 21 Famoco FX925R series User manual The installation of the validator uses the following elements: ● 4 metal brackets, all identical ● 2 anti-rotation screws with washers ● screws for fixing the fixing brackets to the back casing ● 16 plastic spacers (8 spacers per pair of fixing brackets) ●...
- Page 22 Famoco FX925R series User manual 2. For a perfect centering on the pole, place the recommended number of spacers for the diameter of the pole, then fix the lower bracket with the 4 flat-headed screws, as shown: In this example, only one spacer is placed behind the bracket. This configuration is suitable for 35 mm diameter bars.
- Page 23 Famoco FX925R series User manual ● Seal Type 3 can be identified by a “36 - 40” engraving 4. The fully assembled back casing will hold the rear seal halves and the rear brackets, as follows: 8.2.3.4.3 Mounting the back casing 1.
- Page 24 Famoco FX925R series User manual 2. Stack the recommended number of spacers fixing screws, depending on the diameter of the pole, so that they serve as a stop against excessive tightening of the fixing bracket. Place the nuts/screws with the washers provided.
- Page 25 Famoco FX925R series User manual 4. Tighten the self-locking nuts and the anti-rotation screw(s) using the pipe wrench. The result is: 8.2.3.4.4 Intermediate part fixing 1. Remove the lid that protects the access to the accessible electric items: the terminal block, the fuse and a...
- Page 26 Famoco FX925R series User manual 2. Pass the power cable through the opening in the center. 3. Place the remaining halves of the seals on the top and bottom of the intermediate part.
- Page 27 Famoco FX925R series User manual 4. Use the 8 screws provided with the TT20 Torx-type screwdriver, with a minimum shank length of 80mm to go to the bottom of the clearance hole, to screw and fix the intermediate part on the rear casing.
- Page 28 Famoco FX925R series User manual 3. Ensure the jumper is on the right configuration: for both FX925RC-ING and FX925RF- ING, the jumper must be plugged. Finally, replace the lid, as shown in the image below, to hide the wiring and protect the access to...
- Page 29 Famoco FX925R series User manual 8.2.3.4.6 Ignition Input The third pin of the power supply connector is made to accept an ignition input signal, which must be 12 or 24VDC. If your final installation uses this feature and is capable of providing an ignition signal, please use this connector by following the same instruction set in the previous section for the power cables.
-
Page 30: How To Install The Front Casing
Famoco FX925R series User manual Please note the USB standard is USB 2.0. Therefore, the maximum power supply available per connector is 500 mA. 8.2.3.6 End of installation test Please refer to section 8.2.2.4 End of installation test. 8.2.4 How to install the front casing The installation of the front casing for wall and pole is the same, and it is done by fitting and then sliding it down. -
Page 31: Troubleshooting & Maintenance
If the problem persists, contact the Famoco support team: support@famoco.com 8.3 How to clean plastic surfaces Here are a few extra tips to help keep you healthy and connected using your Famoco devices: ● Famoco devices without a protective case or screen protector: Spray an alcohol-based... -
Page 32: How To Store Fx925Rf-Ing
To remove grease or plastic stains, gently rub the stains with isopropyl alcohol and a microfiber cloth. Do not use abrasive cleaners. 8.4 How to store FX925RF-ING Store the terminal in its original packaging, at a temperature between -10°C and 55°C, and a humidity level between 5% and 95% without condensation. -
Page 33: How To Read A Smartcard
Famoco FX925R series User manual If there is a connection, one of the following screens will appear (depending on the synchronization status): Just a moment screen Obtaining device information screen If the synchronization is in progress, please wait until it is complete. -
Page 34: How To Read An Emvco Card
Famoco FX925R series User manual Passing a smartcard in front of the NFC antenna 8.8 How to read an EMVco card To read an EMvco card, bring the card near the NFC pictogram (i.e. a hand holding a card) on the front casing, below the scan engine. -
Page 35: How To Read A 1D / 2D Code
Famoco FX925R series User manual Figure: Passing a EMVco media in front of the NFC antenna 8.9 How to read a 1D / 2D code To read a barcode (either from a mobile phone screen or a paper), place the barcode in front of the scan engine of the FX925R validator. -
Page 36: About The Sim/Sam Slots
Sim Card and the 3rd is a MicroSD card. On some versions, a SAM slot may be present. Figure: one (1) SAM slot on the Android host Famoco FX2055 series, accessible from the back of device front cover... - Page 37 5.0”, IPS FWVGA 960x480 pixels Display 5.0” touchscreen Touch Panel Notification 1 multi-color LED (red, green, blue) ● 1 SAM slot on Famoco validator Security SAM slots ● 4 SAM slot on the Ingenico Open/1500 NFC reader Operating modes Reader/writer ●...
-
Page 38: Warranty Information
Famoco FX925R series User manual Read barcodes from paper, mobile phones, Performance and tablets Speaker, Microphone, Accelerometer Front (AxH) 315 x 115mm/12.40 x 4.52in. Back (AxH) 340 x 115mm/13.38 x 4.52in. Dimensions L x W x H Depth 140mm/5.51in. (Wall-mounted) Depth 110mm/4.33in. -
Page 39: Safety And General Information
Famoco FX925R series User manual 7. The customer shall have no right to reject, return, or receive a refund for any product user under the above-mentioned situations, not excluding your statutory rights under national law. 11 Safety and general information The device contains delicate electronic circuitry, magnets, and in some cases battery systems. - Page 40 Famoco FX925R series User manual could be condensing moisture inside the device, which can cause internal damage. Switch off and leave for 30 minutes before use. ● Do not use the device where blasting is in progress. Do not leave the battery discharged or disconnected for long periods; and your battery life ●...
- Page 41 March 2024...
