1
Instruction Manual Lunt 80mm Modular Telescope:
Converting your Modular System

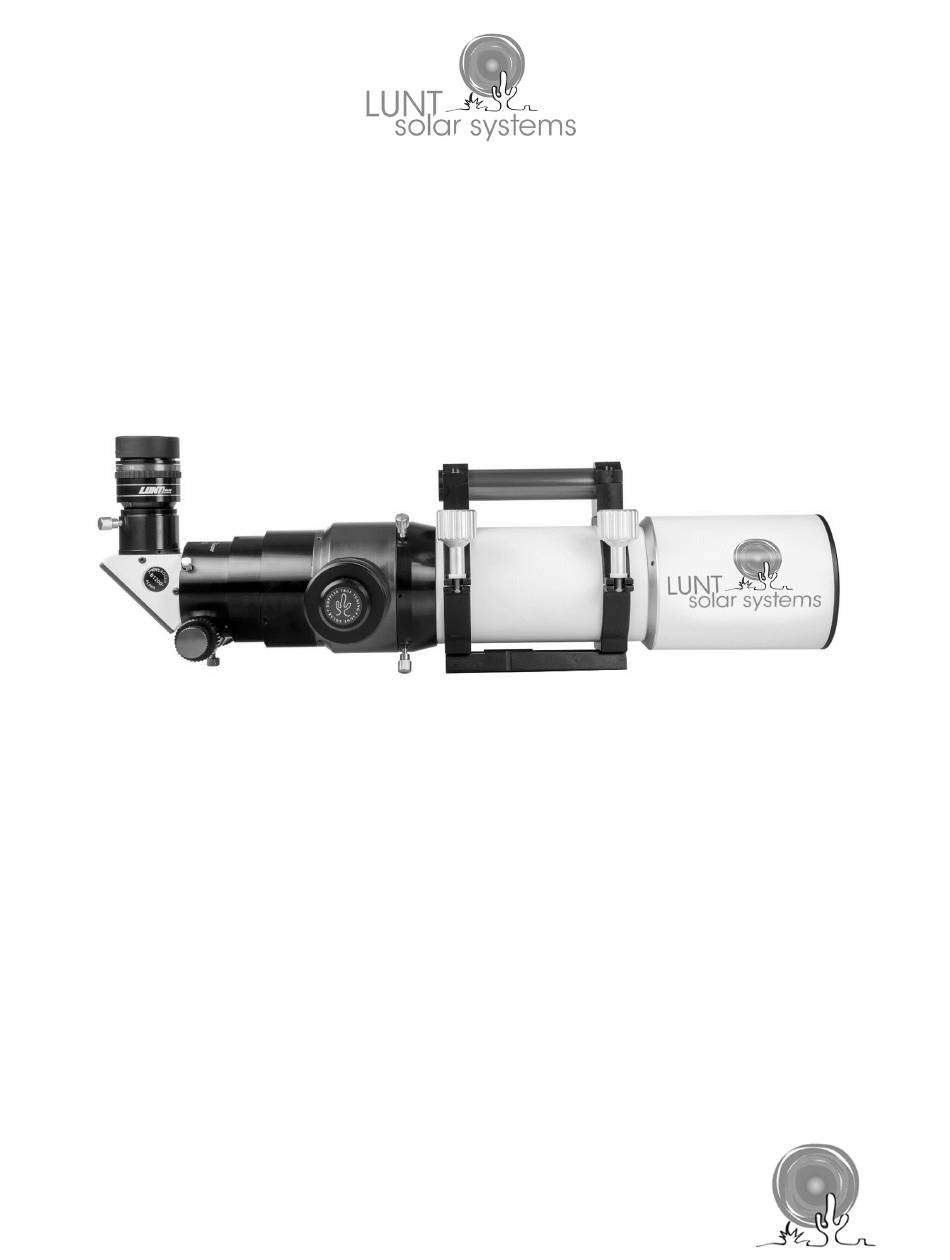

Lunt 80MT pictured in H-alpha mode
Lunt 80MT Conversion to:
White Light
Calcium K
Night Viewing
Terrestrial Viewing
Lunt Solar Systems 2520 N. Coyote Drive Suite 111 Tucson, AZ 85745 877-344-7348 Sales@luntsolarsystems.com
Advertisement
Related Manuals for Lunt Solar Systems 80MT
Summary of Contents for Lunt Solar Systems 80MT
- Page 1 Instruction Manual Lunt 80mm Modular Telescope: Converting your Modular System Lunt 80MT pictured in H-alpha mode Lunt 80MT Conversion to: White Light Calcium K Night Viewing Terrestrial Viewing Lunt Solar Systems 2520 N. Coyote Drive Suite 111 Tucson, AZ 85745 877-344-7348 Sales@luntsolarsystems.com...
- Page 2 Removing your H-alpha Module on the Lunt 80MT for modular use: 1) Cover the front objective lens of the Lunt 80MT using the provided threaded lens cap to ensure your safety while swapping components.
- Page 3 4) Cover the H-alpha module end with the provided dust cap and store safely in your case or on a secure surface. 5) Connect your Backing Plate and Focuser assembly to the opening of the Lunt 80MT OTA. Take care to ensure the Backing Plate and Focuser assembly is fully seated into the OTA. Tighten the 3 thumbscrews around the diameter of the black collar to secure the Backing Plate and Focuser assembly.
- Page 4 Pictured: Lunt 80MT in White Light viewing mode using Lunt 2” White Light Wedge Lunt CaK Module 90-degree prism diagonal 45-degree prism diagonal (2” to 1.25” adapter available separately) Lunt Solar Systems 2520 N. Coyote Drive Suite 111 Tucson, AZ 85745 877-344-7348 Sales@luntsolarsystems.com...
-
Page 5: Safety Information
Handling and Equipment Care Handling A Lunt Solar Systems solar filter or telescope houses many optical elements that are all pre-aligned and fixed at the factory. There are no user serviceable parts inside the scope. The telescope or filter should NEVER be taken apart. - Page 6 (plain tissues only), or bleach or acidic products which will damage the anodized surfaces. If ever in doubt, consult your local dealer or call Lunt Solar Systems at 877-344-7348 with any questions or concerns. We are happy to assist you!
