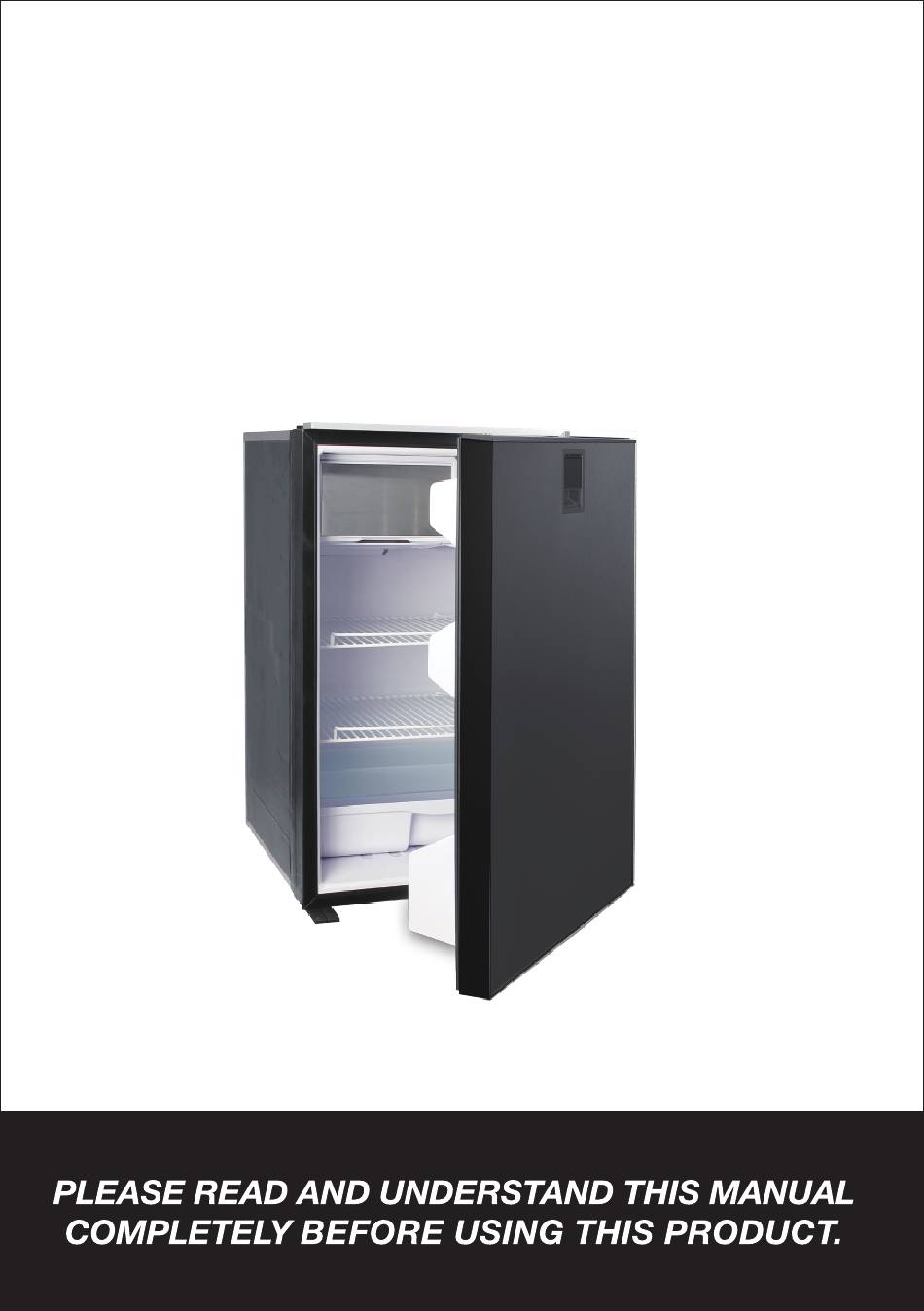

- Page 1 USER MANUAL Fridge/Freezer Model:DSP-130BY1...
-
Page 2: Table Of Contents
CONTENTS 1.SAFETY..................3 1.1 SAFETY INFORMATION 1.2 WARNINGS 1.3 SAFE DISPOSAL 1.4 DANGER 2. DESCRIPTION................5 3. SPECIFICATIONS................5 4. IMPORTANT INFORMATION............5 5. POWER SOURCE................6 6. WIRING...................6 7. INSTALLATION................6 8. EFFICIENT OPERATION..............7 9. OPERATION...................7 9.1 Usage instructions 9.2 Thermostat-controlled temperature regulation 10. DEFROSTING................8 11. -
Page 3: Safety
1. SAFETY This manual covers the safety information, specifications, installation, operation, maintenance and troubleshooting instructions for the DSP-130BY1 Litre Fridge/Freezer. For any questions or warranty claims please call Customersupport@smad.com.cn CAUTION: Read this instruction manual and safety warnings carefully before using the refrigerator. -
Page 4: Warnings
• Food may only be stored in its original packaging or in suitable containers. • The DSP-130BY1 Fridge/Freezer is not intended to be brought into direct contact with food. • The DSP-130BY1 Fridge/Freezer is not intended for the storage of medicines. -
Page 5: Description
Powered by a 12/24V DC Compressor, which can be powered directly via the Anderson style power connector, the DSP-130BY1 Fridge/Freezer is designed to cool freeze food and drinks. 3. SPECIFICATIONS 555 x 528 x 746 mm 25.8 kg... -
Page 6: Power Source
5. POWER SOURCE 12/24 Volt DC only. There is an Anderson style power connector at the rear of the DSP-130BY1. This heavy-duty connector is designed for long term and high-power applications. 6. WIRING The DSP-130BY1 Fridge/Freezer is supplied with an Anderson style power connector, the power supply to this connector must come directly from the vehicle battery. -
Page 7: Efficient Operation
8. EFFICIENT OPERATION If installed in a caravan or similar environment, large vents should be installed to allow air to vent to the outside environment. A lower vent to intake cool air and a higher vent for exhaust of warm air. The vents should be at least 200cm² in size. 9. -
Page 8: Defrosting
10. DEFROSTING Defrosting needs to be completed when ice inside the Fridge/Freezer is around 5mm thick. Ice on the inside walls will affect the normal operation of the device. Use the Power button to turn the fridge off and remove items from inside the Fridge/Freezer. Do not use mechanical devices, metallic, sharp objects, or other means to accelerate the defrosting process. -
Page 9: Differential
13. DIFFERENTIAL A differential is the measurement between the hottest and coldest part of a cooling cycle. Common differentials can be 2 – 5ºC, meaning the difference between the warmest and coldest part of a cooling cycle could be up to 5ºC. This is not a product fault, the same measurement exists for your fridge at home. -
Page 10: Rubber Seals
15. RUBBER SEALS 1.There are magnets inside the rubber seal to help pull the seal towards the cabinet when the door is closed. 2.Periodically and after any changes to the hinges or door latch, check the door seal is making positive contact on all 4 sides of the door. 3.If gaps are found, a small amount of heat from a hair dryer will soften the rubber seal and assist in making the rubber better contact the cabinet. -
Page 12: Warranty
17. WARRANTY...
