LD DQOR SUB WMB Quick Start Manual

DQOR SUB WMB
®
WALL & CEILING MOUNT BRACKET FOR DQOR
PRODUCT INFORMATION
This item is a product-specific accessory intended exclusively for use with subwoofers from
the DQOR® SUB 8 Series (LDDQORSUB8, LDDQORSUB8A, and LDDQORSUB8D).
These installation instructions do not replace the user manual of the associated product.
Always read the user manual first.
This accessory has no influence on the intended use of the associated product. Observe the
safety instructions in the user manual of the associated product! The technical data stated in
the user manual may change in connection with this accessory.
SAFETY INSTRUCTIONS
1. Please read this manual carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the accessory in the prescribed manner only.
DANGER: KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE SWALLOWED
AS WELL AS PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF
THE REACH OF CHILDREN!
DESCRIPTION
The custom-fit mounting bracket makes installing subwoofers from the LD DQOR® SUB 8
Series easy and flexible.
FEATURES
•
Suitable for permanent outdoor installations
•
Mounting bracket for wall and ceiling mounting
•
Compatible with the subwoofers from the DQOR® SUB 8 Series
•
Sturdy, durable steel construction with powder coating
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material. Please check
the completeness and integrity of the delivery, and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
The packaging content for the product LDDQORSUBWMB includes:
•
1× LD DQOR SUB mounting bracket
•
4 metal-reinforced rubber pads
•
Drilling template (included in packaging)
•
Safety and compliance information / Installation instructions in EN (multilingual installation
instructions as a download via QR code in the safety and compliance information)

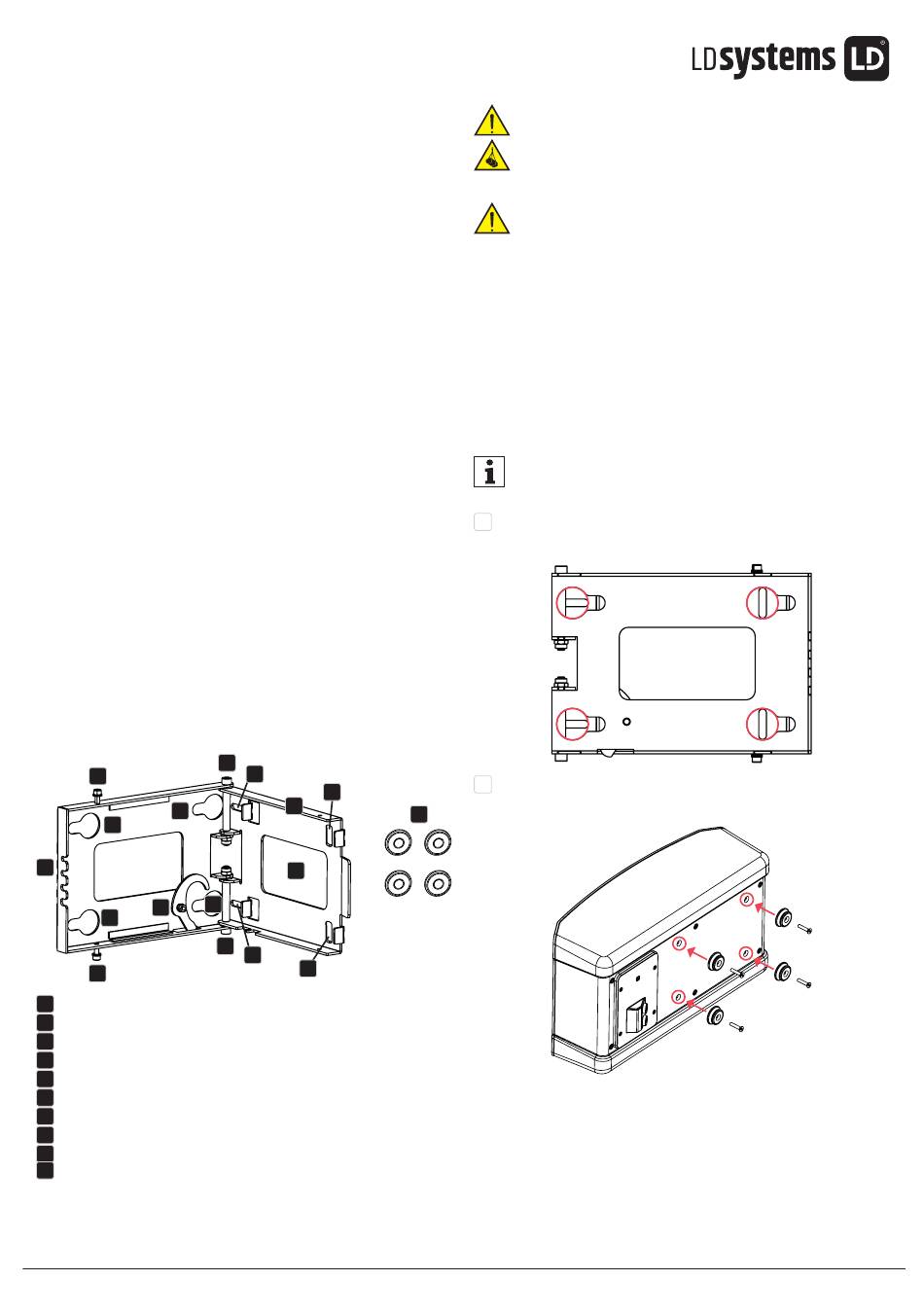

INSTALLATION
8
5
5
7
5
6
5
8
1
Wall or ceiling mounting plate
2
Four slotted holes for wall or ceiling mounting (designed for screws with 8 mm diameter)
3
Cable passage
4
Hinge
5
Four keyholes for subwoofer mounting
6
Safety hook
7
Four cable cut-outs in different sizes
8
Two locking screws that prevent the mounting bracket from opening after installation
9
Four rubber pads with metal reinforcement
10
Drilling template (not shown, included in packaging)
SUB 8
®
4
2
2
1
3
4
2
2
LD Systems ®
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany | Phone: +49 6081 9419-0 | adamhall.com
DANGER: Overhead mounting requires extensive experience, including calculating
the load limit values of the installation materials used, and regular safety inspection
of all installation materials and subwoofers! If you do not have these qualifications,
do not attempt to perform an installation yourself. Refer instead to a qualified
professional. There is a risk that devices that are incorrectly mounted and secured
may come loose and fall down. This can cause serious injury or death.
ATTENTION: Make sure that the mounting surface is sufficiently stable and capable
of carrying a load. Use suitable mounting materials (screws, dowels, etc.) for the
mounting surface. Ensure that the connections are tight and that the mounting
bracket and subwoofer cannot come loose.
Horizontal wall mounting: The mounting bracket must be mounted horizontally
on a wall. The subwoofer must be attached to the mounting bracket so that the
connection terminal is on the side of the mounting bracket where the cable
cut-outs are located. Please note the imprint "TOP for horizontal mounting".
Vertical wall mounting: The mounting bracket must be mounted vertically on
a wall with the hinge directed upwards. The subwoofer must be attached to the
mounting bracket so that the connection terminal is facing downwards.
Please note the imprint "TOP for vertical mounting".
Ceiling mounting: The subwoofer must be attached to the mounting bracket so
that the connection terminal is on the side of the mounting bracket where the
cable cut-outs are located.
TIP: For vertical wall mounting and ceiling mounting: Carry out the installation
with two people and prepare the connection cables so that they only need to be
connected to the subwoofer's connection terminal.
1 Mount the mounting bracket on a wall or ceiling. The mounting bracket does not need
to be opened for this purpose.
2 Loosen the four hexagon socket screws from the subwoofer (see markings).
Attach the four enclosed rubber pads to the subwoofer using the loosened screws.
9
is a registered brand of the Adam Hall Group
