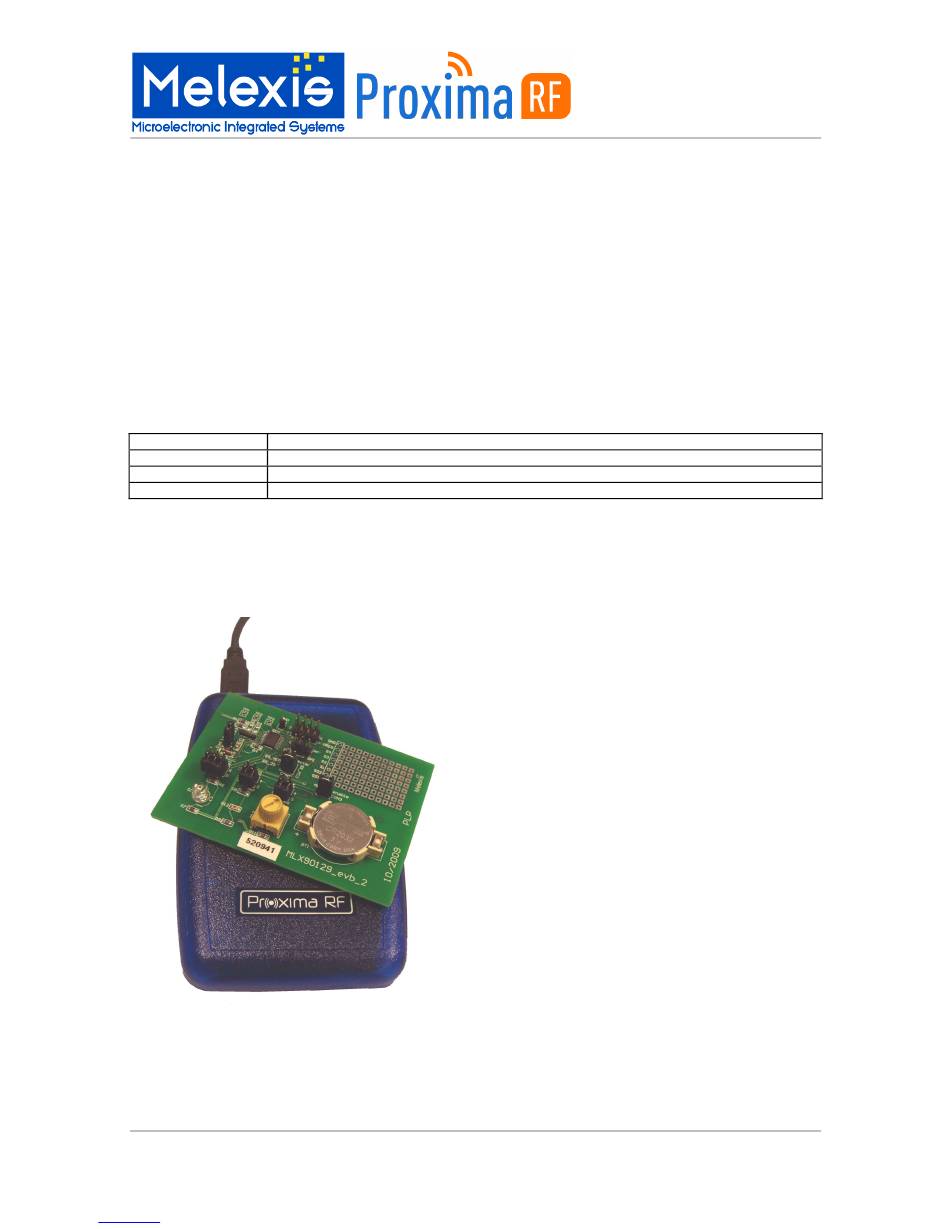

Melexis ProximaRF MLX90129 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scope
The MLX90129 from Melexis is a sensor IC with an integrated 13.56 MHz high frequency (HF) interface
that allows sensor data to be read with a HF radio frequency identification (RFID) reader. The DVK90129
is a development kit designed to assist developers explore the features of the MLX90129.
This user manual provides guidelines for use of the DVK90129 development kit. It also provides
guidelines for the EVB90129 datalogger / sensor tag based on the Melexis 90129 sensor IC and the
Proxima RF USB HF RFID Desktop reader. The DVK90129 development kit along with user friendly
evaluation software will decrease sensor IC evaluation time to improve your development cycle and time
to market. The dedicated Application Programming Interface (API) provides a quick start for developing
custom applications.
Related Melexis Products
Part No.
MLX90129
EVB90129
DVK90129
390129012902
Rev 001
Downloaded from
Elcodis.com
electronic components distributor
Comments
Sensor tag / RFID datalogger IC
Evaluation Board for MLX90129
Development kit for MLX90129
Page 1 of 16
DVK90129
Introduction
The DVK90129 development kit has been
developed by Melexis in partnership with
Proxima RF. It provides a unique platform to
evaluate and develop applications based on the
MLX90129
sensor
IC.
guidelines provided in this manual, the sensor
tag
and
datalogging
application
implemented very quickly. The plug and play
Proxima RF™ USB HF RFID reader and
application
oriented
user
customized for the EVB91029 evaluation board.
Pre-programmed settings for the EVB90129
sensors along with external memory help
developers discover and apply features found in
the MLX90129 sensor IC. The XML based
configuration file and export tools allow users to
characterize the sensors and fine tune the
MLX90129 settings and share these settings
with other users. This documentation gives
instructions for software and USB reader
installation plus
guidance on features found in
the evaluation software to help developers
practice with the tools. Finally, step-by-step
instructions are given for two examples so
developers can walkthrough trial applications.
The first example is based on a sensor tag
application and the second example is based on
a datalogging application.
User Manual
By
following
the
can
be
interface
are
April 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProximaRF MLX90129 and is the answer not in the manual?

Questions and answers

Summary of Contents for Melexis ProximaRF MLX90129

  • Page 1 User Manual Scope The MLX90129 from Melexis is a sensor IC with an integrated 13.56 MHz high frequency (HF) interface that allows sensor data to be read with a HF radio frequency identification (RFID) reader. The DVK90129 is a development kit designed to assist developers explore the features of the MLX90129.

  • Page 2: Table Of Contents

    DVK90129 User Manual Contents 1. Kit contents..............................2 2. Software and hardware installation ......................3 2.1. Download ............................. 3 2.2. Software installation ........................3 2.3. Hardware installation ........................3 2.3.1. Connect the Proxima RF Desktop..................3 2.3.2. Check the assigned Virtual COM Port ................3 3.

  • Page 3: Software And Hardware Installation

    DVK90129 User Manual 2.Software and hardware installation The followings paragraphs describe how to download and install the user interface software and hardware. 2.1. Download In order to download the software you must first create an account with Proxima RF. Please go to http://www.proximarf.com/support and find the New Customer tab on the page.

  • Page 4: Getting Started

    DVK90129 User Manual 3.Getting Started 3.1. Open the software Once the software is installed and the reader is connected, the DVK90129 User Interface can be started by navigating to Start->All Programs->Proxima RF->DVK90129 3.2. New Project Start a new MLX90129 project by selecting “New”...

  • Page 5: Tabs Description

    DVK90129 User Manual 4.Tabs description The following paragraphs describe the features of each tab. 4.1. RFID configuration You can select ISO15693 communications modes via the “RFID Configuration” tab. This tab also allows you to send ISO15693 RFID commands and custom MLX90129 commands. For more information about ISO15693 modes and commands, please refer to the MLX90129 datasheet and to the ISO web site www.iso.org.

  • Page 6: Sensor Configuration

    DVK90129 User Manual 4.2. Sensor configuration The “Sensor Configuration” tab allows you to configure up to three sensors differently. The “Sensor common configuration” contains settings which are applied to all the sensors. Examples of changes you can make are: the value of the internal resistor can be selected or the MLX90129 low volt supply can be enabled.

  • Page 7: Sensor Tag Application

    DVK90129 User Manual 4.3. Sensor Tag Application The “Sensor Tag Application” tab allows reading of the MLX90129 sensor IC values with HF RFID. Setup allows you to select which sensor(s) are to be read and the time between two consecutive measurements. Data for each sensor are shown in the dedicated windows.

  • Page 8: Datalogger Application

    DVK90129 User Manual 4.4. Datalogger Application The “Datalogger Application” tab is comprised of two sub tabs which allow configuration of datalogger parameters and provides a read-out of datalogging results. 4.4.1. Datalogger configuration The configuration tab defines all the parameters for a datalogging application. First, select the data to be saved (sensor 0, sensor 1, sensor 2 and timestamp).
  • Page 9 DVK90129 User Manual 390129012902 Page 9 of 16 April 2010 Rev 001 Downloaded from Elcodis.com electronic components distributor...

  • Page 10: Datalogger Application

    DVK90129 User Manual 4.4.2. Datalogger application The datalogger application tab allows you to collect, display and save data logged from the MLX90129. Start the datalogging application by sending the command “Start Datalogging”. At any time the measurement sequence can be put on hold by pressing the button “Hold datalogging”. Finally, the application can be stopped by pressing the button “stop datalogging”.

  • Page 11: Memory Domain

    DVK90129 User Manual 4.5. Memory Domain The “Memory Domain” tab is comprised of several sub tabs which correspond to the memory domain available in the MLX90129. The memory domain is for displaying device configuration (MLX90129 EEPROM / Register file / Internal device) and data storage (MLX90129 Internal EEPROM / External Memory).

  • Page 12: Demo

    DVK90129 User Manual 4.6. Demo The “Demo” tab allows for easy demonstration of EVB90129 sensing features. It is important to note that the sensors are for demonstration only and are not calibrated or set for granular measurement. Sensor configurations are preprogrammed and available by dragging and dropping the sensor icon on the free sensor area.

  • Page 13: Step By Step Examples

    DVK90129 User Manual 5.Step by step examples In the following examples, step by step instructions provide simple instructions to experience the sensor tag and datalogging features of the EVB90129. Start by clicking on the RFID configuration tab after ensuring the reader is connected. 5.7.

  • Page 14: Datalogging

    DVK90129 User Manual Press “Stop” to stop the application Select save data Name and save the file Open the saved data file (in Excel, for example) and create a graph 5.8. Datalogging This example of the datalogging application selects the internal temperature sensor for sensor 0 and configures the MLX90129 as a datalogger to save temperature data every second for a period of 10 minutes.
  • Page 15 DVK90129 User Manual Press the “Start Datalogging” button Select “Yes” for the question “Would you like to proceed?” in order to load configuration into the MLX90129 As requested by the warning message, the battery has to be plugged on the EVB90129 and the “VDD Selector” jumper has to be set on BAT.

  • Page 16: Trouble Shooting Notes

    (refer to page 4 of the EVB90129 user manual) 7. Contact Information Further information can be found in the MLX90129 datasheet. If further documentation is required please refer to the Melexis website, www.melexis.com. For additional information contact: Melexis Proxima RF™...
